Date of Design

2014

Product

Elektrobank 3600

Assembly ID

20120028

Company

Empower Energy Pty Ltd

Function

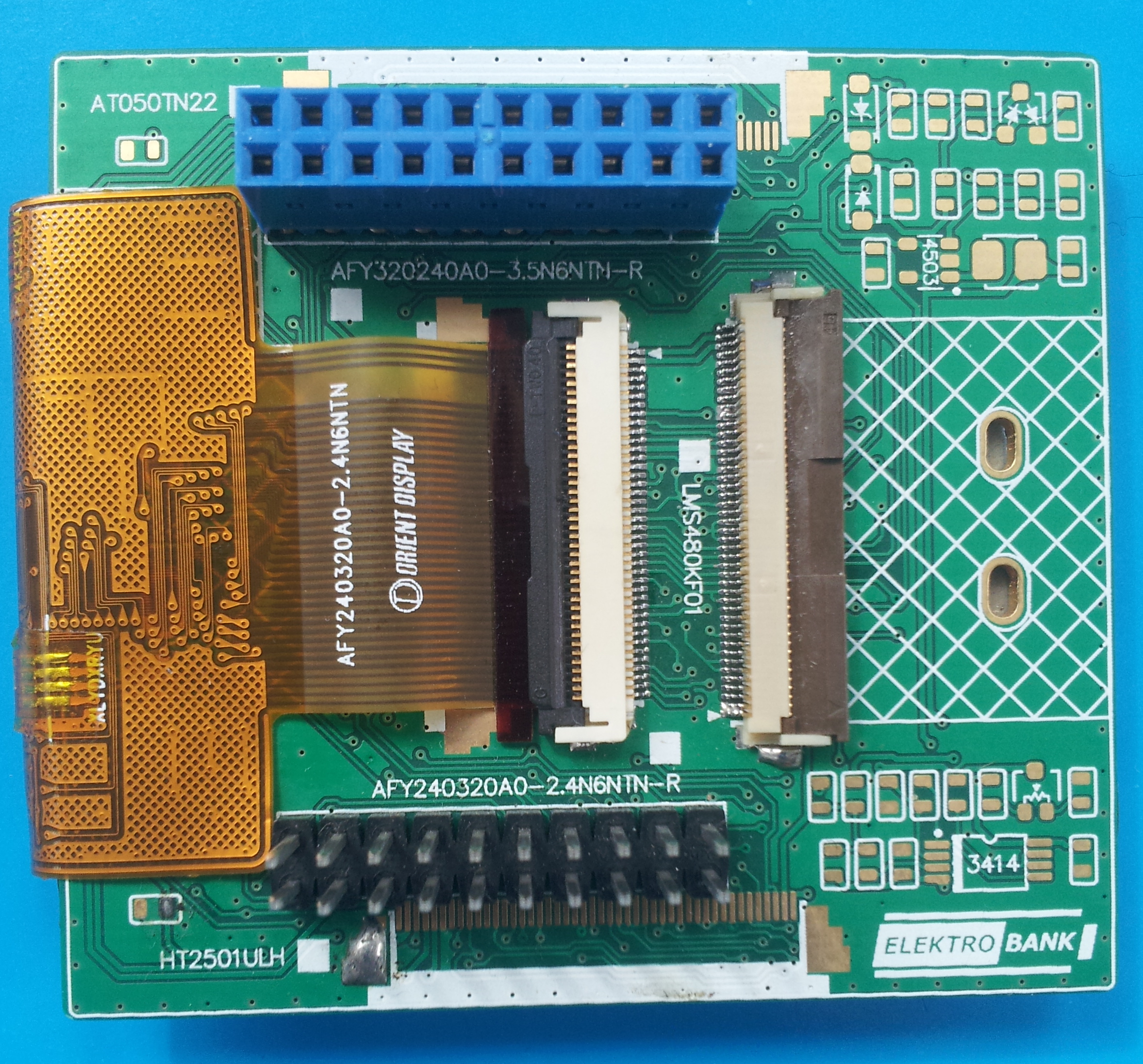

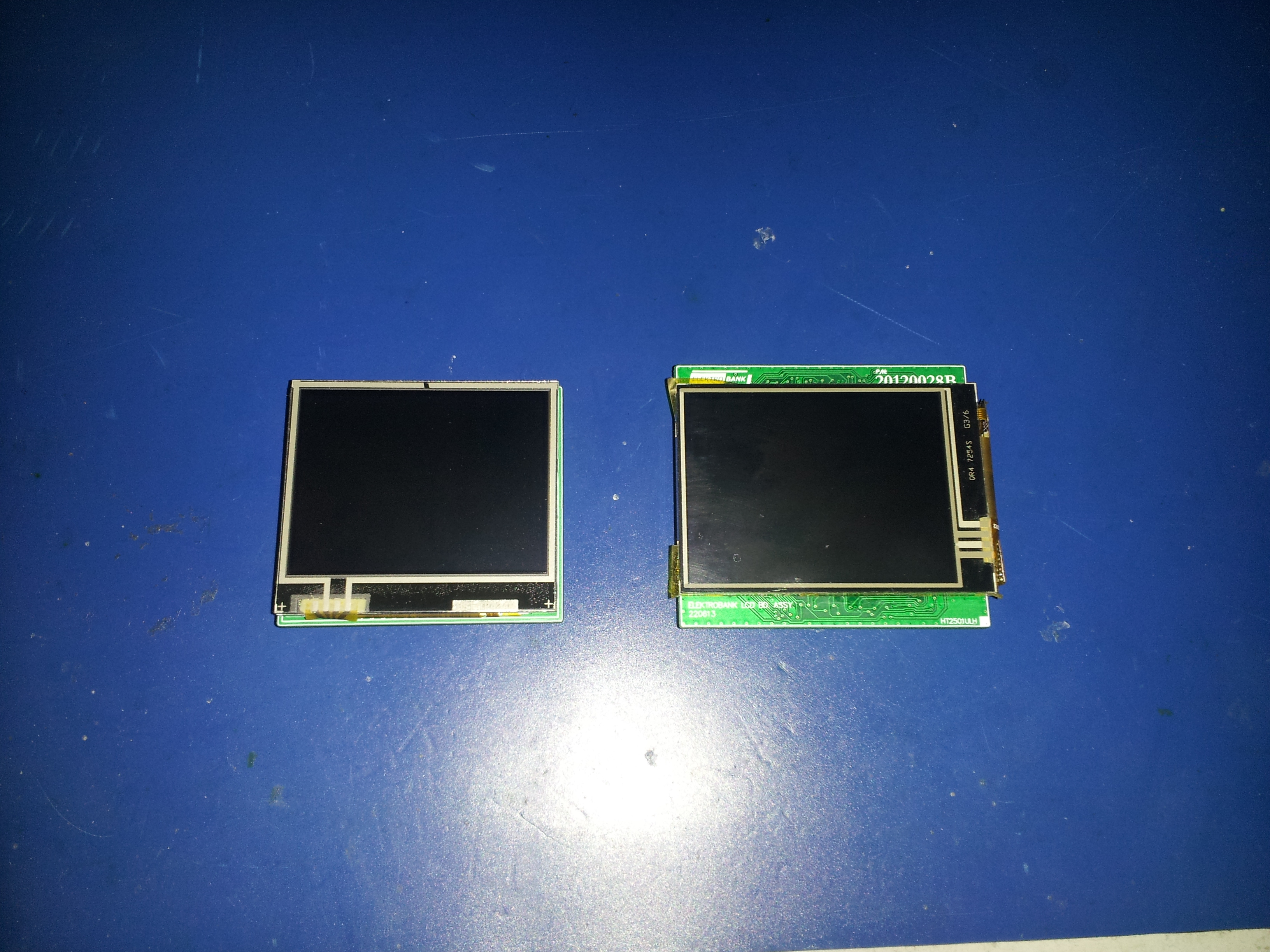

QVGA Display Module Assy

Primary Device

None

Technology

8 Track/8 space/30 via

PCB Build Specification

2 Layer, 3oz,  MASK, HASL, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

General Circuits (CHINA)

CAD Application

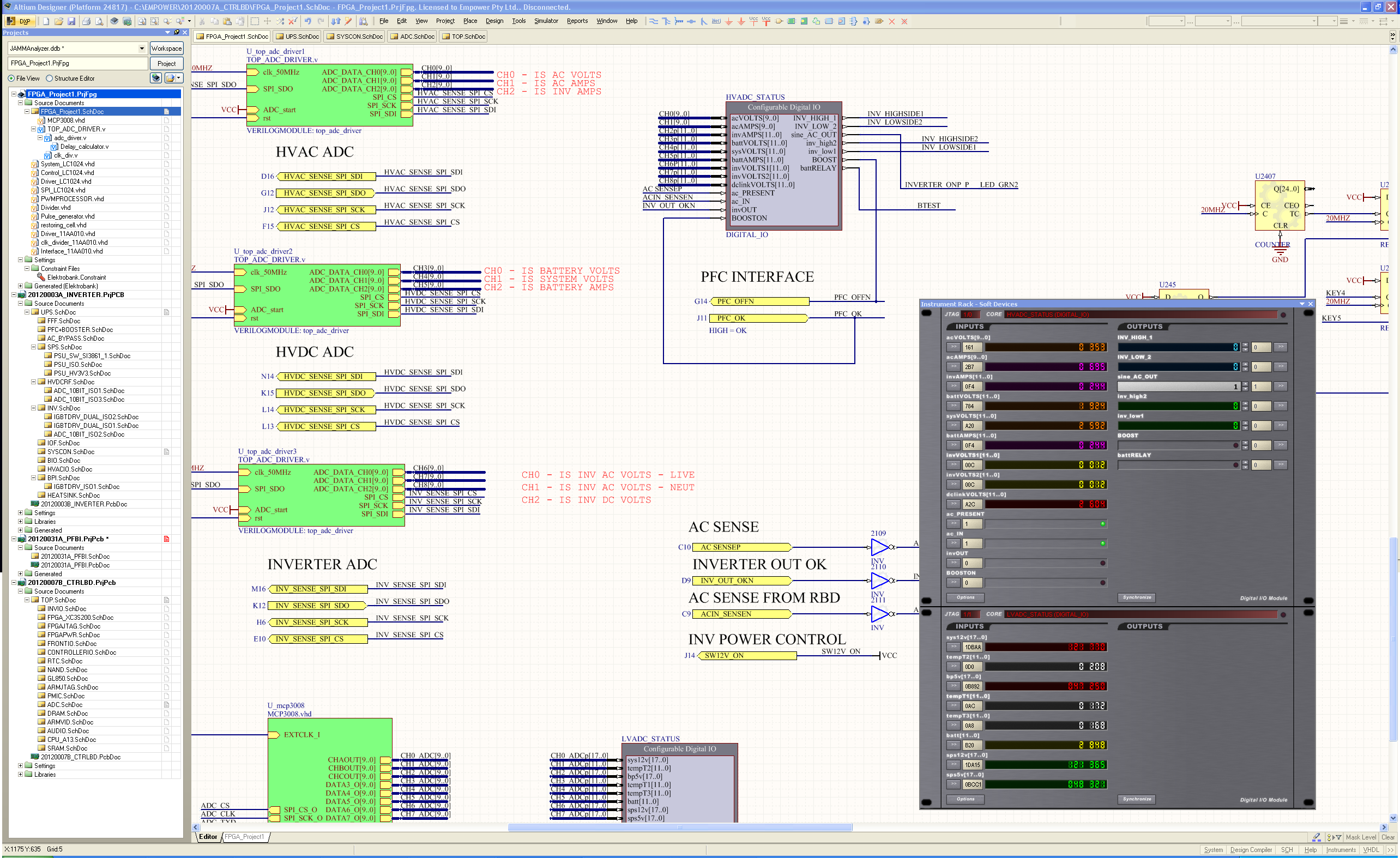

Altium Designer R12

Prototype Availability

No

Downloads

None
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
