Date of Design

2011

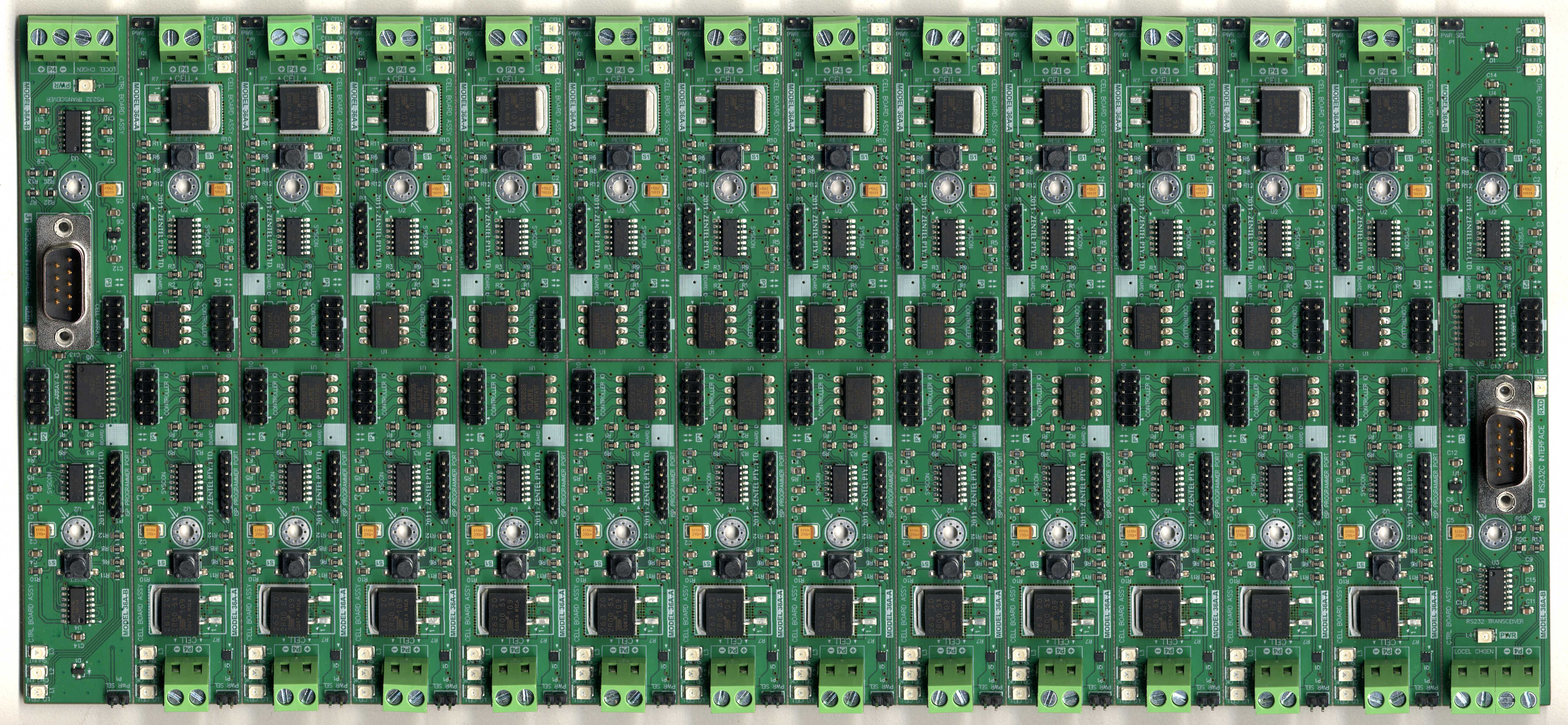

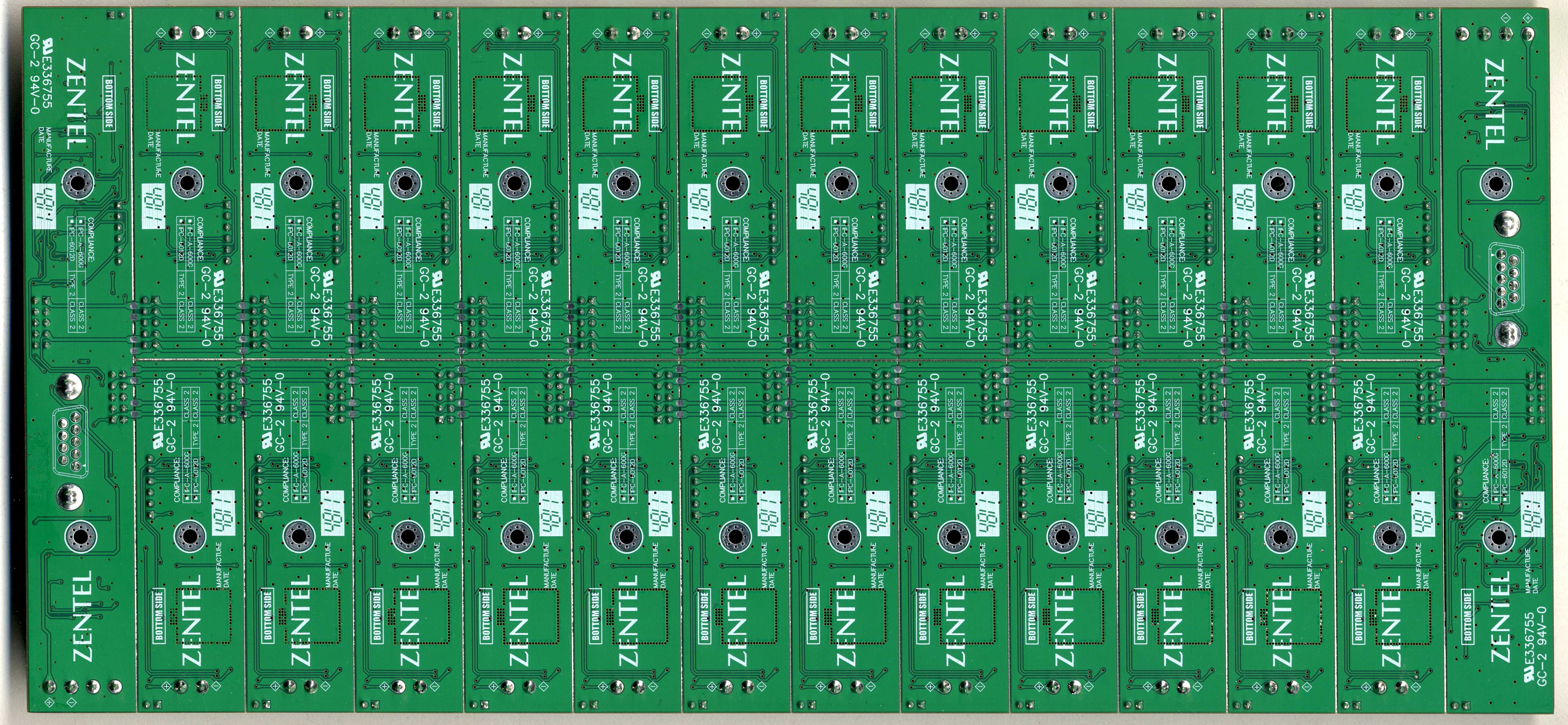

Product

Battery Management System

Assembly ID

BMS

Company

Zentel

Function

Battery System for Aviation

Primary Device

PIC16F1824

Technology

12 track/10 space/30 via

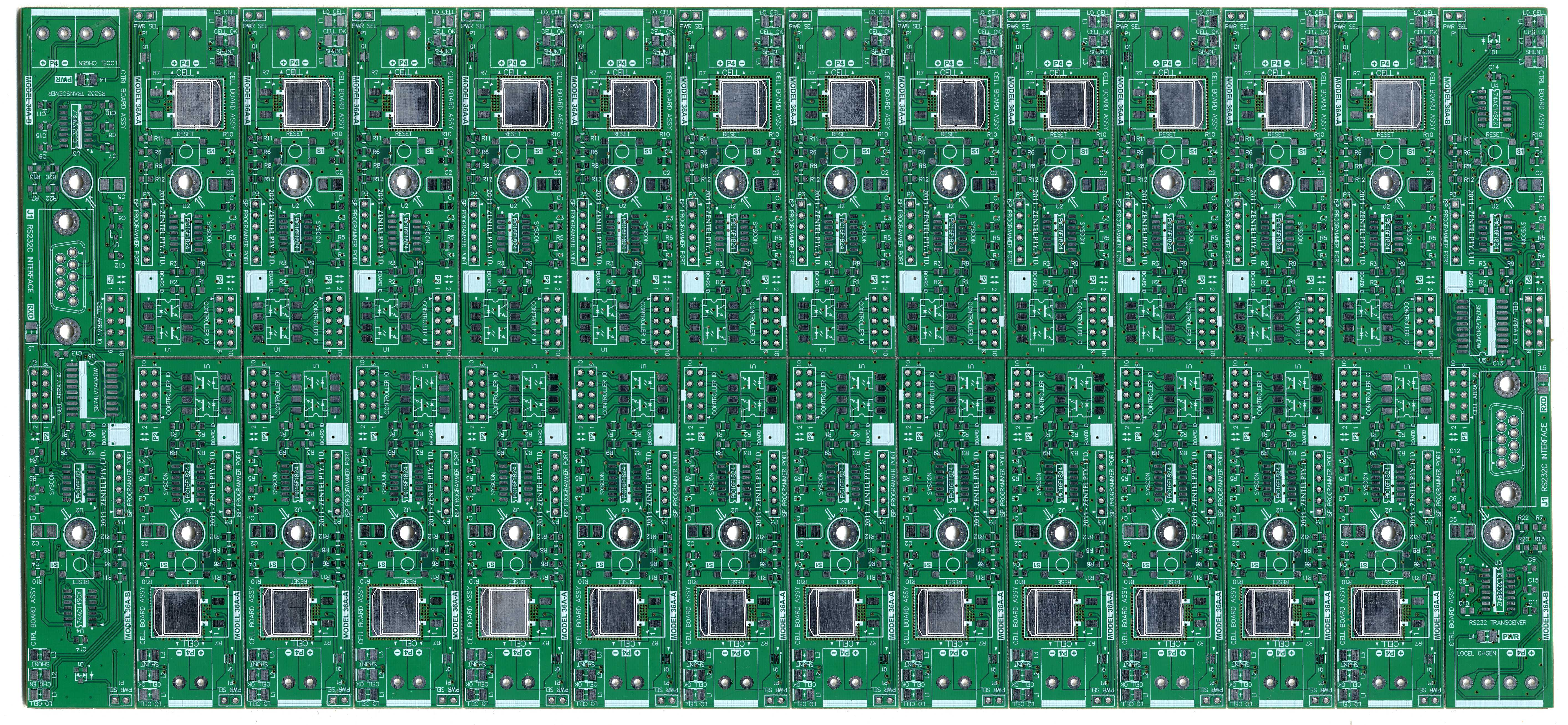

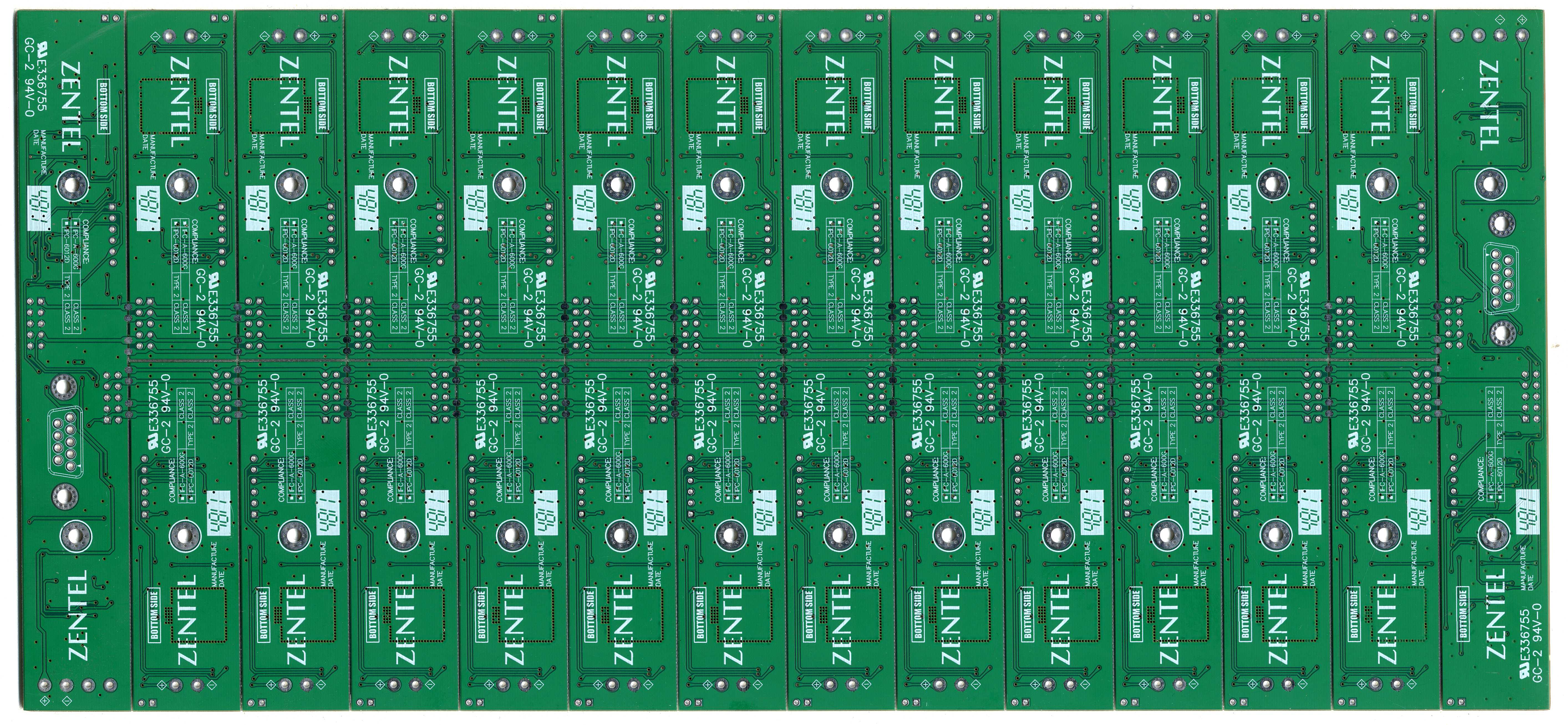

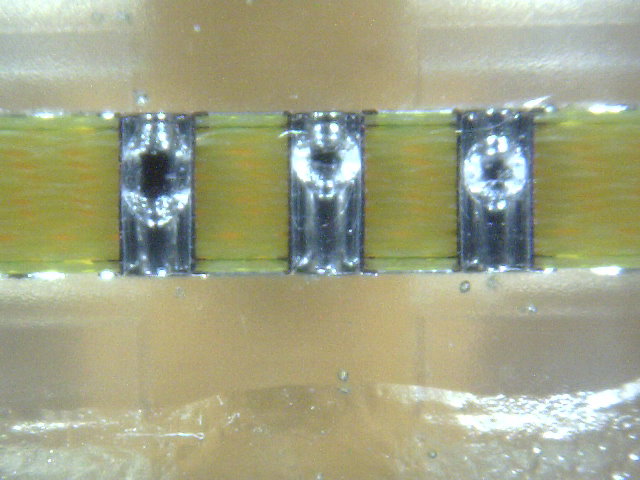

PCB Build Specification

2 Layer, 1/2oz,  MASK, HASL, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCB Cart (CHINA)

CAD Application

Altium Designer R10

Prototype Availability

No

Downloads

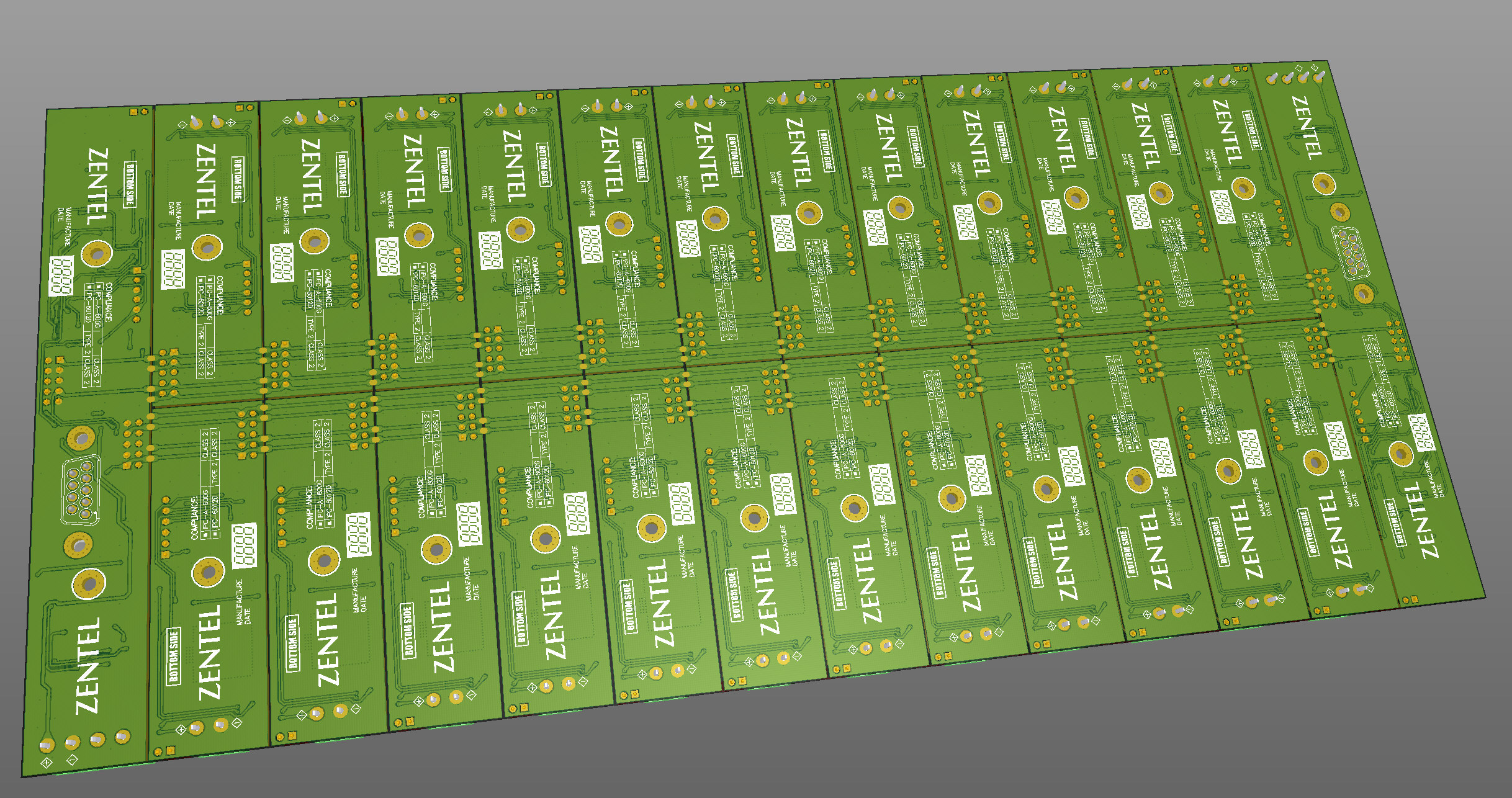

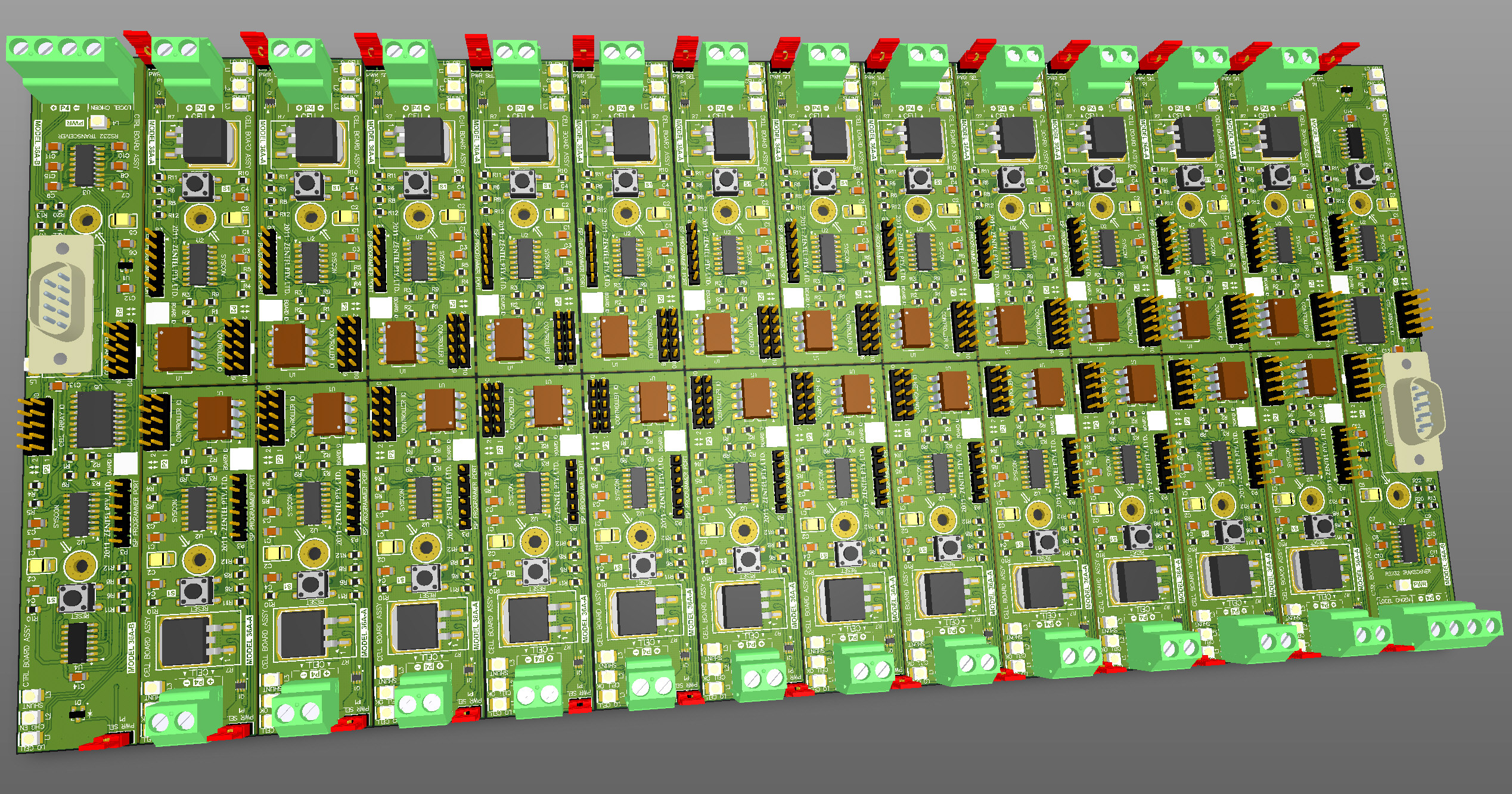

3D PDF - BMS_CNTRL_3d.PDF (PDF)

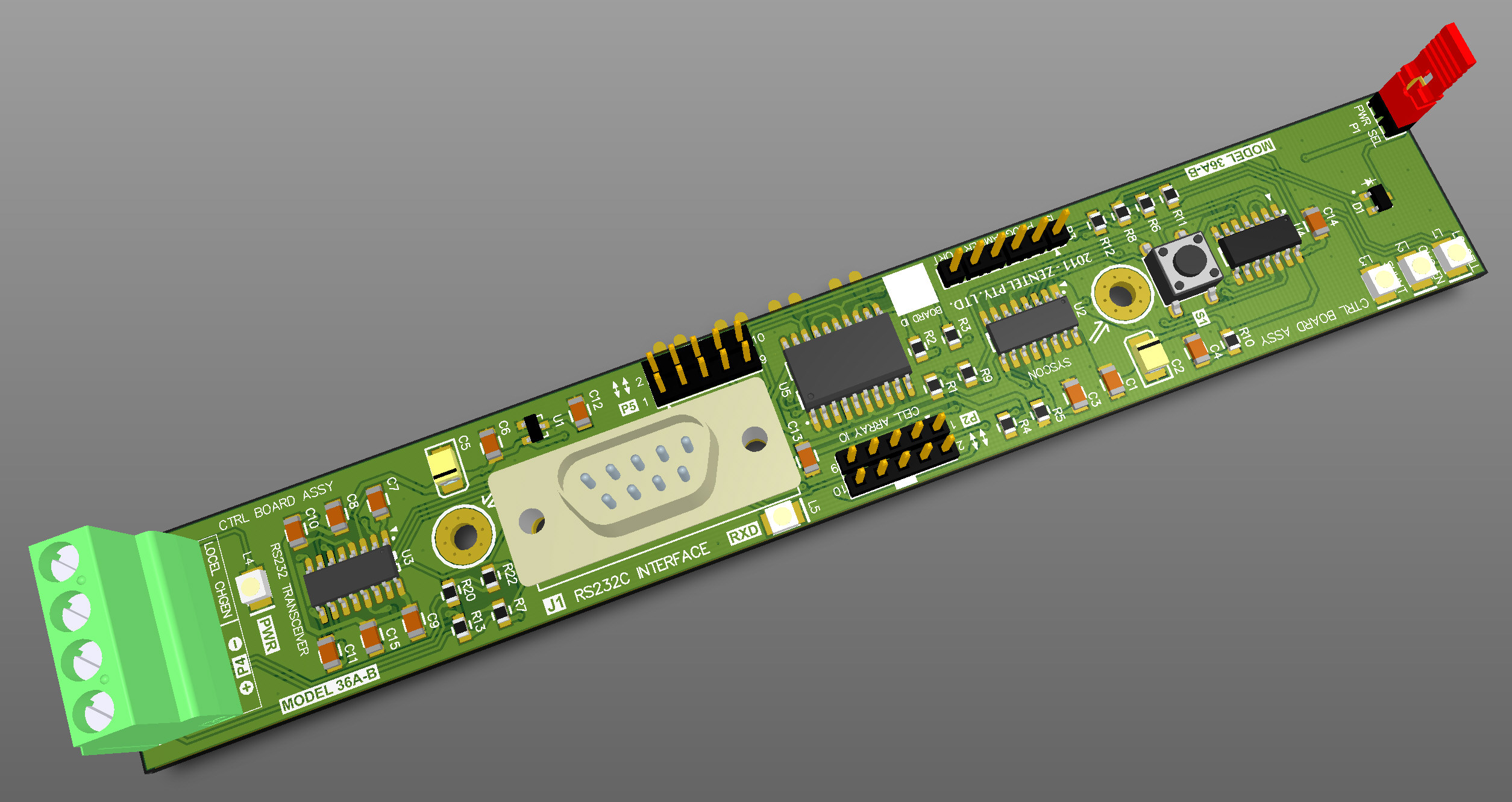

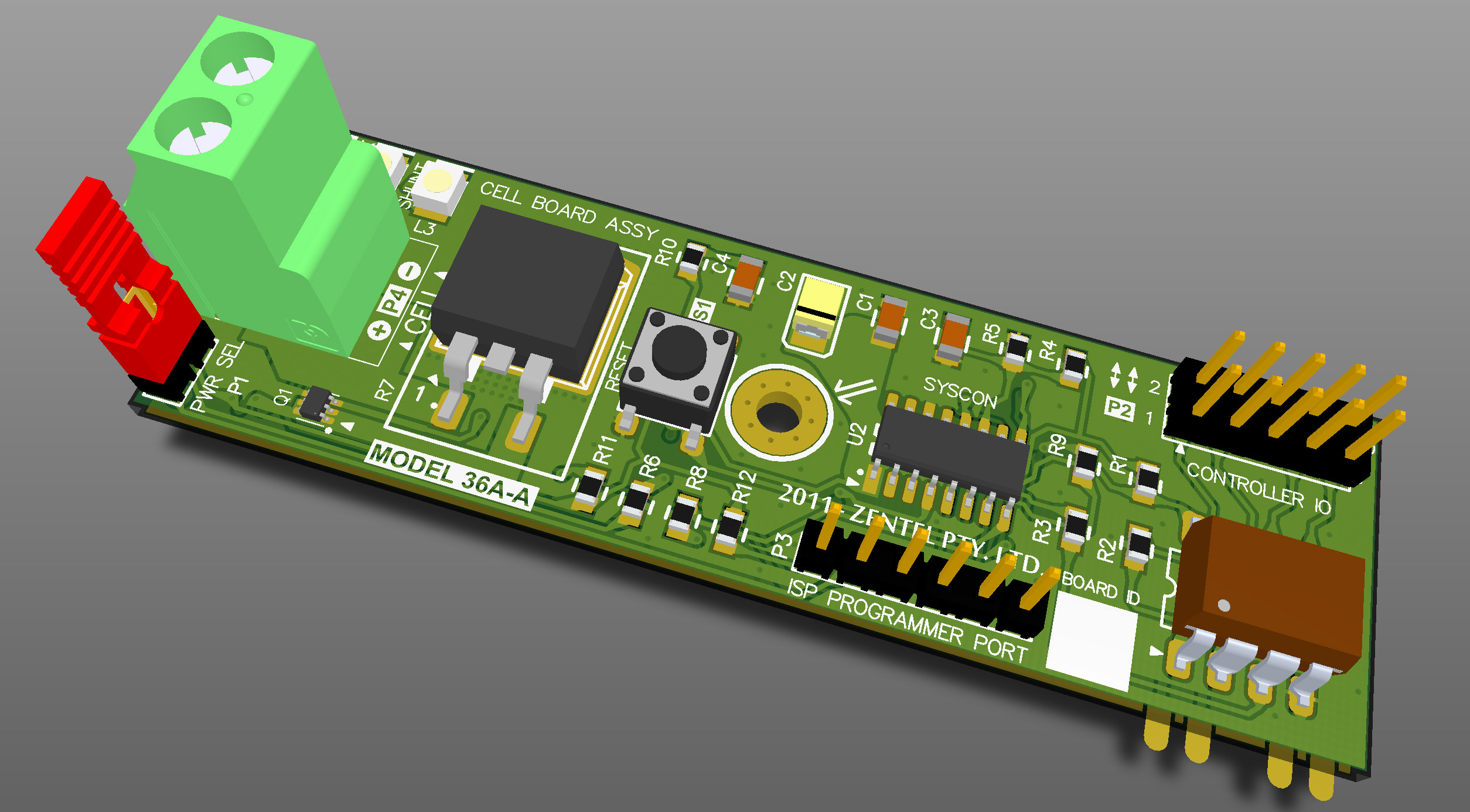

3D PDF - BMS_CELL_3d.PDF (PDF)
