Date of Design

1997

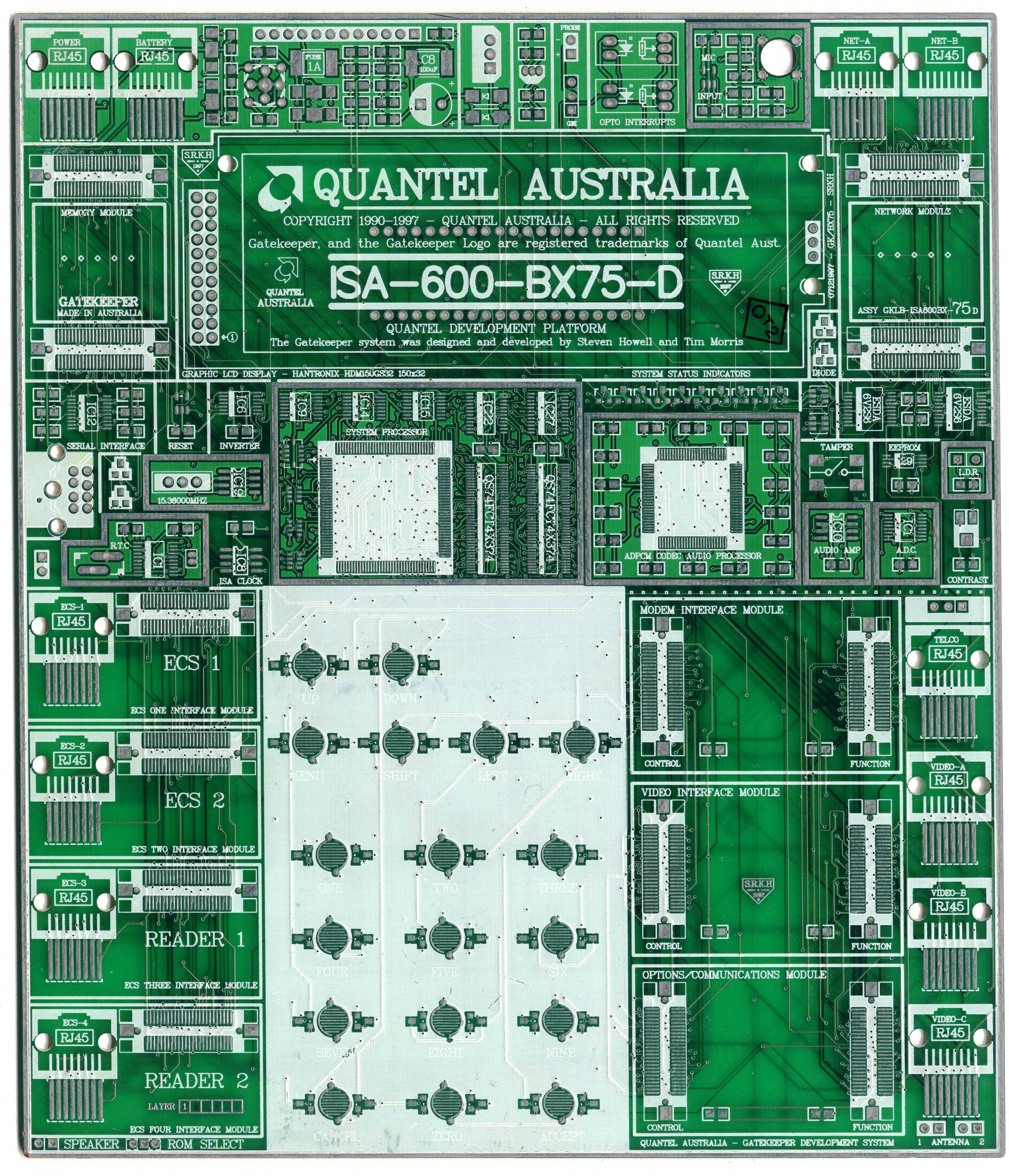

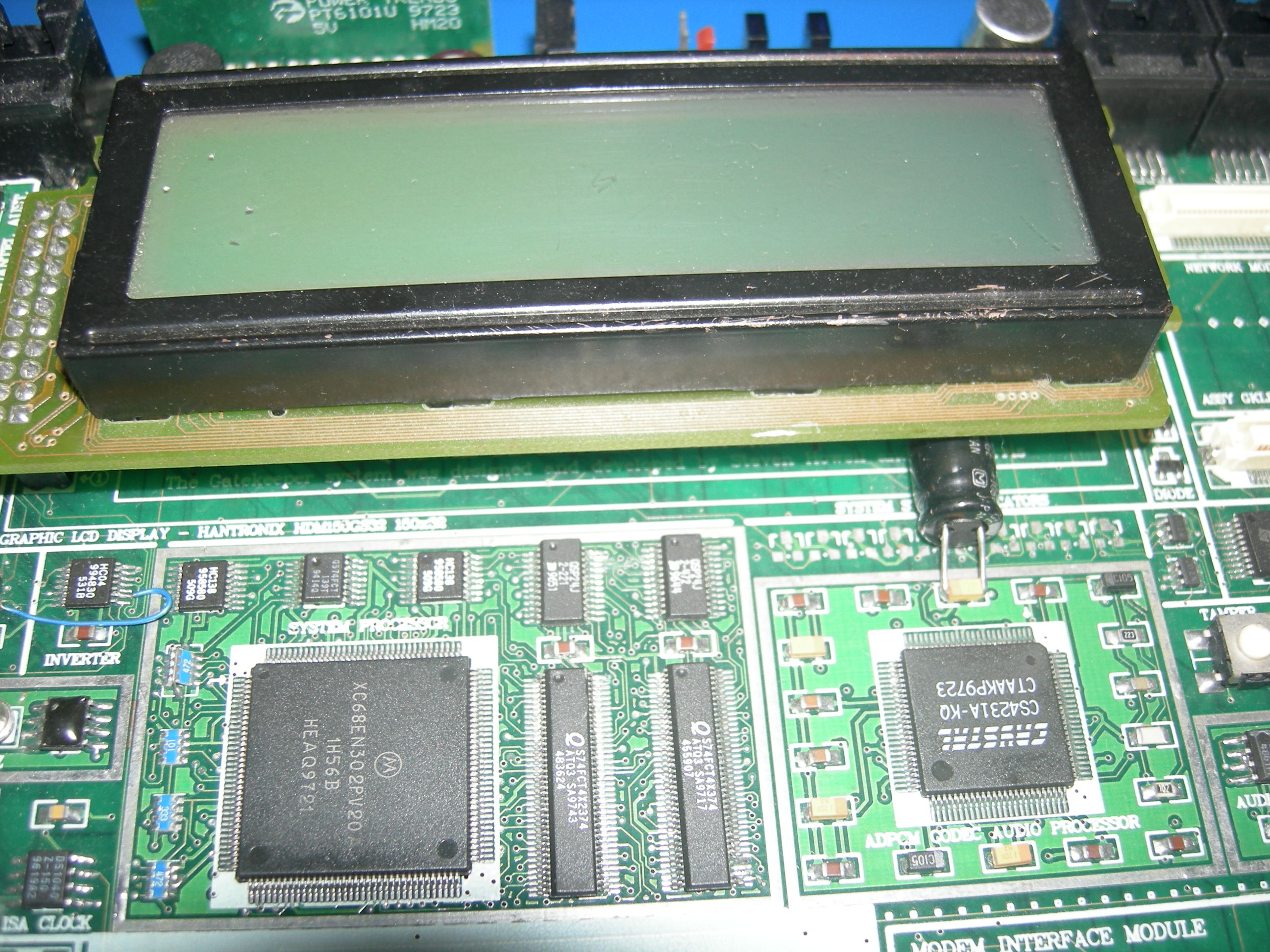

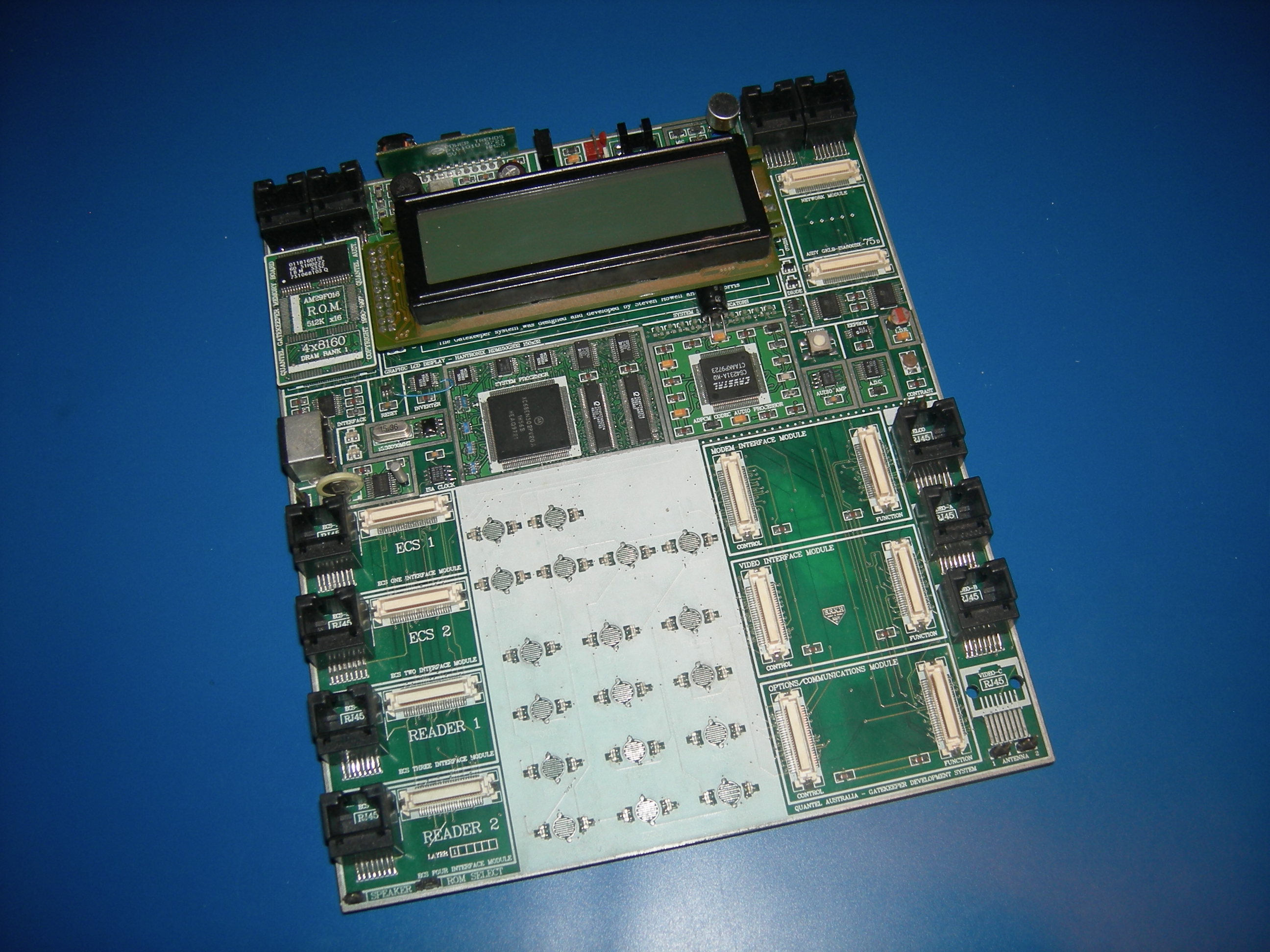

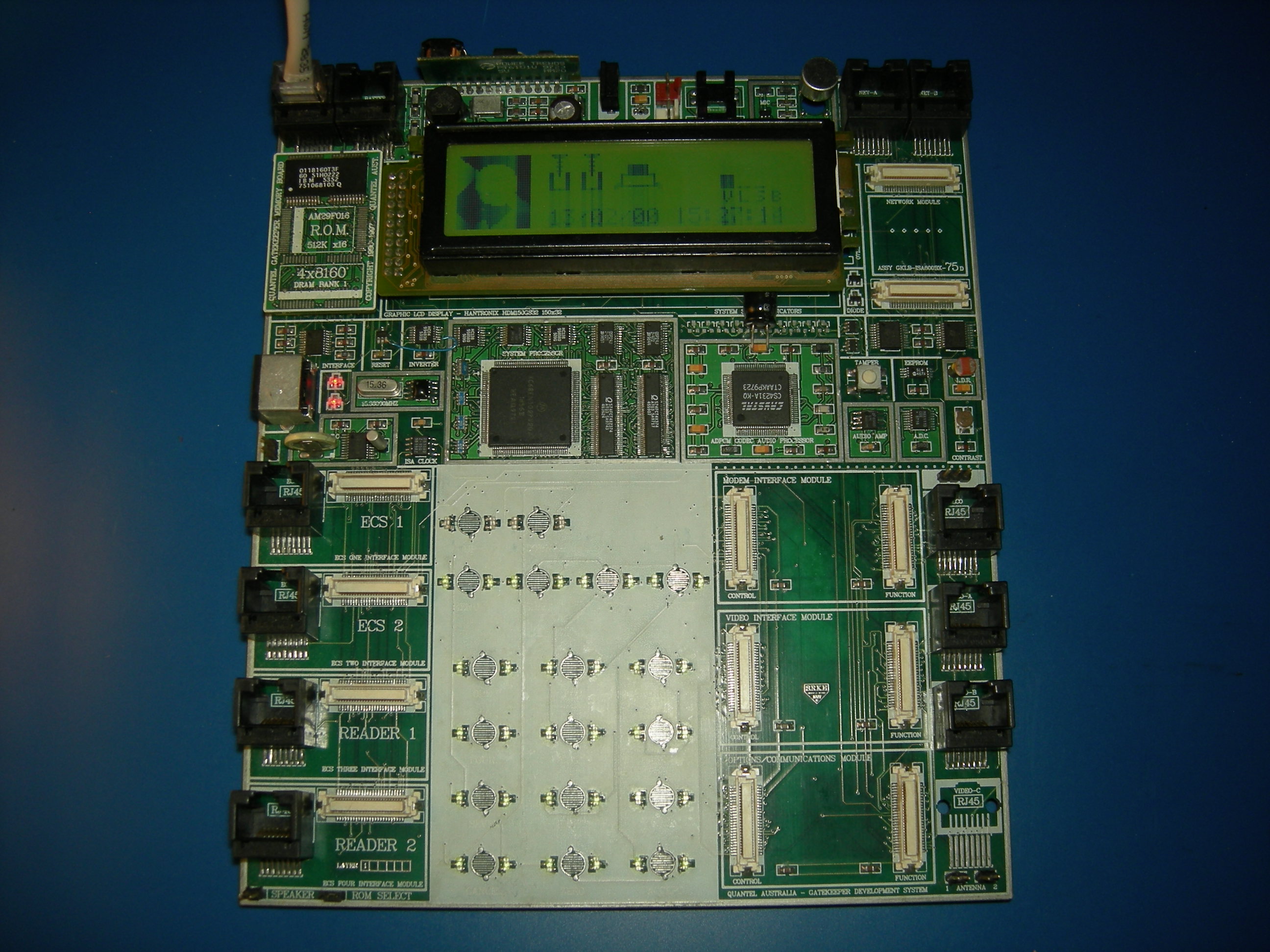

Product

Gatekeeper Motorola 68000 Version

Assembly ID

ISA-600-BX75D

Company

Quantel Australia

Function

Intelligent Security Network

Primary Device

MC68EN302 - 25MHz/33MHz

Technology

8 Track/8 Space/30 Via

PCB Build Specification

4 Layer, 1oz, MASK, HASL, FR4

Design Compliance

94V0

Contract Manufacturer

Email Circuits (QLD)

CAD Application

Protel Schematic+PFW2.8

Prototype Availability

Yes
