Date of Design

2000

Product

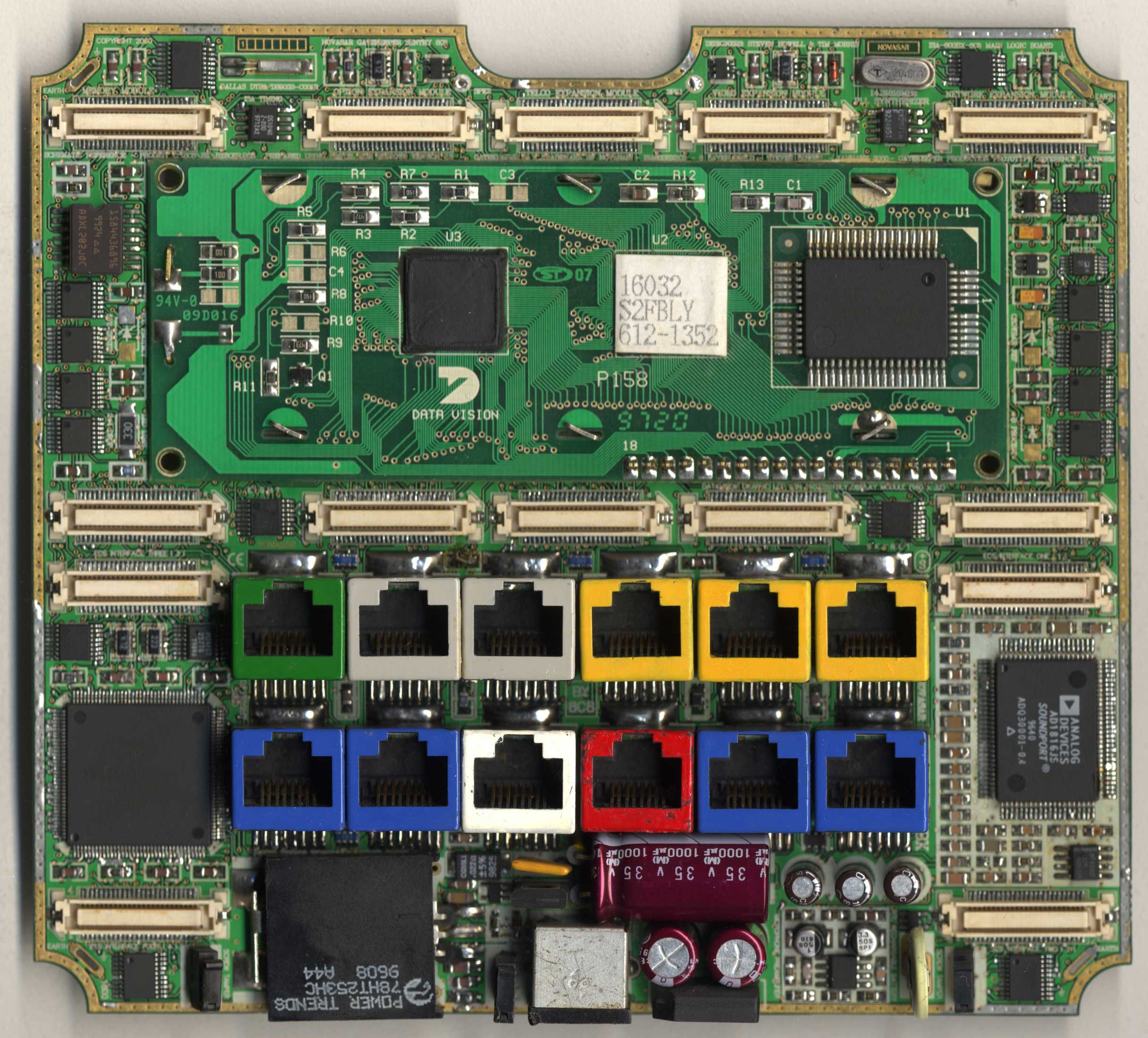

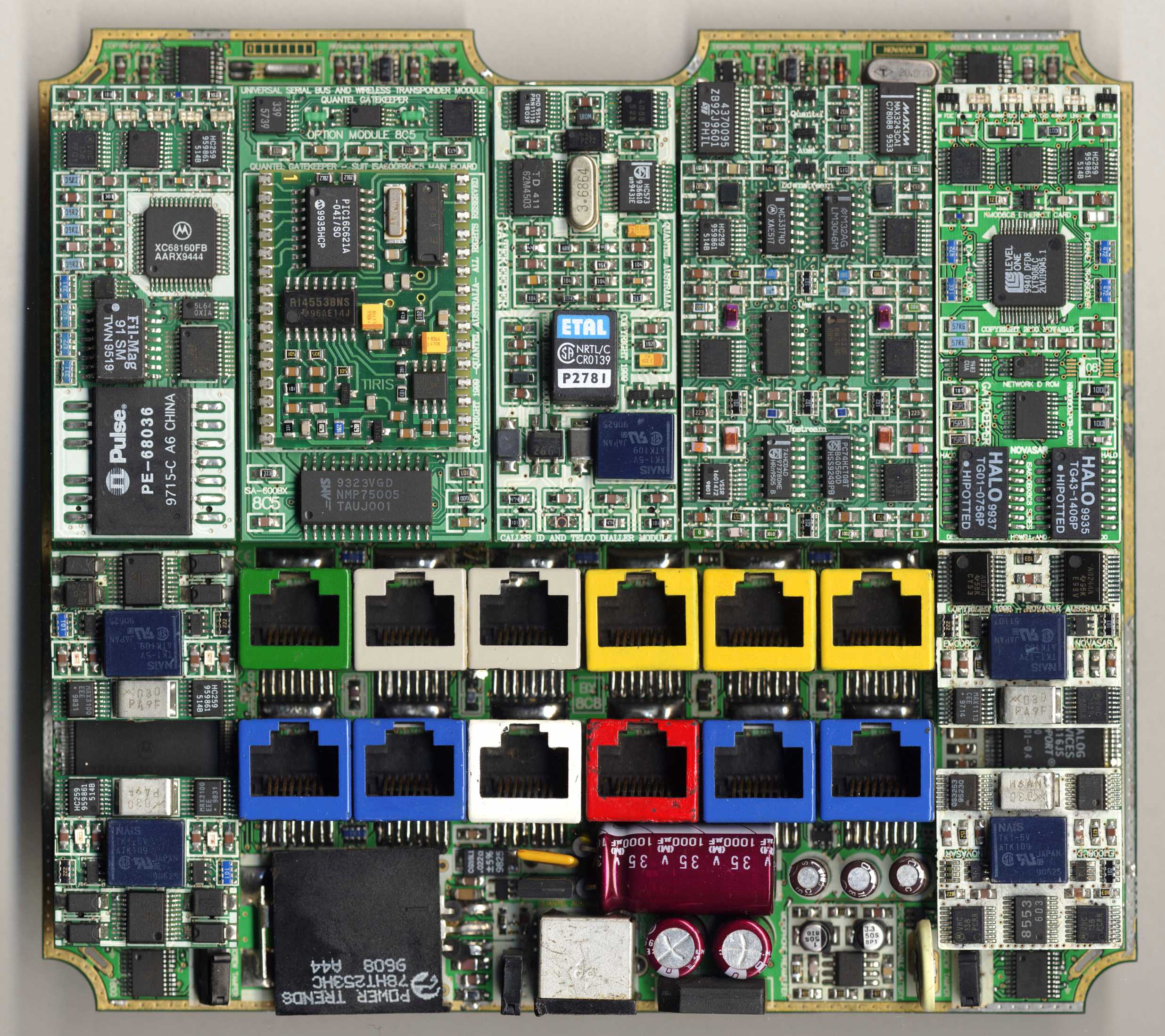

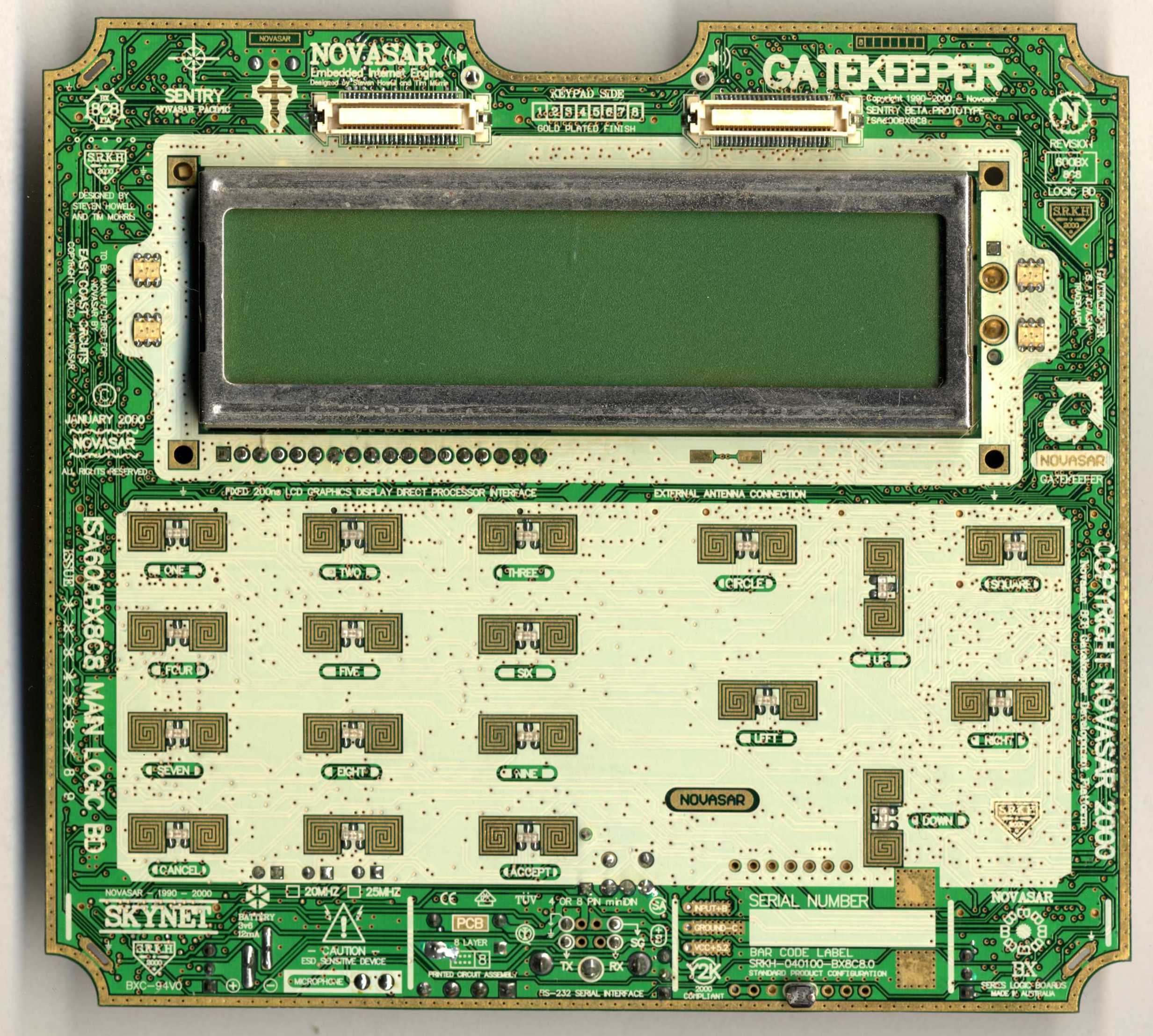

Motorola 68000 Version of Gatekeeper

Assembly ID

600-BX8C8 (nexgen to 600-AX6/BX6)

Company

Novasar (Lockwood/Inner range)

Function

Gatekeeper Security Network System

Primary Device

MC68EN302 + AD1816AJS

Technology

5 Track/5 Space/30 Via

PCB Build Specification

8 Layer, 1oz, MASK, ENIG, FR4

Design Compliance

94V0

Manufacturer

East Coast Circuits (QLD)

CAD Application

Protel Schematic+PFW2.8

Prototype Availability

Yes

Downloads

Presentation for Inner Range (PDF)
Gatekeeper Intelligent Security (PDF)
Gatekeeper IO Capability (PDF)
Gatekeeper Expandability(PDF)
Prototype First Bootup (MOV)
