Date of Design

1990

Product

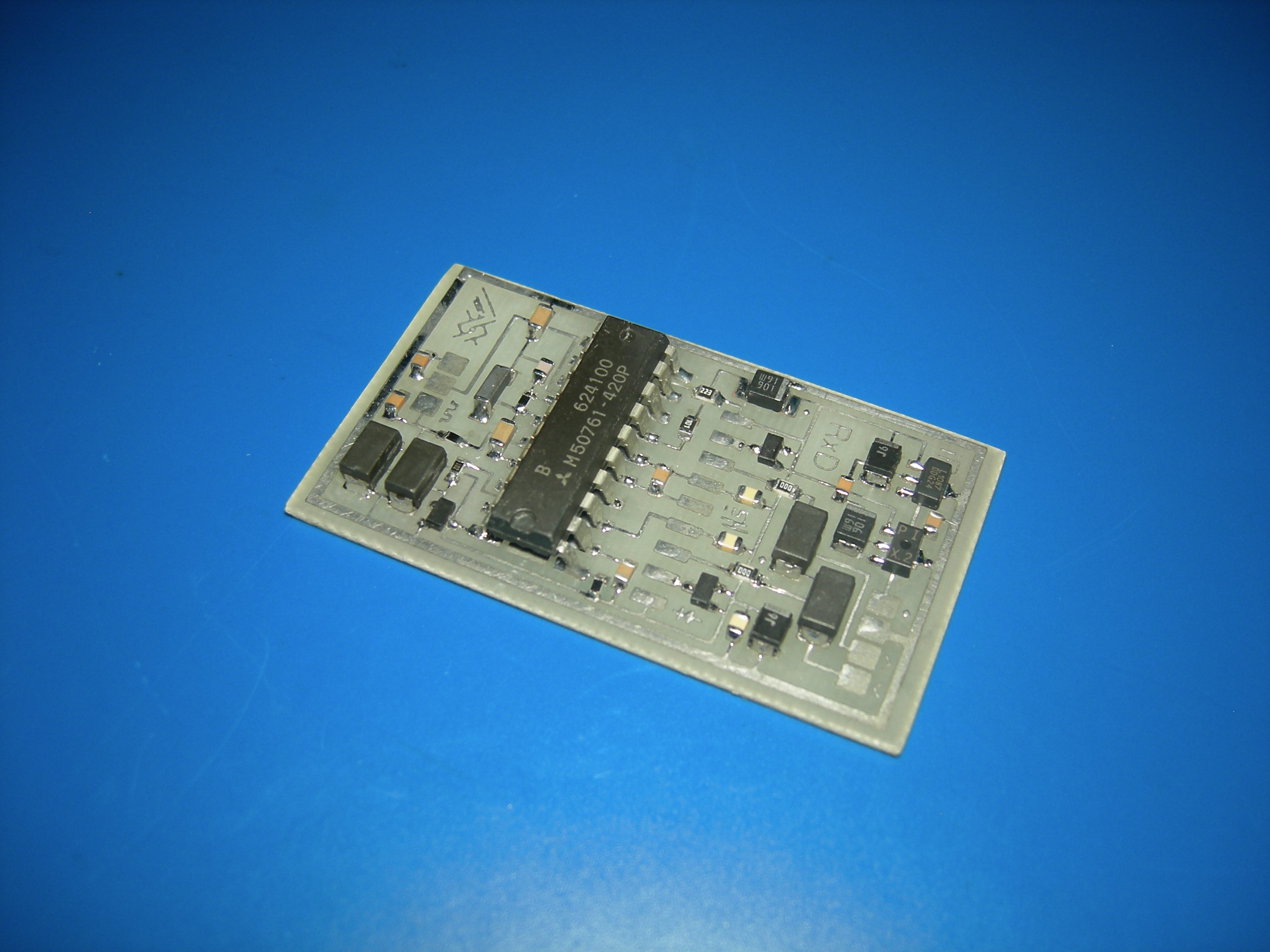

IR Audio Volume Control

Assembly ID

IRAudioMod

Company

Automatic Music Co.

Function

Bar Staff Juke Box Control

Primary Device

Mitsubishi M50767 MCU

Technology

12 track/12 space (no via)

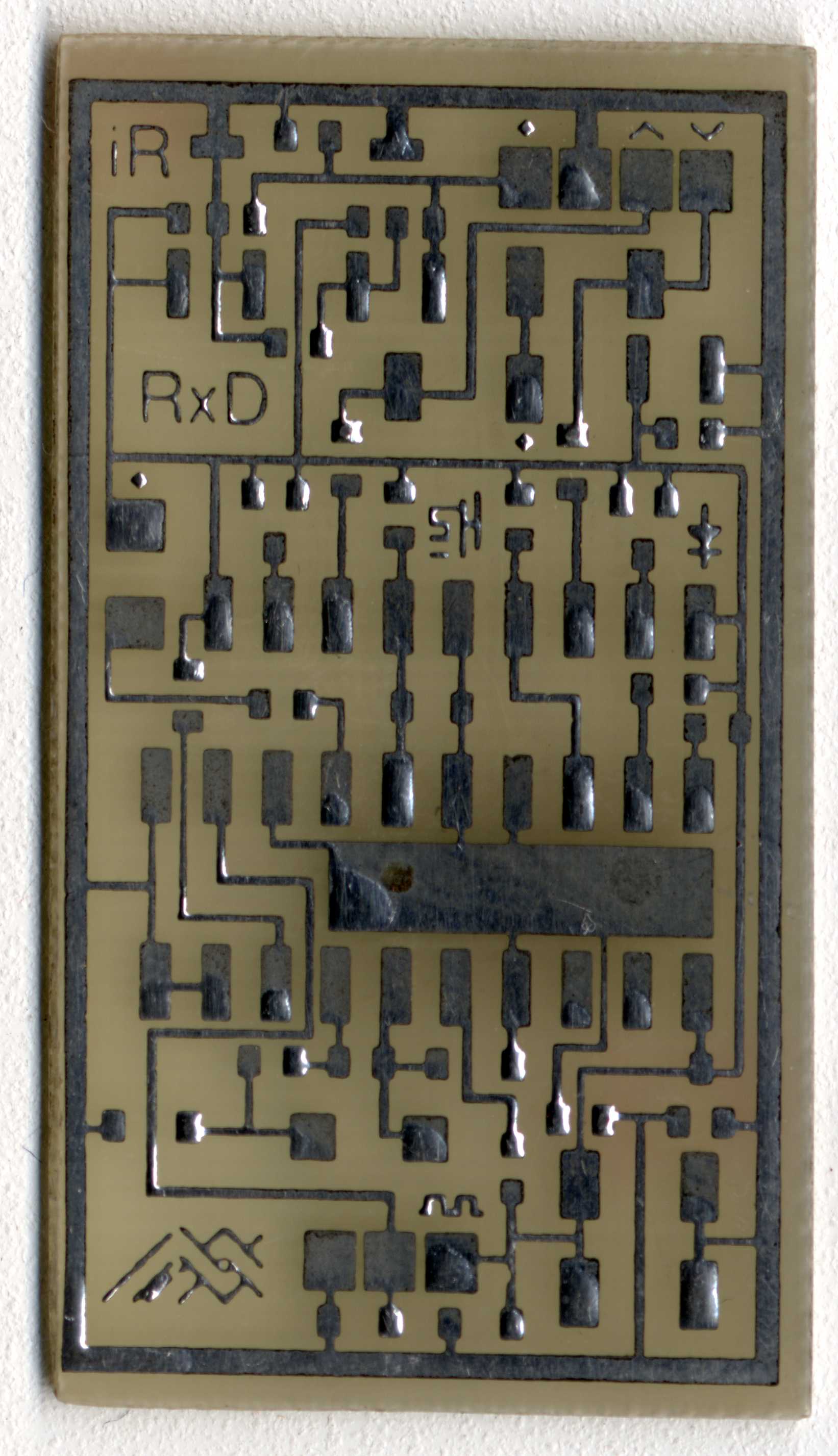

PCB Build Specification

Single Layer, 1.6mm, HASL, FR4

Design Compliance

None

Manufacturer

Critech (TAS)

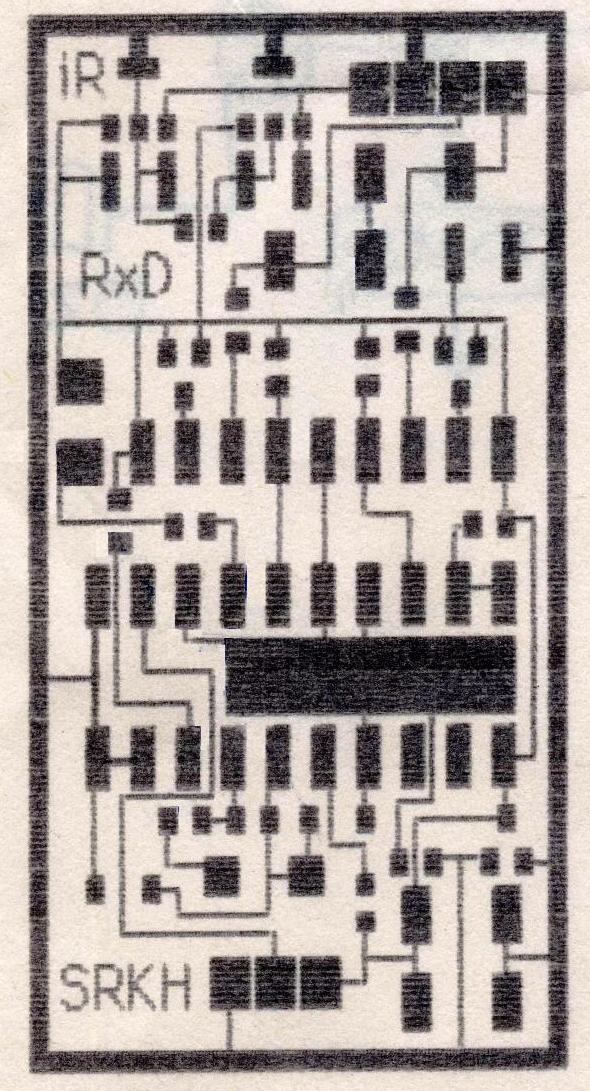

CAD Application

Macintosh Paint (SE30)

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         1990


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
