Date of Design

1991

Product

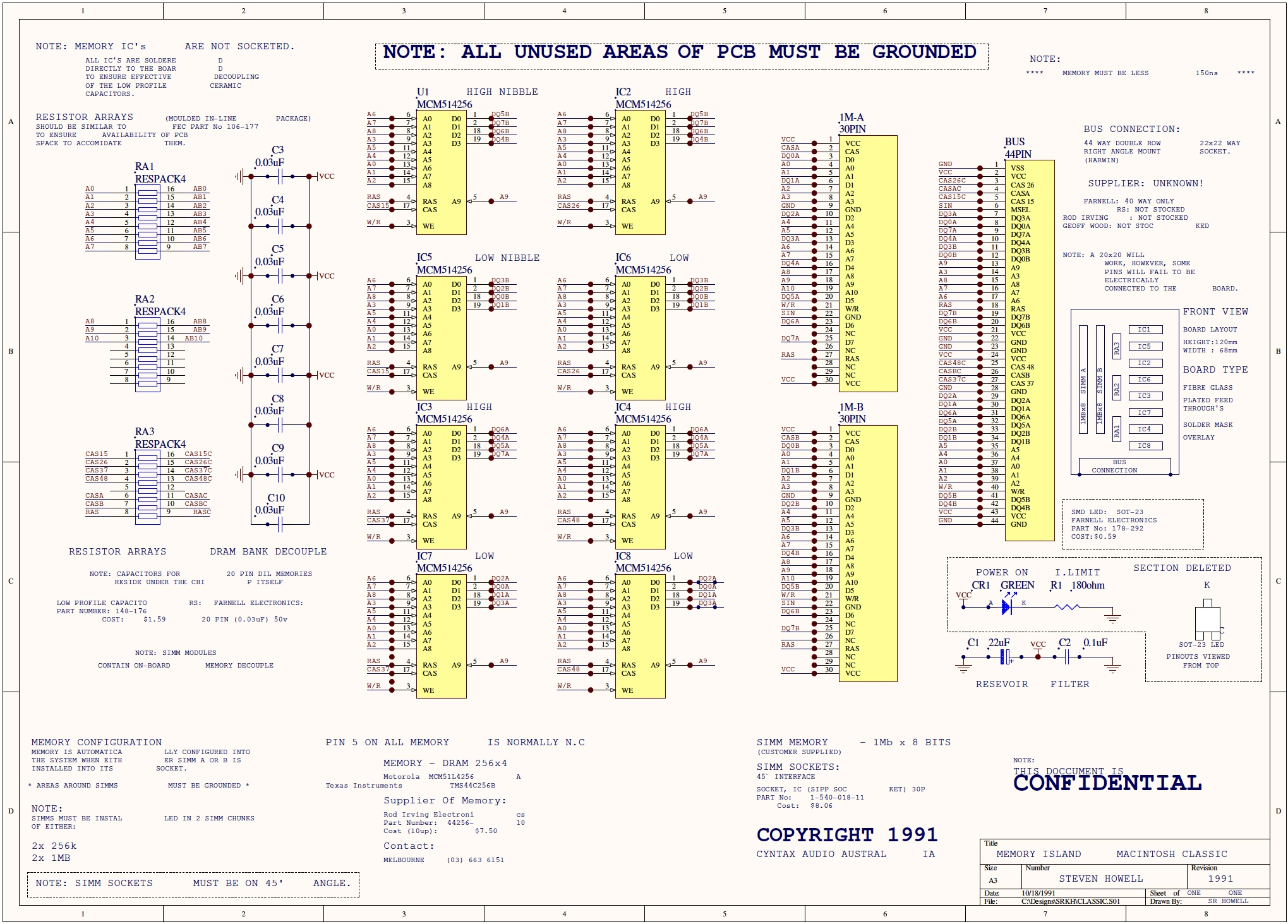

Mac Classic Memory Board

Assembly ID

CLASSIC1MB

Company

University of Tasmania

Function

Macintosh Classic Memory Expansion

Primary Device

TMS44C256DJx8+SIMM30x2

Technology

8 track/8 space/30 via

PCB Build Specification

2 Layer, 1.6mm, MASK, HASL, FR4

Design Compliance

94V0

Manufacturer

Zelcon Technic (TAS)

CAD Application

Protel Schedit+Traxedit (Macintosh)

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         1991


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
