Date of Design
2019
Product

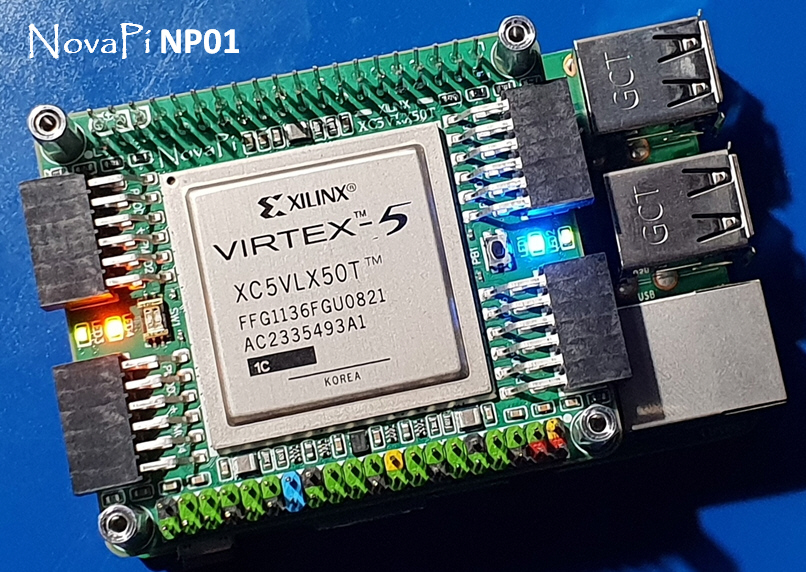

NOVASAR RPI FPGA
Assembly ID
NOVAPI V01
Company
NOVASAR
Function

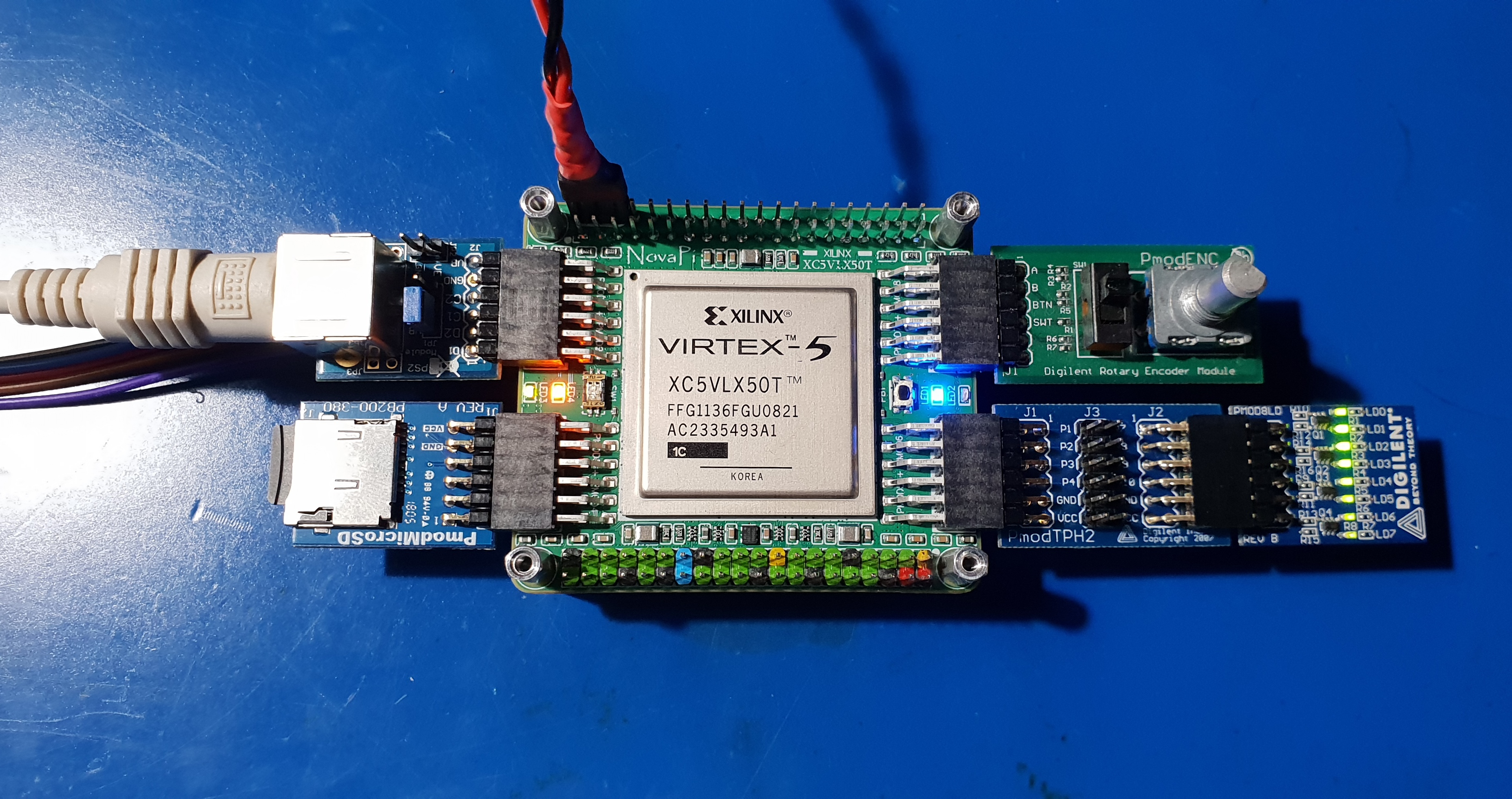

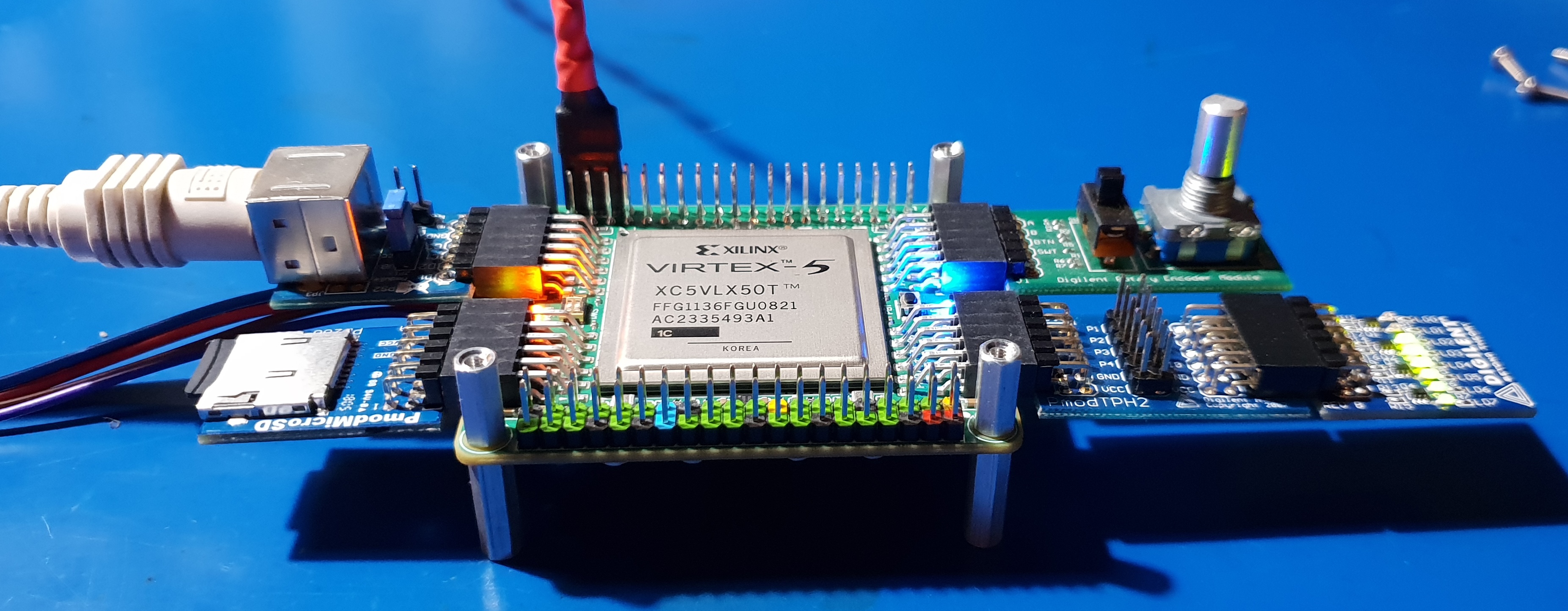

FPGA board for Raspberry PI
Primary Device
Technology
4 track/4 space/24 via
PCB Build Specification
4 Layer, 1oz, MASK, ENIG, FR4-08
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Manufacturer
General Circuits (China)
CAD Application
Altium Designer R17
Prototype Availability
Yes
