Date of Design

2002

Product

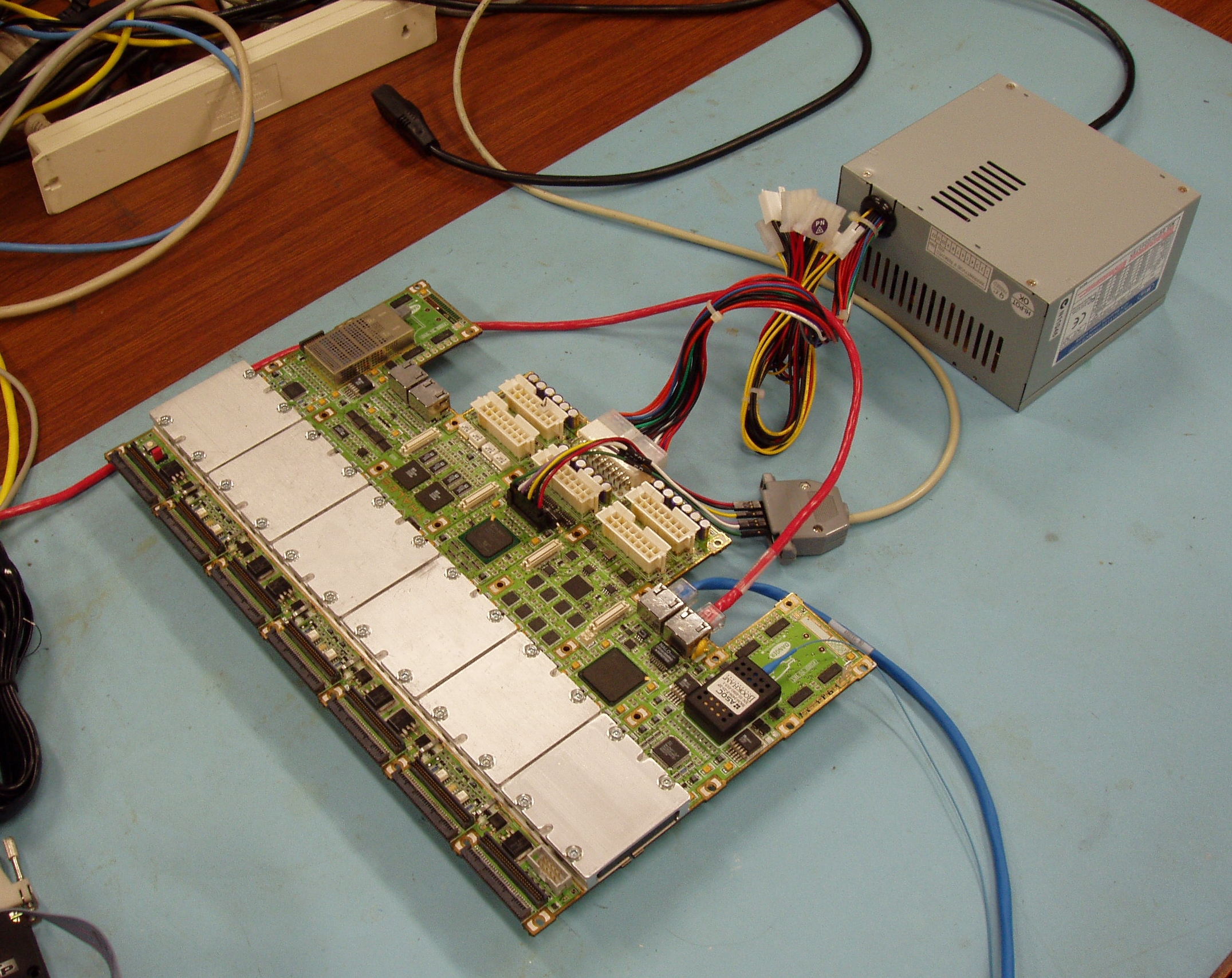

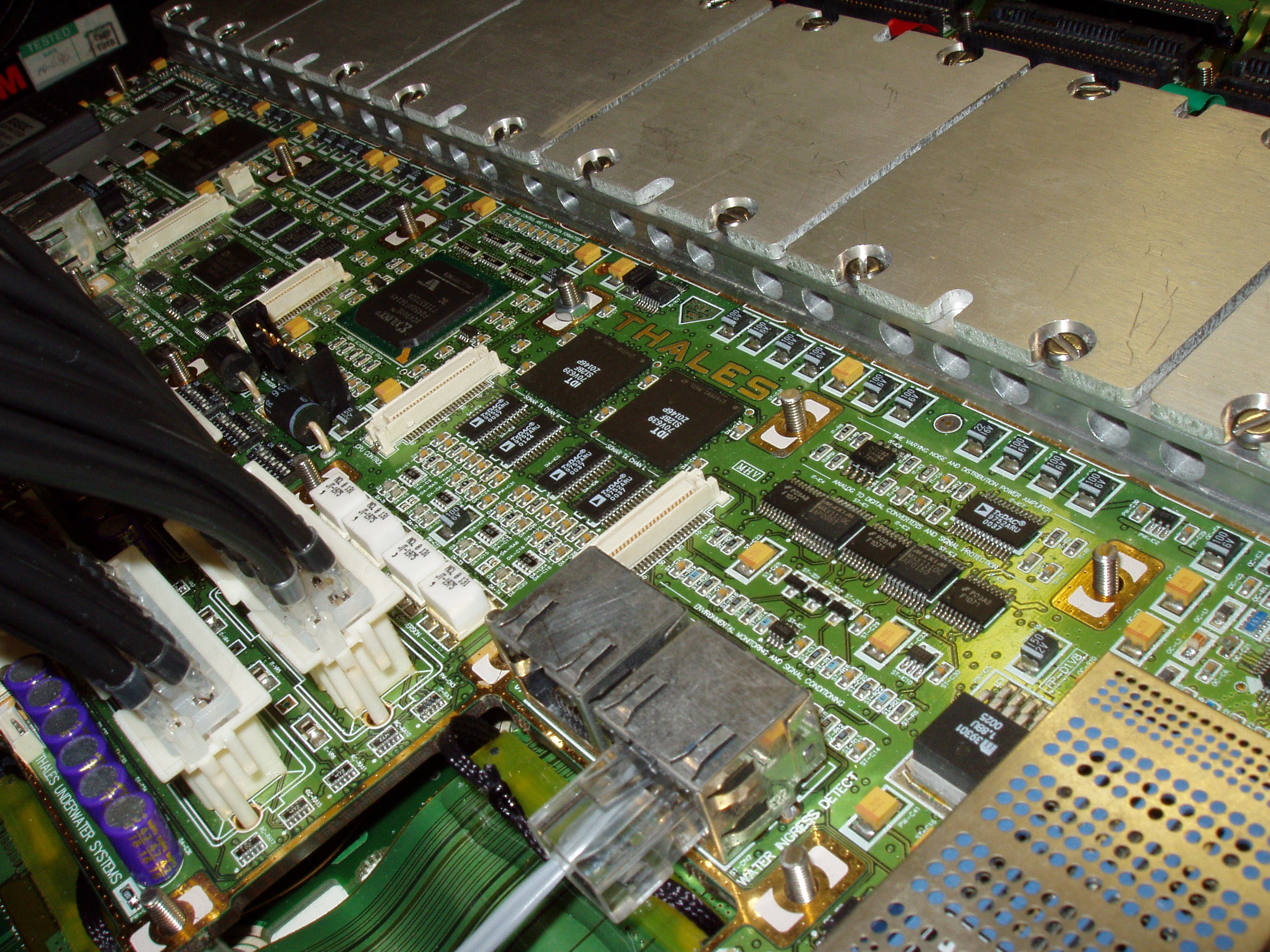

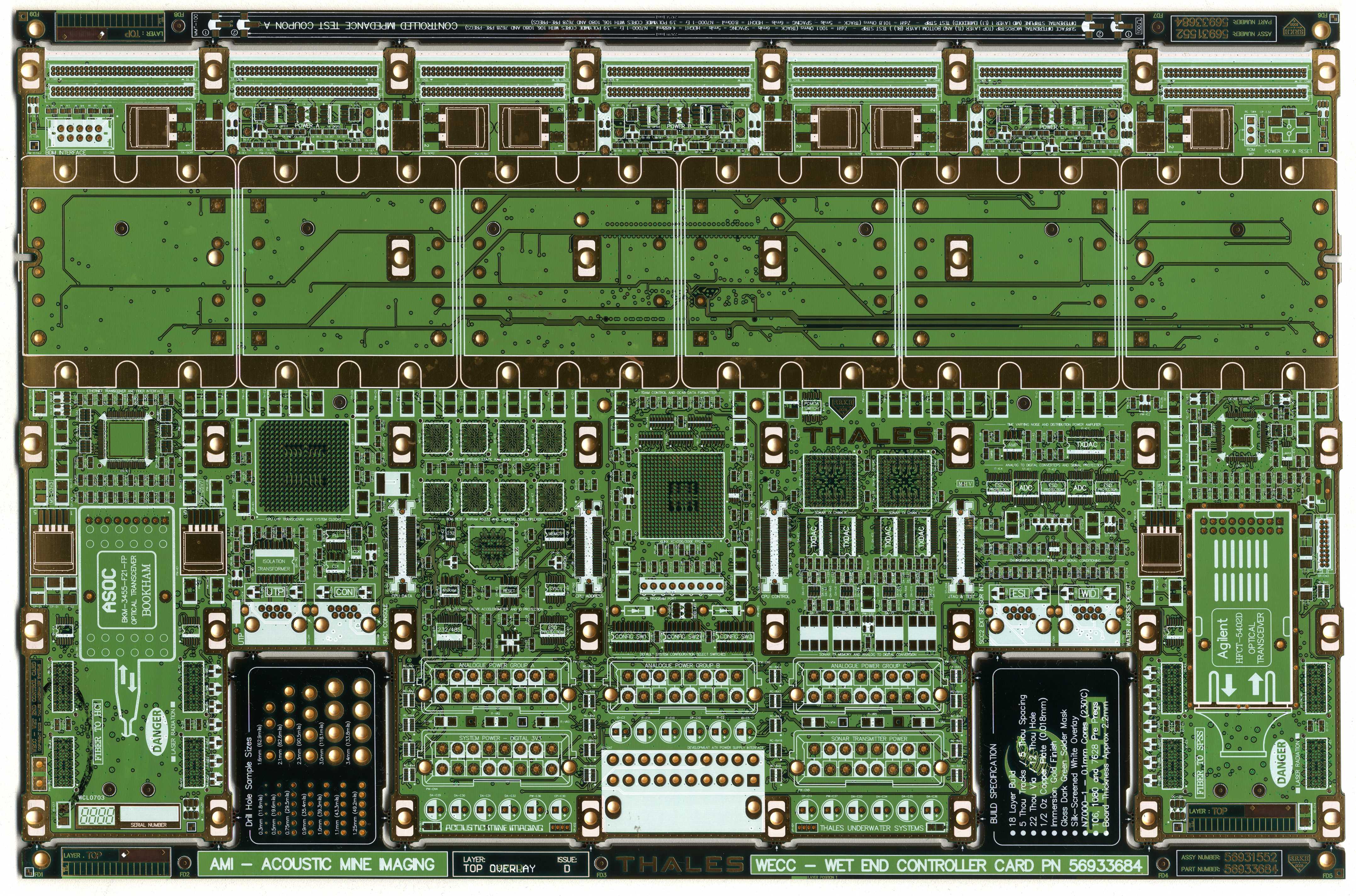

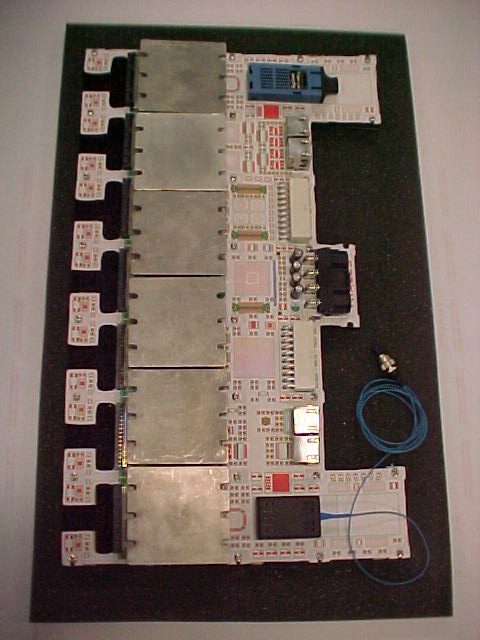

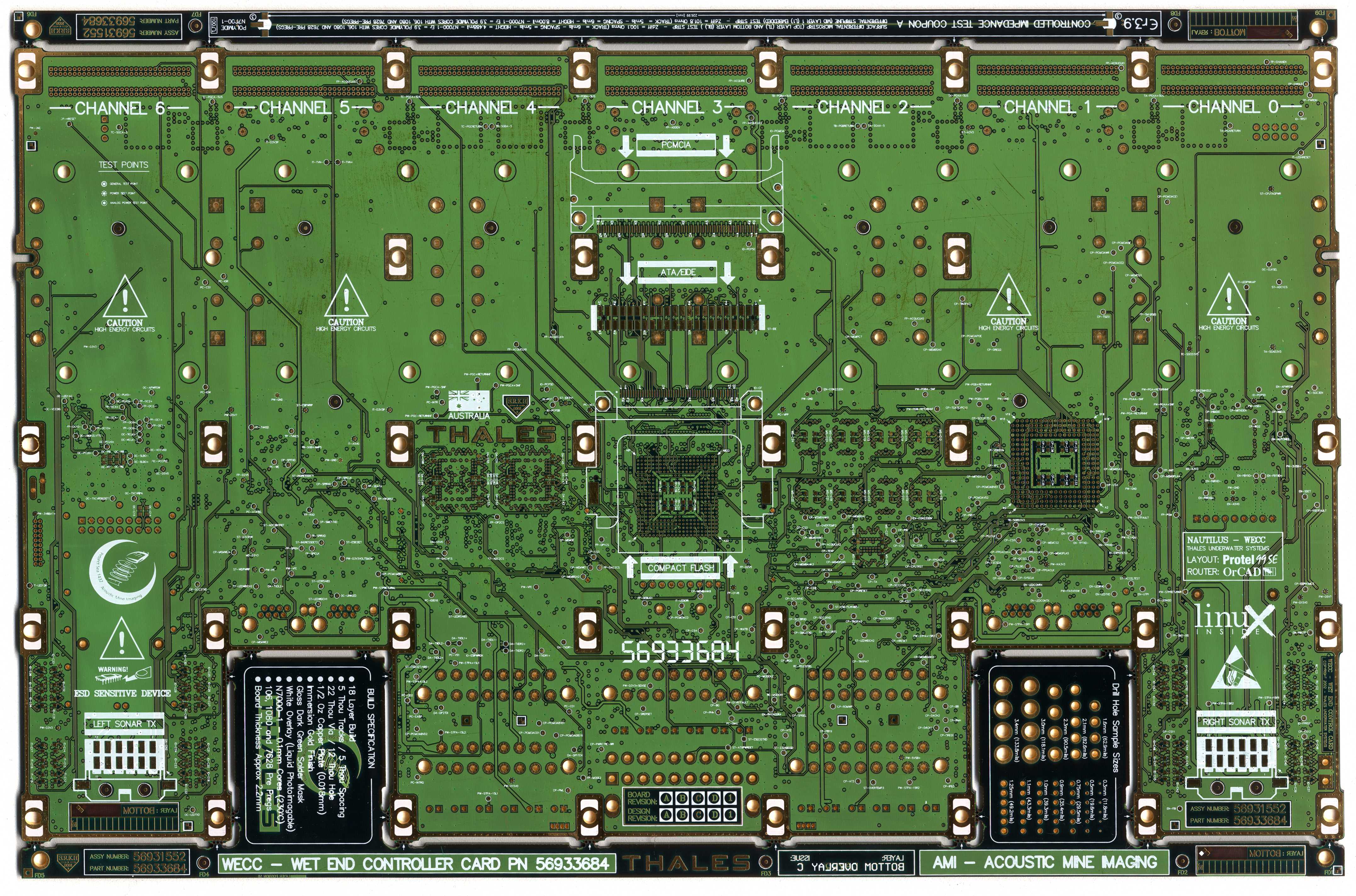

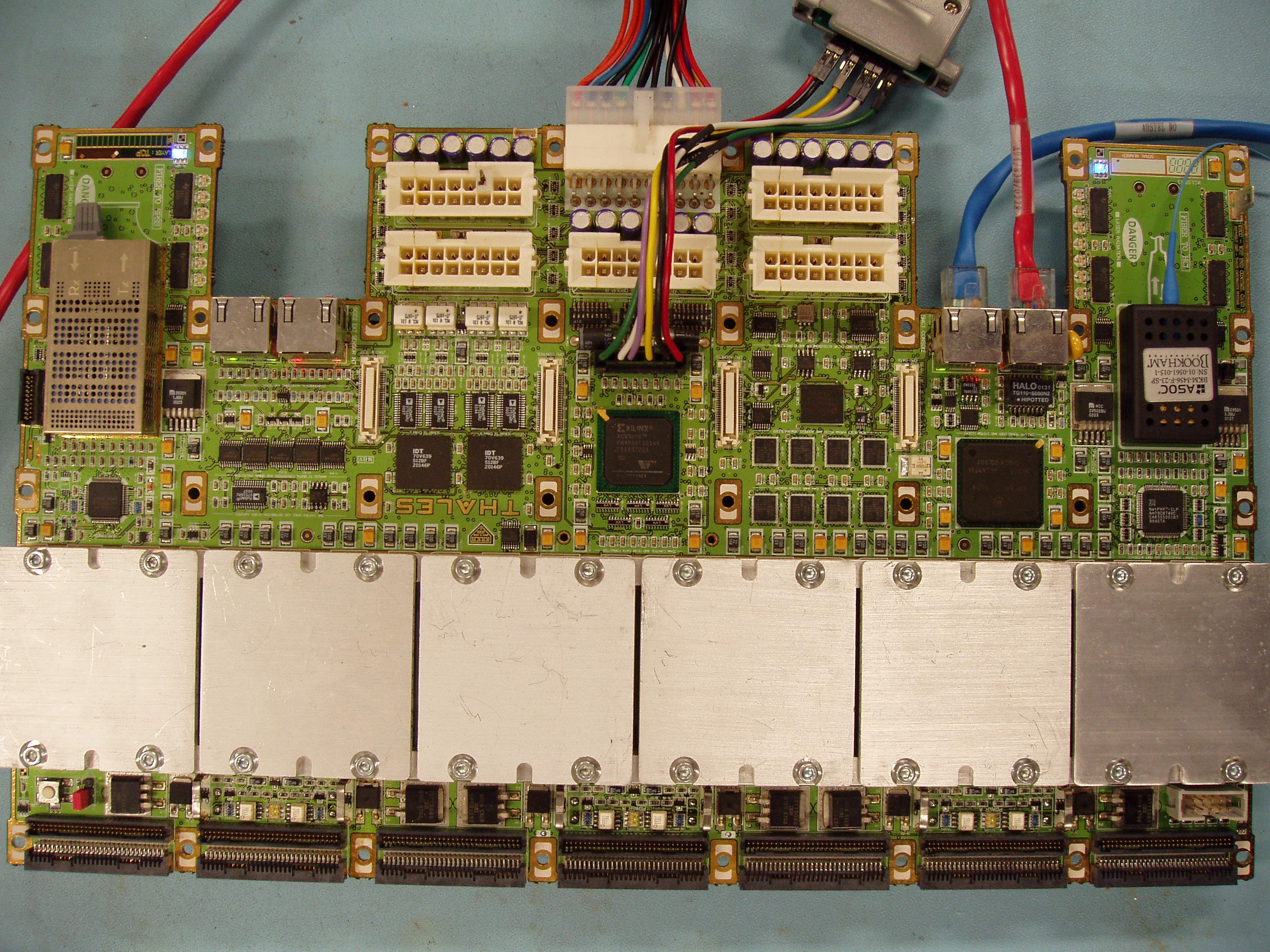

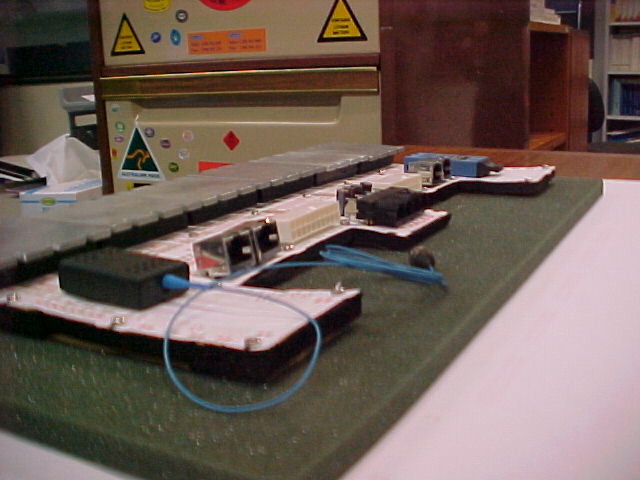

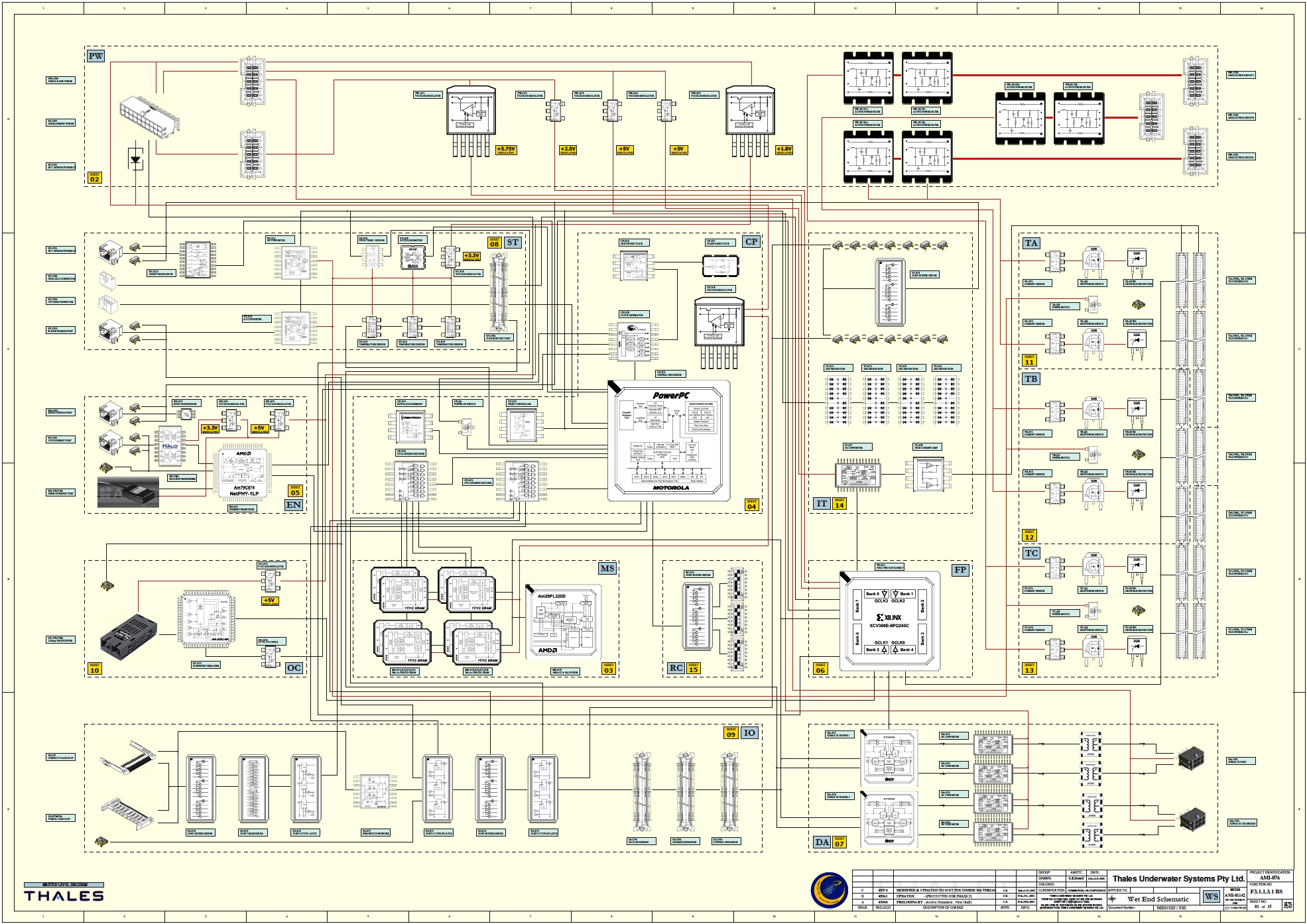

Wet End Controller Card

Assembly ID

WECC

Company

THALES

Function

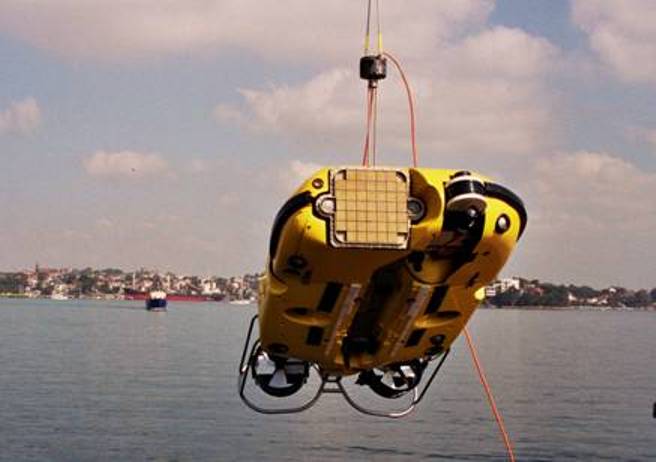

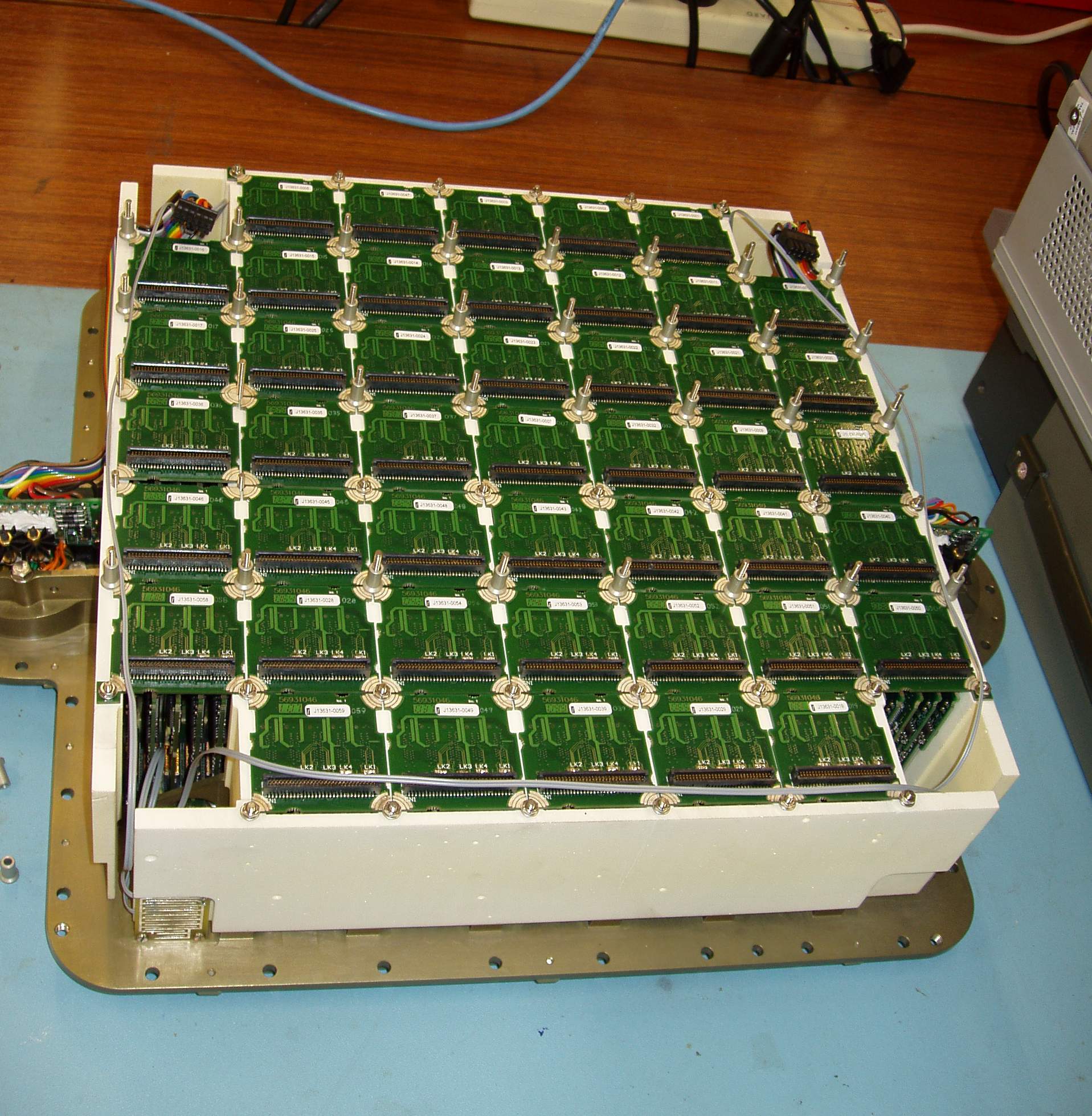

Acoustic Imaging Controller

Primary Device

PPC MPC860 + Virtex II

Technology

5 track/5 space/22 via

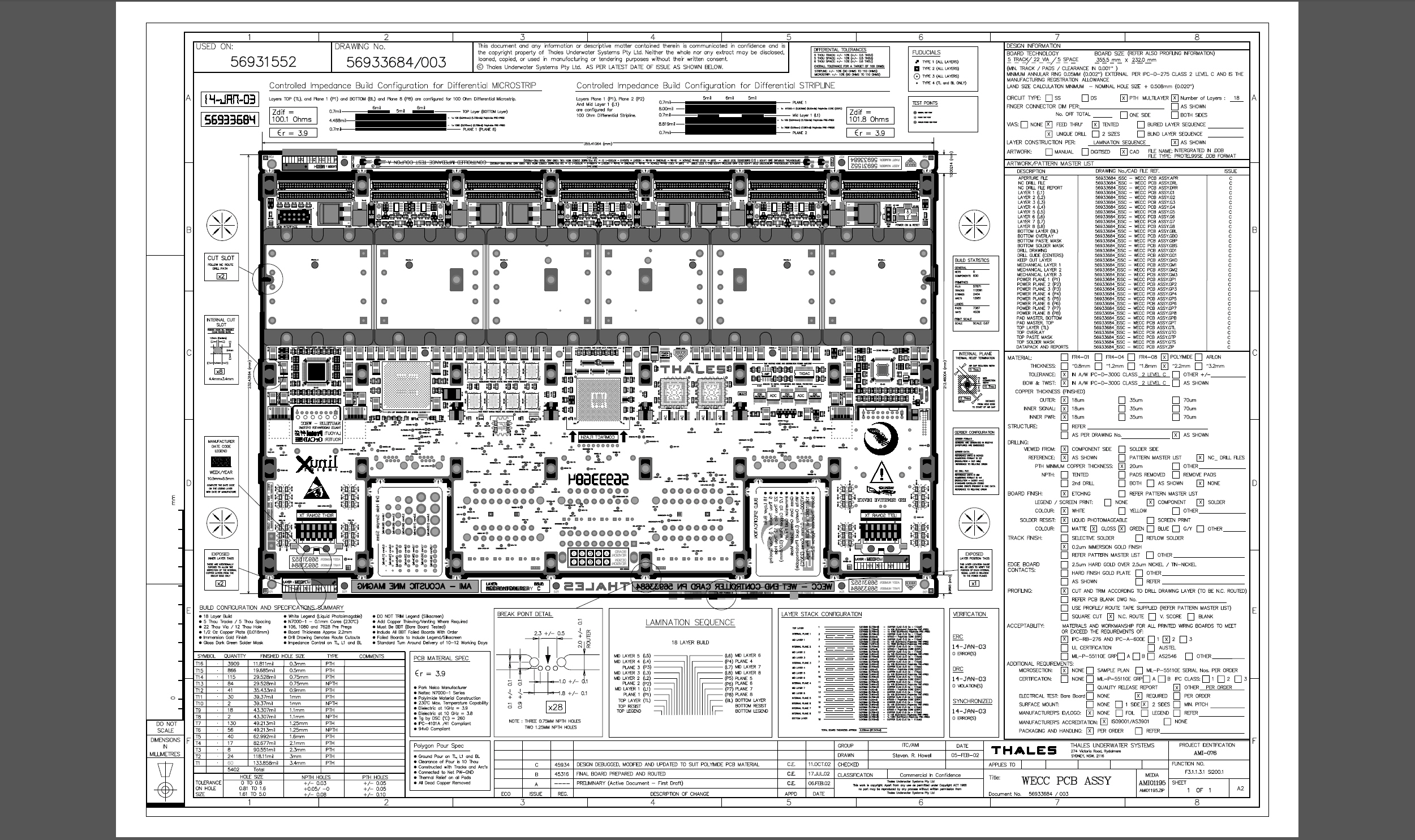

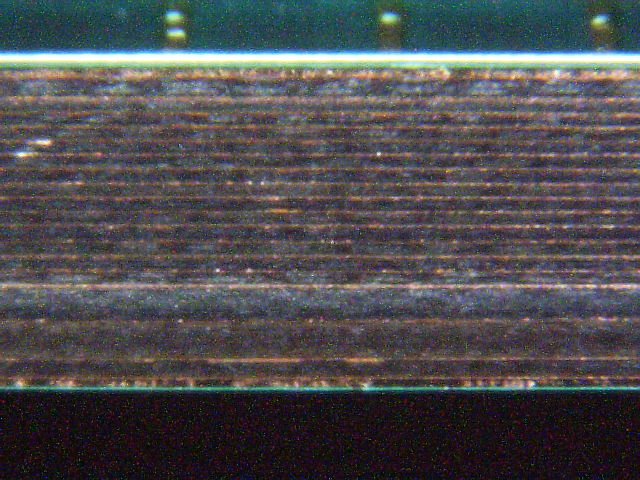

PCB Build Specification

22 Layer, 1/2oz,  MASK, ENIG, Polymide

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

MHA Logistics (UK)

CAD Application

Protel 99SE

Prototype Availability

No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
         2002

The index includes lab prototypes, final production units, integrated systems and application examples.


There are no classified military designs in this list.
