Date of Design

2006

Product

High Speed IO

Assembly ID

5693XXXX

Company

THALES

Function

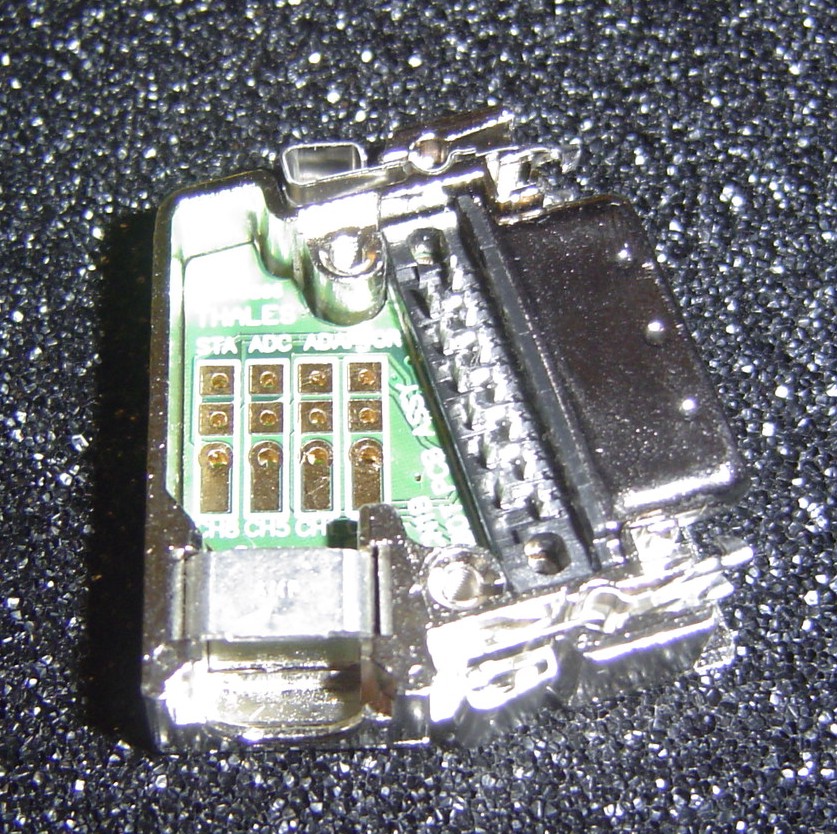

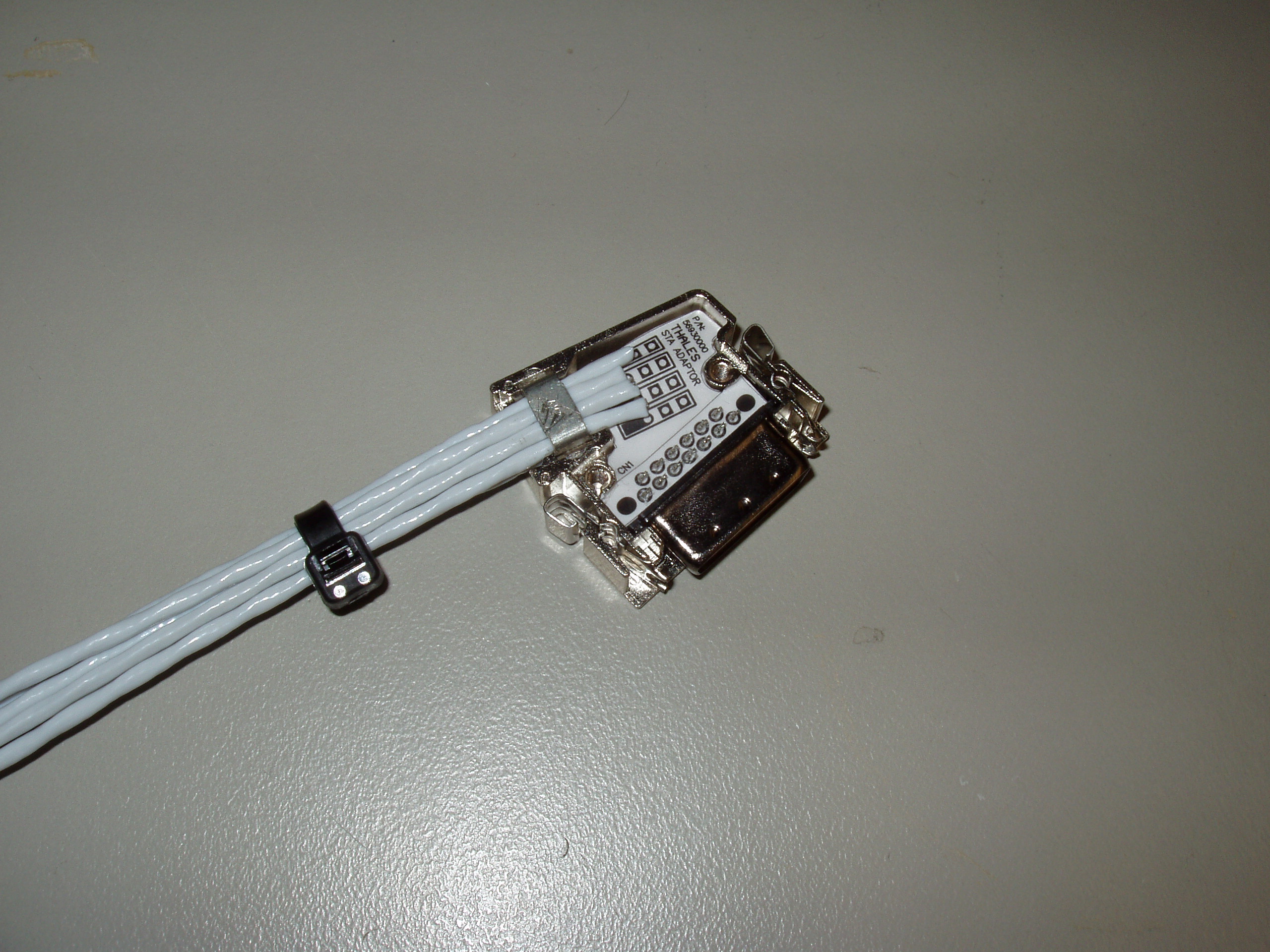

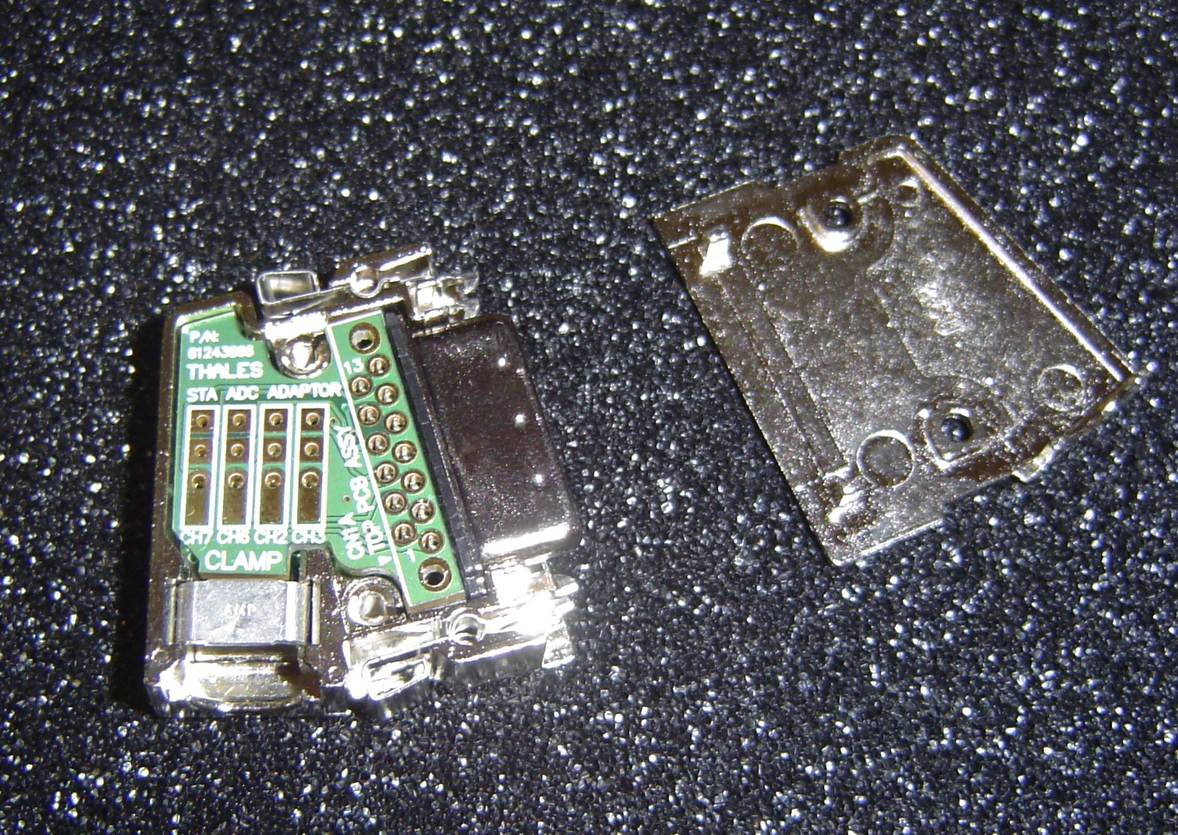

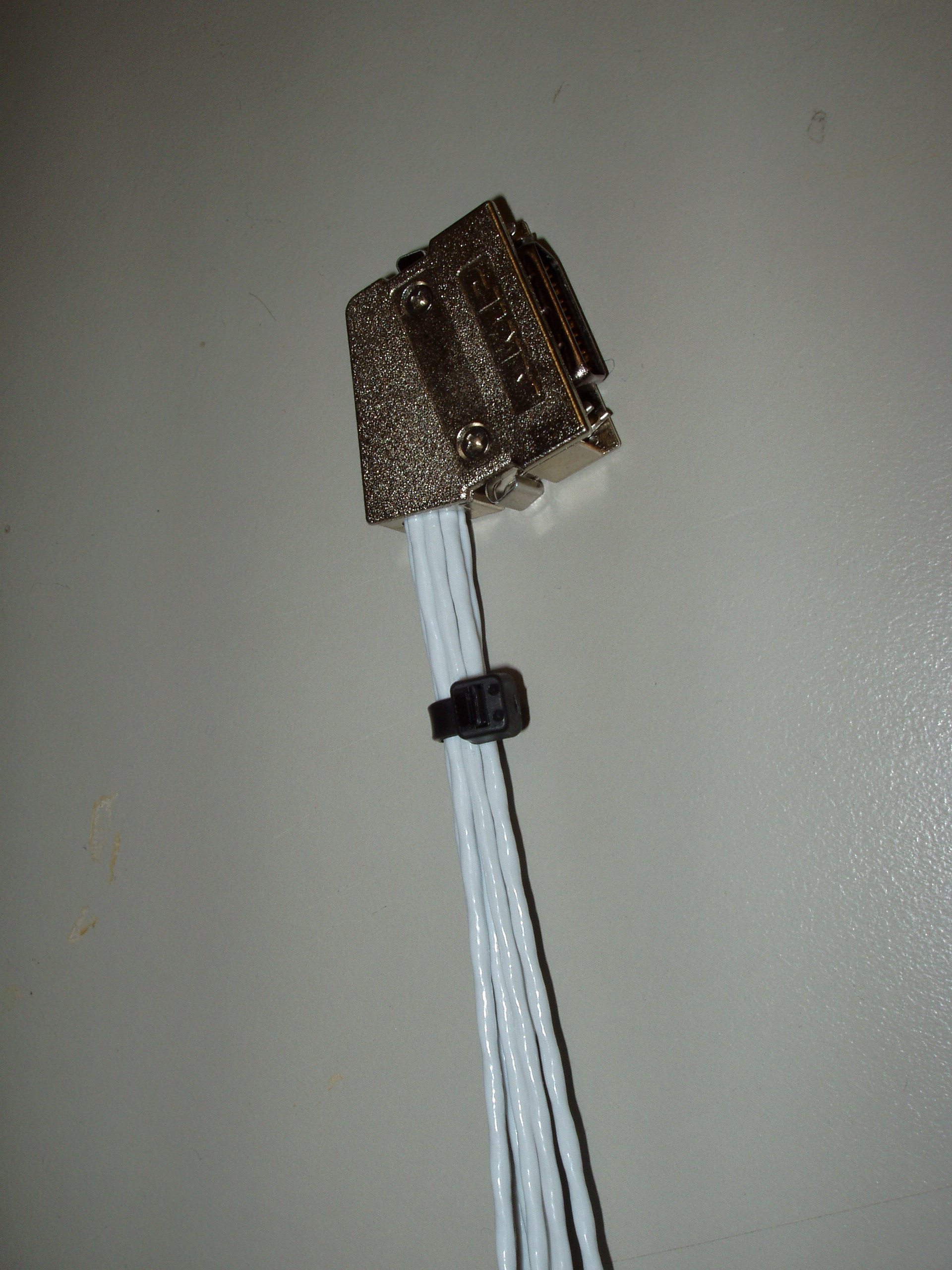

High Speed IO Connector

Primary Device

None (Mechanical Only)

Technology

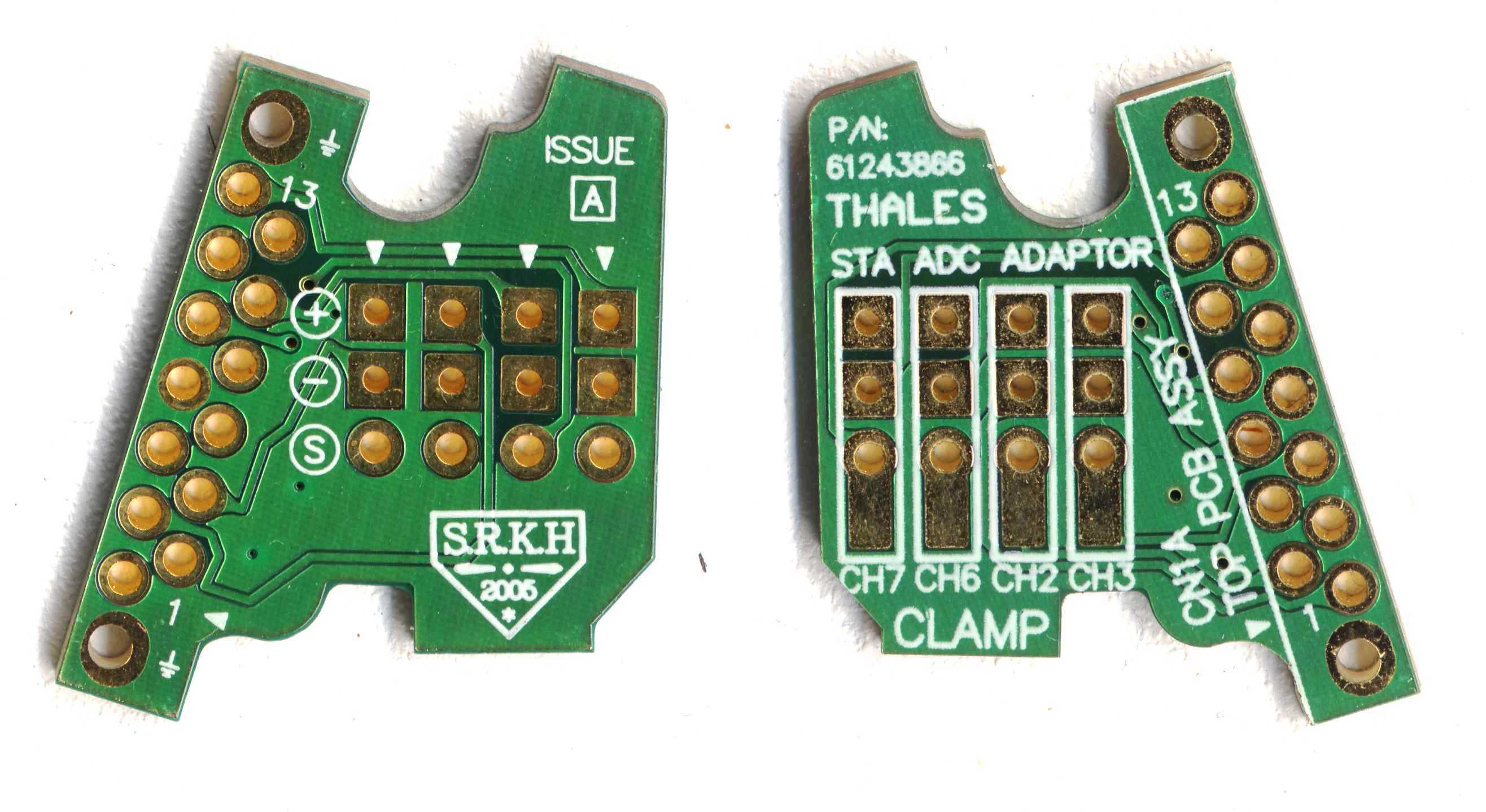

8 track/8 space/no via

PCB Build Specification

2 Layer, 1/2oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

No
