Date of Design

2006

Product

Nanoboard Series

Assembly ID

NBVME64

Company

Novasar

Function

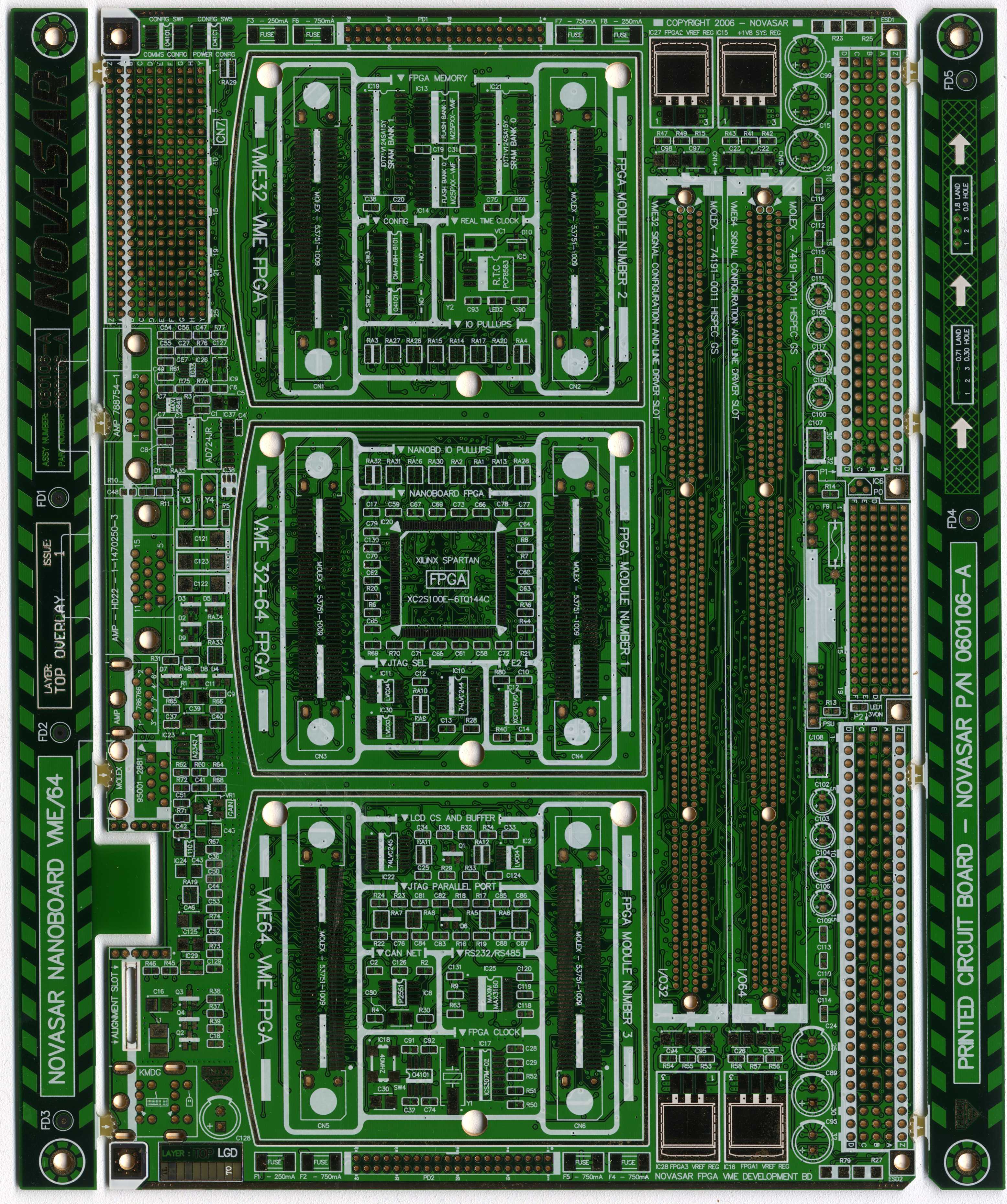

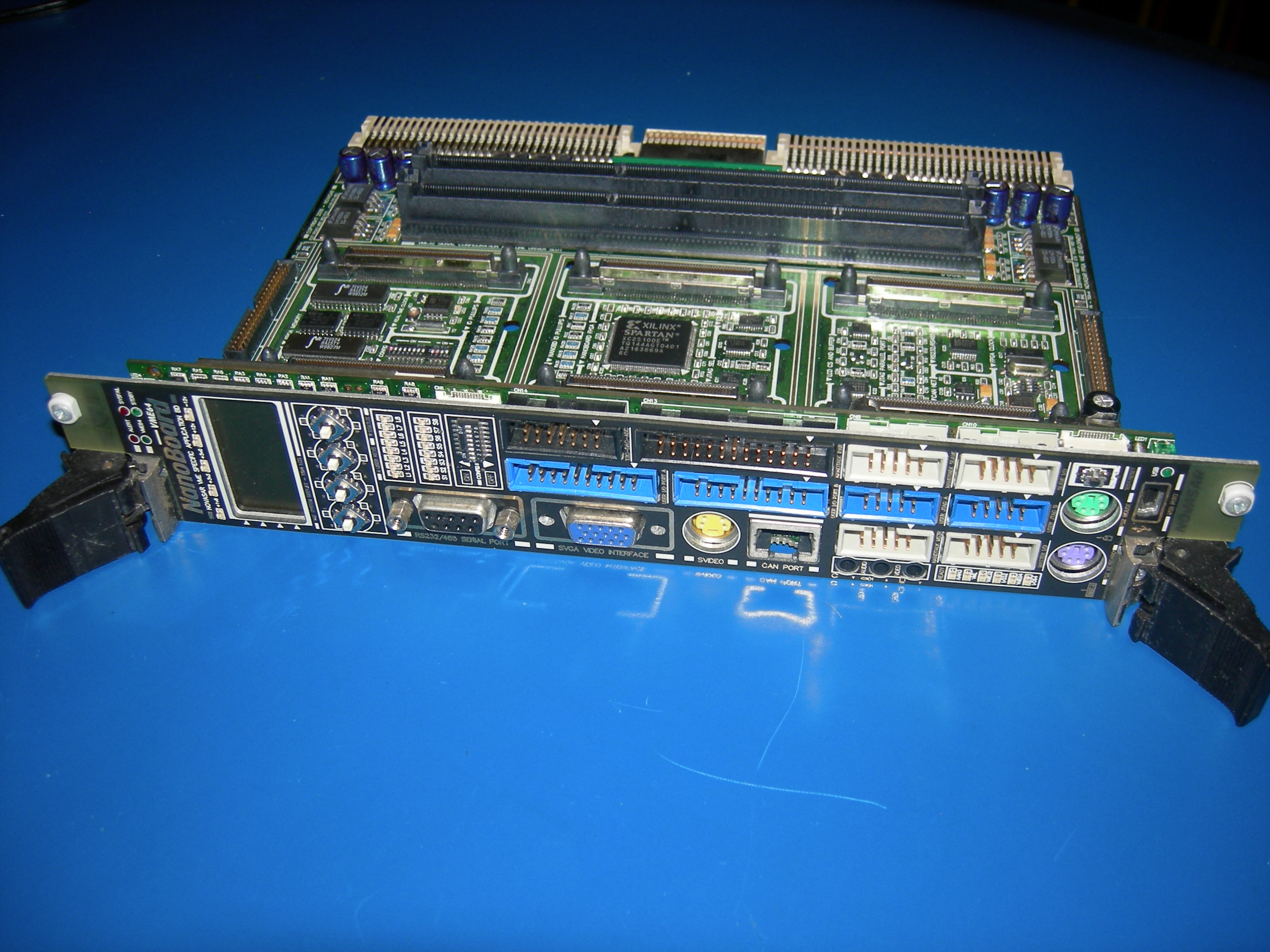

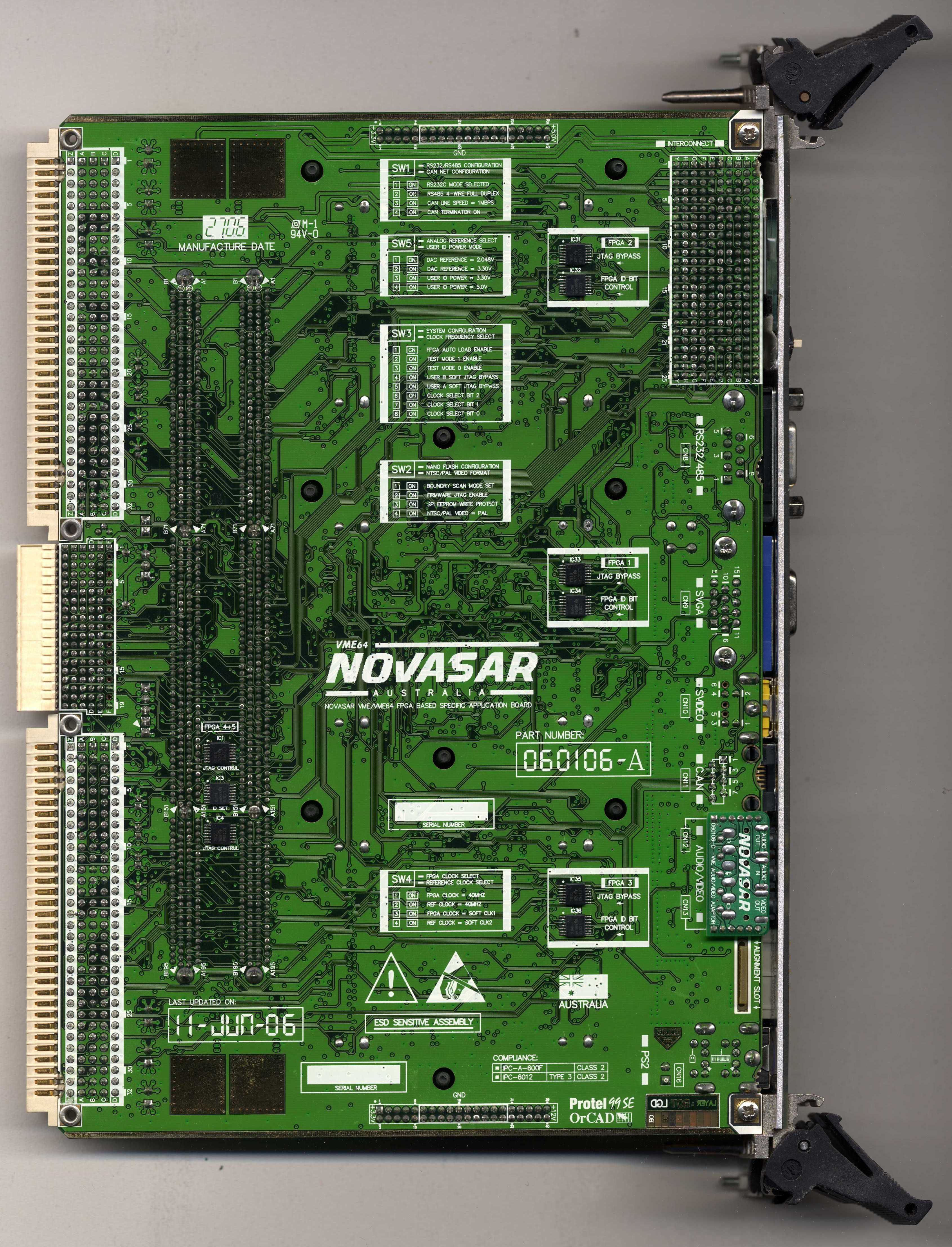

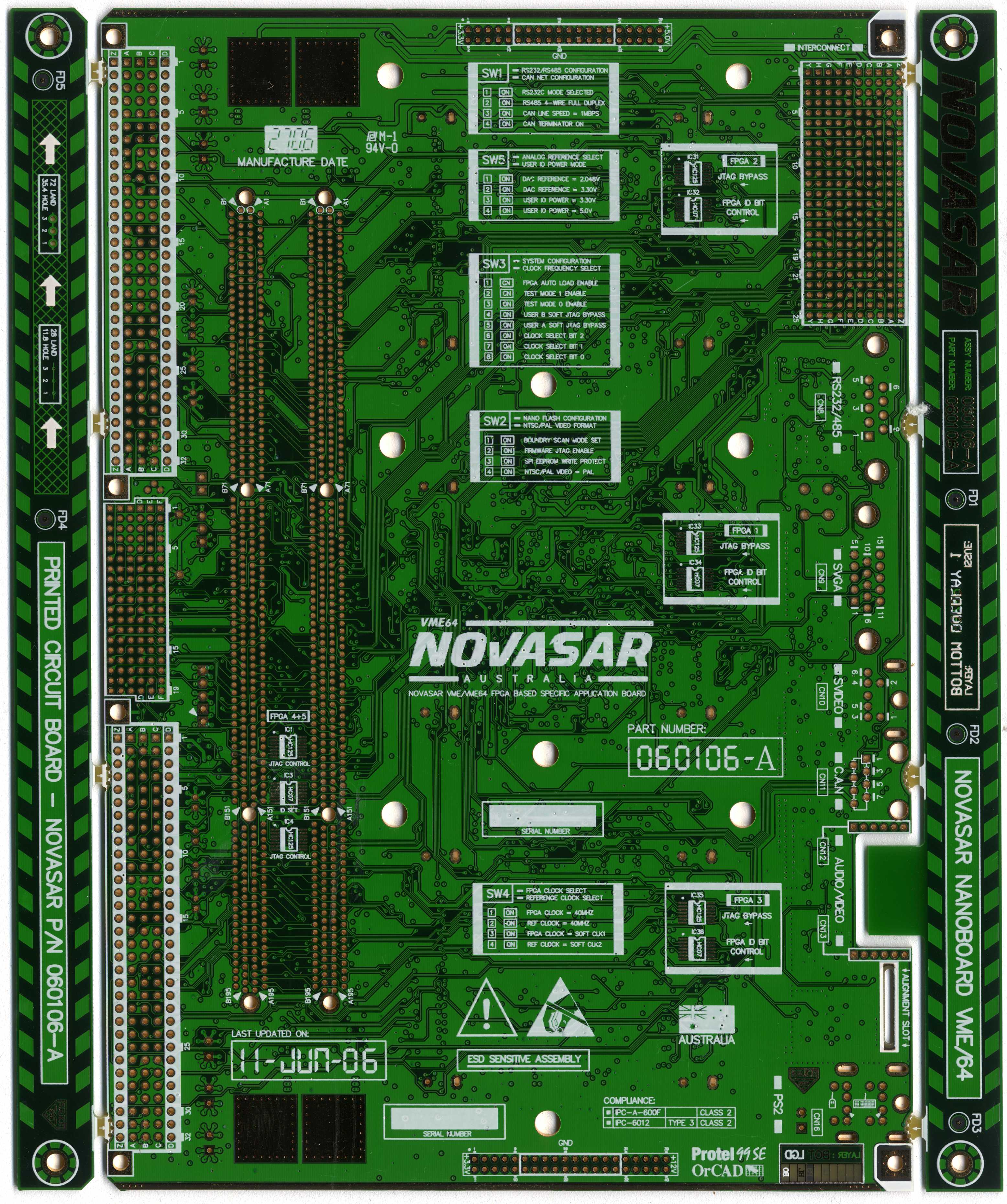

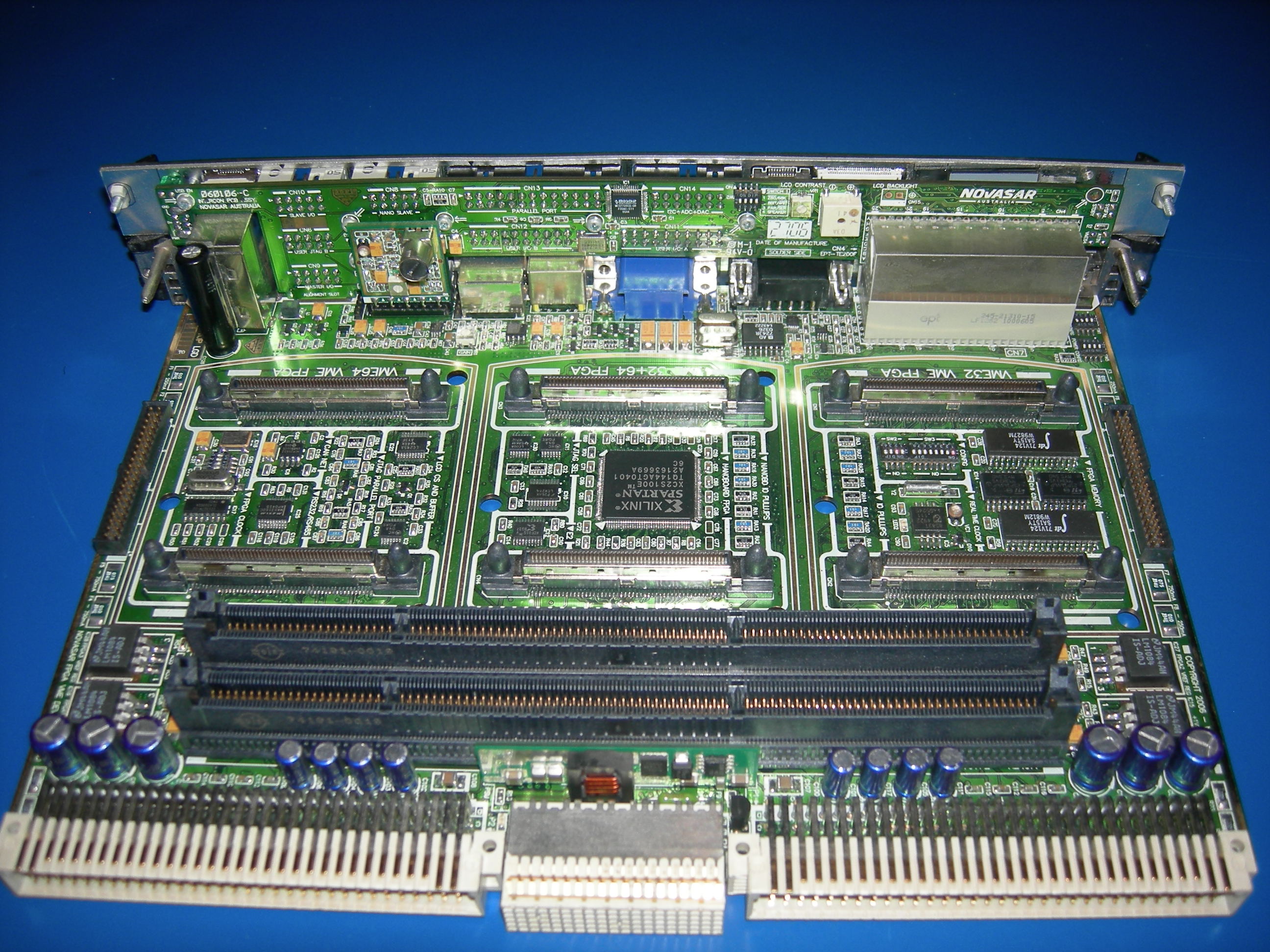

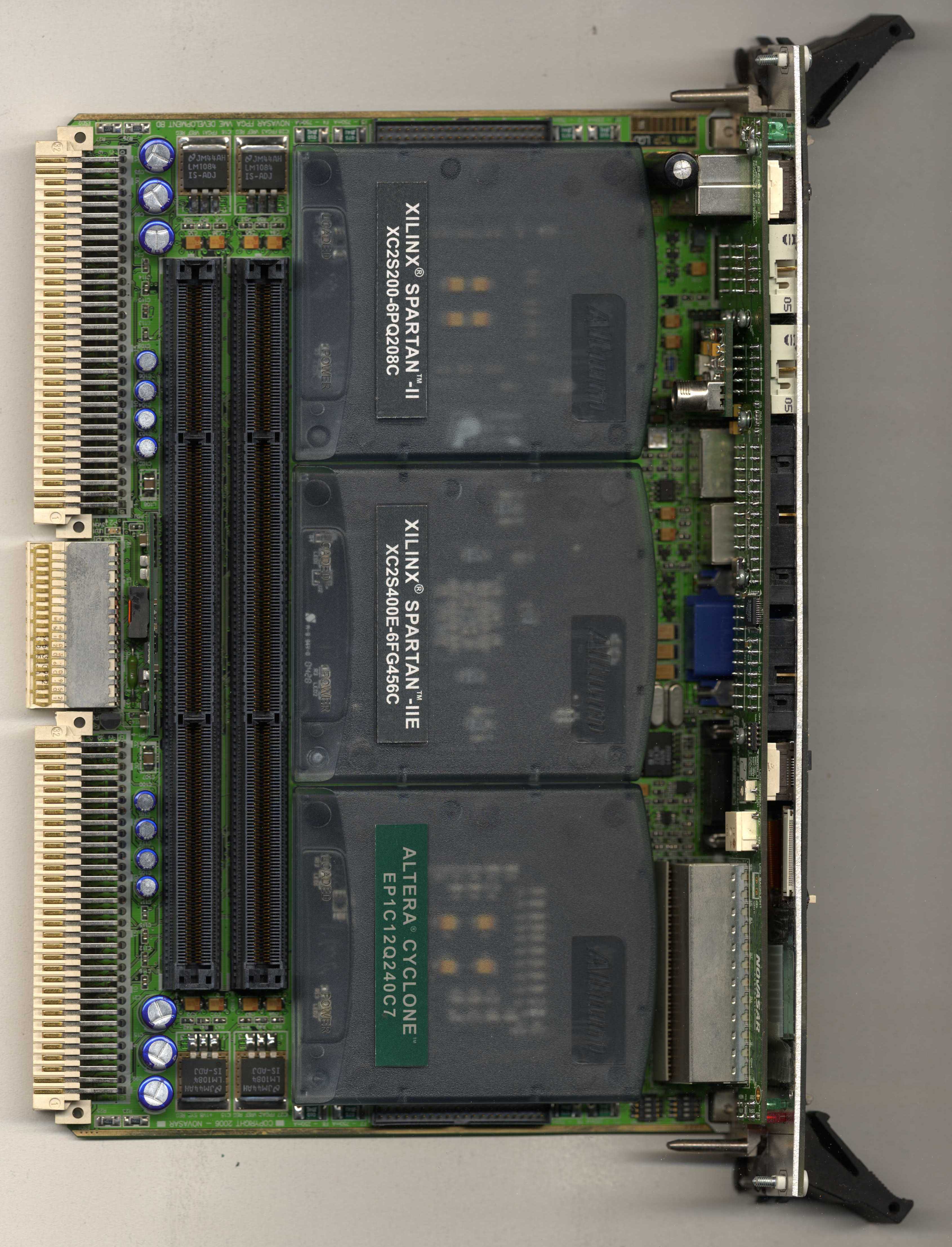

Nanoboard VME64 FPGA  Board

Primary Device

Up to 3x Xilinx XC2V8000

Technology

8 track/8 space/28 via

PCB Build Specification

8 Layer, 1/2oz, MASK, HG, FR4 (ISOLA)

Design Compliance

IPC-A-600/IPC-6012

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2006


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
