Date of Design

2004

Product

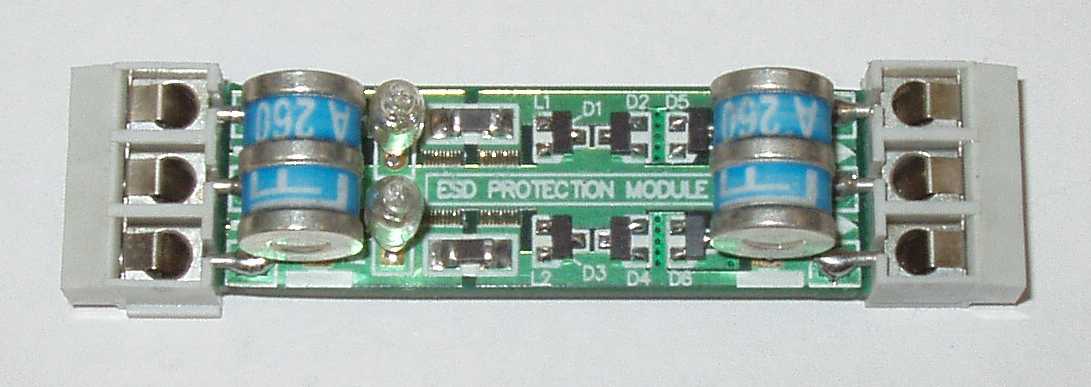

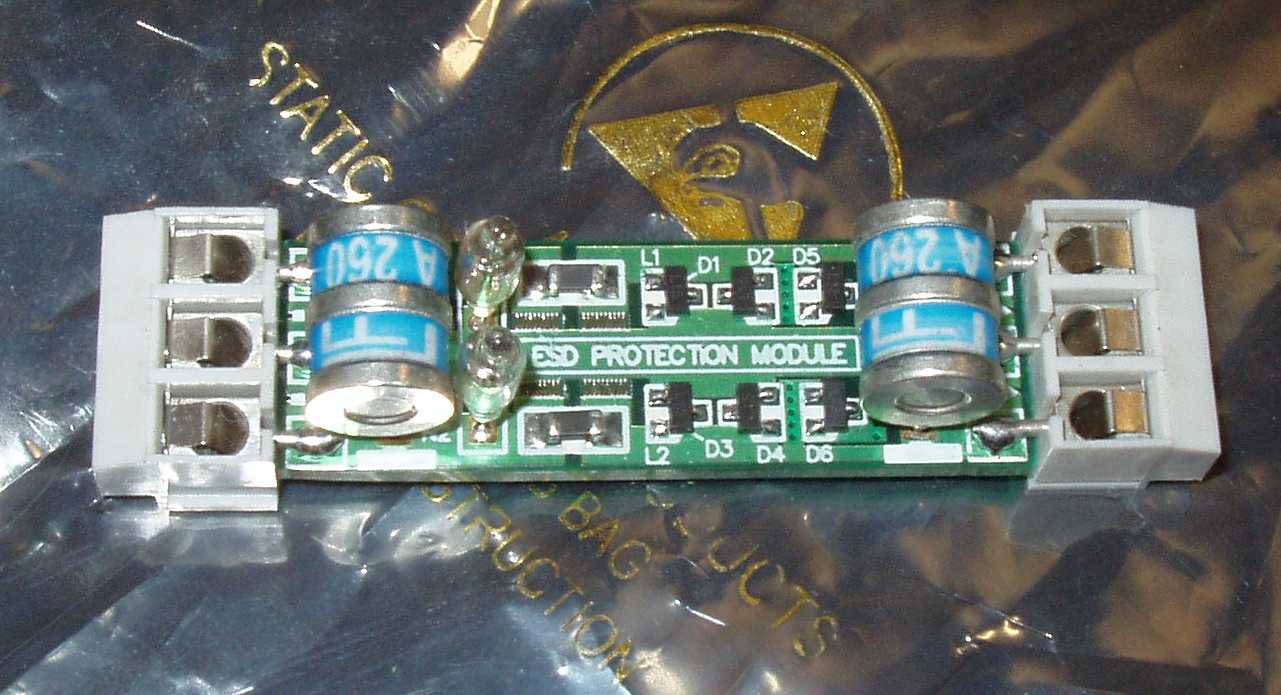

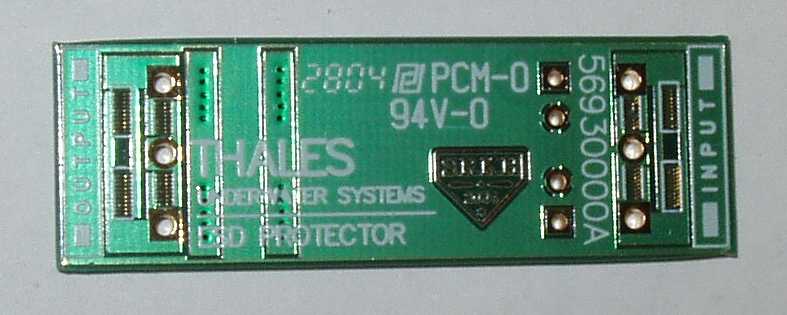

Low Capacitance ESD Protect

Assembly ID

5693XXXX

Company

THALES

Function

High Speed Signal Protect

Primary Device

SL24.TC + Discretes

Technology

8 track/8 space/30 via

PCB Build Specification

2 Layer, 1oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2004


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
