Date of Design

2004

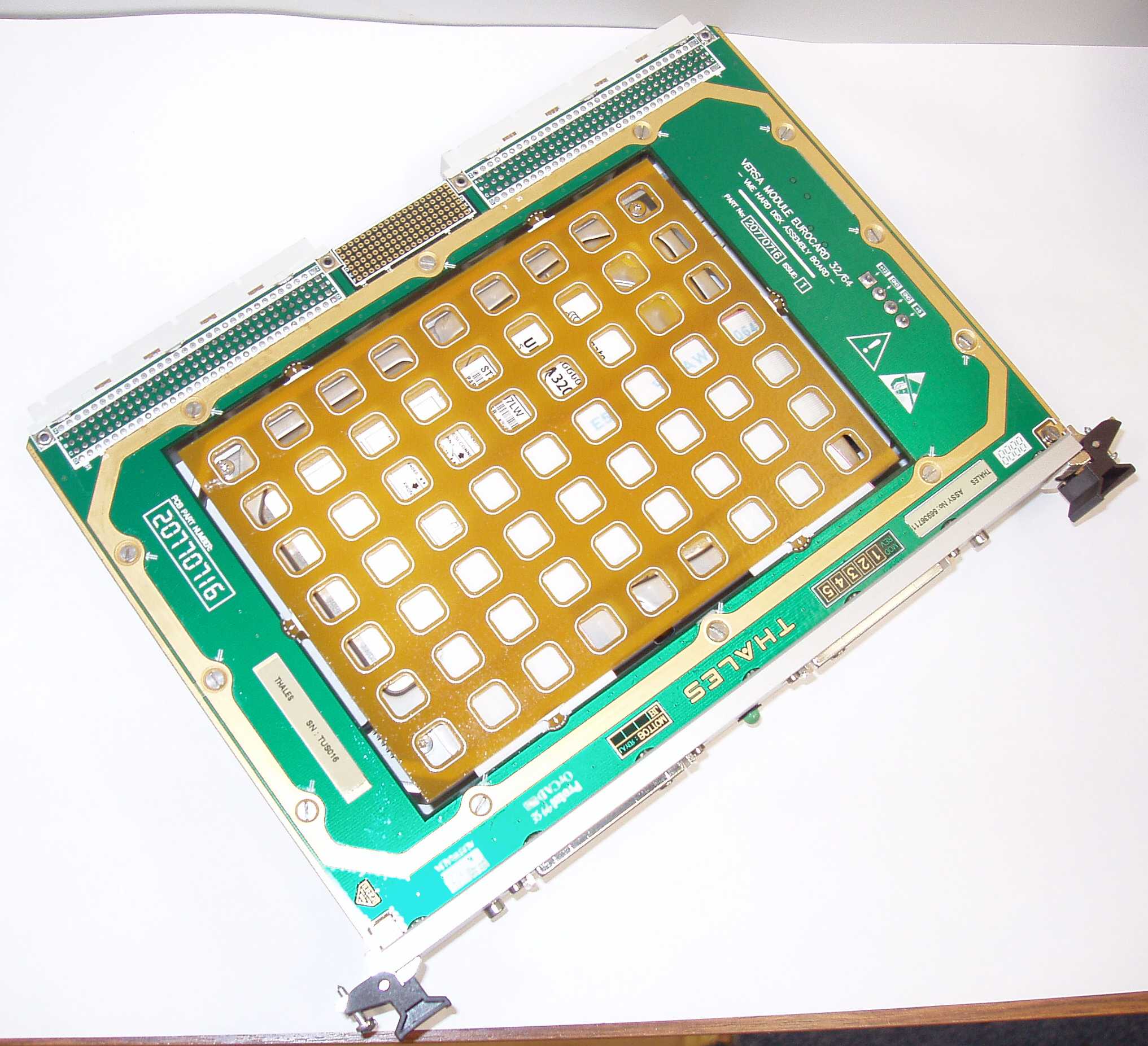

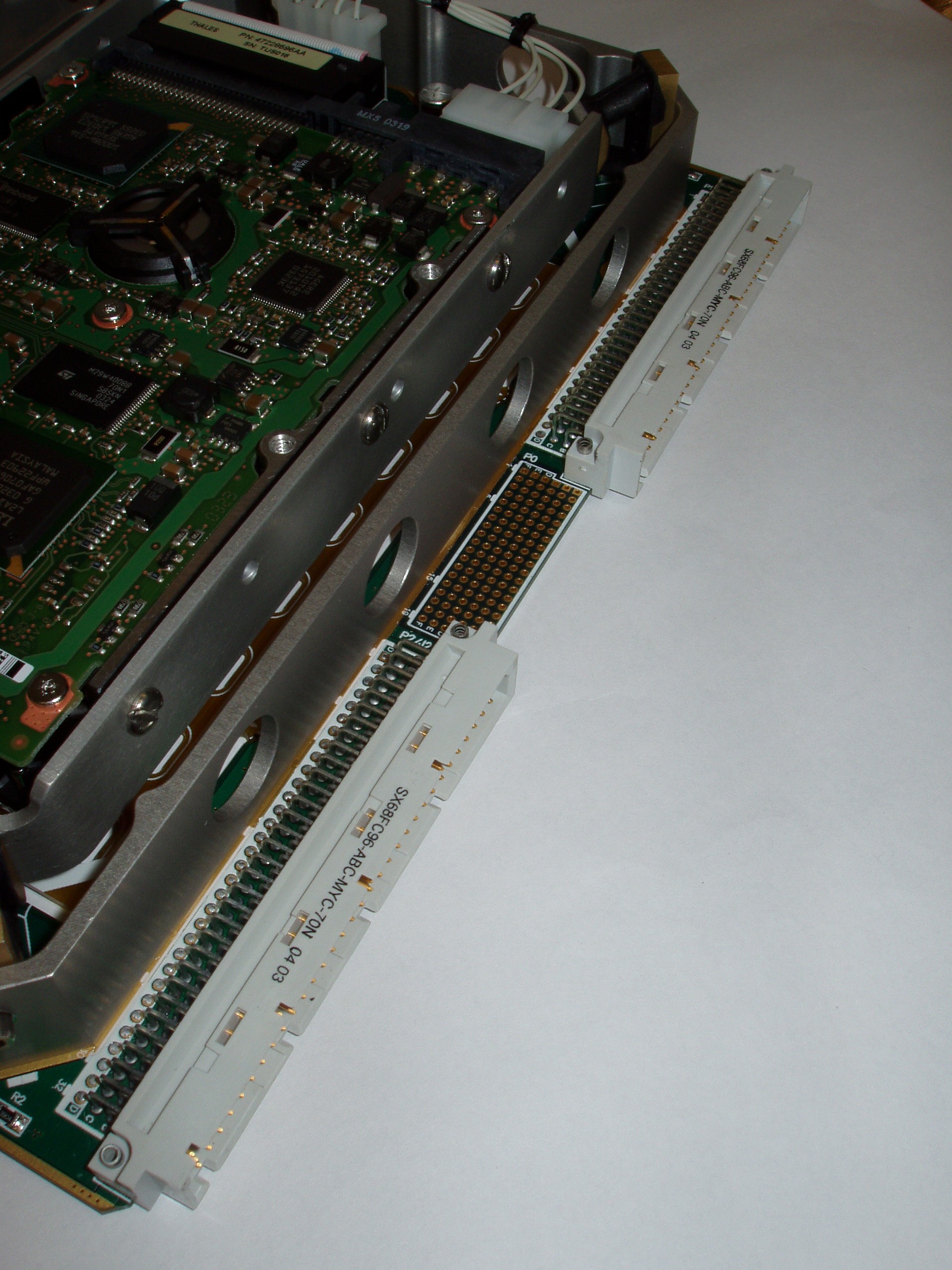

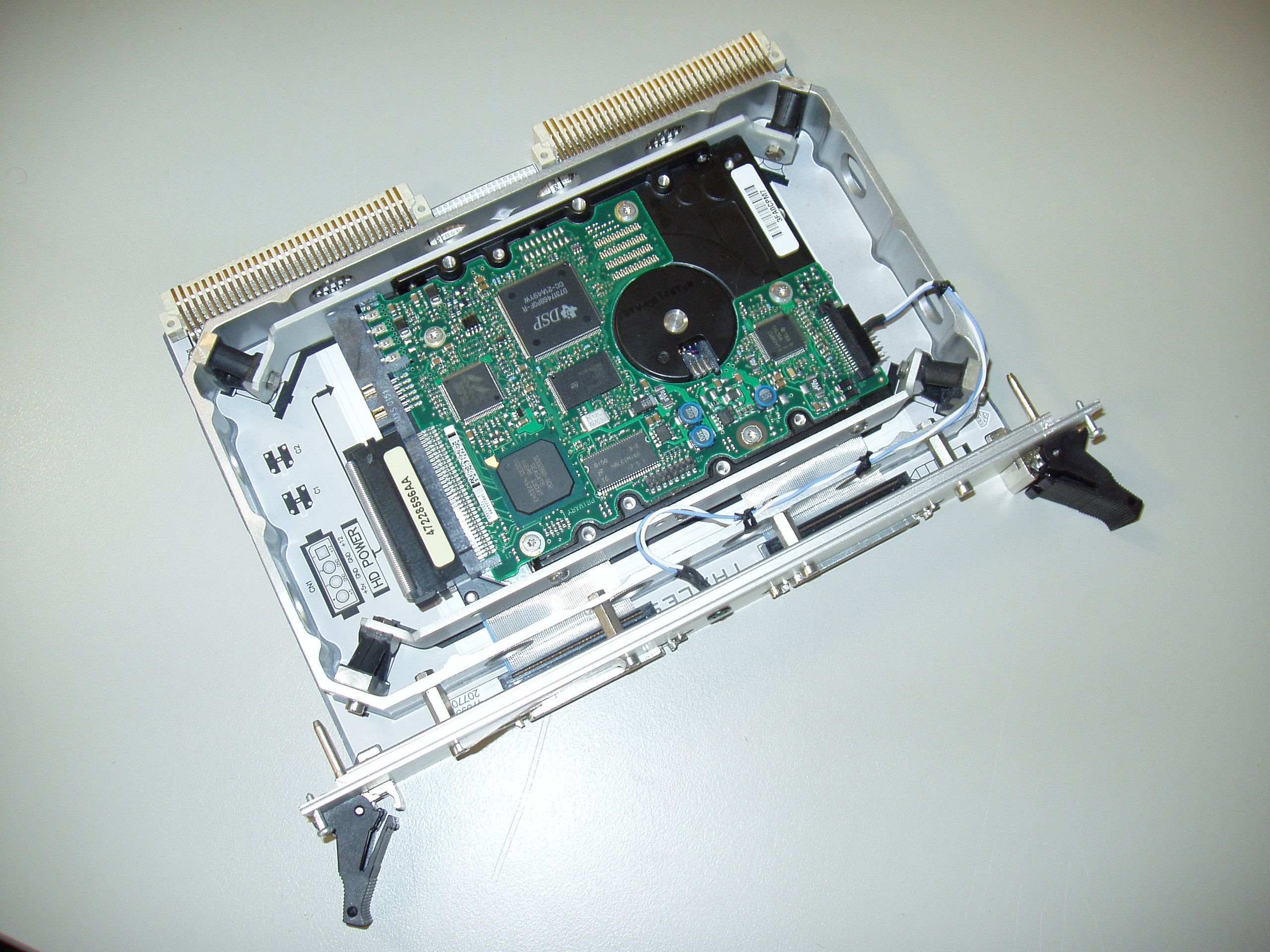

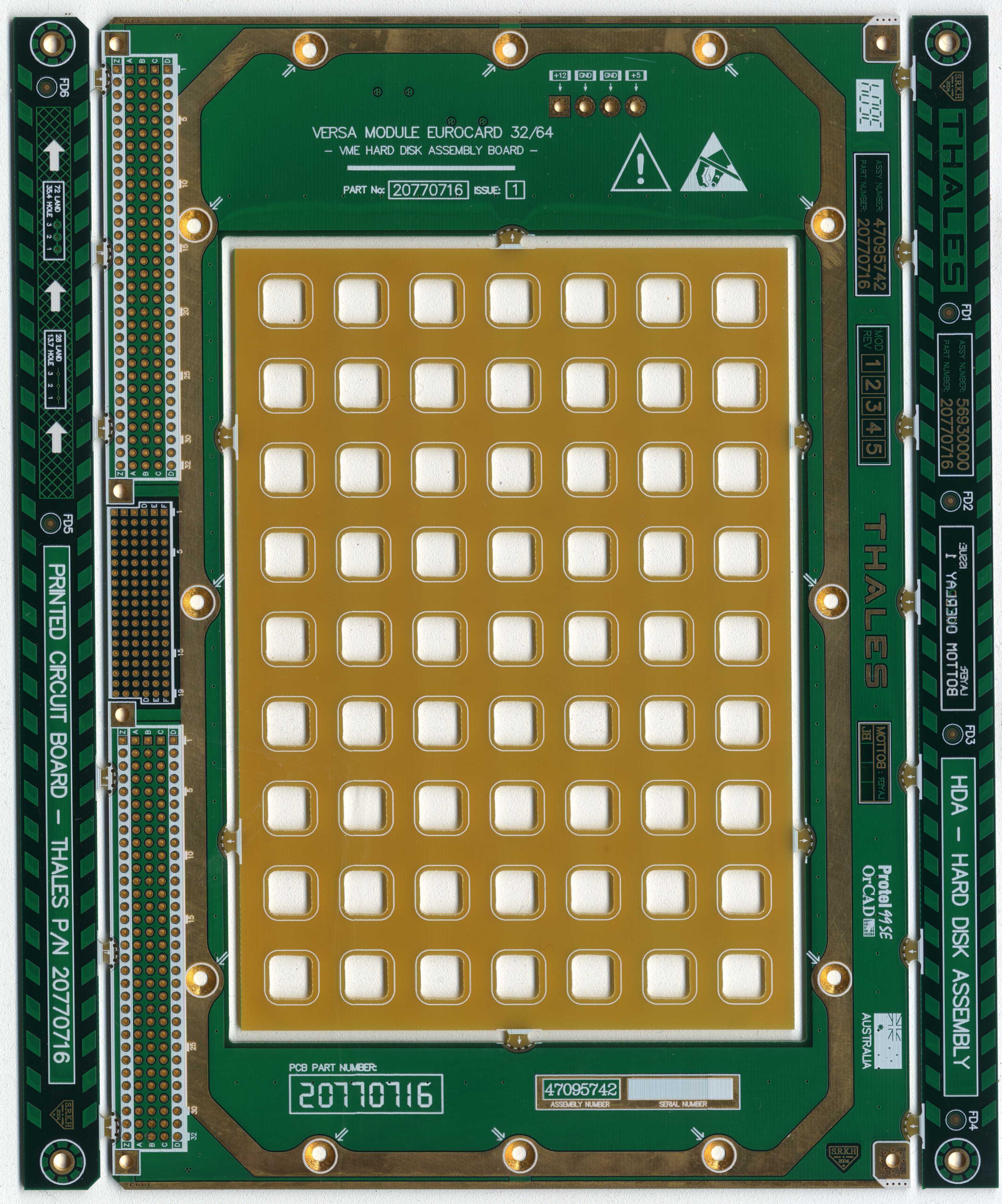

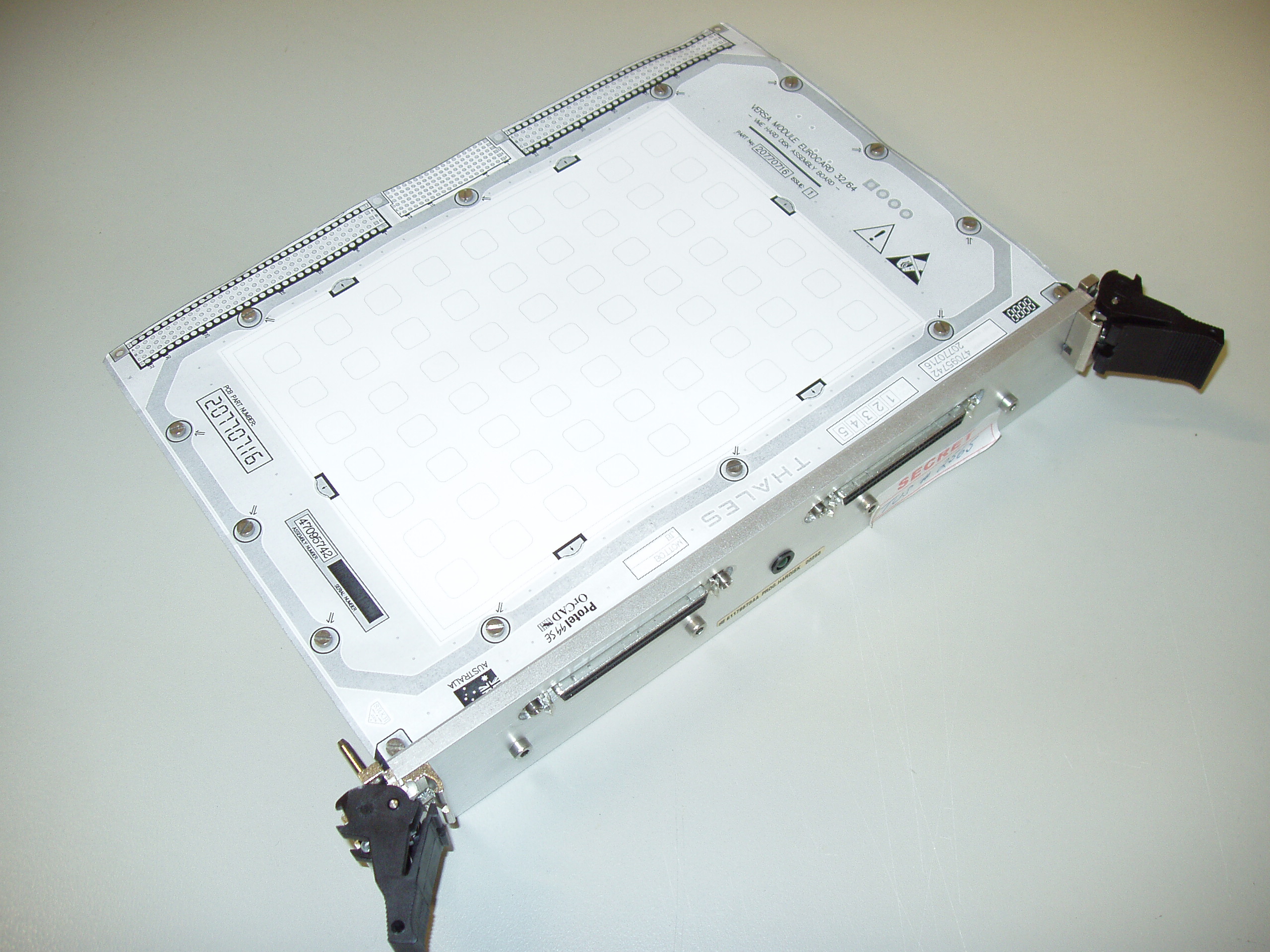

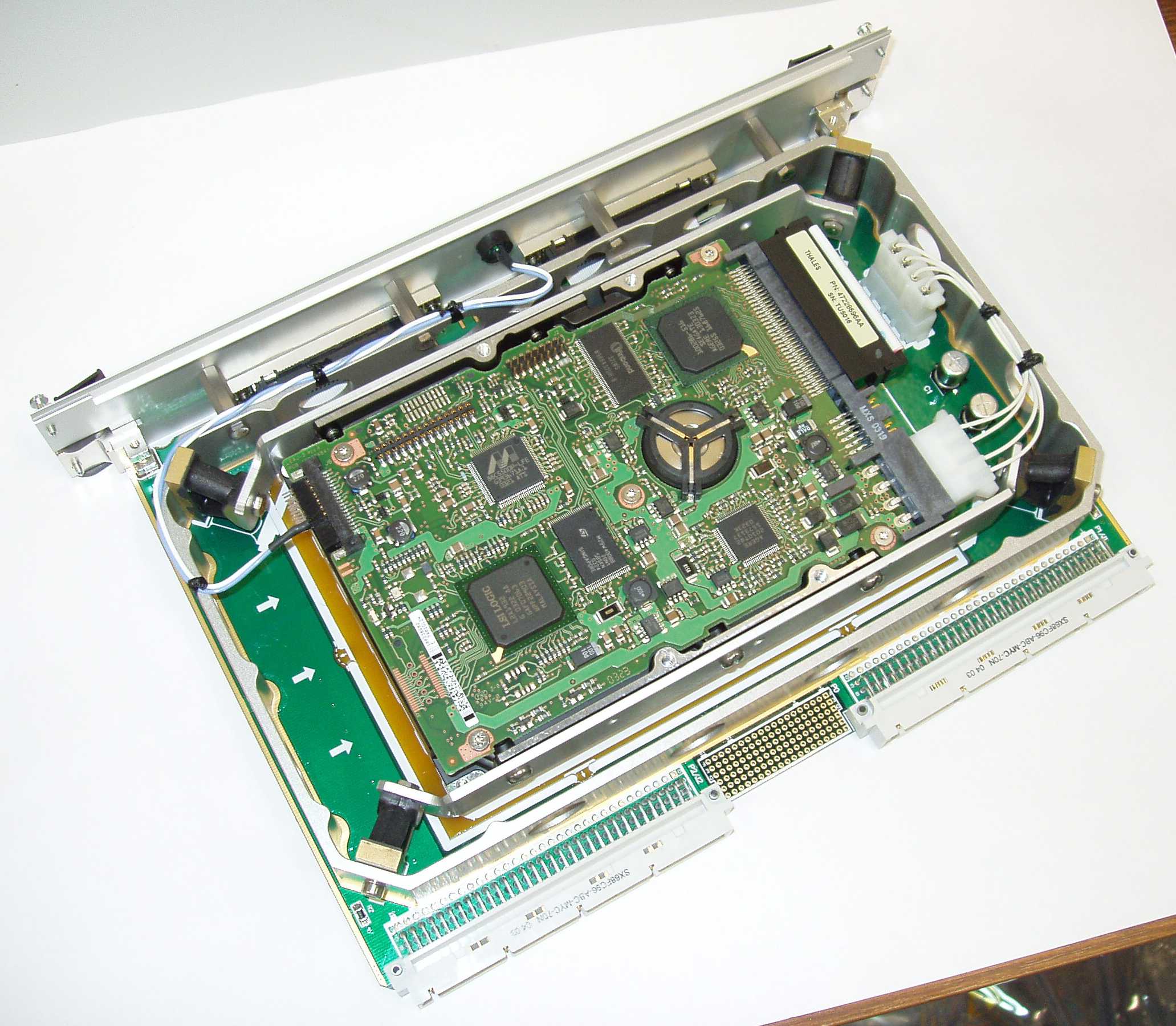

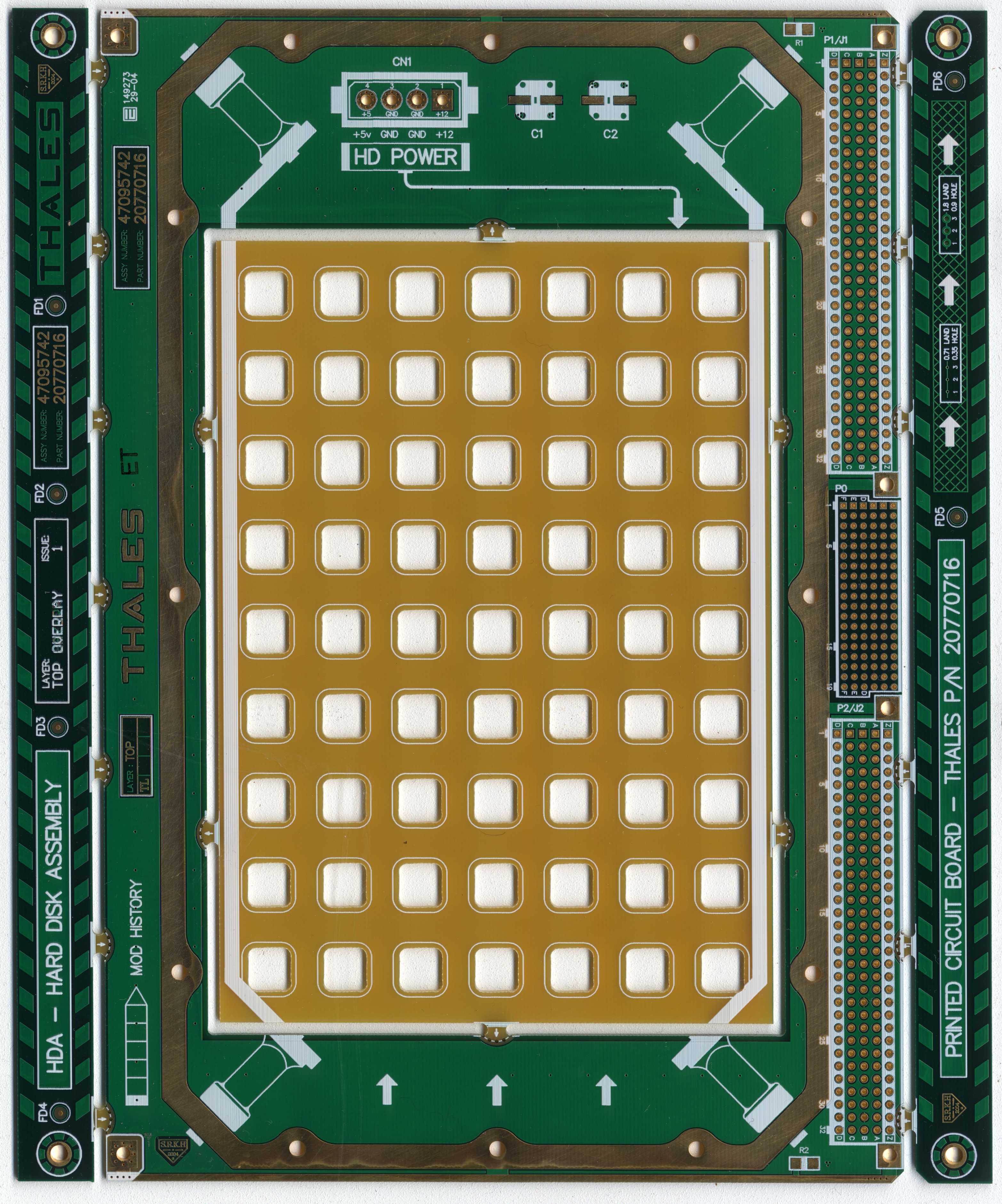

Product

VME/VME64 SCSI HDA Board

Assembly ID

47095742

Company

THALES

Function

VME64 Mass Storage Card

Primary Device

None (Bus on J0)

Technology

8 track/8 space/28 via

PCB Build Specification

2 Layer, 1oz, MASK, ENIG, FR408

Design Compliance

IPC-A-600/IPC-6012

Manufacturer

ENTECH Circuits (SA)

CAD Application

Protel 99SE

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2004


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
