Date of Design

2007

Product

JTAG Developer Tool

Assembly ID

DT01

Company

ALTIUM

Function

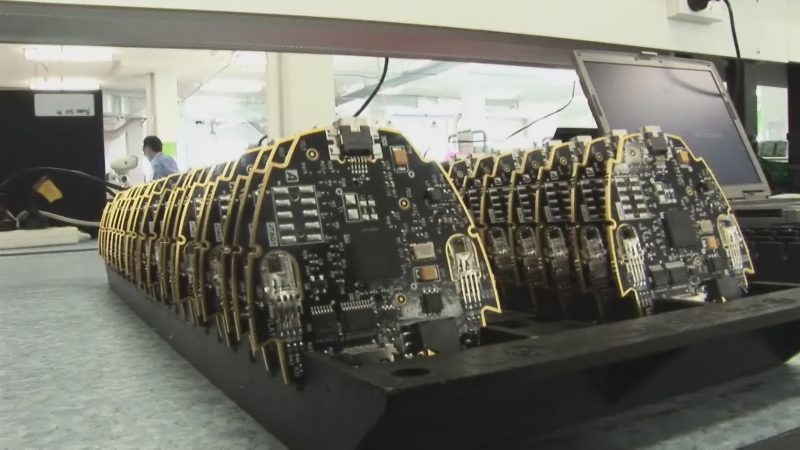

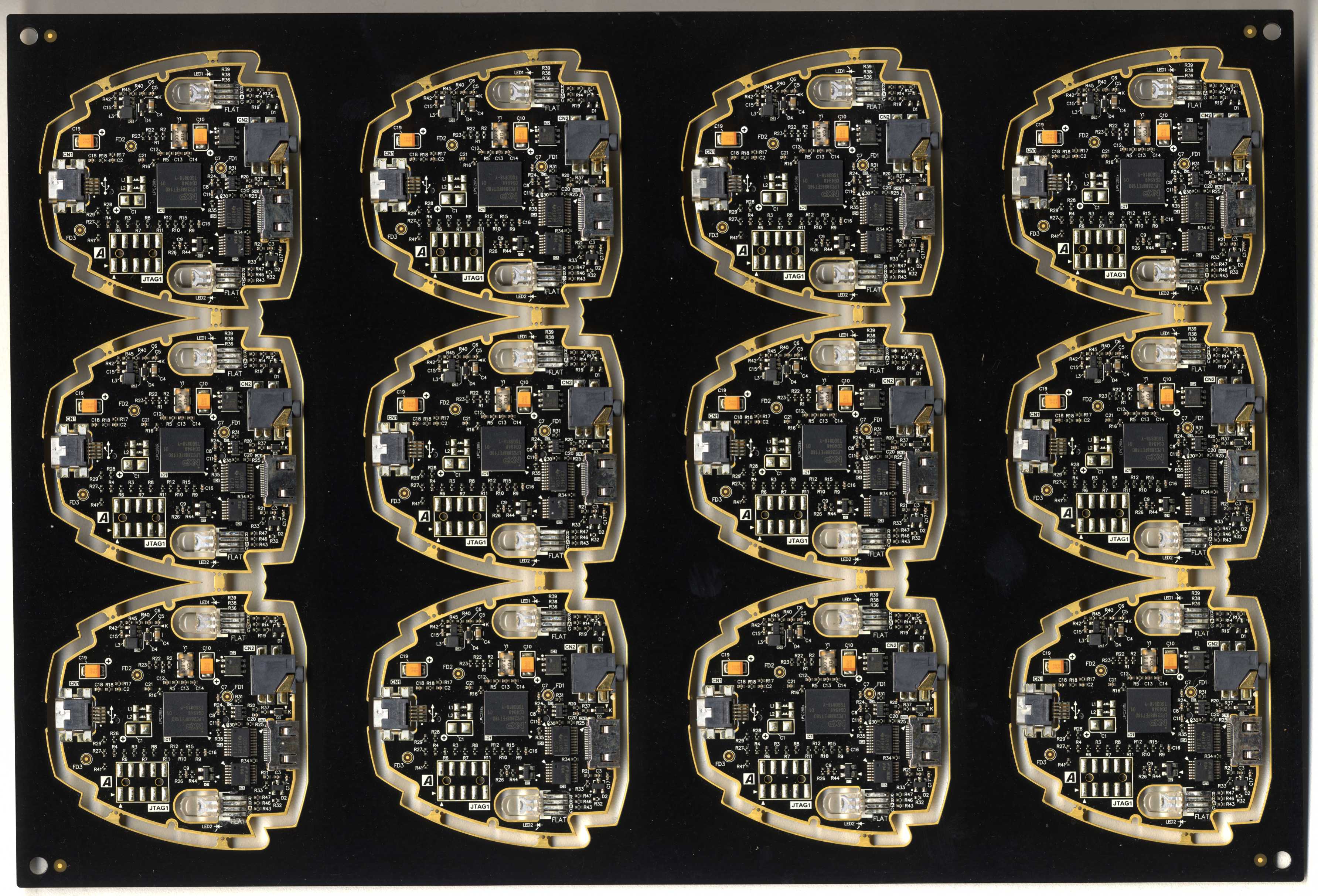

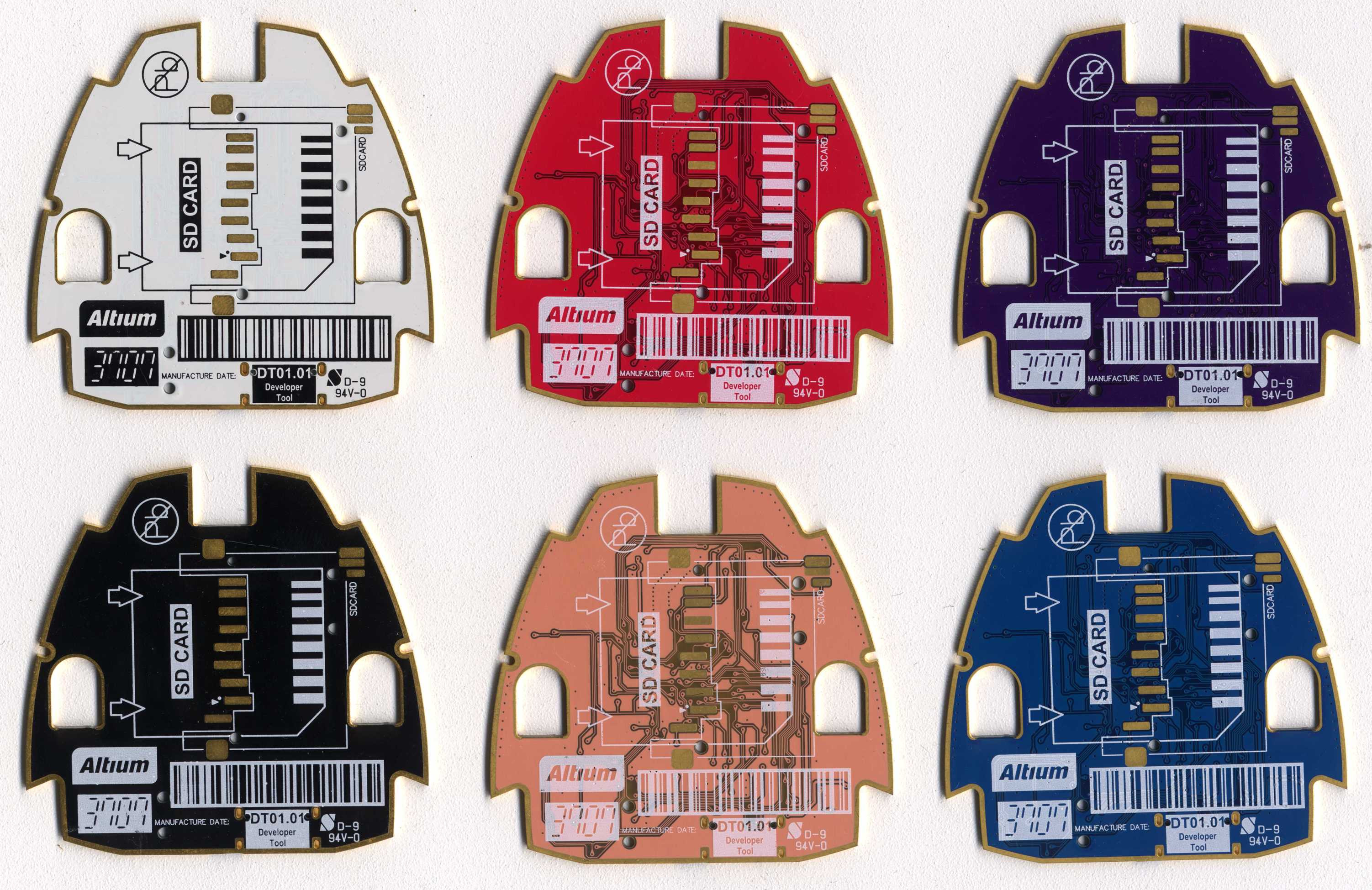

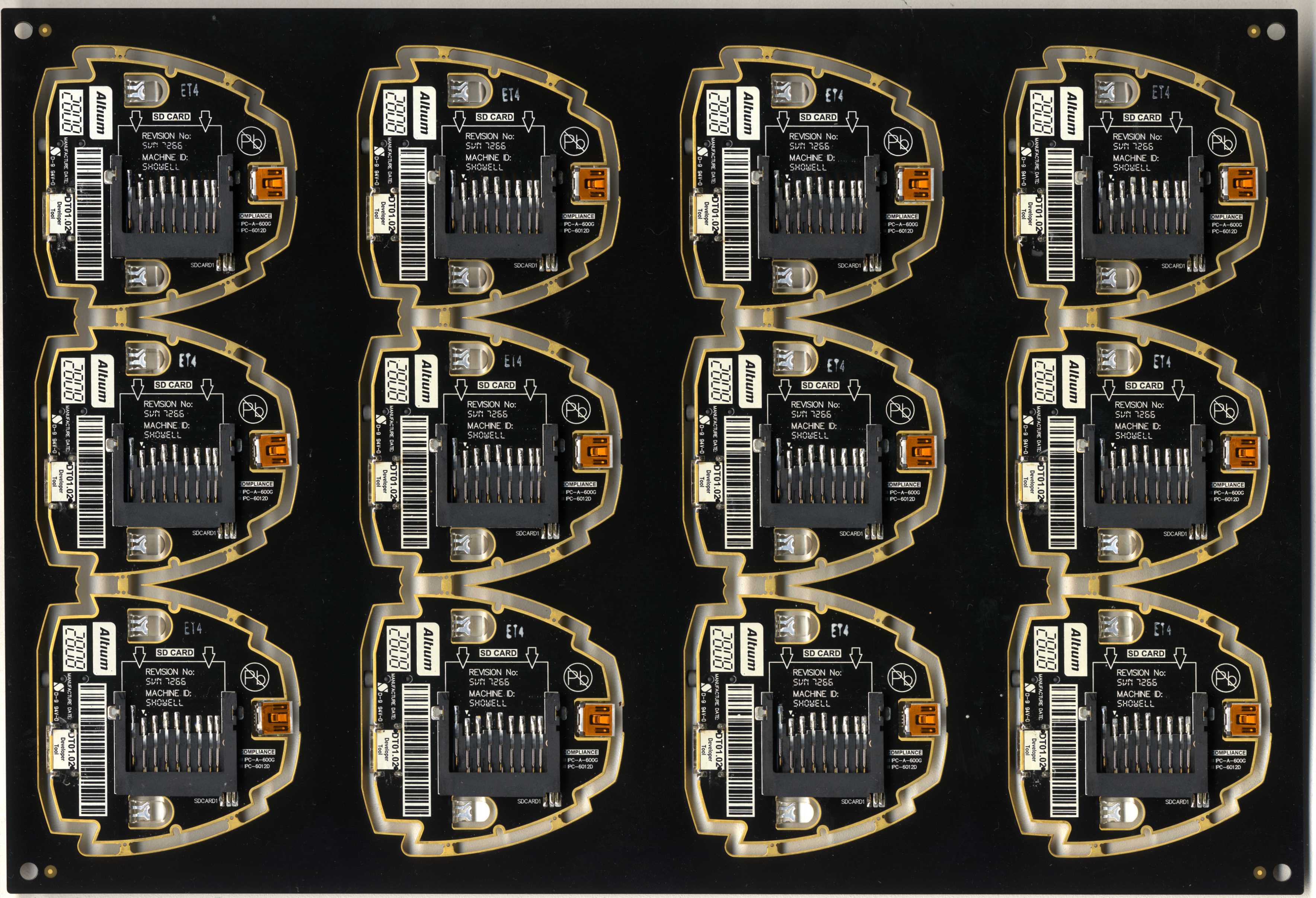

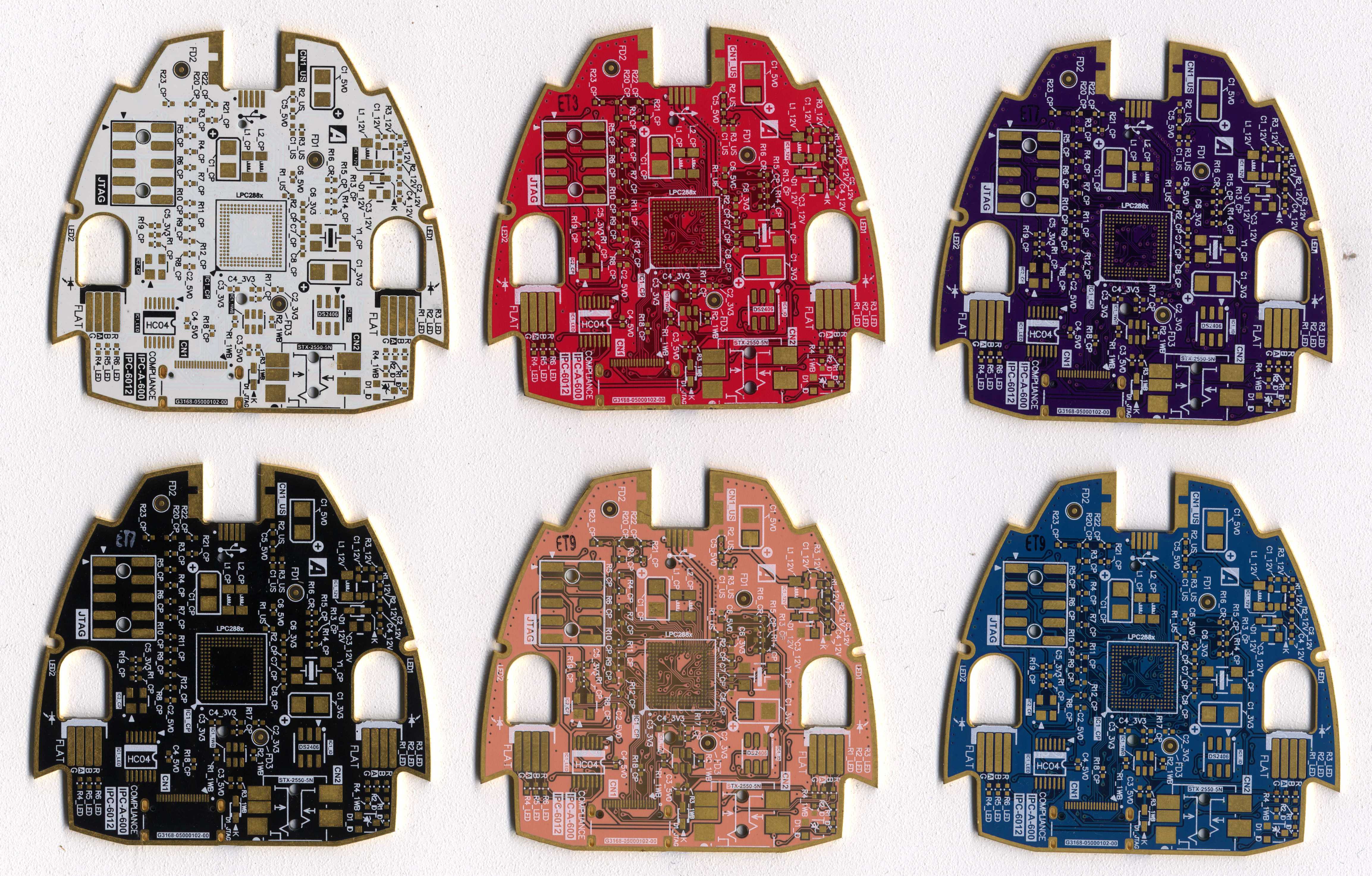

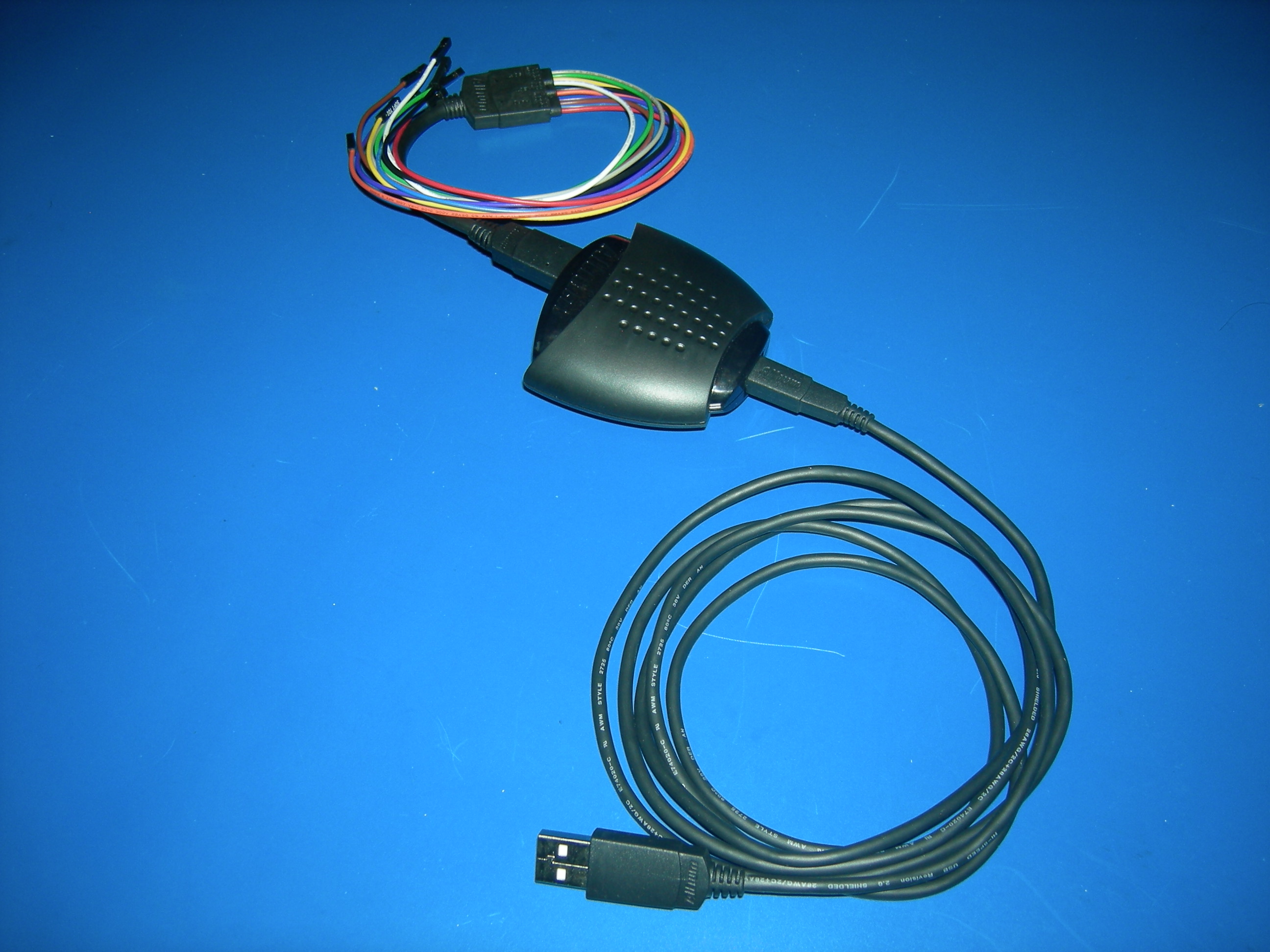

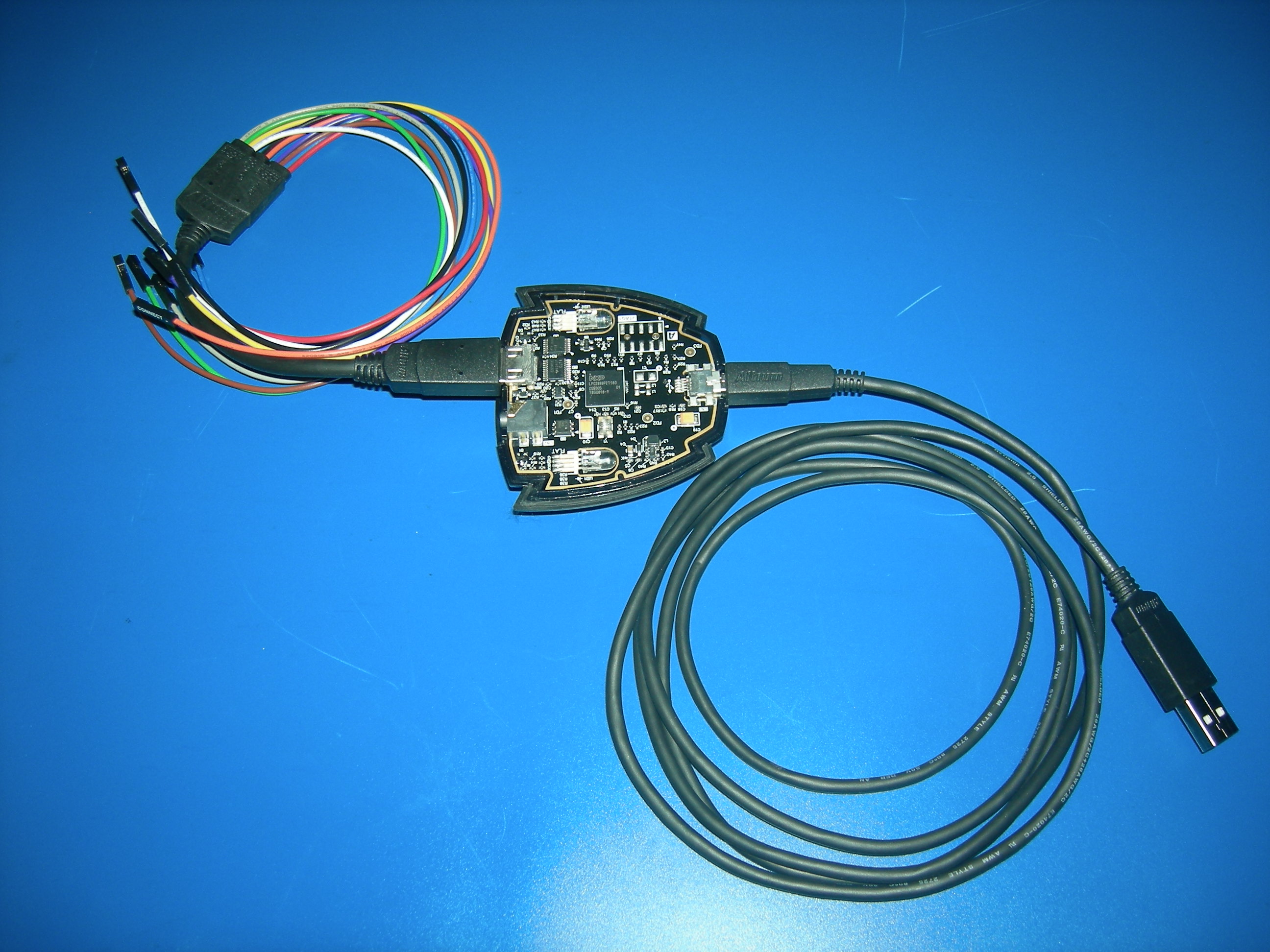

USB to JTAG Download Cable

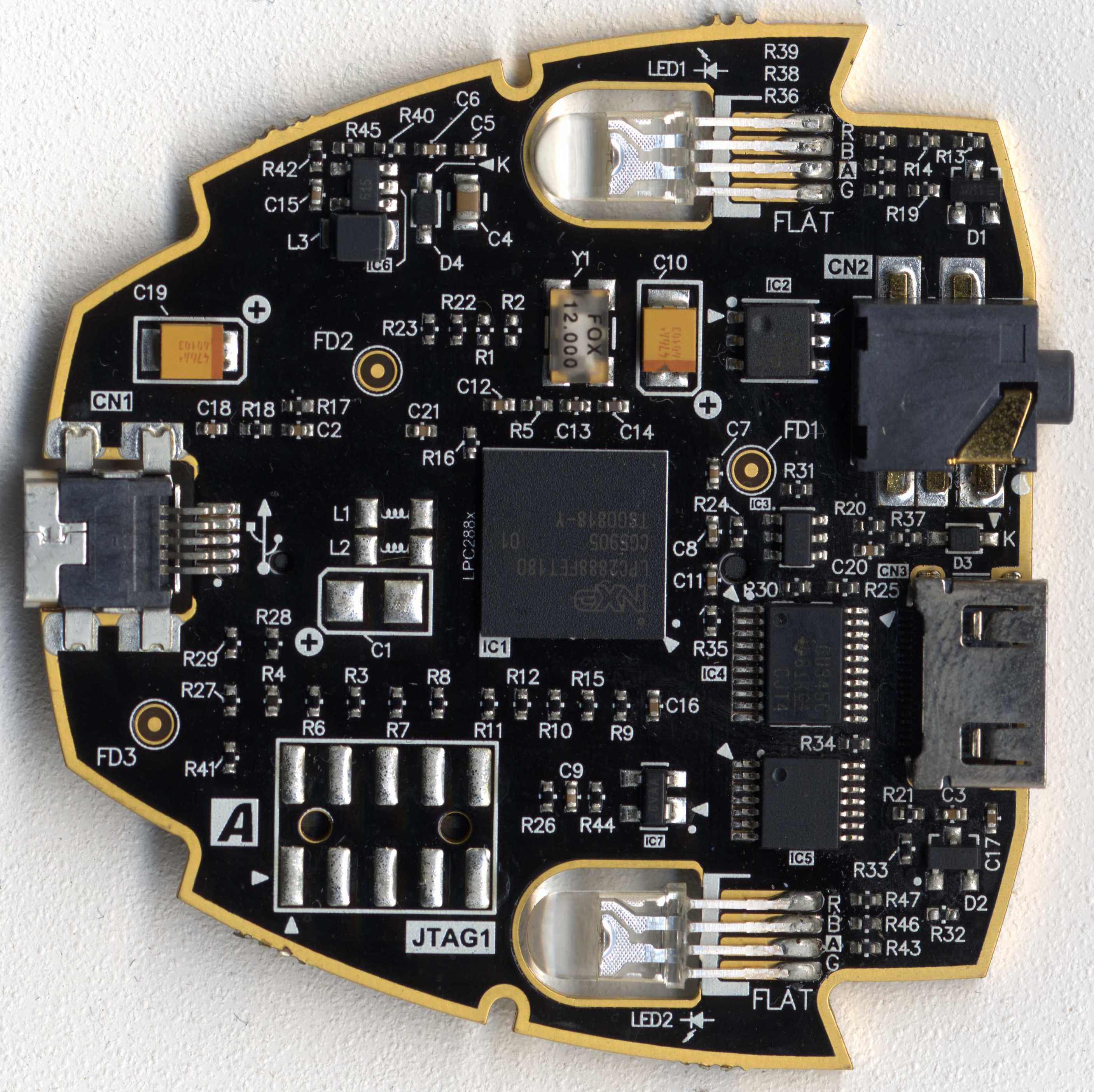

Primary Device

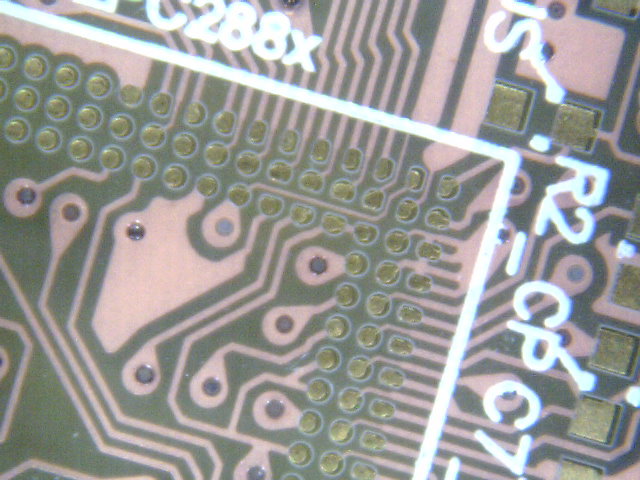

NXP CSP ARM7 LPC2888FET180

Technology

3 track/3 space/24 via

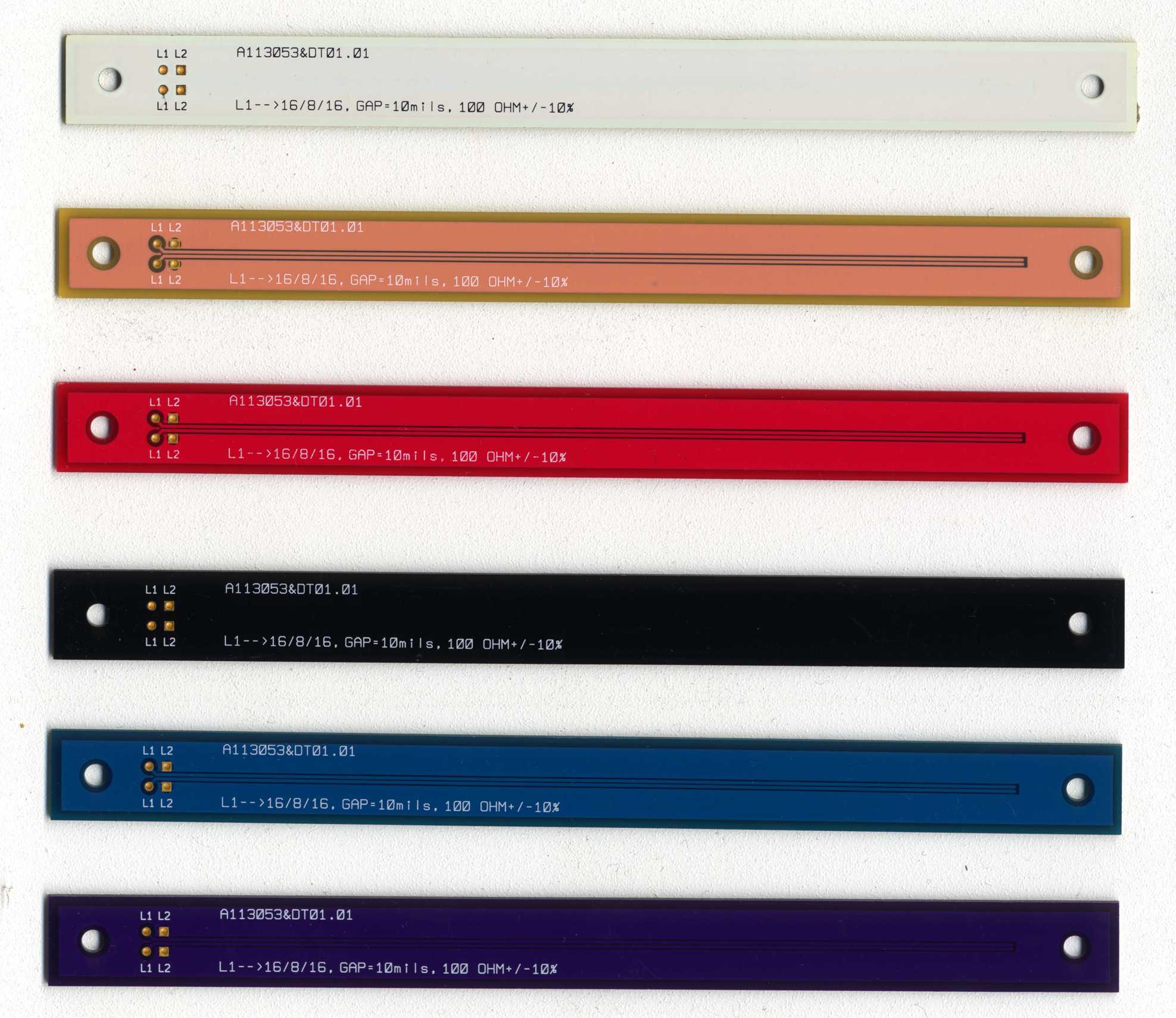

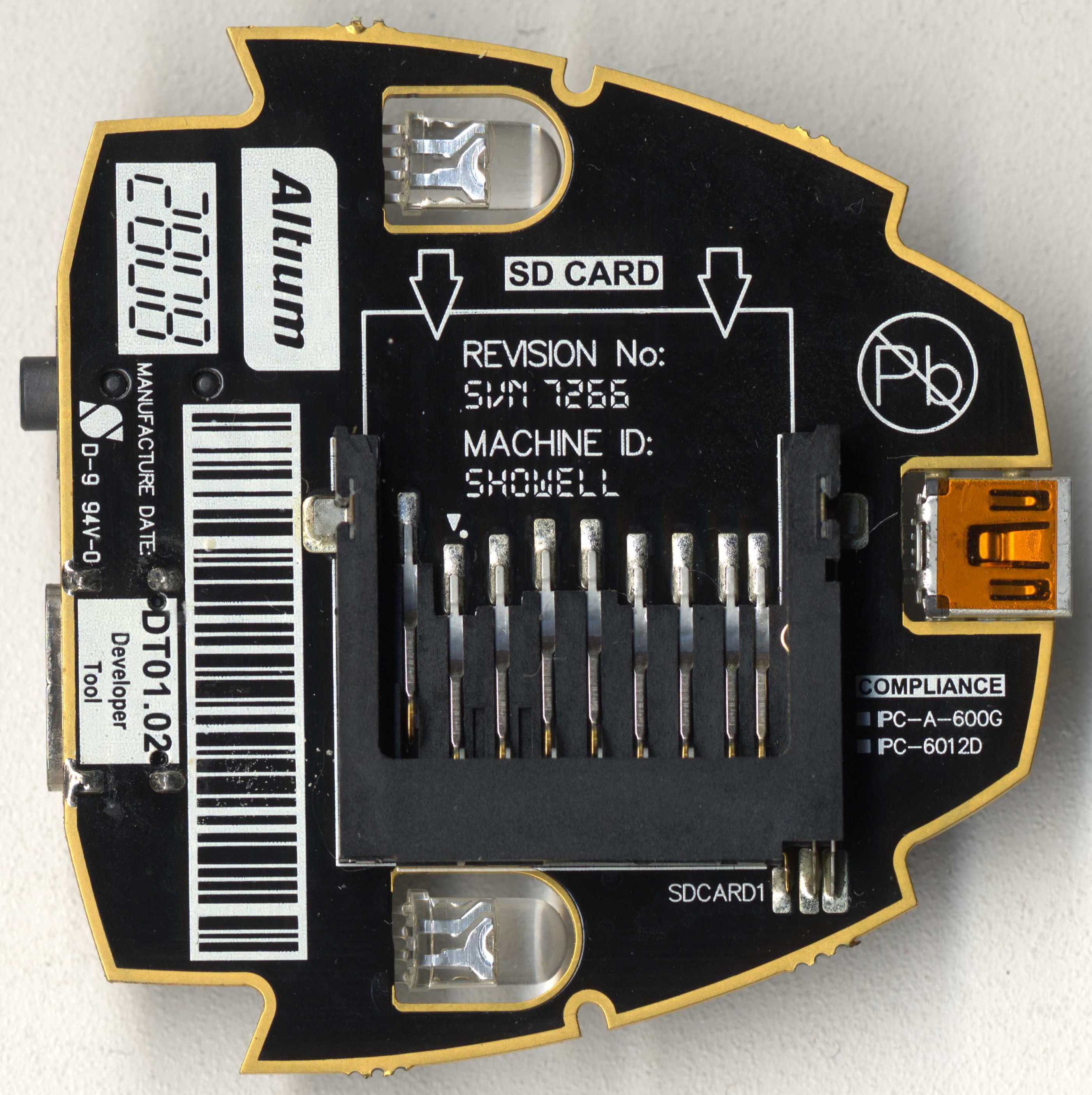

PCB Build Specification

2 Layer, 1/2oz, MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

YUAN Circuits (TAIWAN)

CAD Application

Altium Designer 6.8

Prototype Availability

Yes

Downloads

DT01 PCB Specifications (PDF)
DT01 Cable Specifications (PDF)

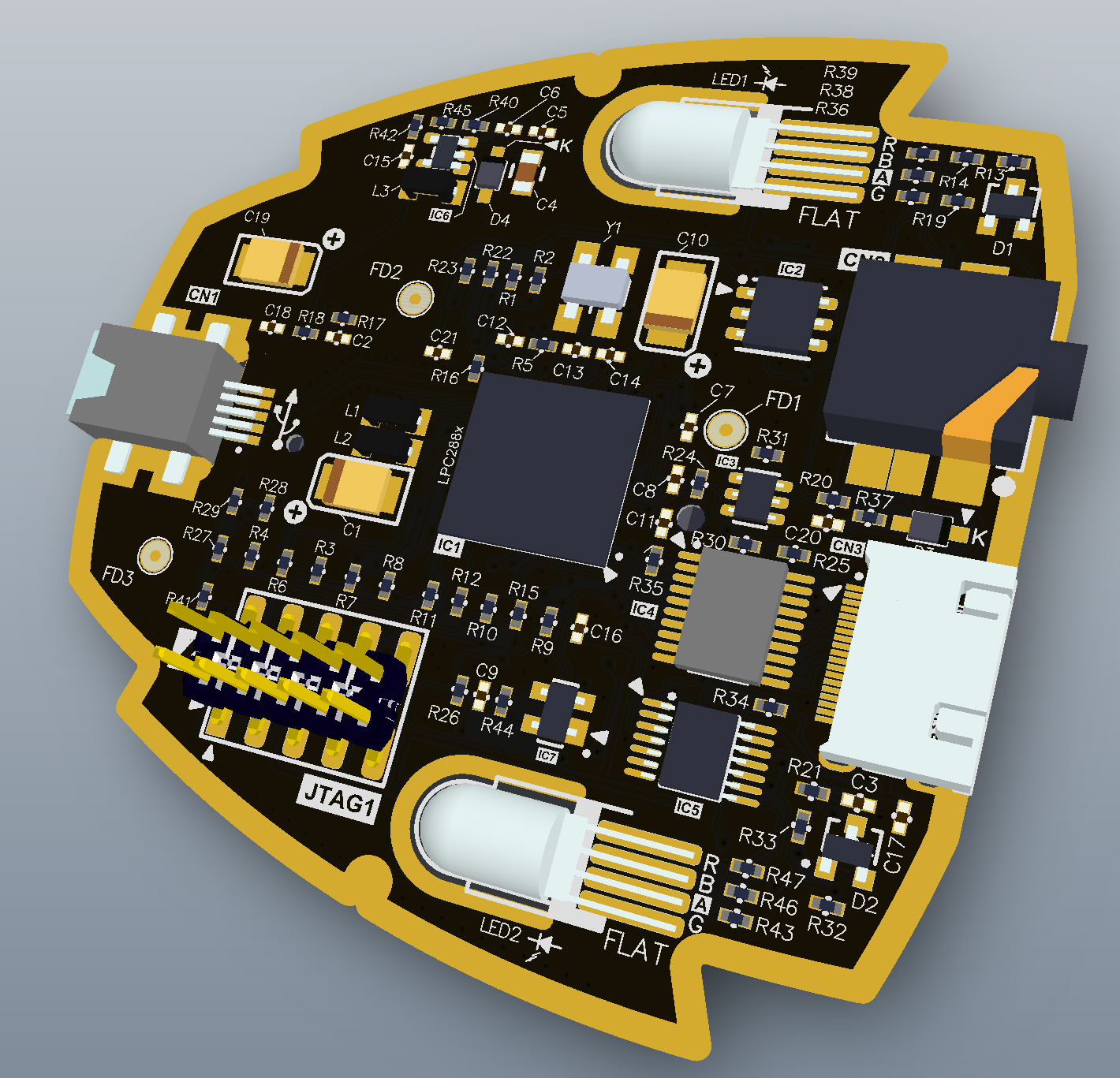

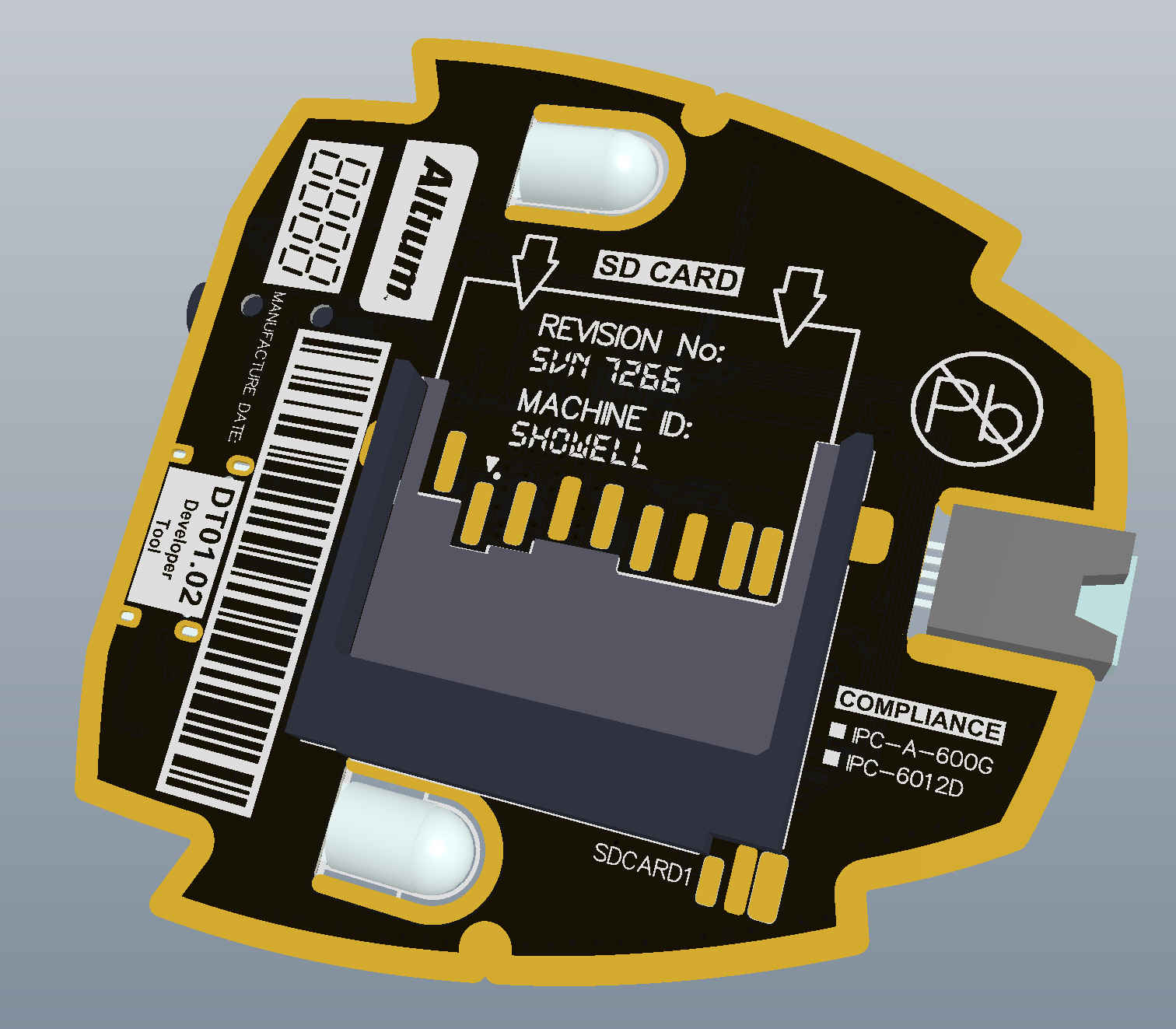

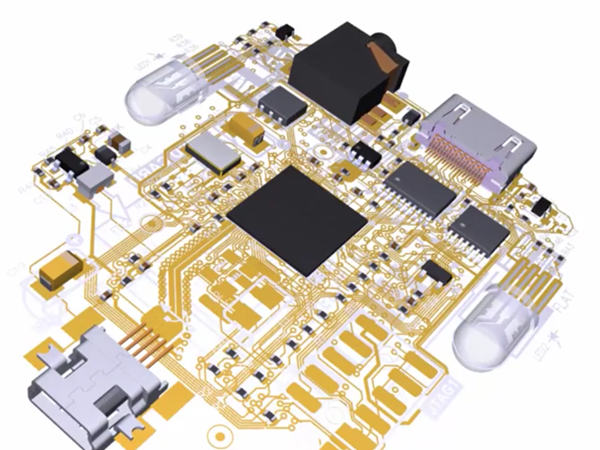

DT01 Cable + Spec in 3D (PNG)

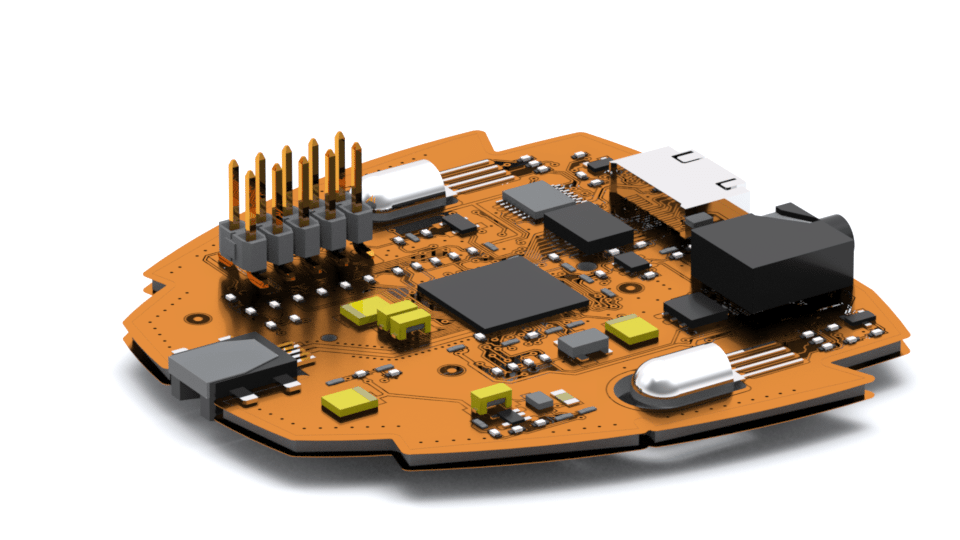

DT01 Cable in 3D (PNG)
