Date of Design

2007

Product

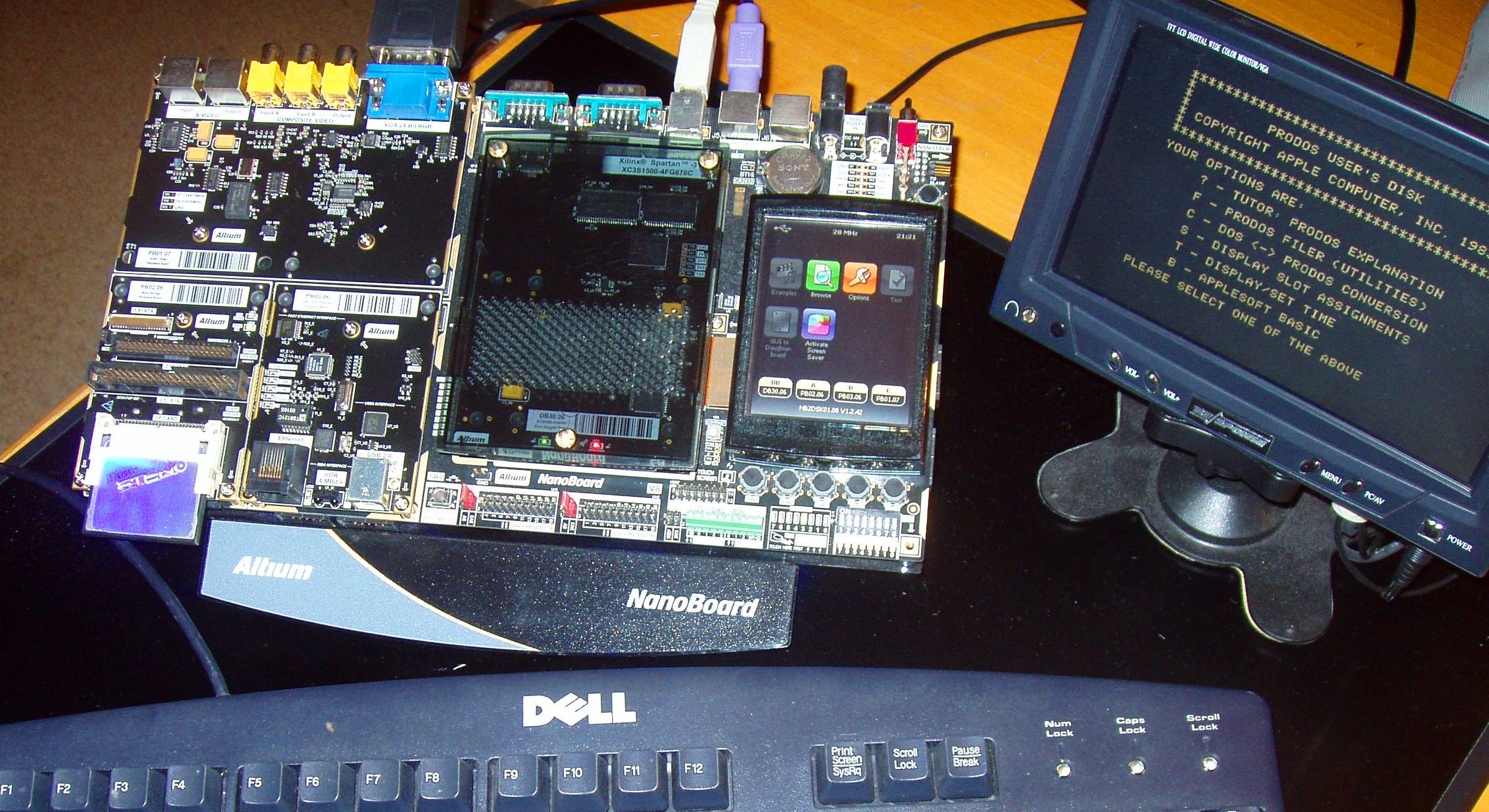

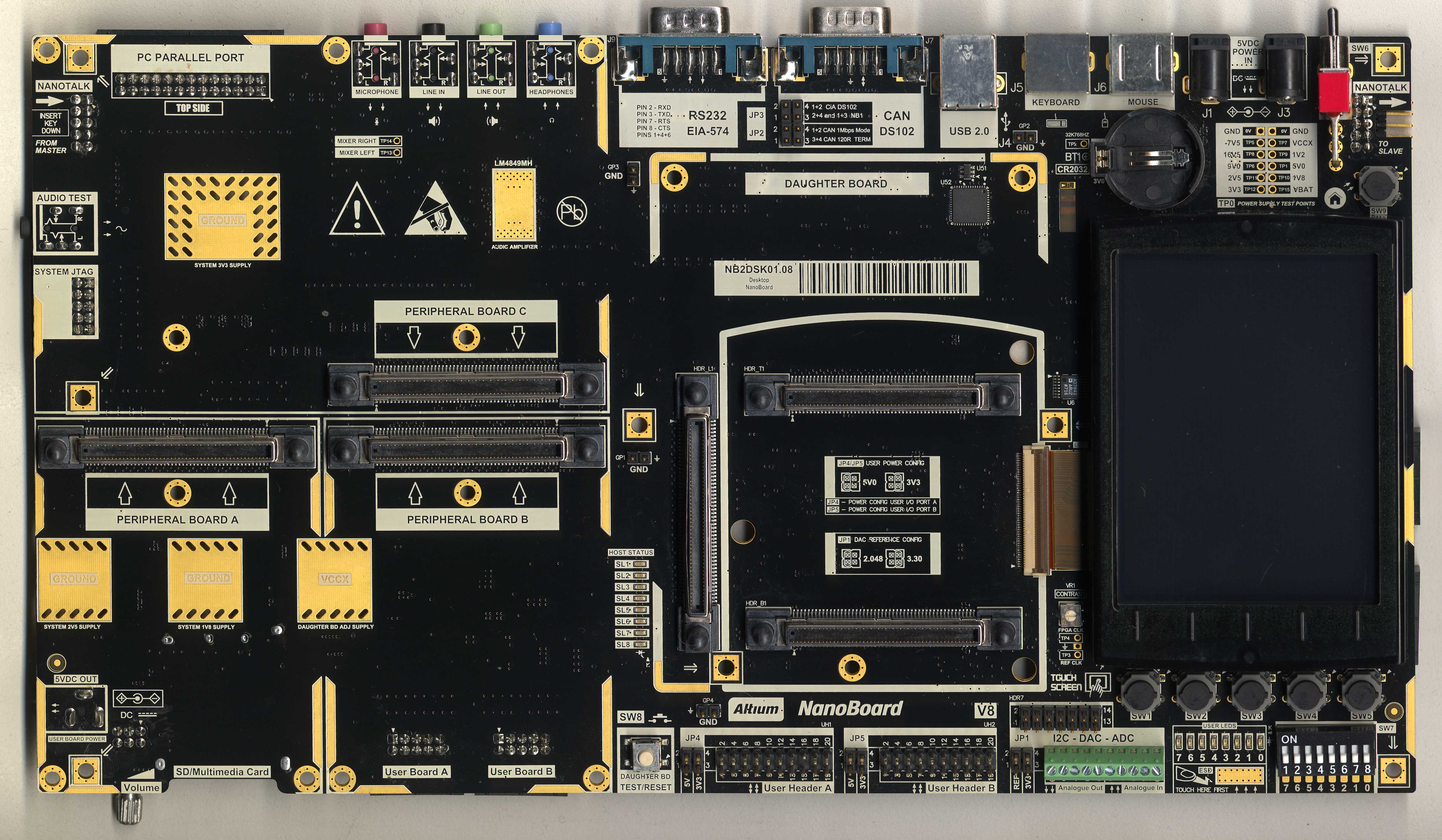

Nanoboard II

Assembly ID

NB2DSK01

Company

ALTIUM

Function

Vendor independent FPGA Dev Bd.

Primary Device

Xilinx XC3S1500A (Host)

Technology

4 track/4 space/24 via

PCB Build Specification

8 Layer, 1/2oz, MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer 6.8

Prototype Availability

Yes

Downloads

NB2 Schematic (PDF)
NB2 PCB (PDF)
Altium  DATASHEET (PDF)
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2007

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
