Date of Design

2005

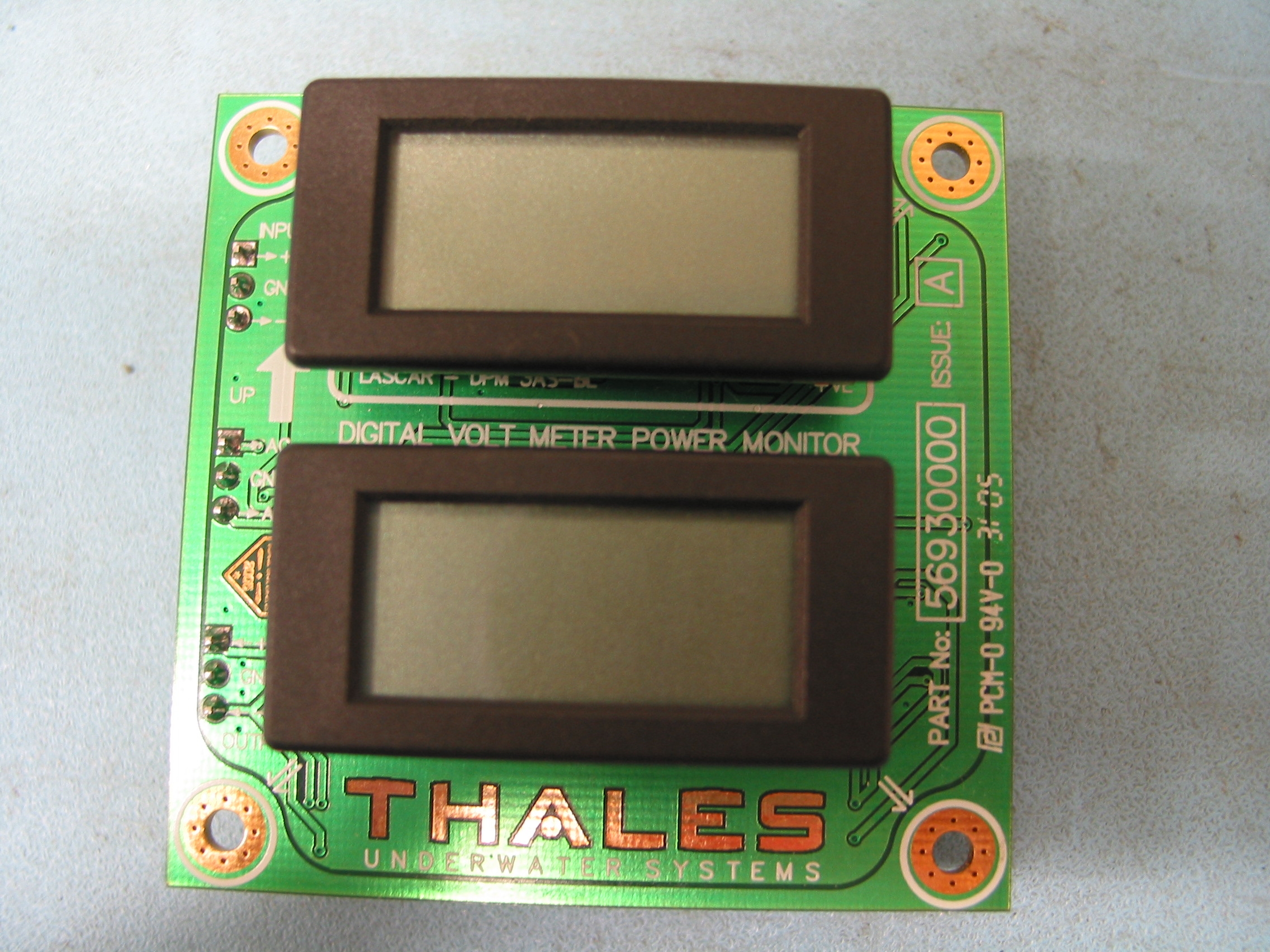

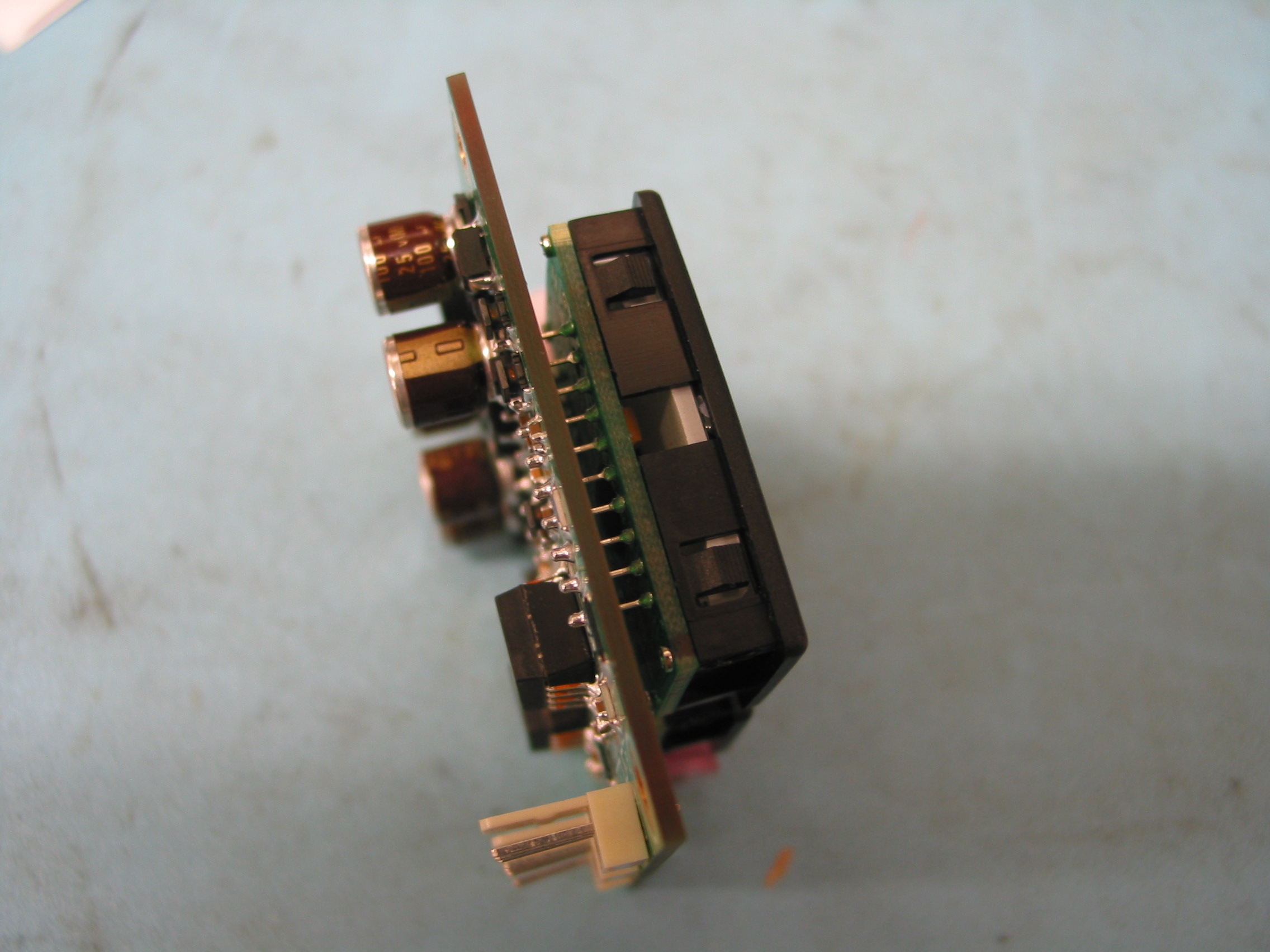

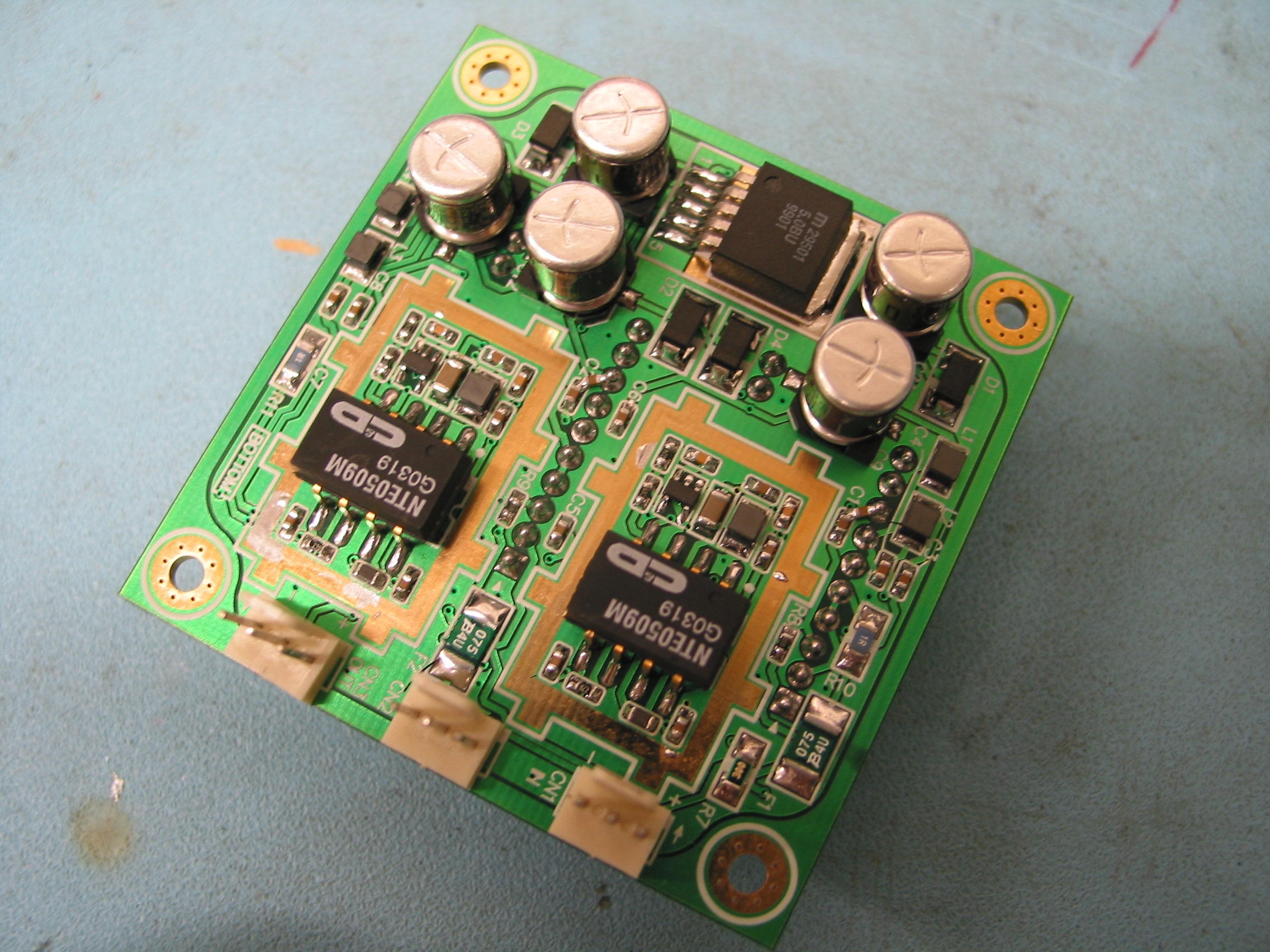

Product

Digital Volt Meter

Assembly ID

5693XXXX

Company

THALES

Function

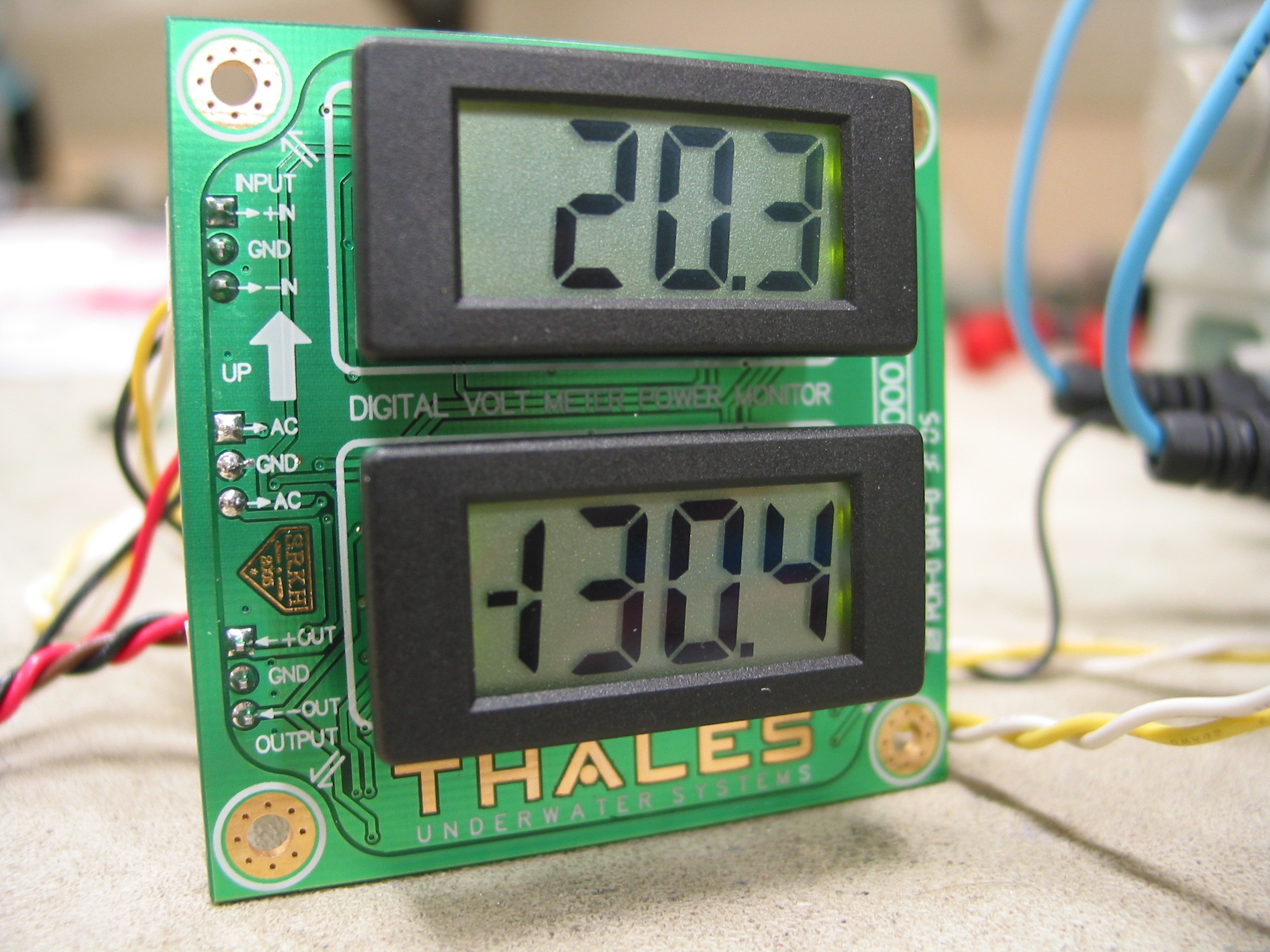

Voltage/Current Instrument Panel

Primary Device

Lascar OEM

Technology

8 track/8 space/30 via

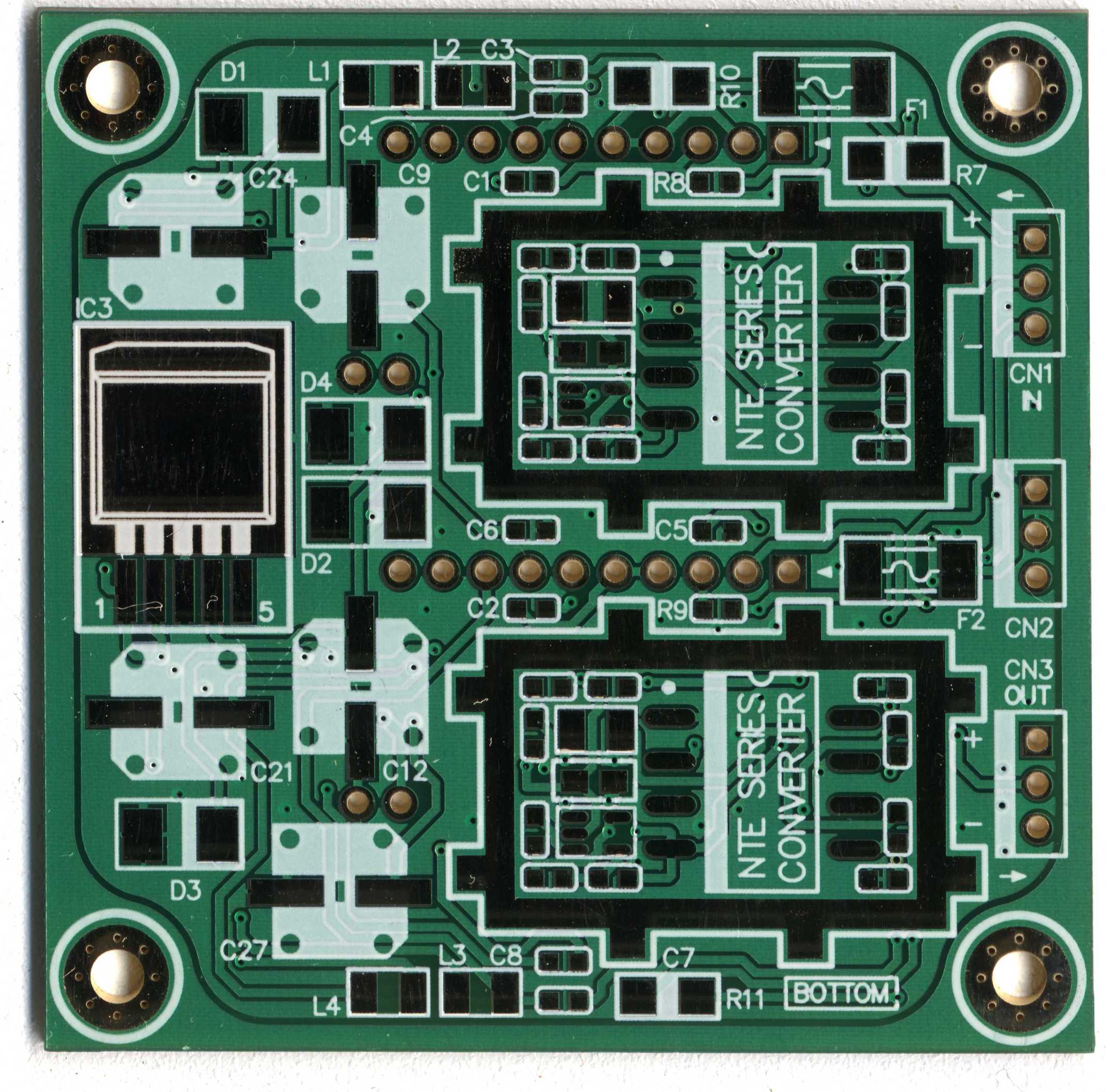

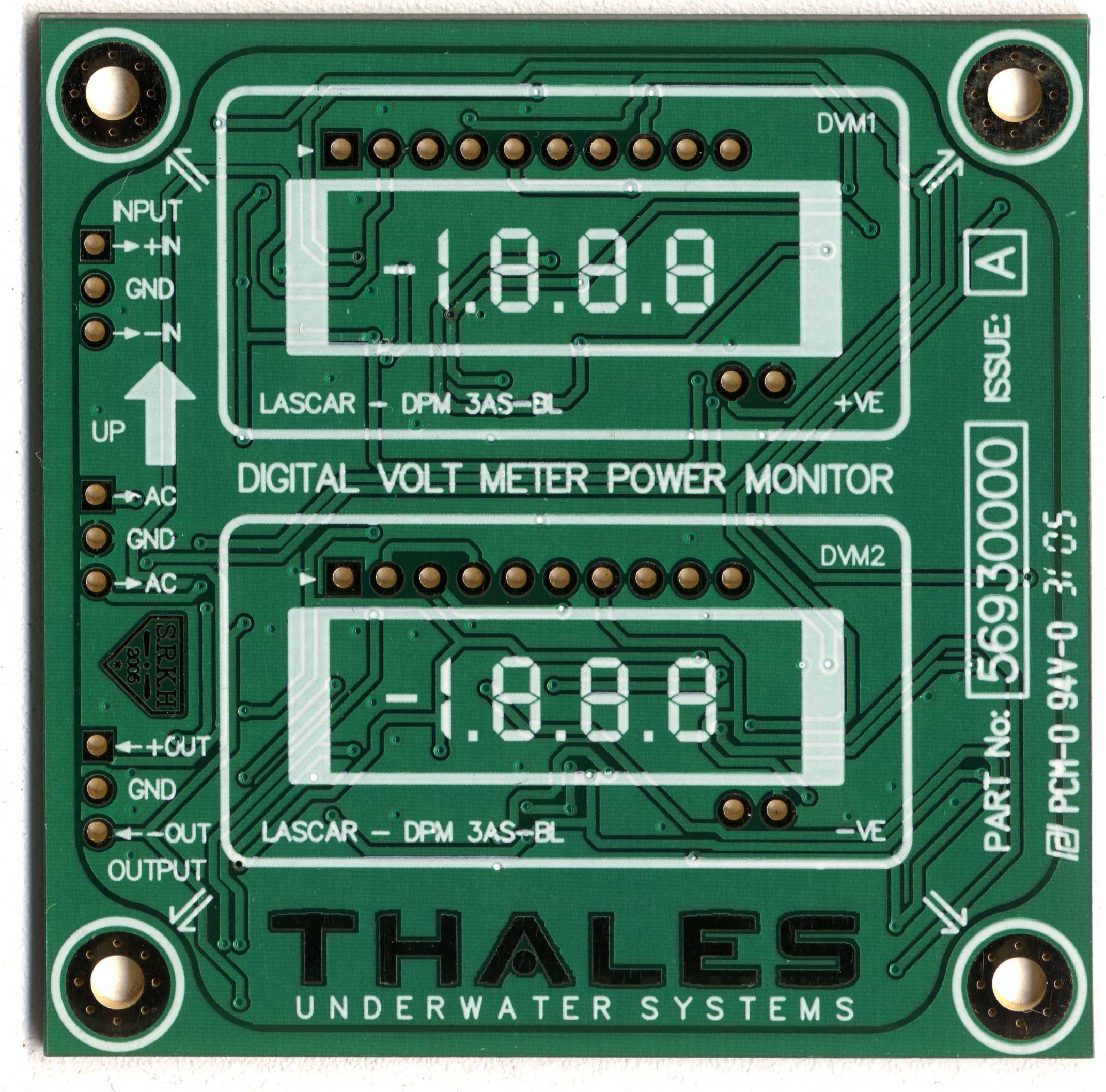

PCB Build Specification

2 Layer, 1oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2005

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
