Date of Design

2005

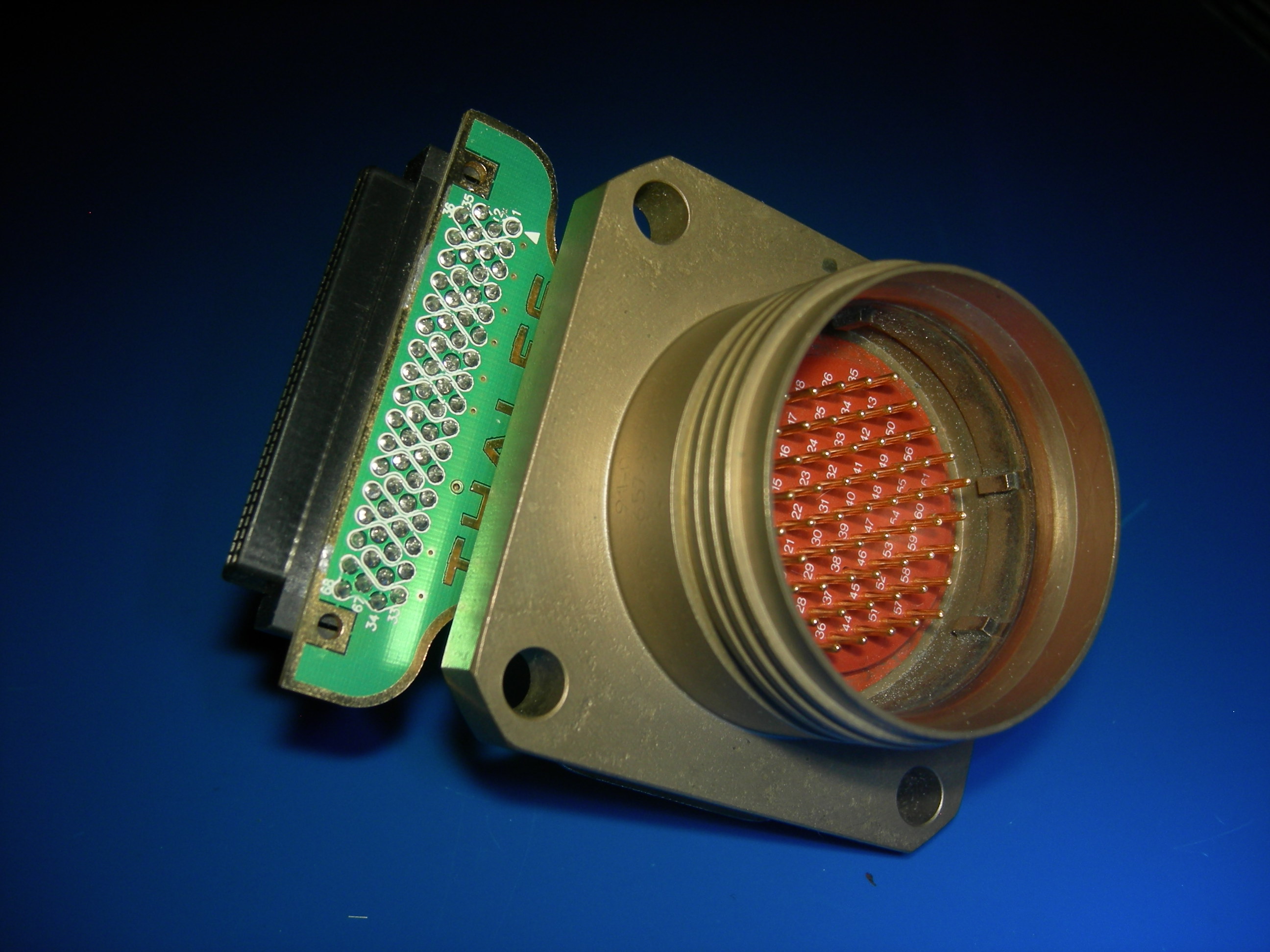

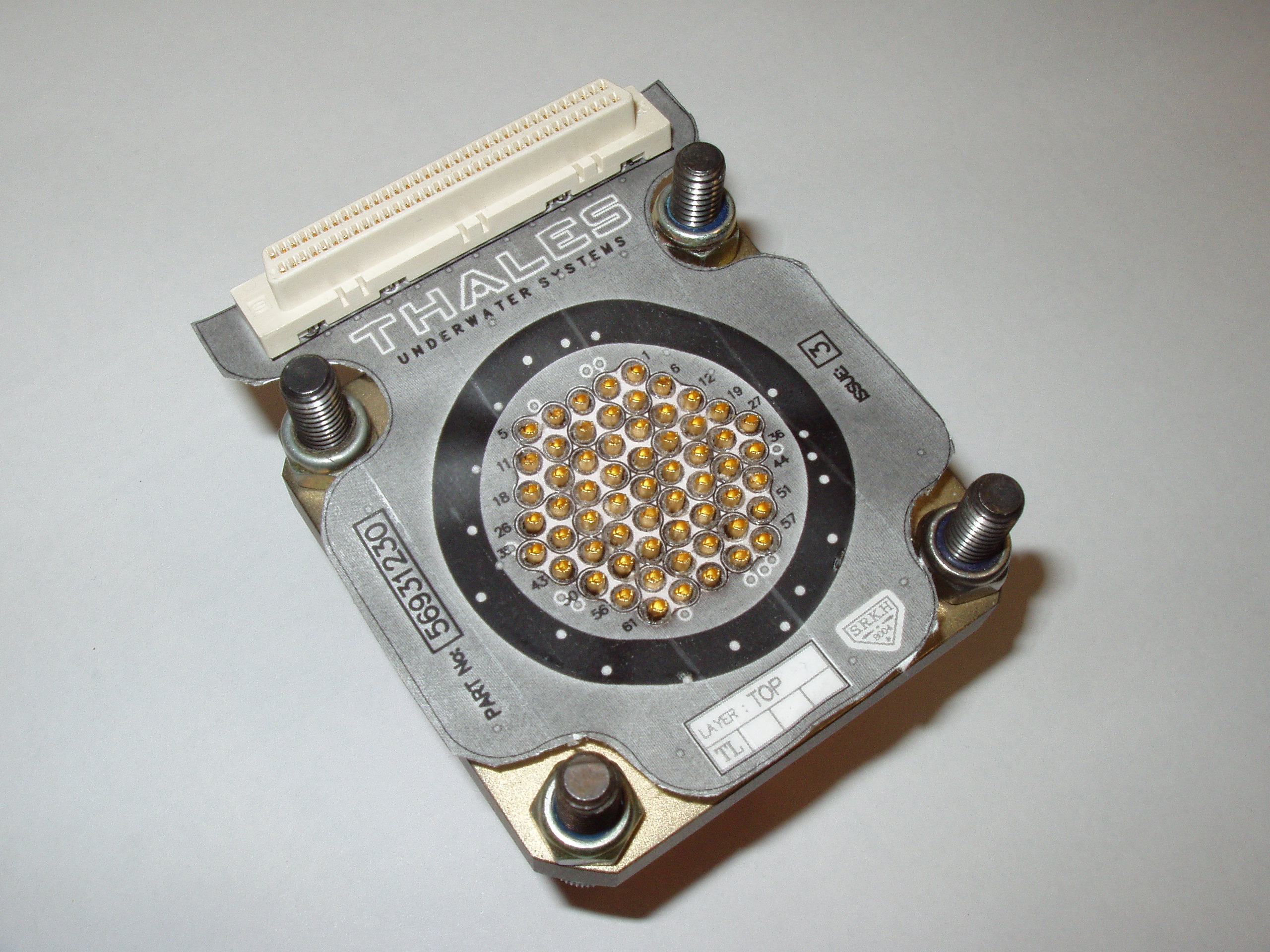

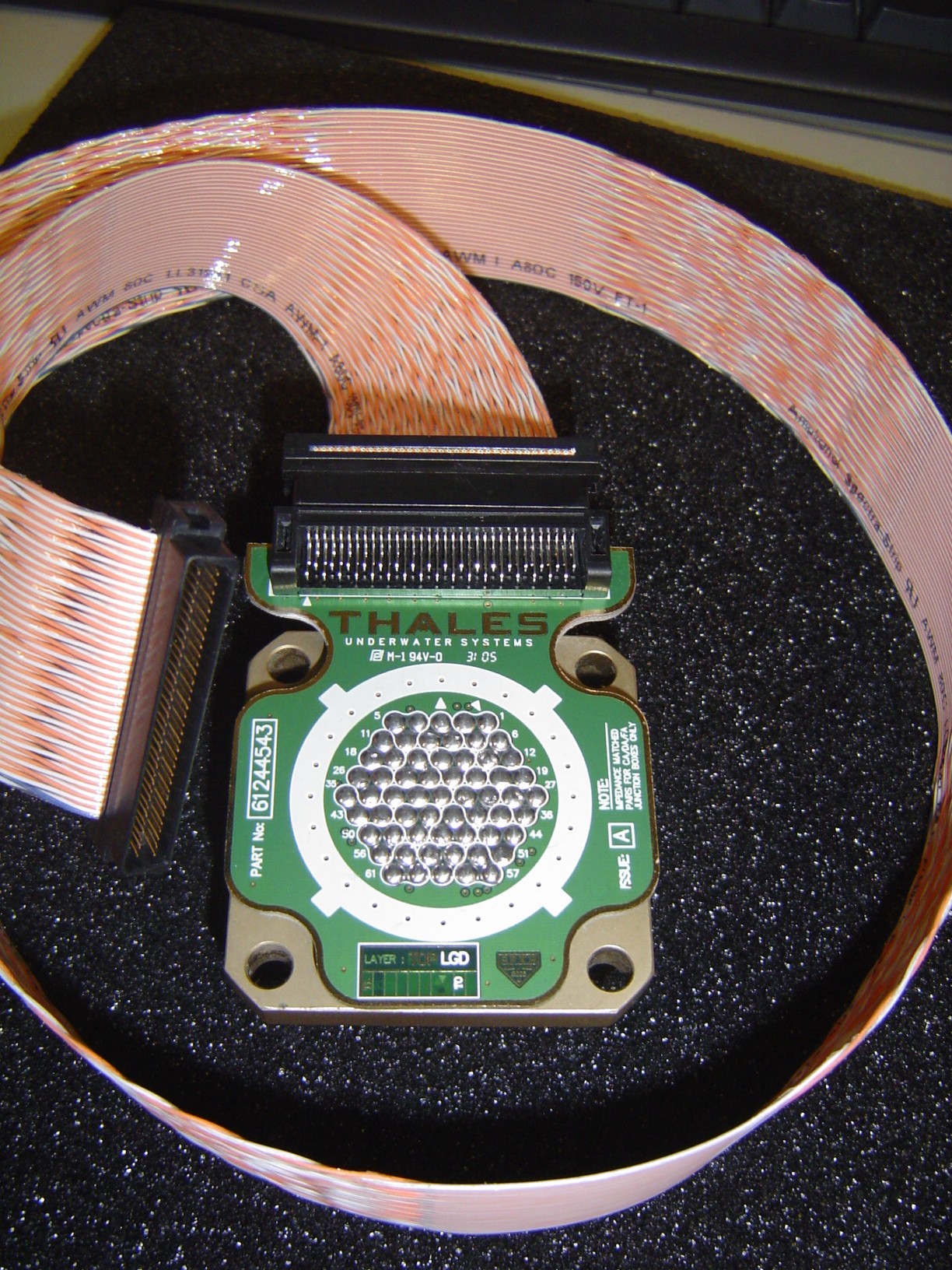

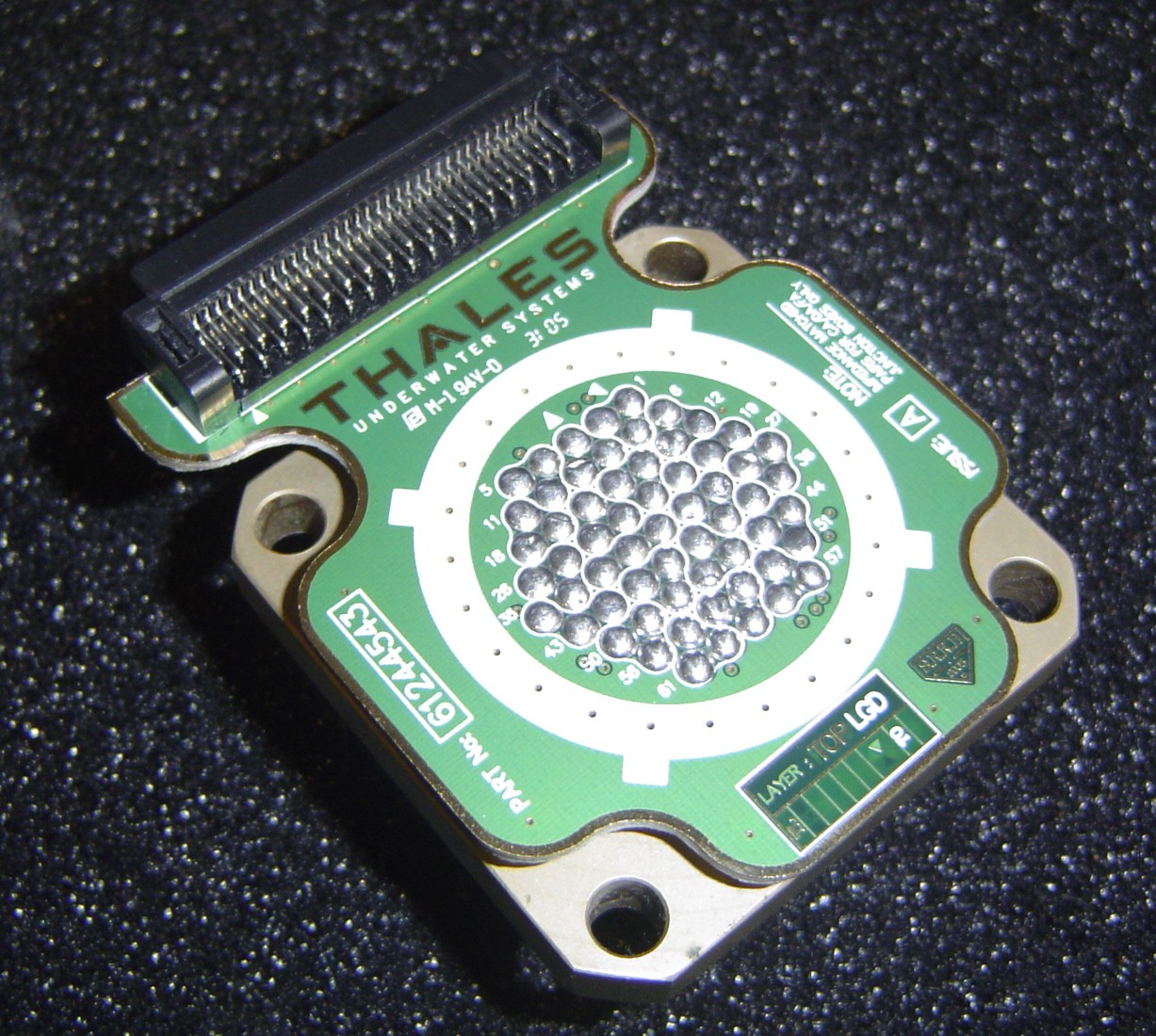

Product

OJB Pressure Hull IO

Assembly ID

61244543

Company

THALES

Function

Pressure Hull Diff Pair Mech IO

Primary Device

None

Technology

8 track/8 space/30 via

PCB Build Specification

6 Layer, 1oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2005

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
