Date of Design
2013
Product

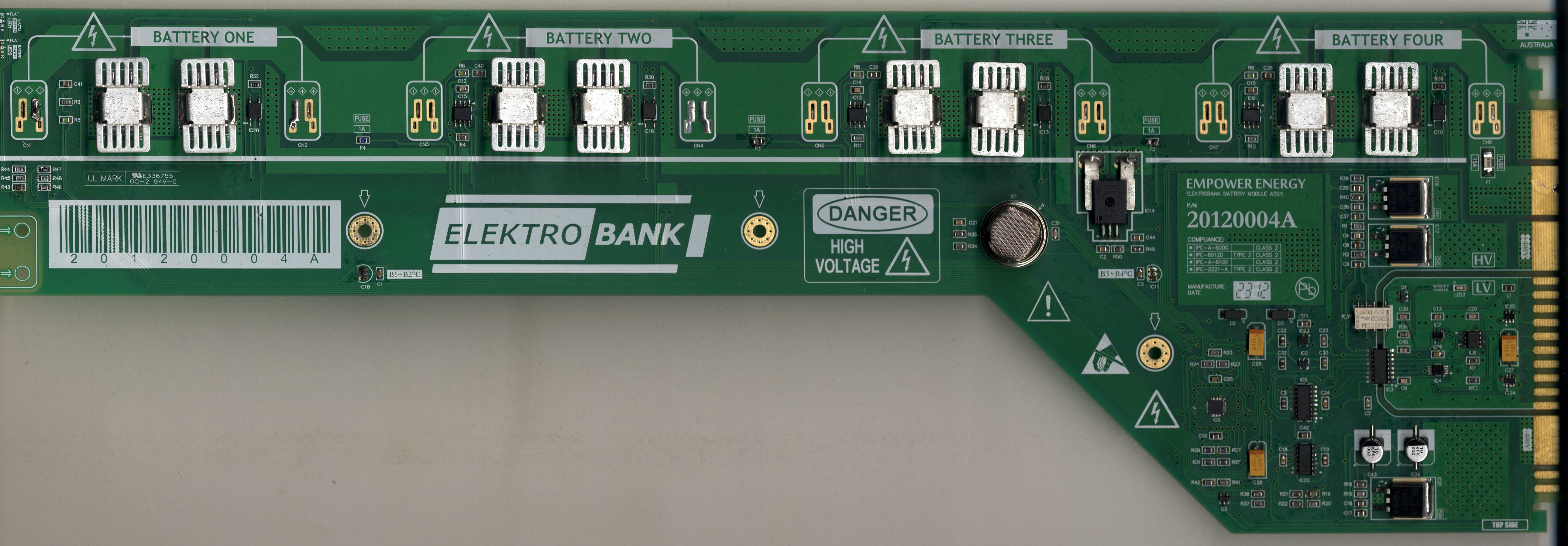

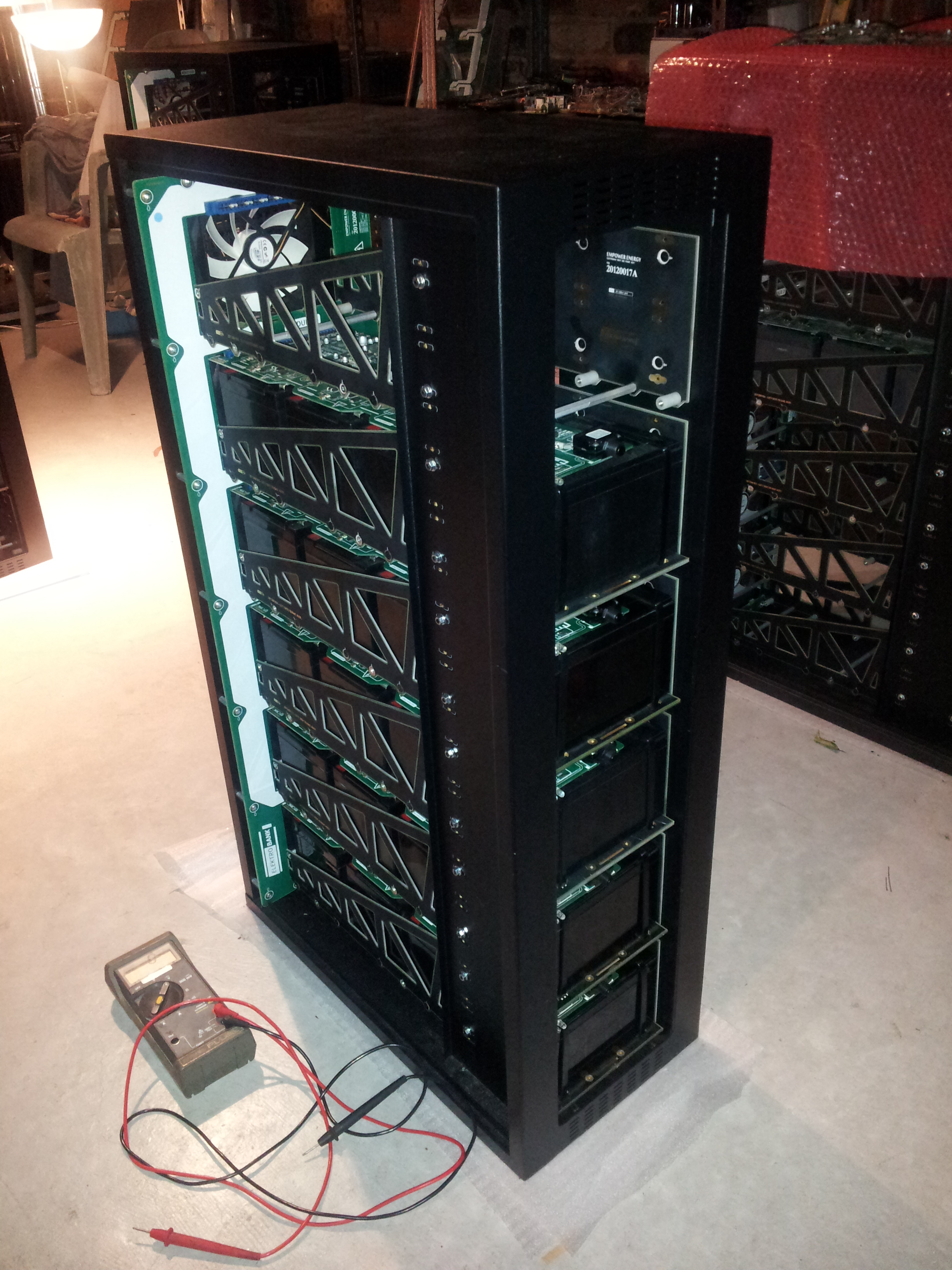

Elektrobank 3600
Assembly ID
20120004
Company
Function

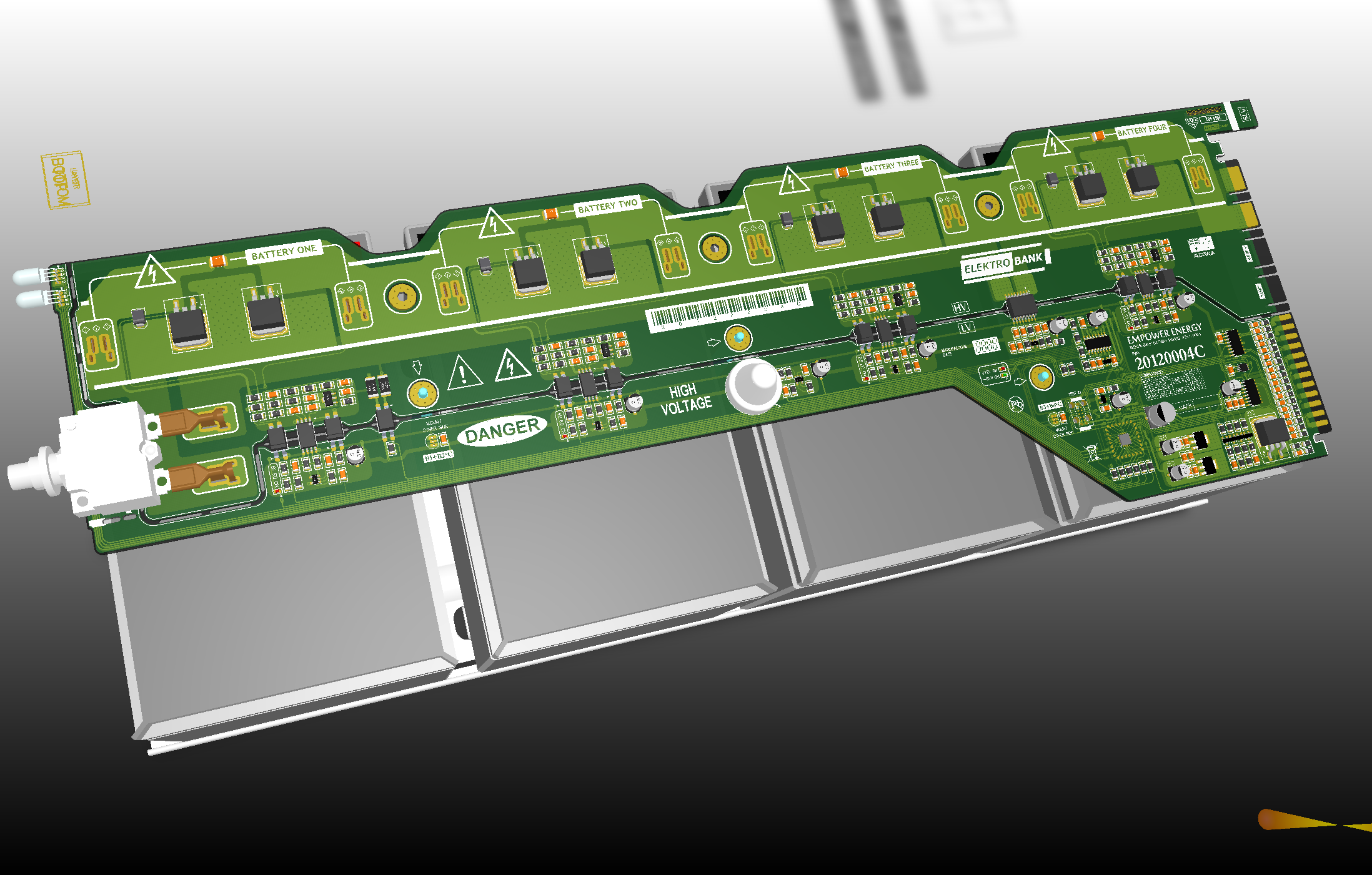

Active+Passive Equalised 48V Batt Pack
Primary Device
SX1512 + MCP3008
Technology
12 track/12 space/30 via
PCB Build Specification
2 Layer, 3oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R12
Prototype Availability
Yes
Downloads
None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
