Date of Design
2013
Product
Elektrobank 3600
Assembly ID
20120030
Company
Function

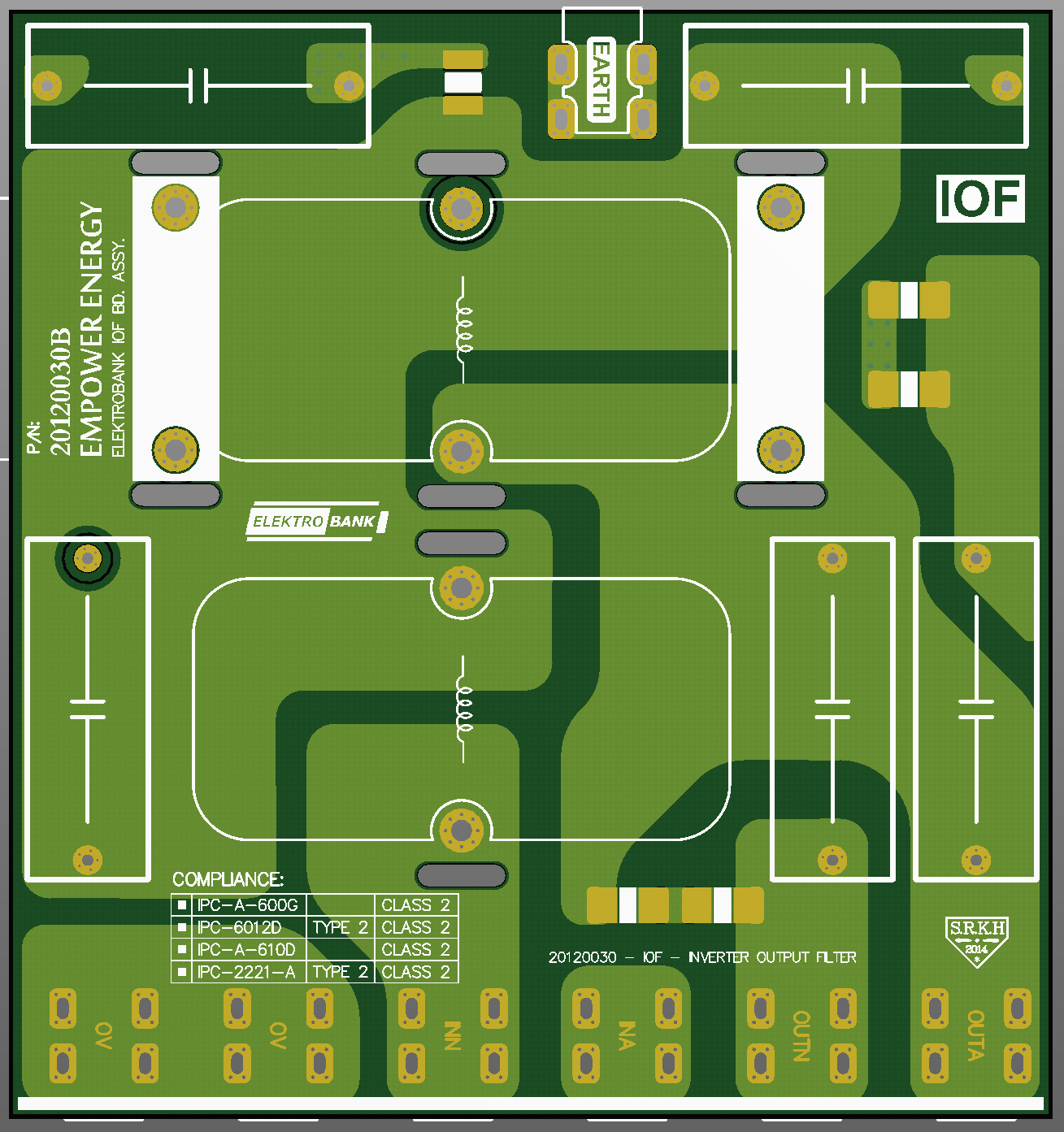

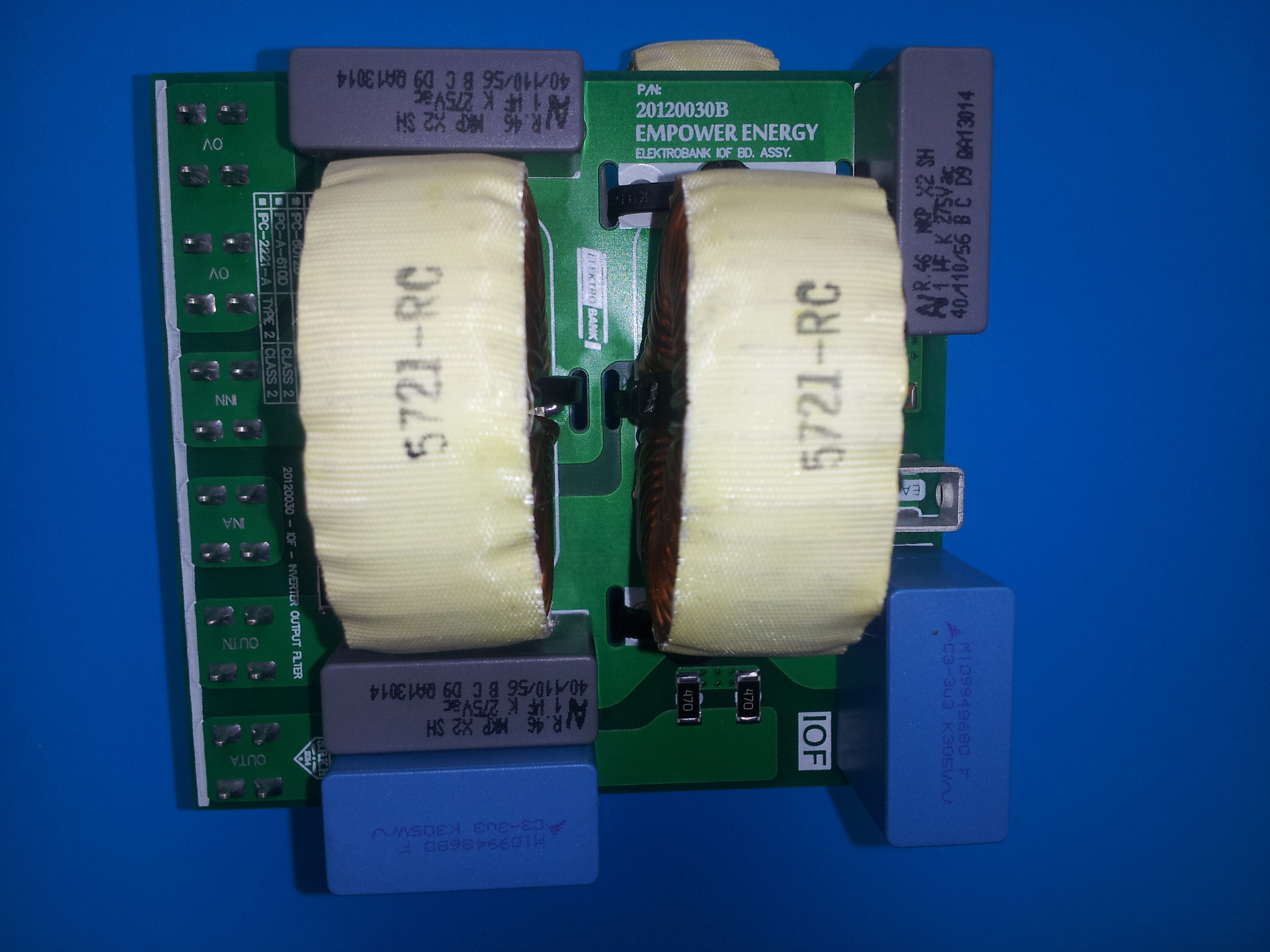

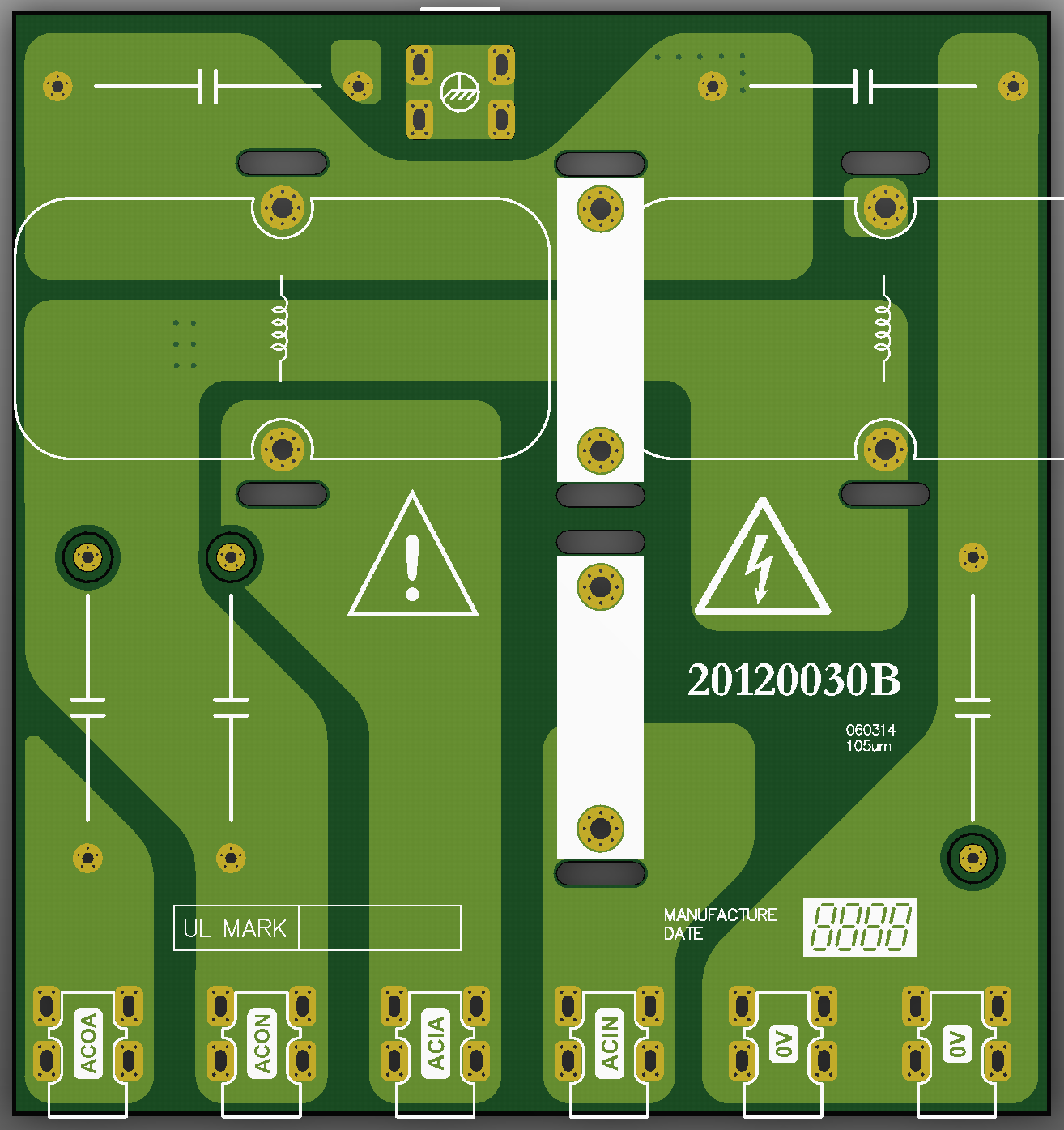

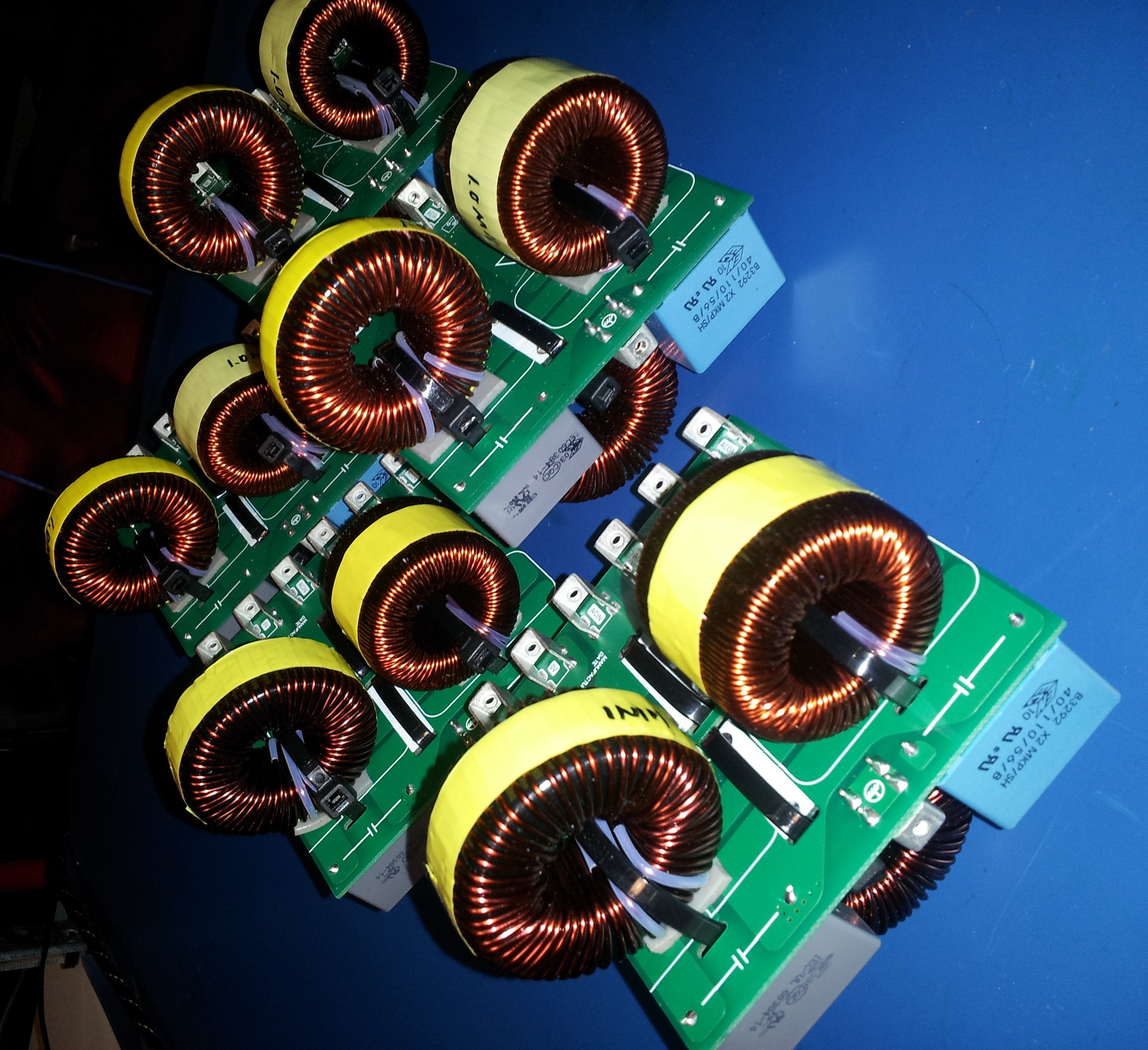

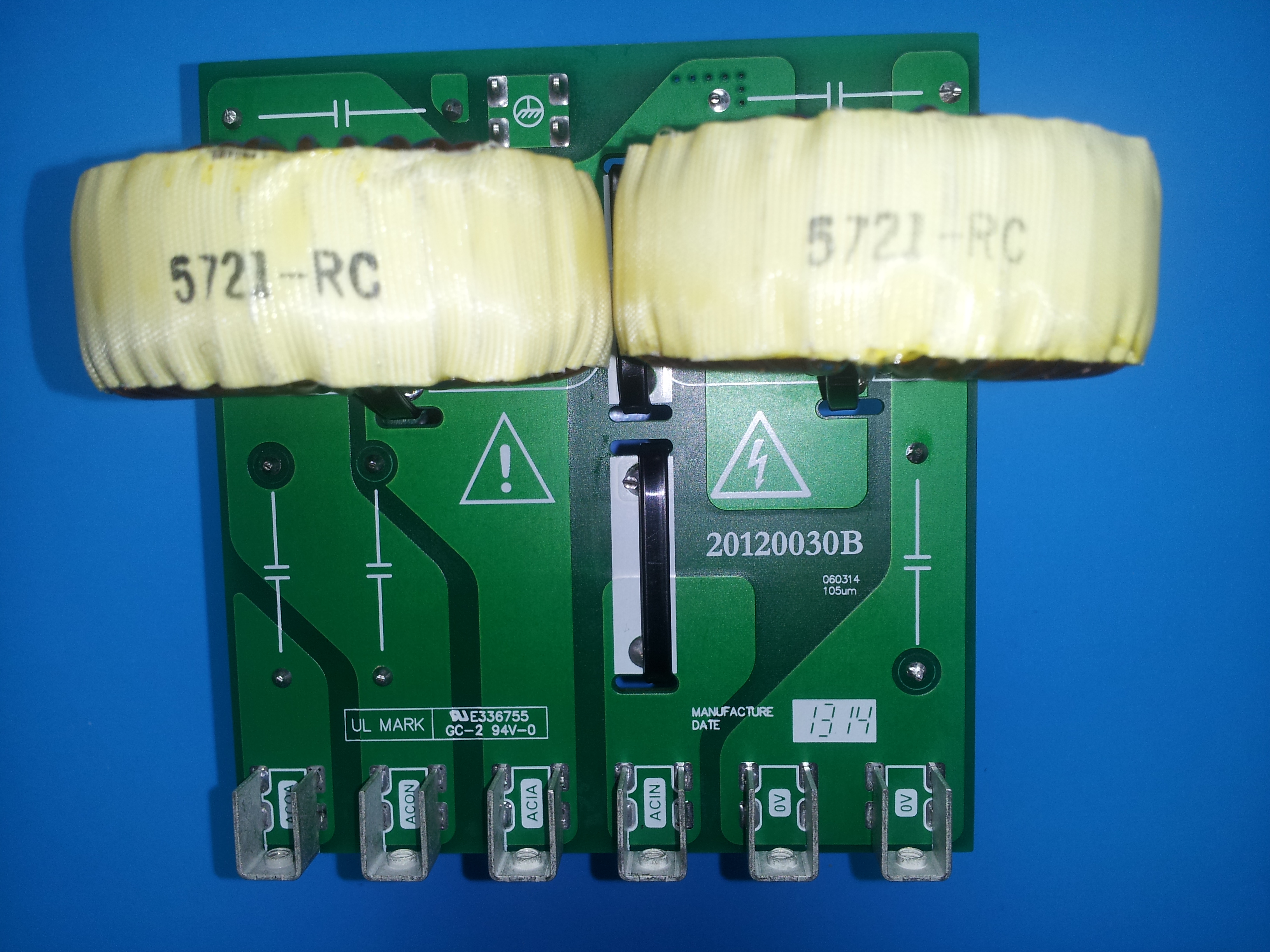

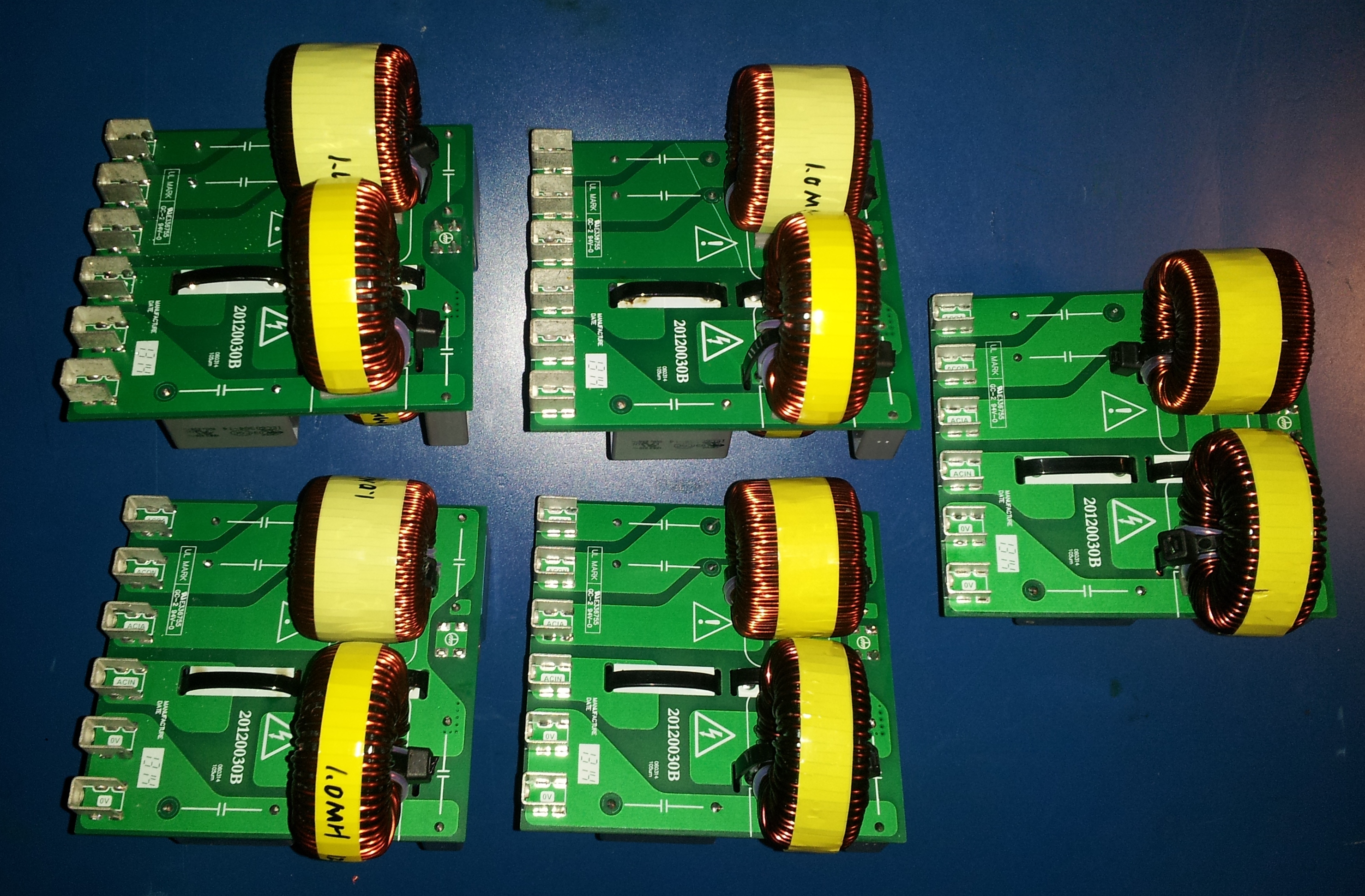

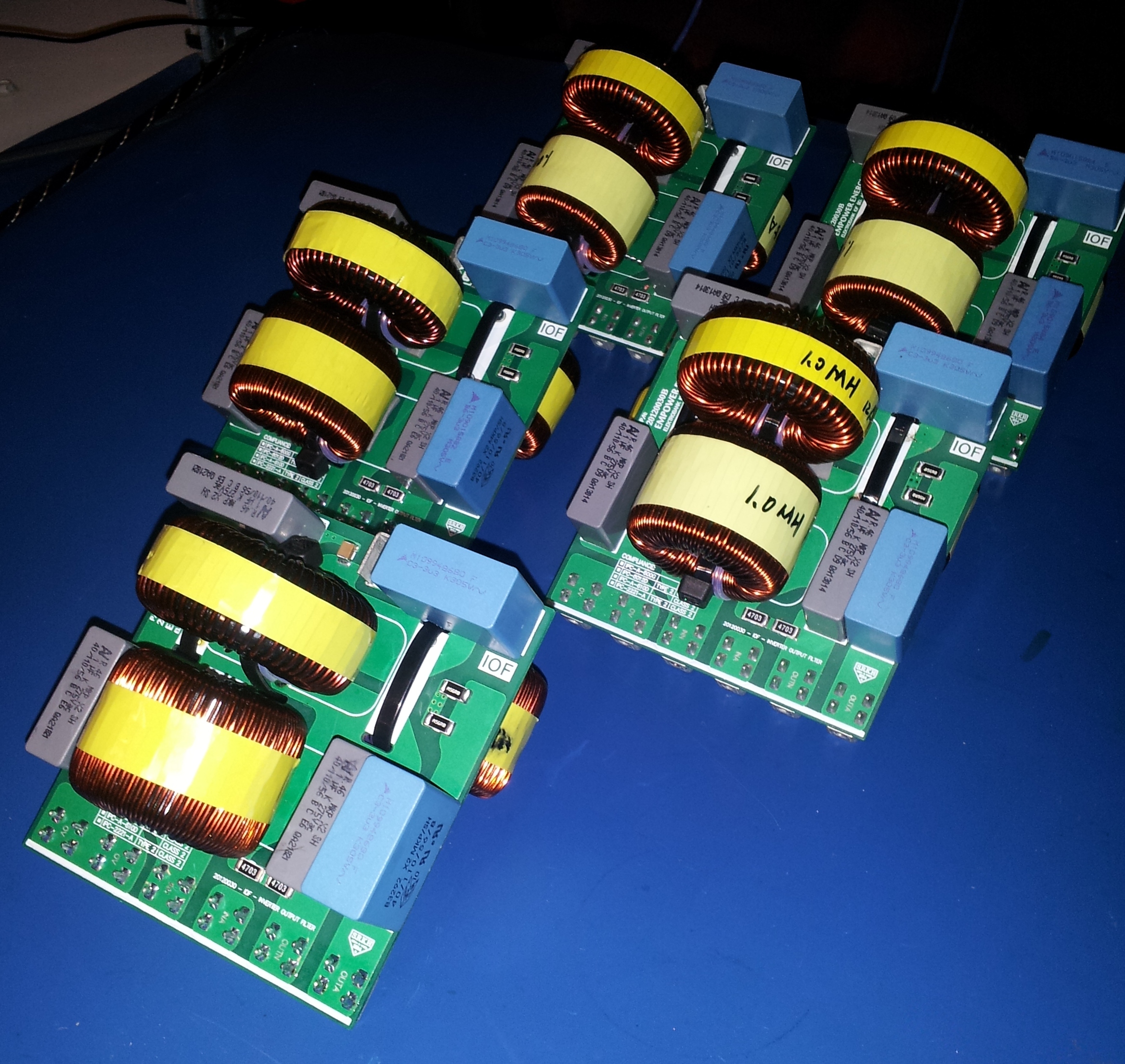

2.4KW Inverter Output Filter
Primary Device
None
Technology
Floods/12 space/30 via
PCB Build Specification
2 Layer, 3oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610/IPC-2221
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R12
Prototype Availability
No
Downloads
None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
