Date of Design
2013
Product

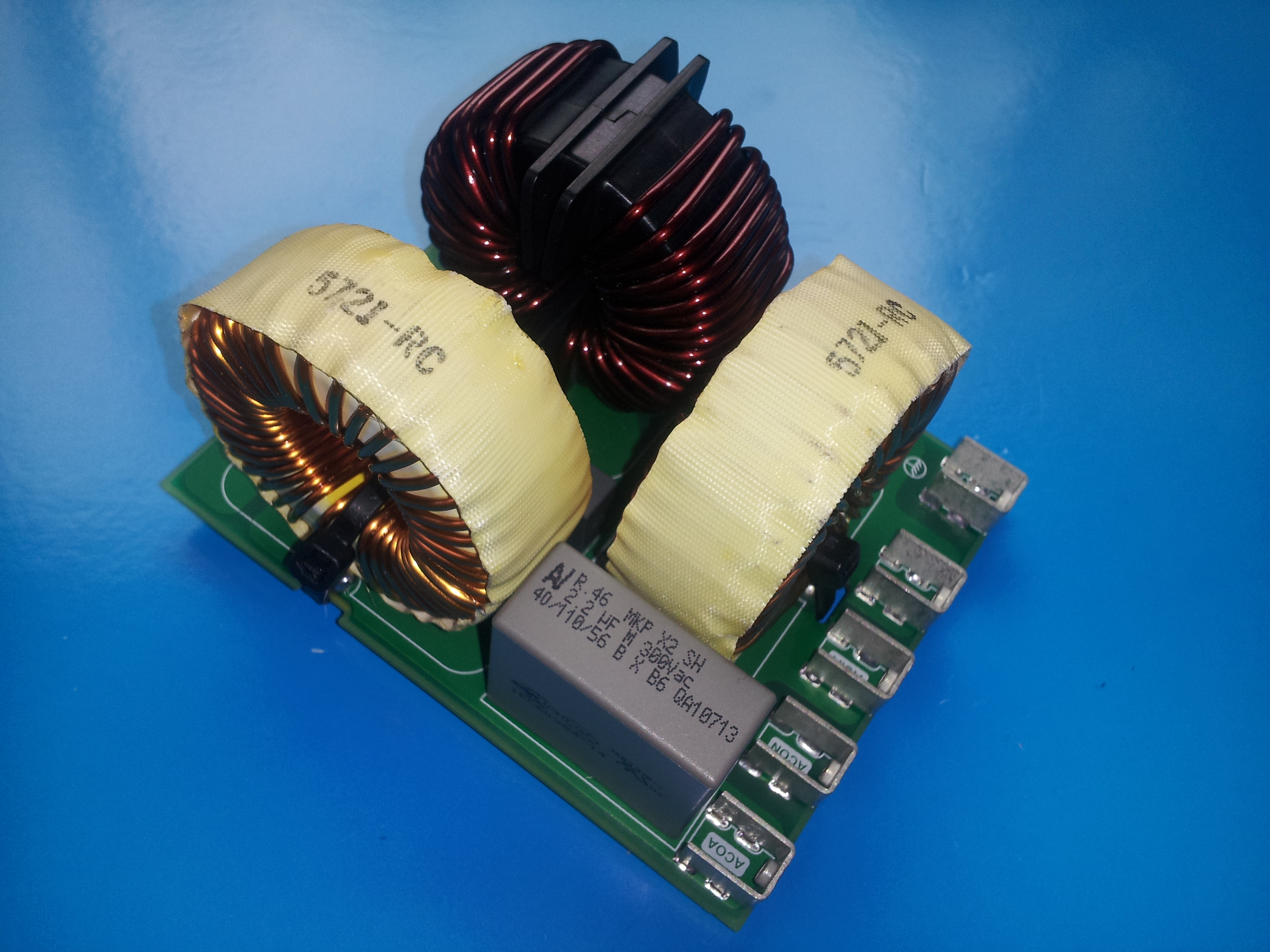

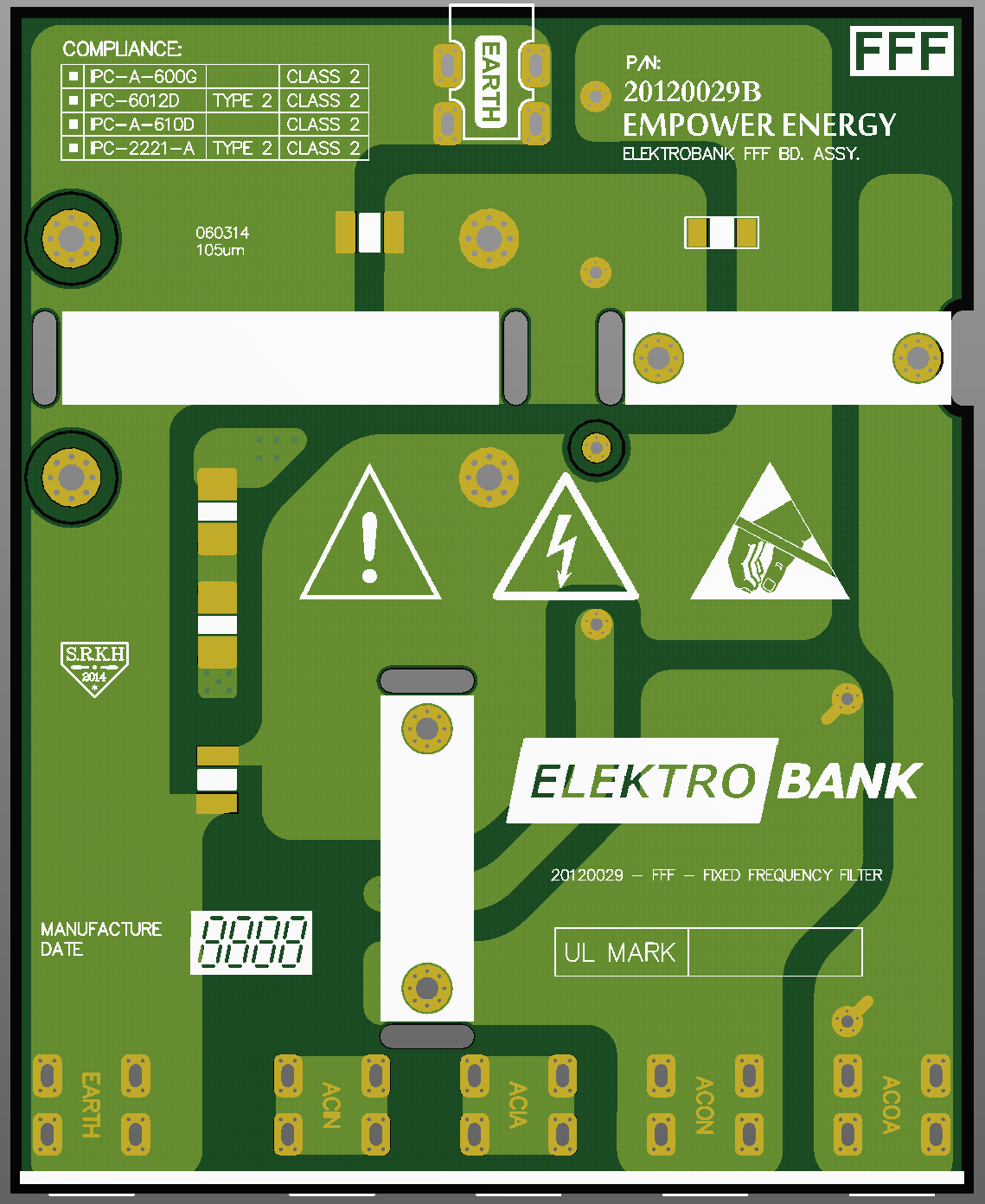

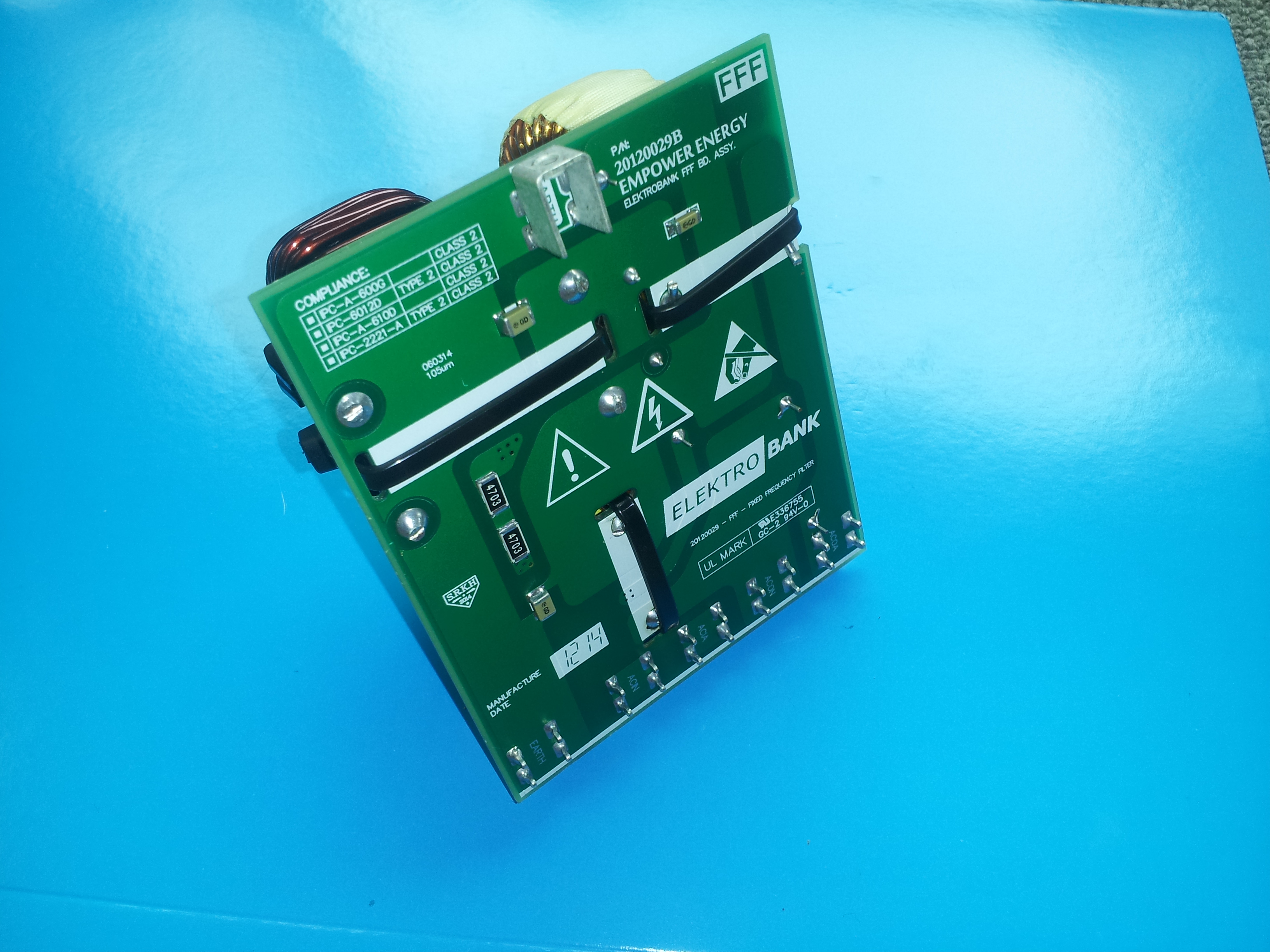

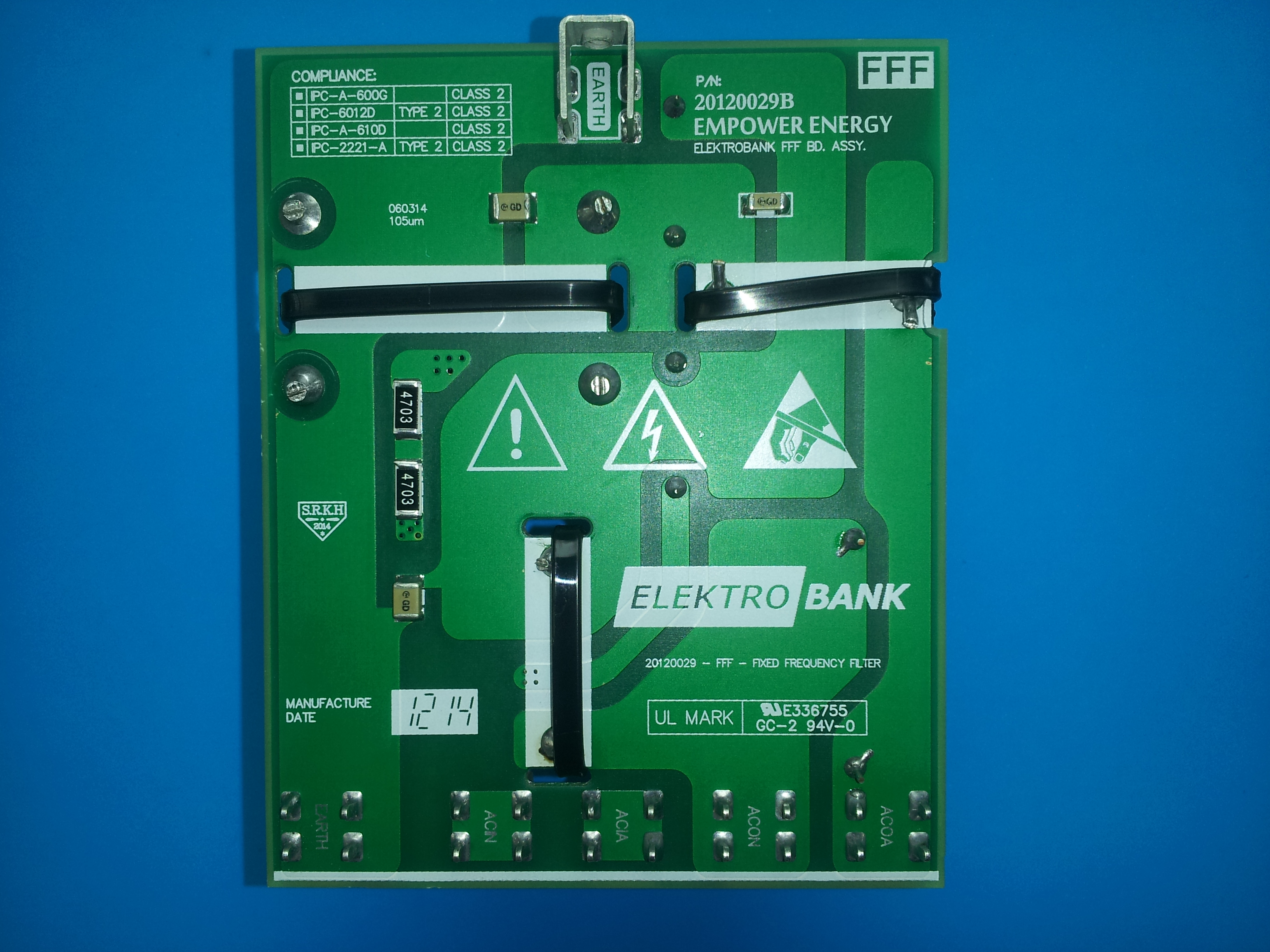

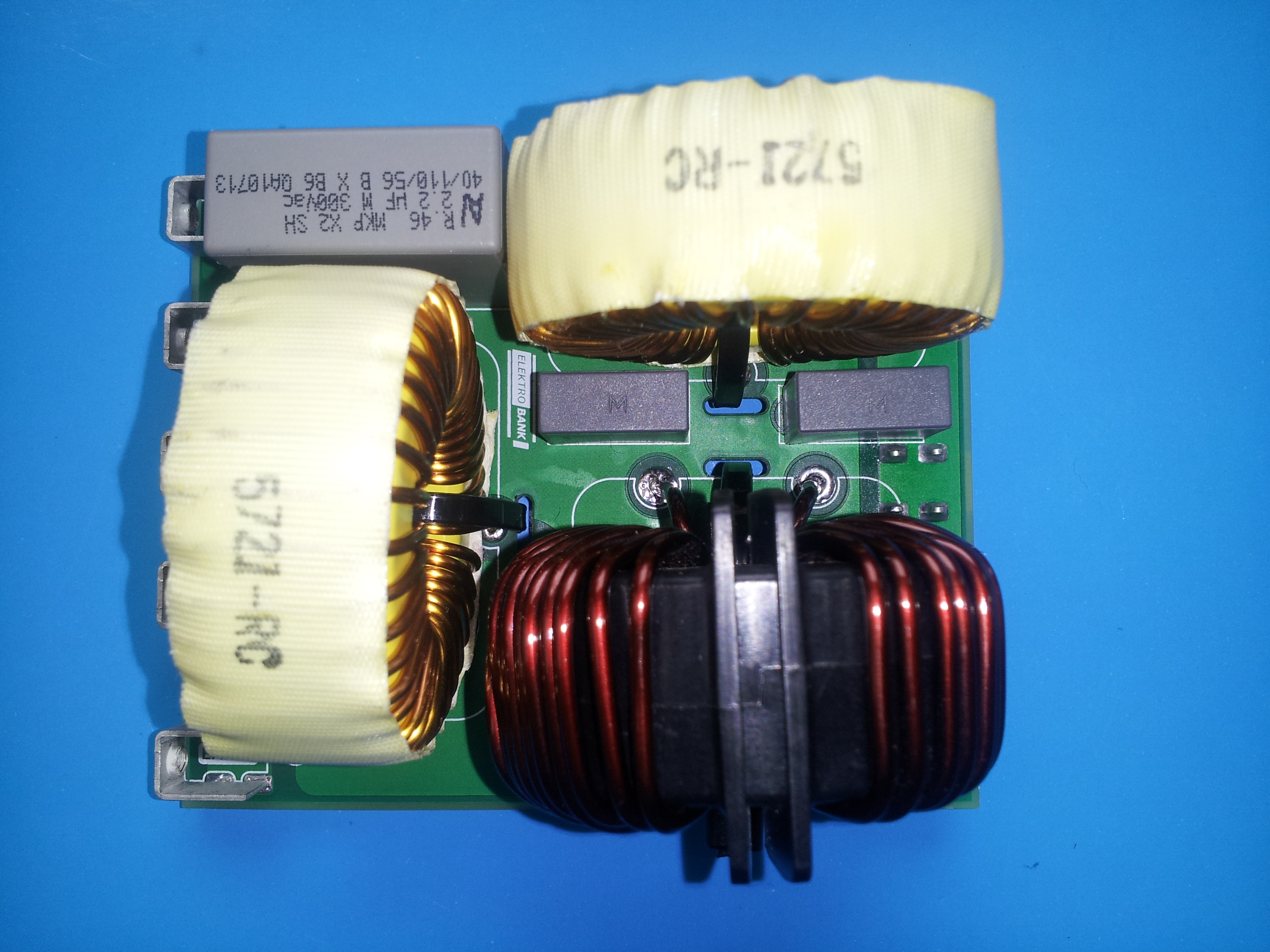

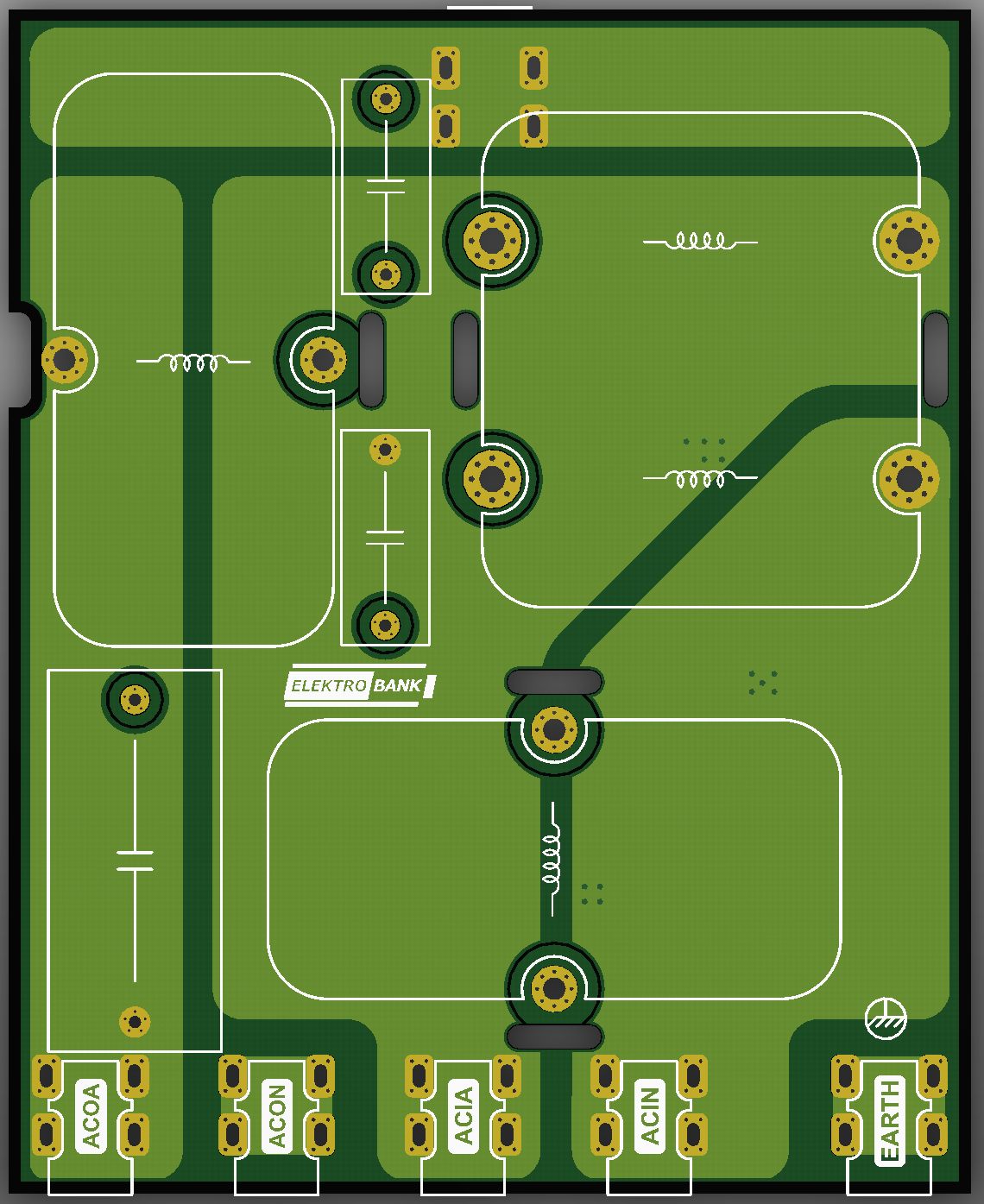

Elektrobank 3600
Assembly ID
20120029
Company
Function
3.6KW Fixed Frequency Filter
Primary Device
None
Technology
Floods/12 space/30 via
PCB Build Specification
2 Layer, 3oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610/IPC-2221
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R12
Prototype Availability
No
Downloads
None
