Date of Design

2018

Product

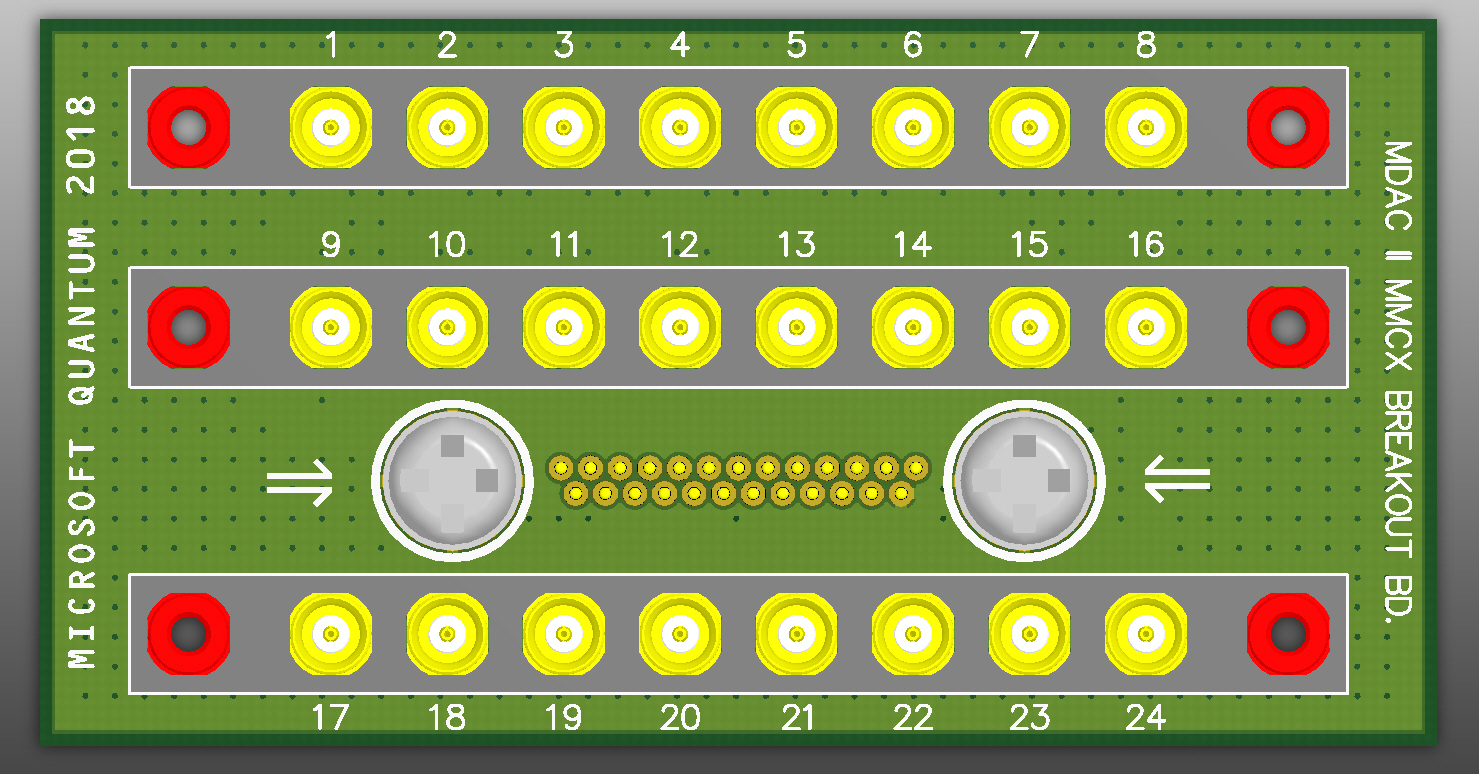

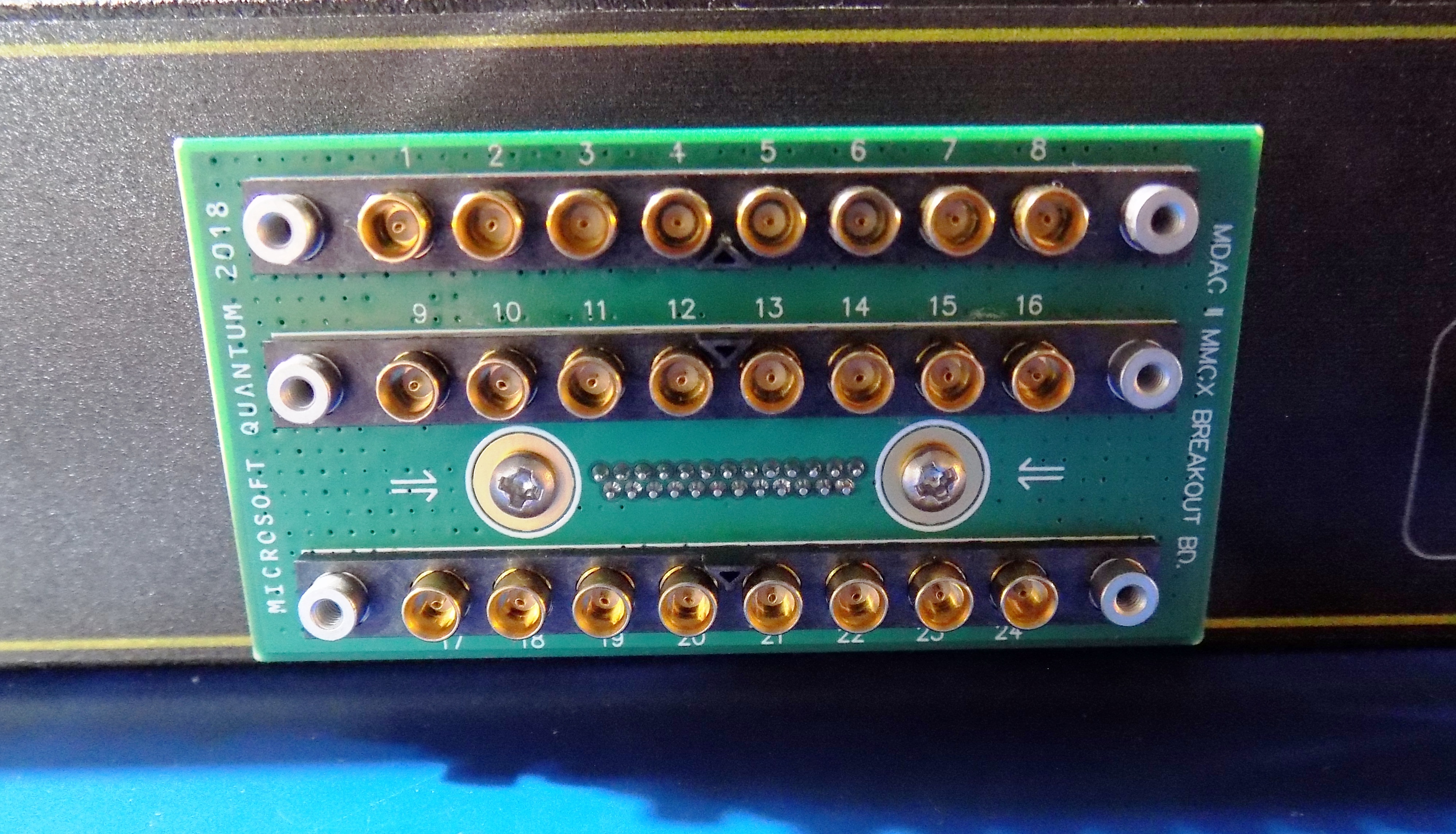

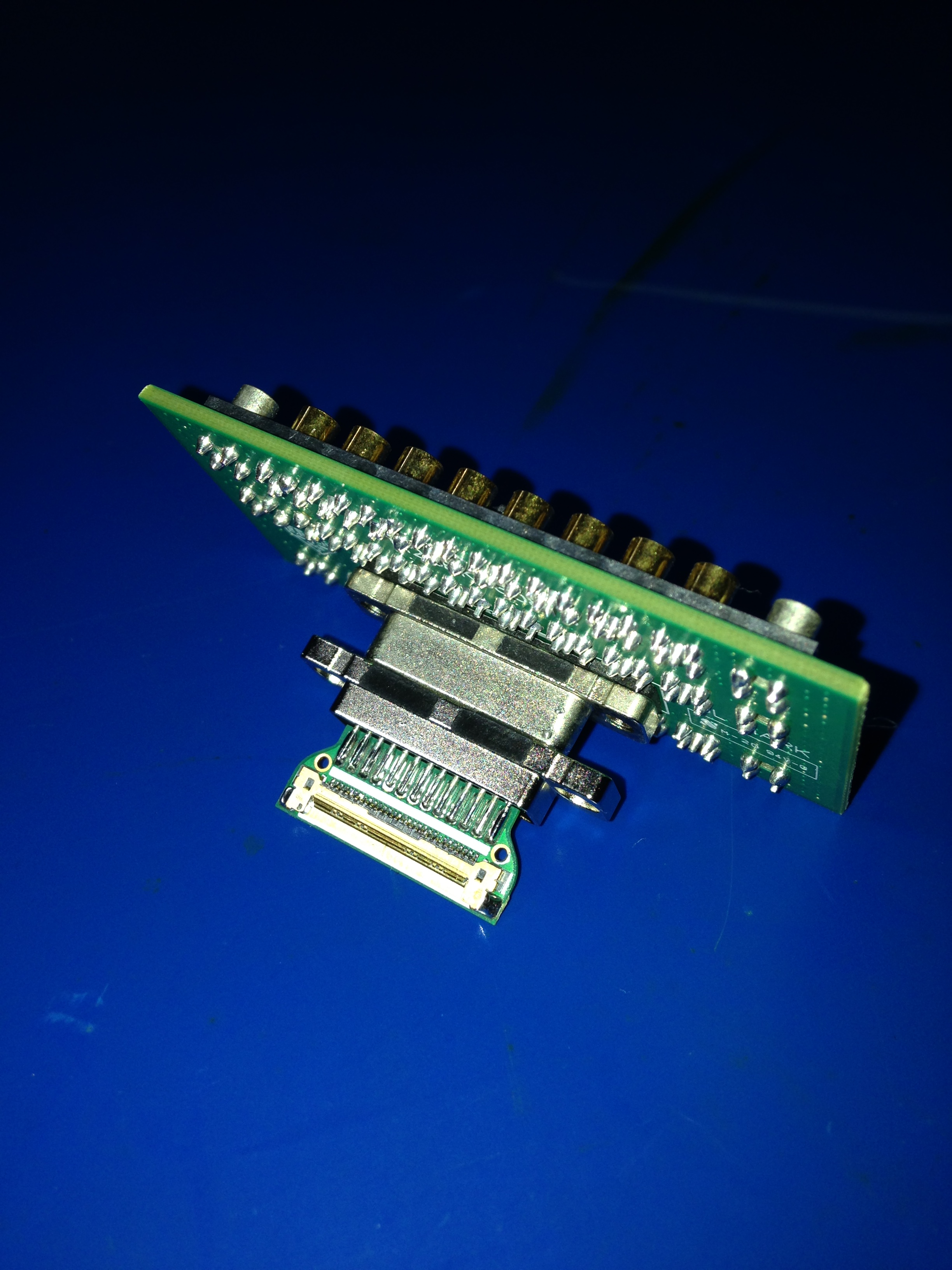

MDAC2 MMCX BREAKOUT BOARD

Assembly ID

M2BRK080818

Company

MICROSOFT (QUANTUM)

Function

High Density SI fridge Interface Cable

Primary Device

Samtec Micro-Mini RF

Technology

6 track/6 space/24 via

PCB Build Specification

8 Layer, 1oz,  MASK, ENIG, ISOLA

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (Taiwan)

CAD Application

Altium Designer R17

Prototype Availability

No

Downloads

None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.


There are no classified military designs in this list.
