Date of Design

2018

Product

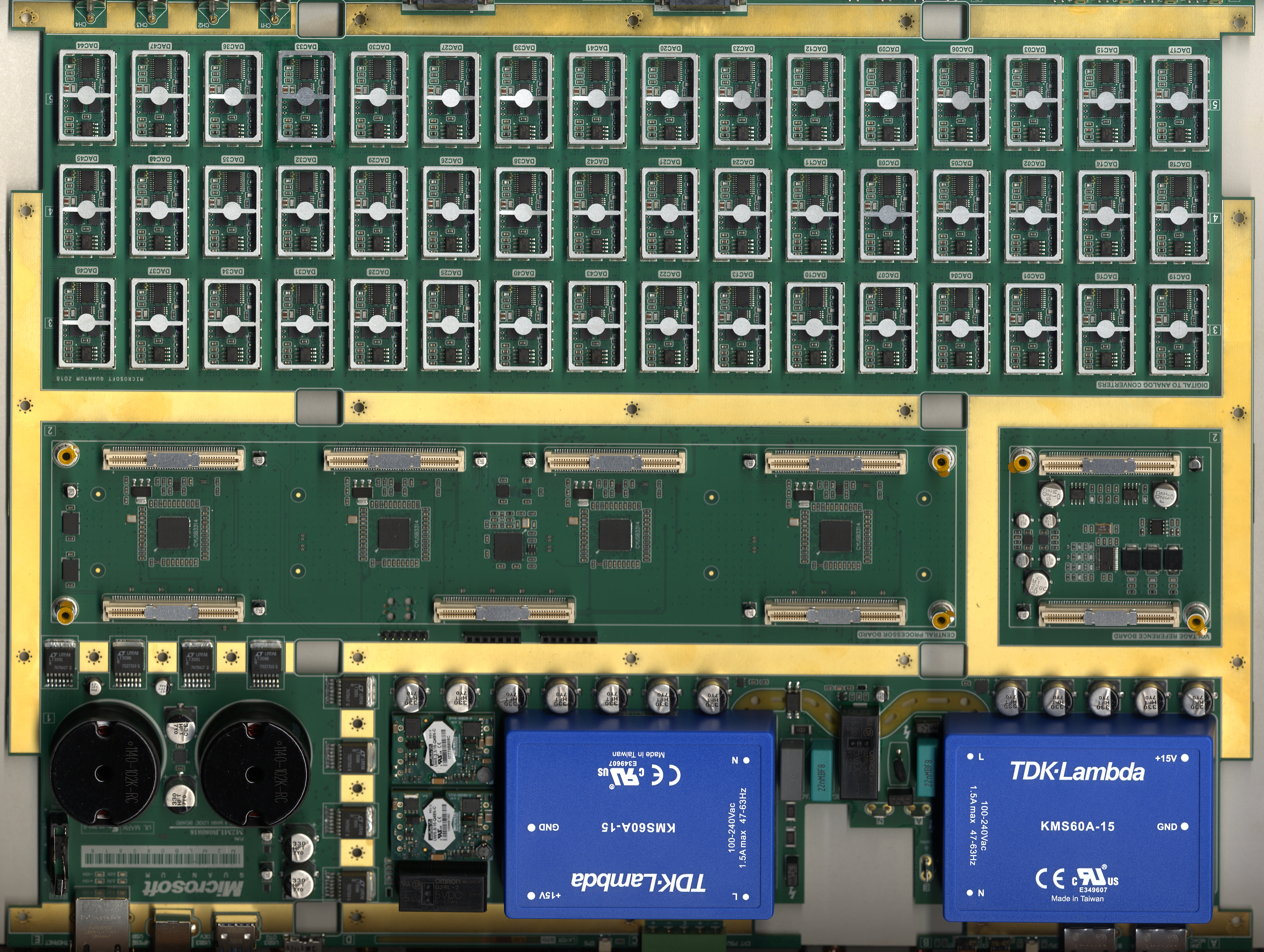

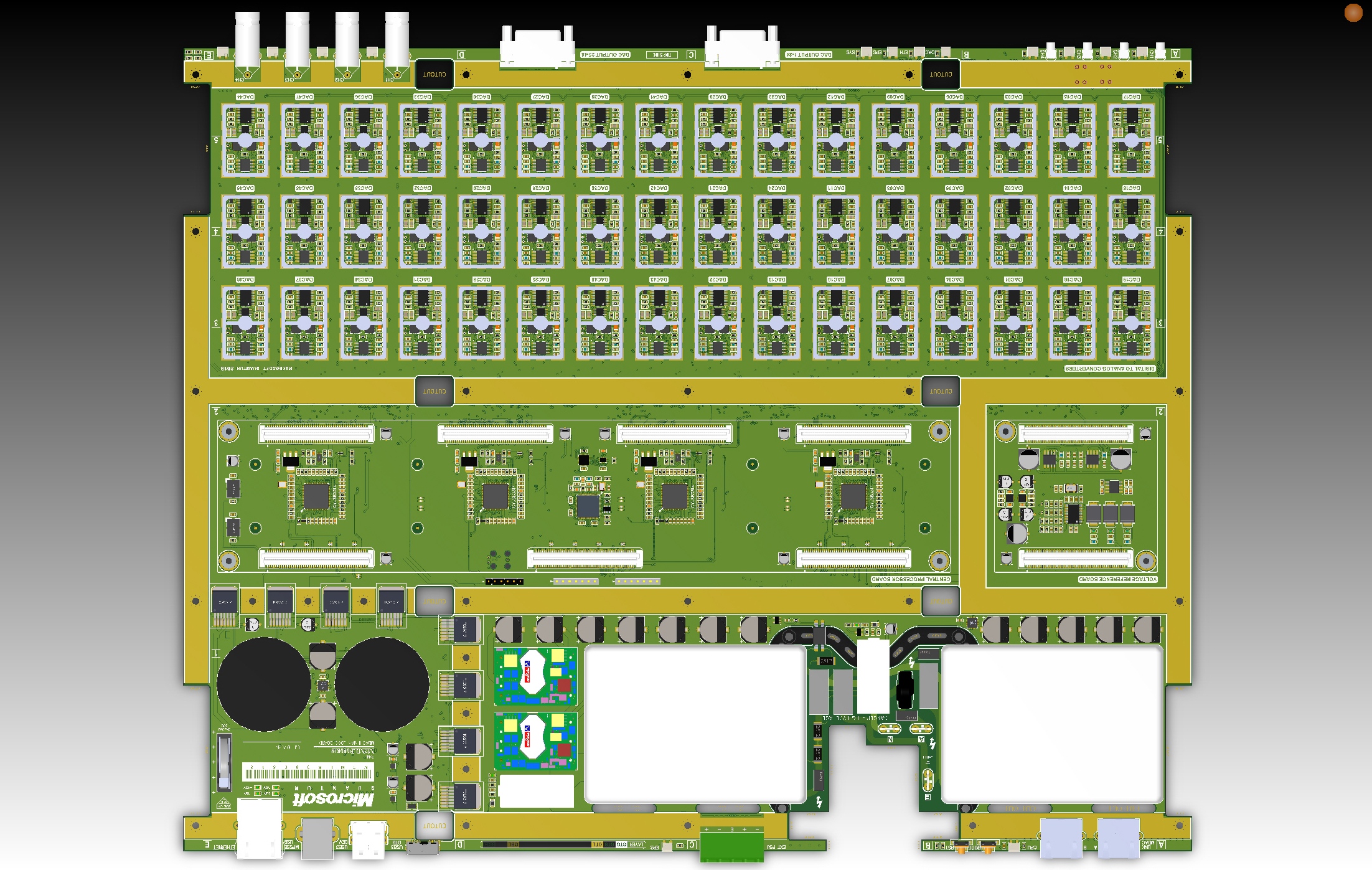

MDAC2 Quantum Control Equipment

Assembly ID

M2MLB080818

Company

MICROSOFT (QUANTUM)

Function

Main Logic Board

Primary Device

AD5791

Technology

4 track/4 space/24 via

PCB Build Specification

8 Layer, 1oz,  MASK, ENIG, ISOLA

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (Taiwan)

CAD Application

Altium Designer R17

Prototype Availability

No

Downloads

None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.


There are no classified military designs in this list.
