Date of Design
2018
Product

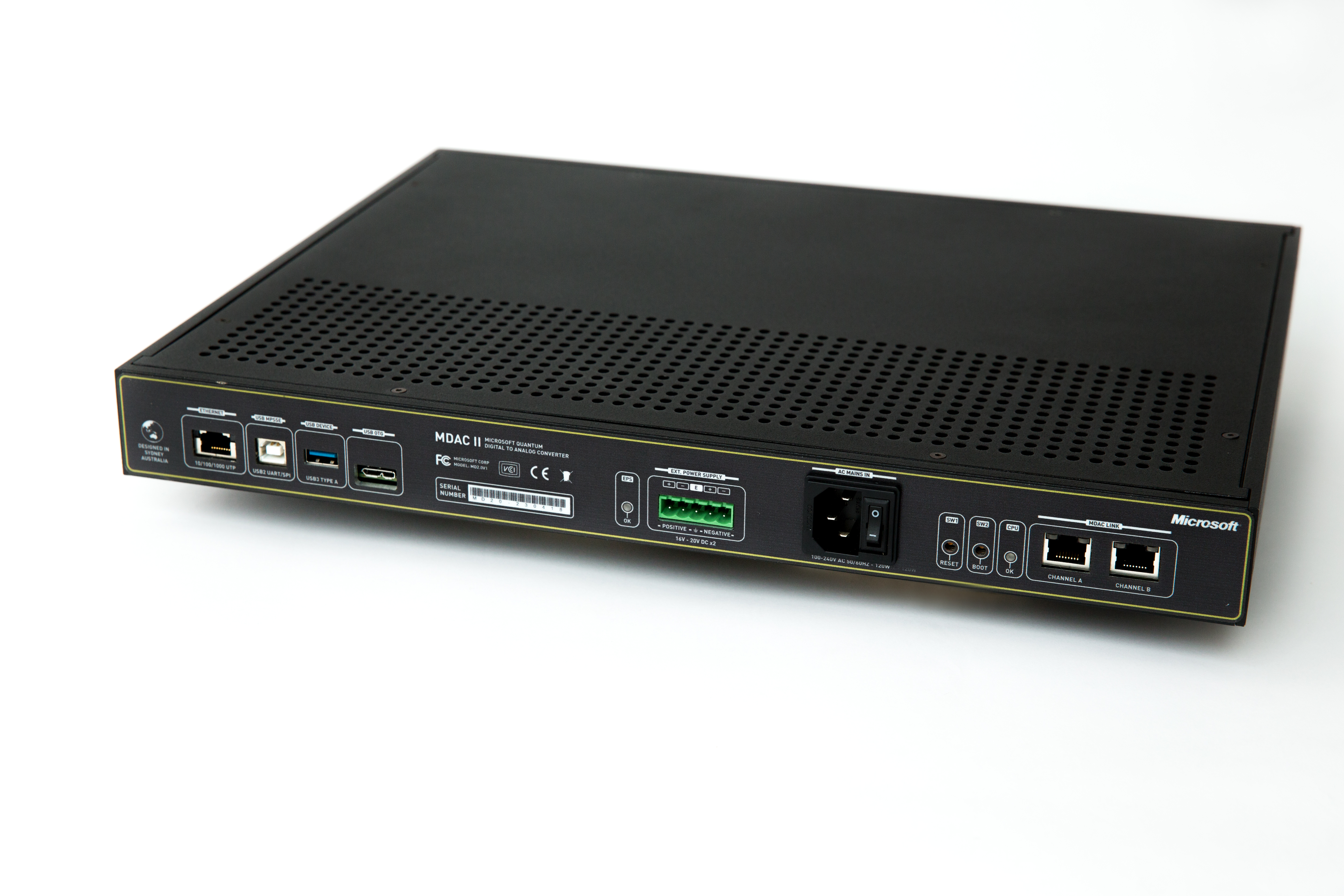

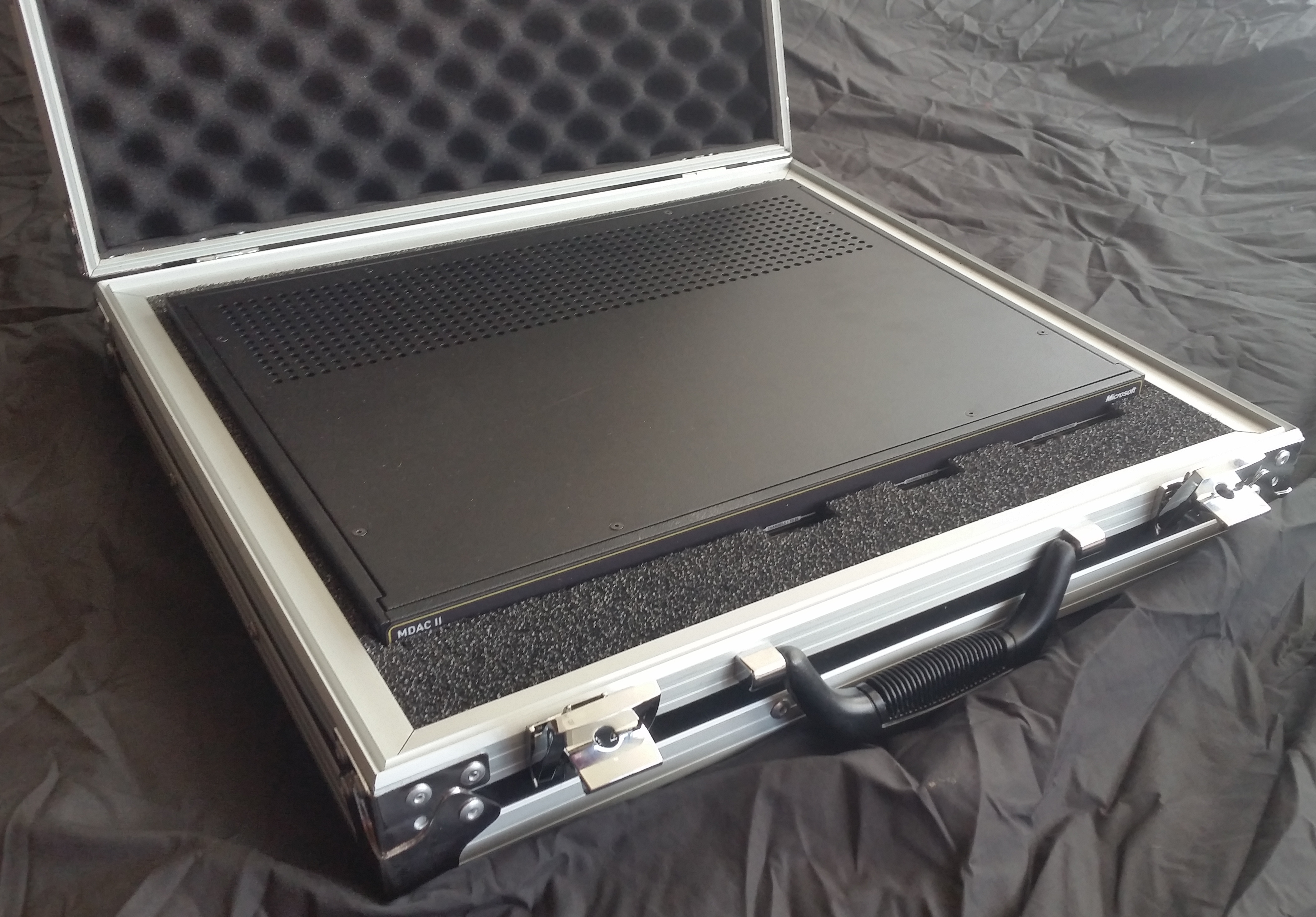

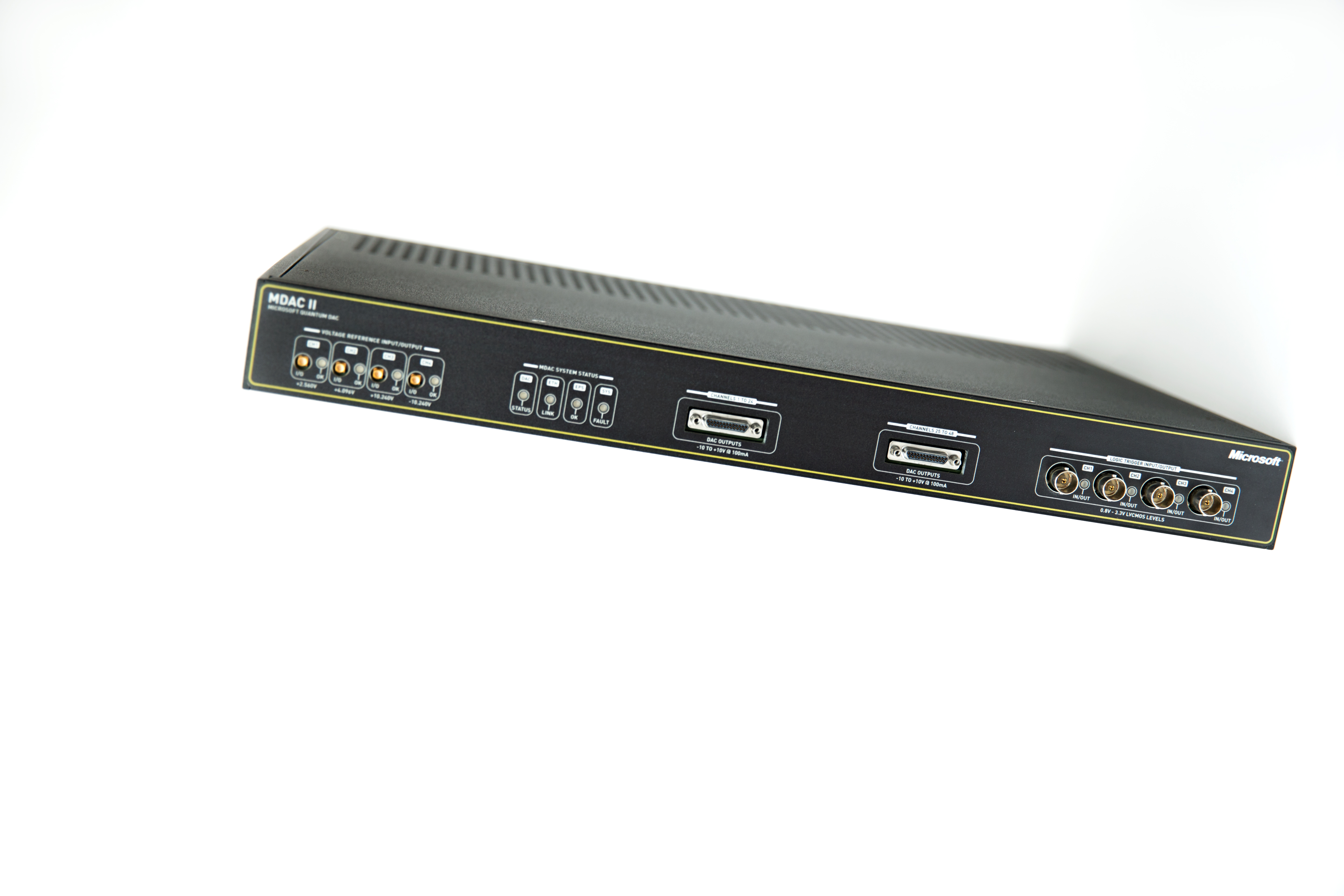

MDAC2 PANEL
Assembly ID
M2PAN080818
Company
Function
MDAC2 High Yield Manufacturing
Primary Device
Technology
4 track/4 space/24 via
PCB Build Specification
8 Layer, 1oz, MASK, ENIG, ISOLA
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Manufacturer
General Circuits (China)
CAD Application
Altium Designer R17
Prototype Availability
Yes
Downloads
None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
