Date of Design
2018
Product

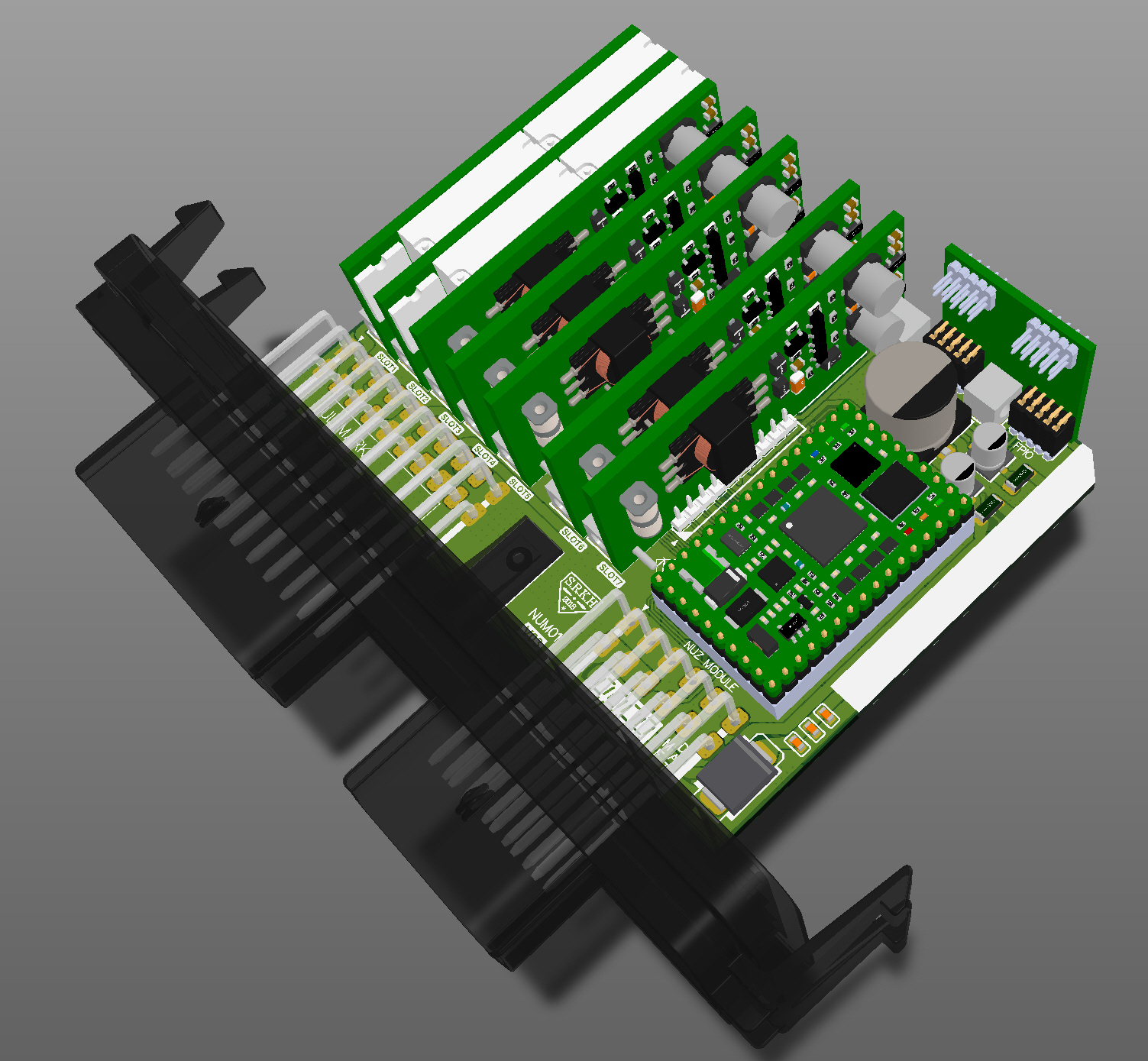

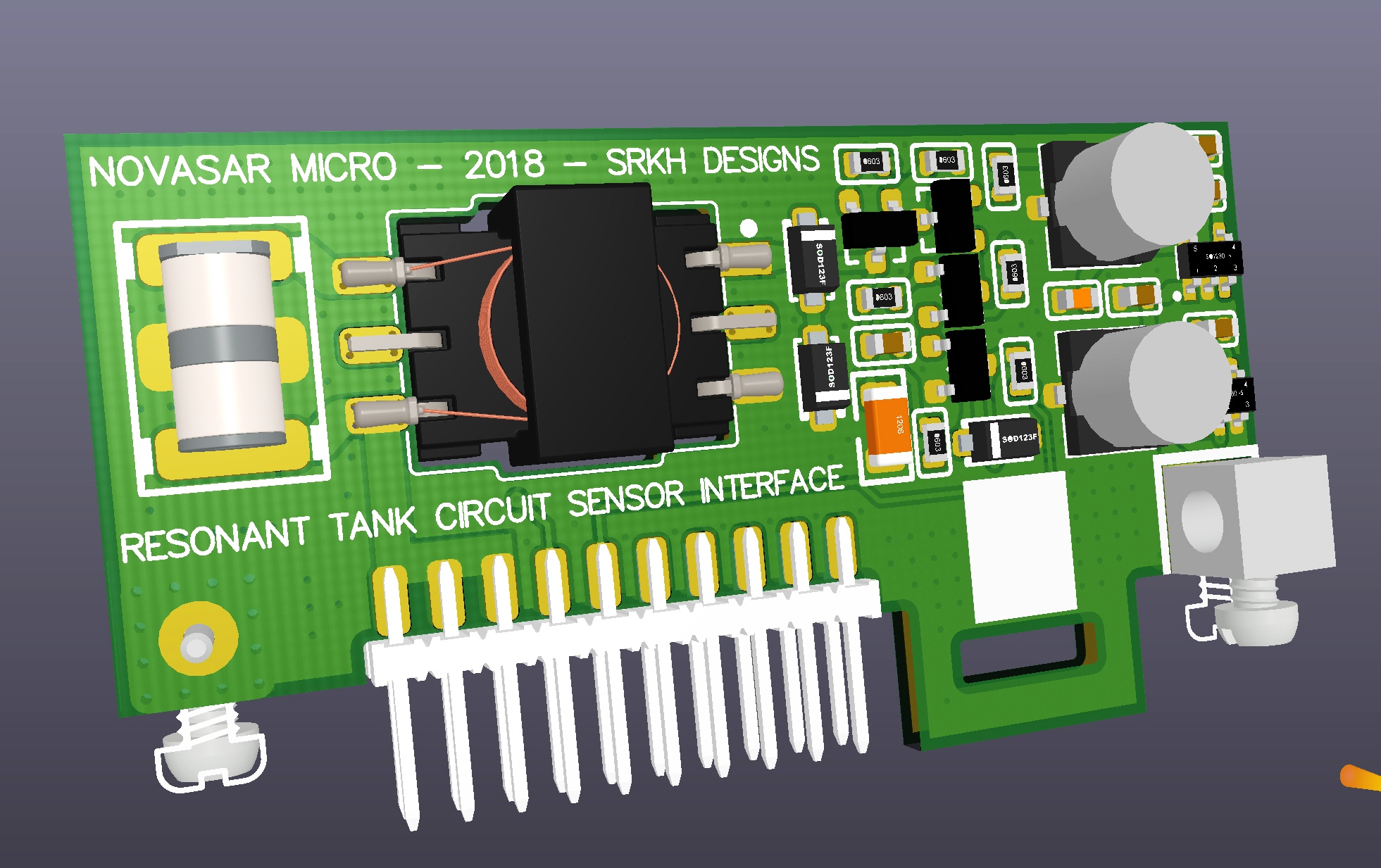

NOVASAR MICRO ME (CINCH)
Assembly ID
NUME
Company
NOVASAR
Function

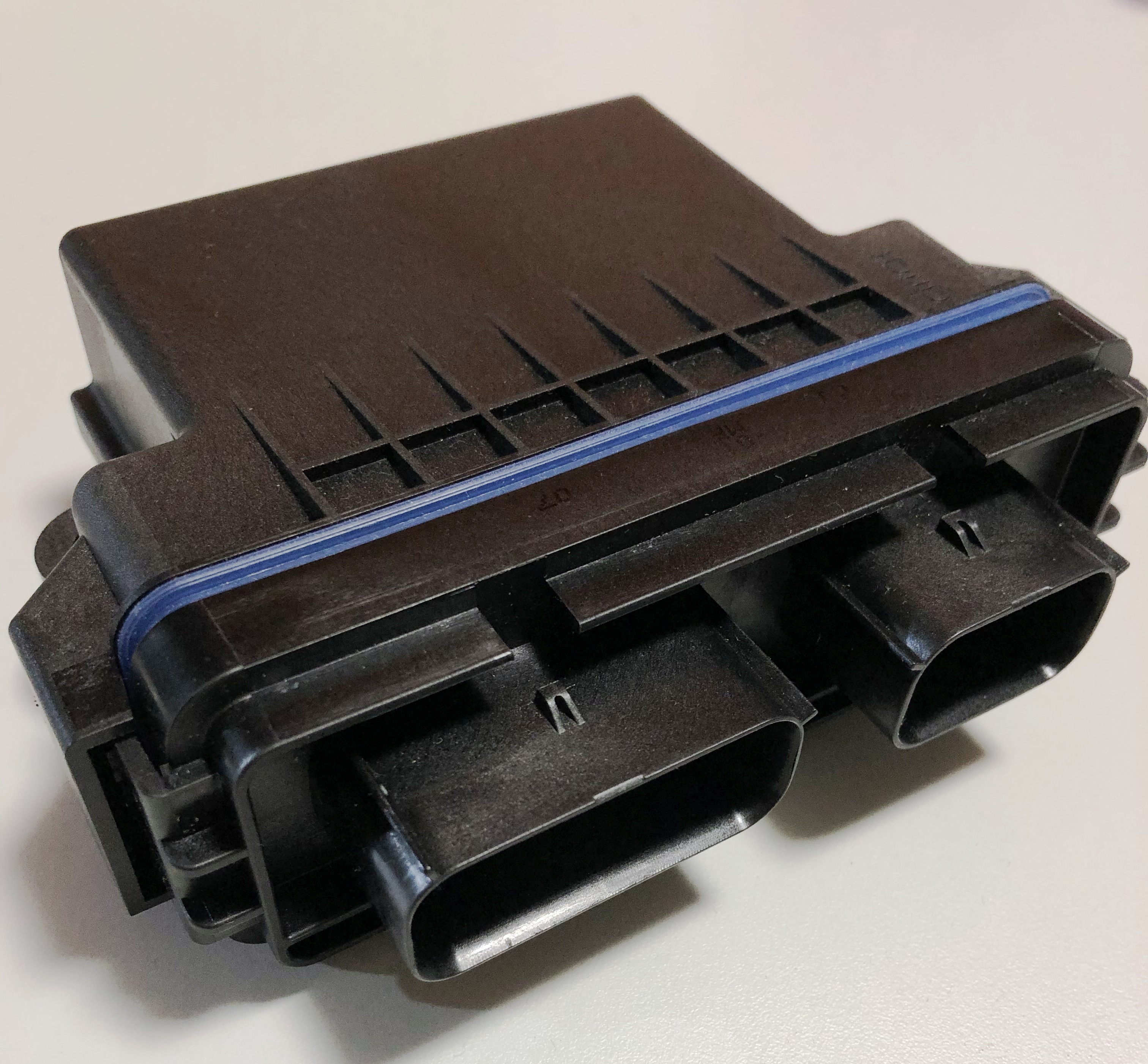

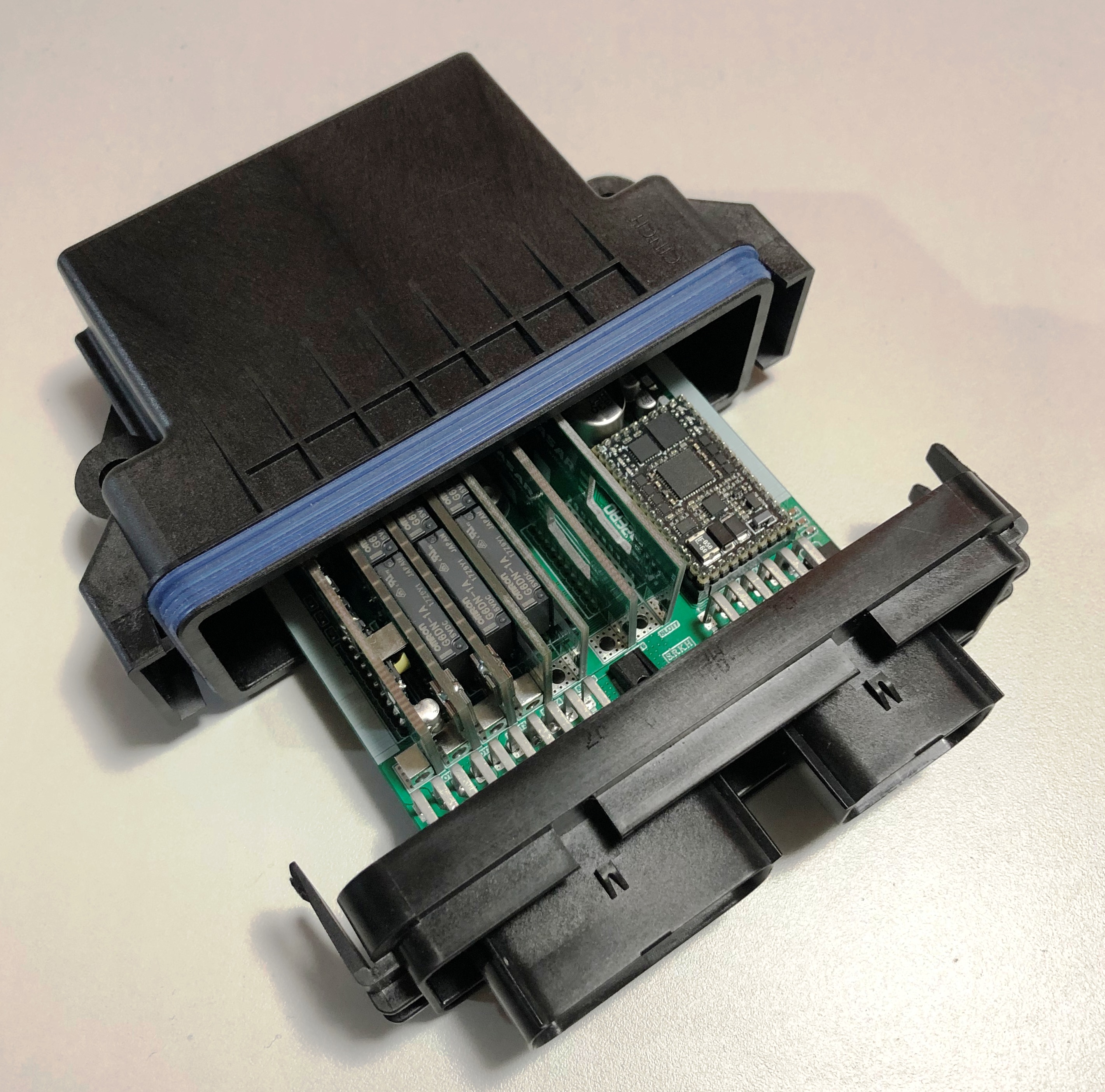

IP67 Expansion and Enclosure for NUZ
Primary Device
Technology
8 track/8 space/24 via
PCB Build Specification
2 Layer, 1oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Manufacturer
PCBWAY (China)
CAD Application
Altium Designer R17
Prototype Availability
Yes
Downloads
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
