Date of Design
2017
Product

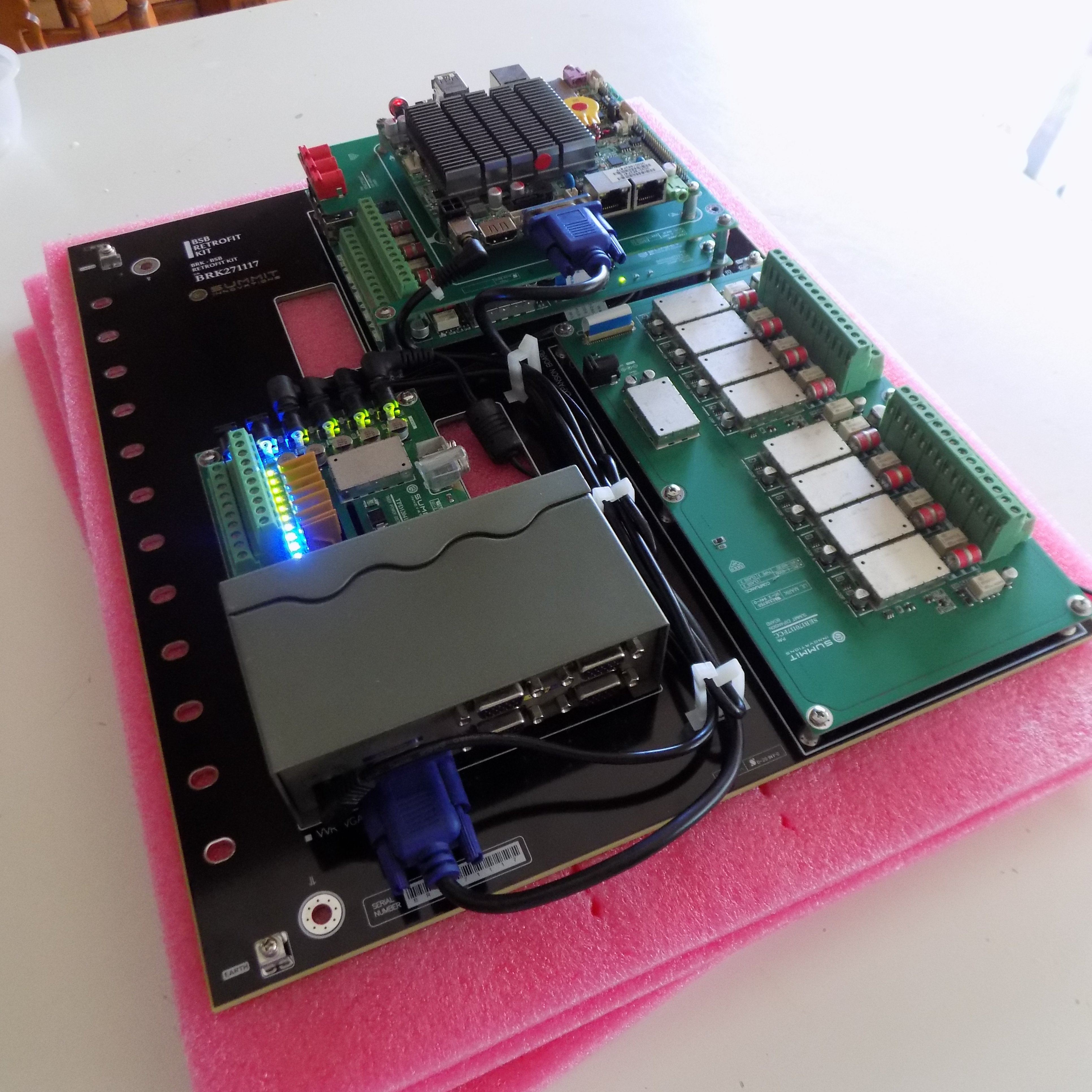

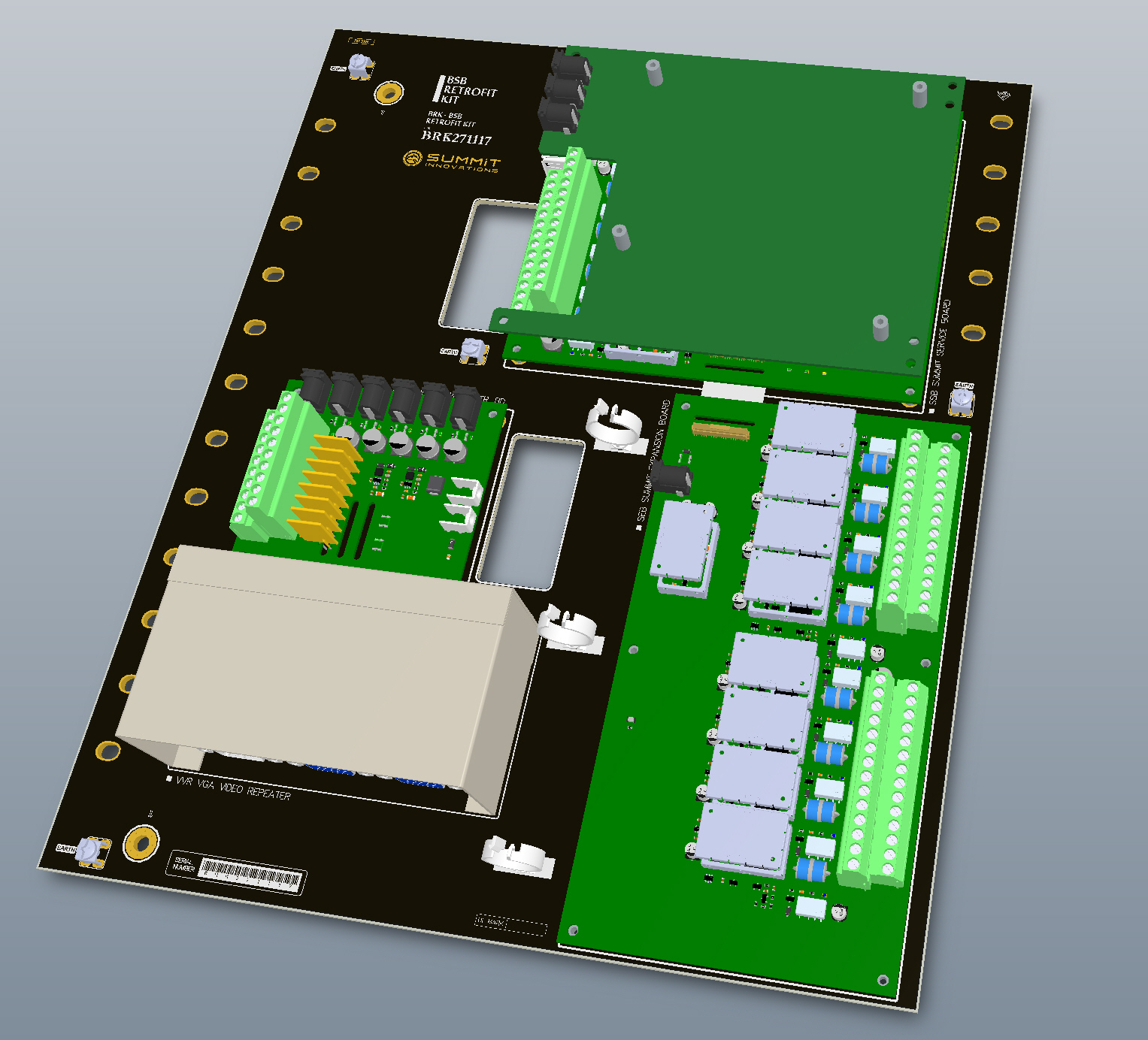

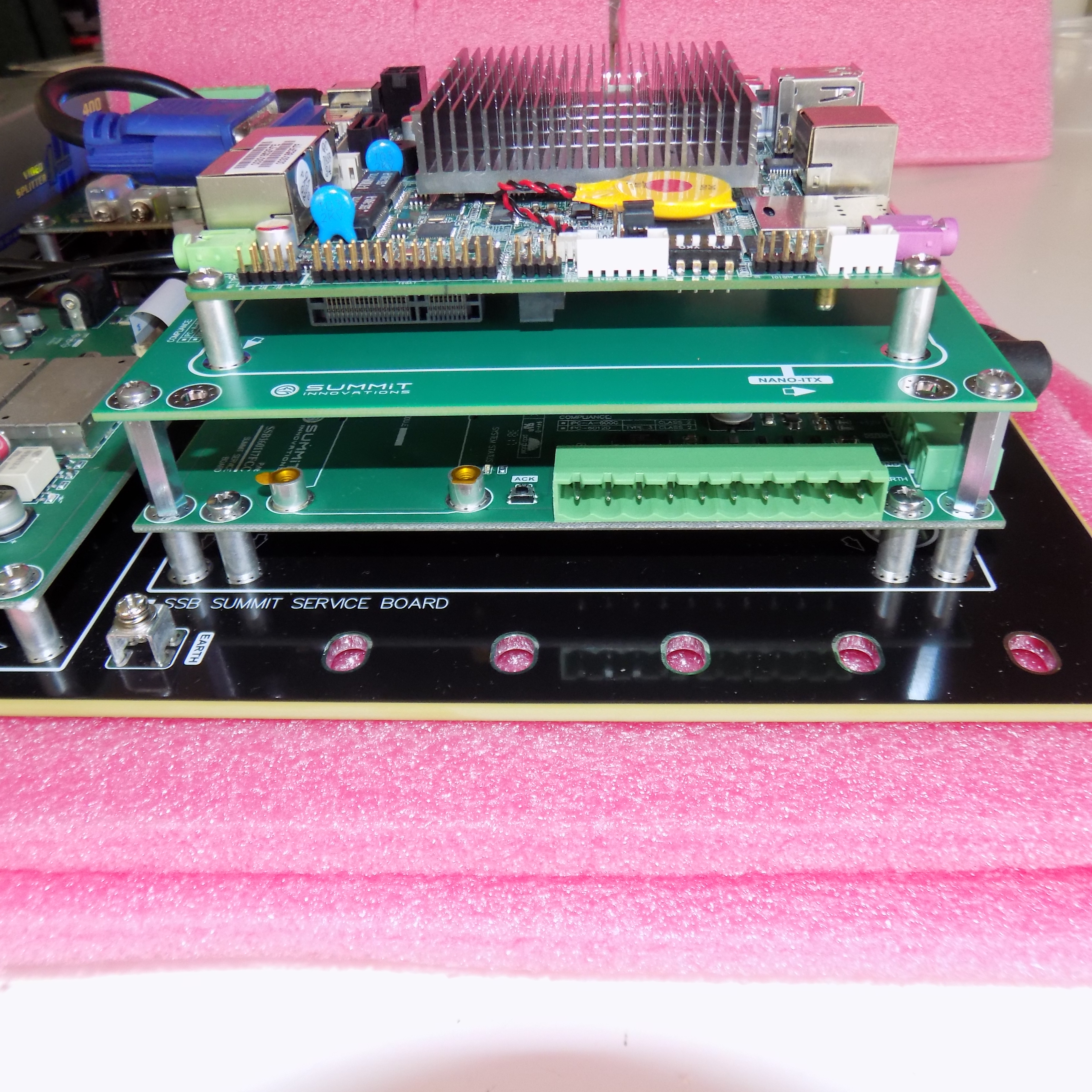

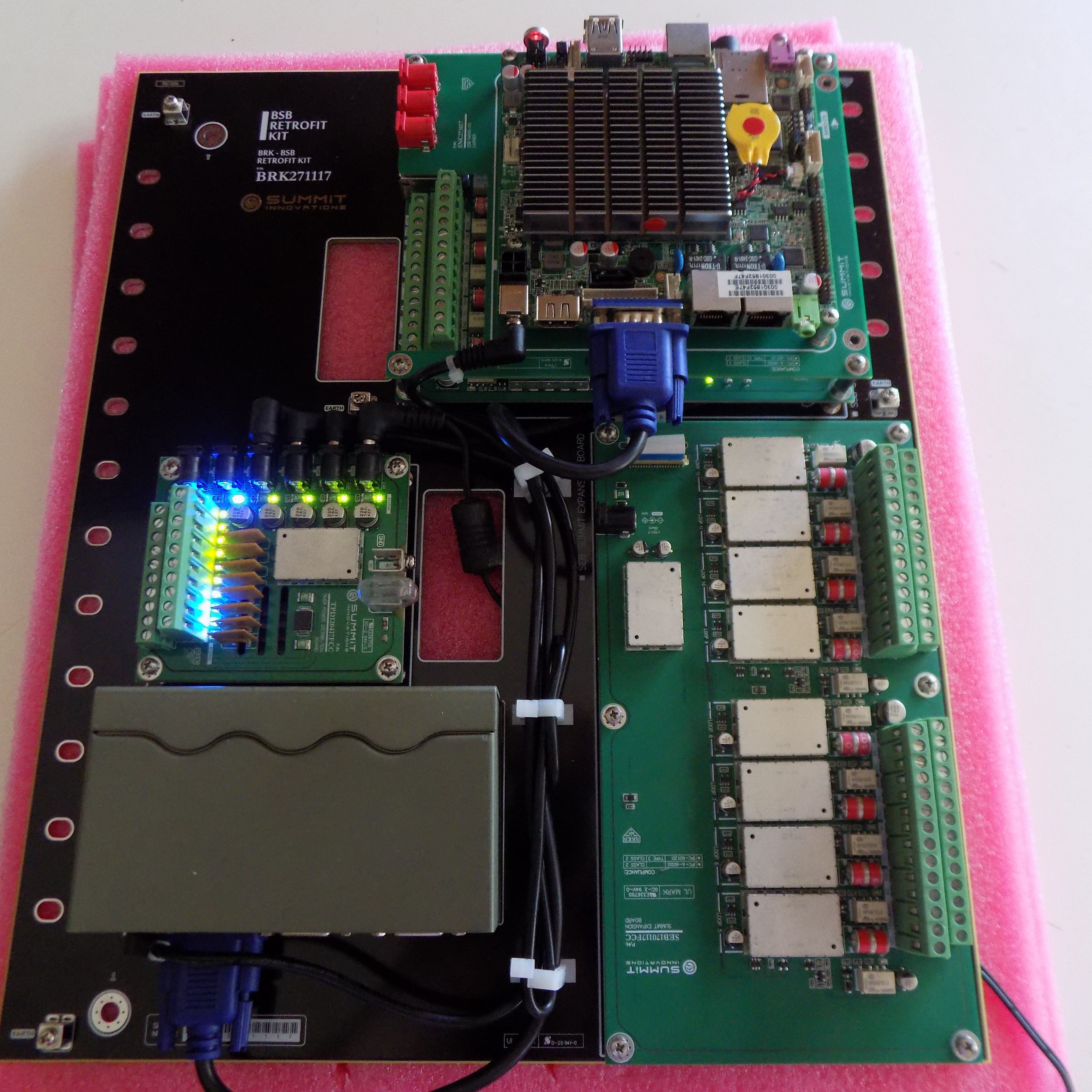

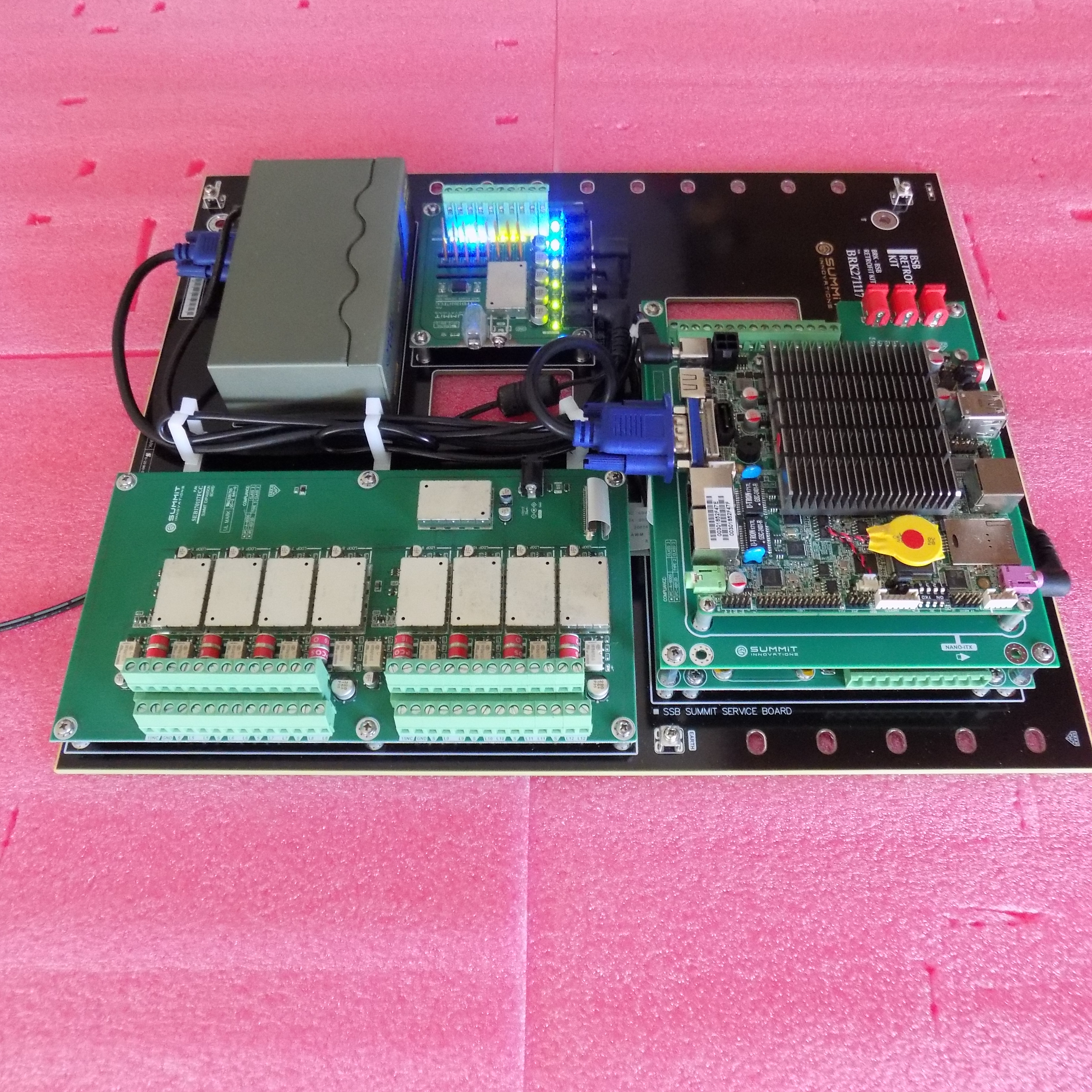

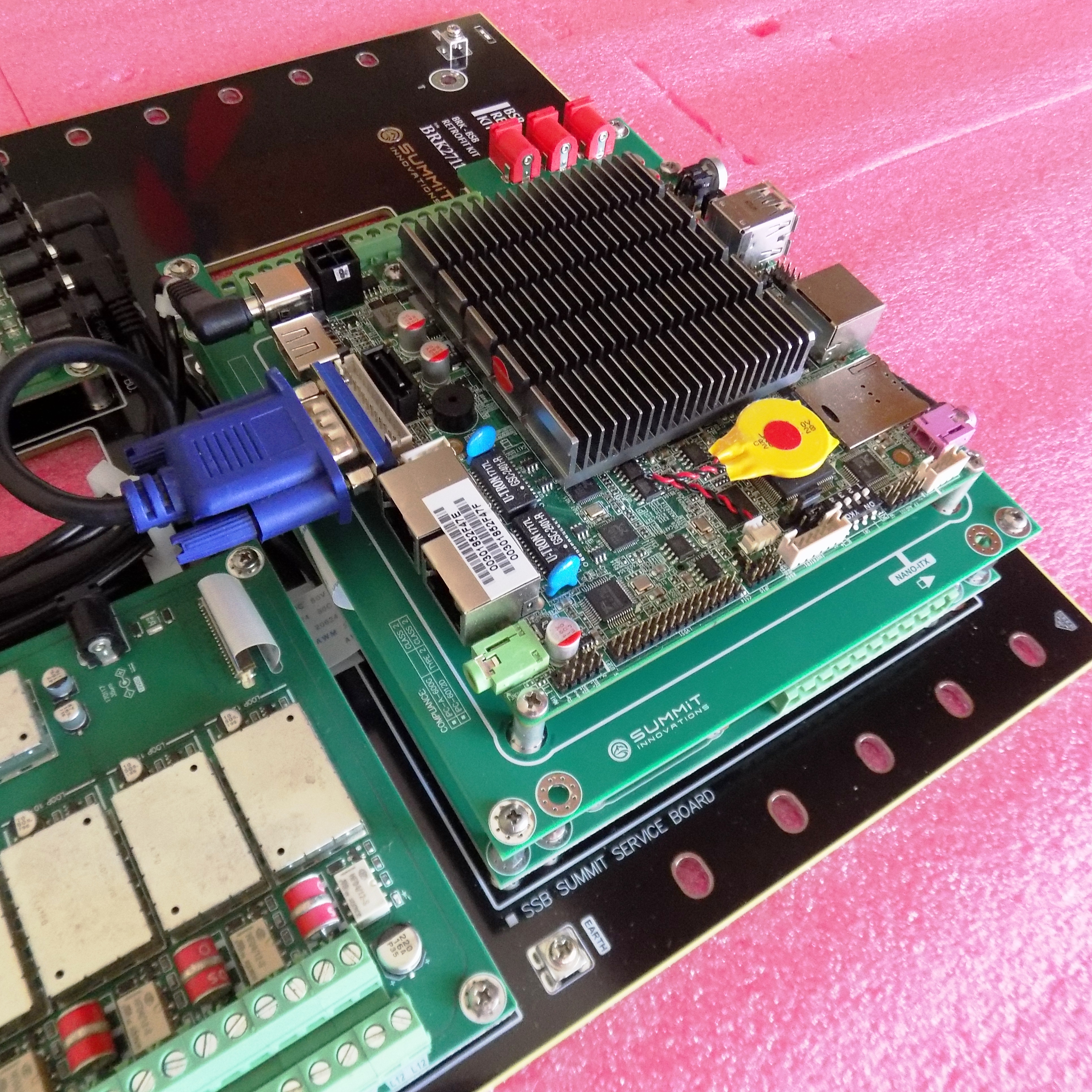

BSB Retrofit Kit
Assembly ID
BRK271117
Company
Function
Backplate Retrofit Kit
Primary Device
NA
Technology
15 track/10 space/28 via
PCB Build Specification
2 Layer, 1oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Speedy Circuits (Taiwan)
CAD Application
Altium Designer R17
Prototype Availability
Yes
Downloads
None
