Date of Design

2017

Product

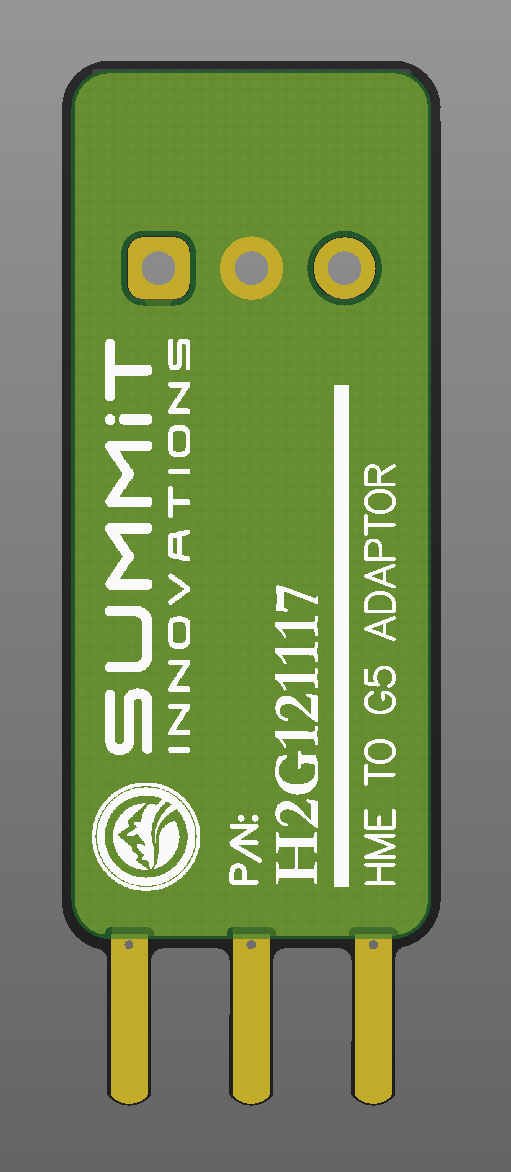

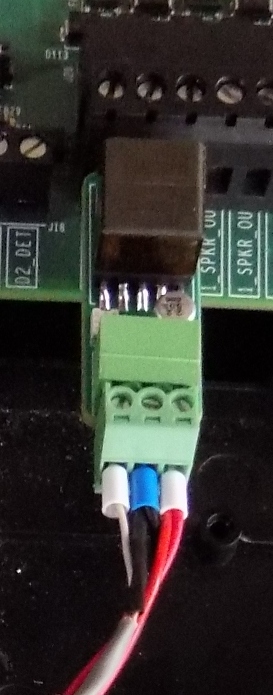

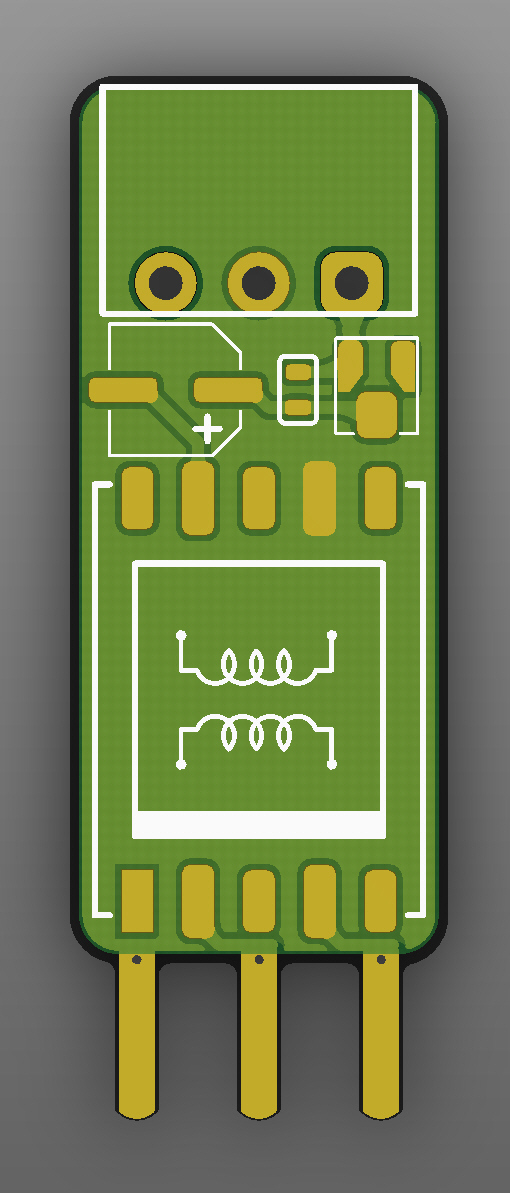

HME to 3M G5 Base Stn Adaptor Bd

Assembly ID

H2G121117

Company

Summit Innovations

Function

Mic Signal Enhancement

Primary Device

None

Technology

10 track/10 space/28 via

PCB Build Specification

2 Layer, 1oz,  MASK, HASL, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

Speedy Circuits (Taiwan)

CAD Application

Altium Designer R17

Prototype Availability

Yes

Downloads

None
