Date of Design
2017
Product
PTS Series (Pure Timing System)
Assembly ID
SEB170117FCC
Company
Function

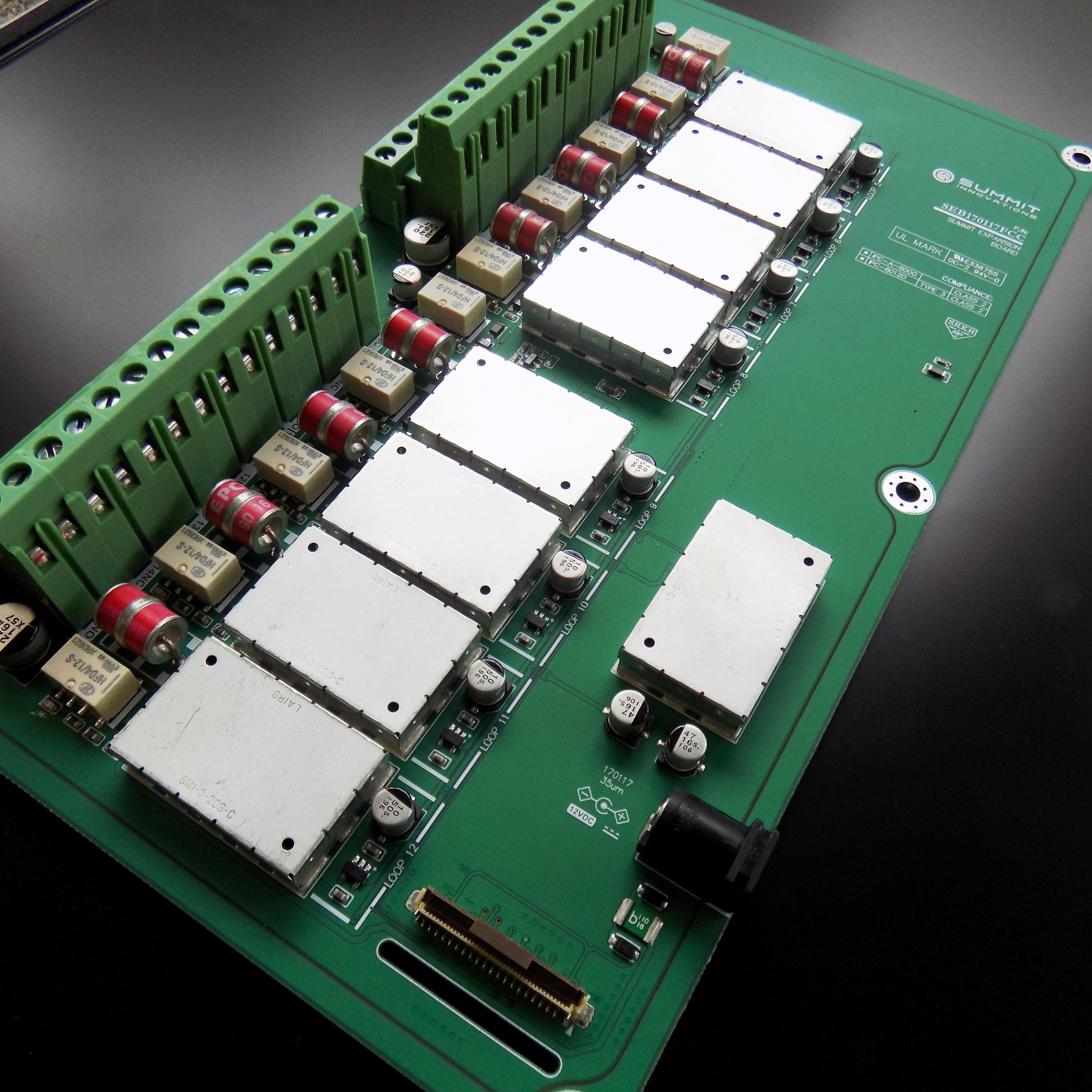

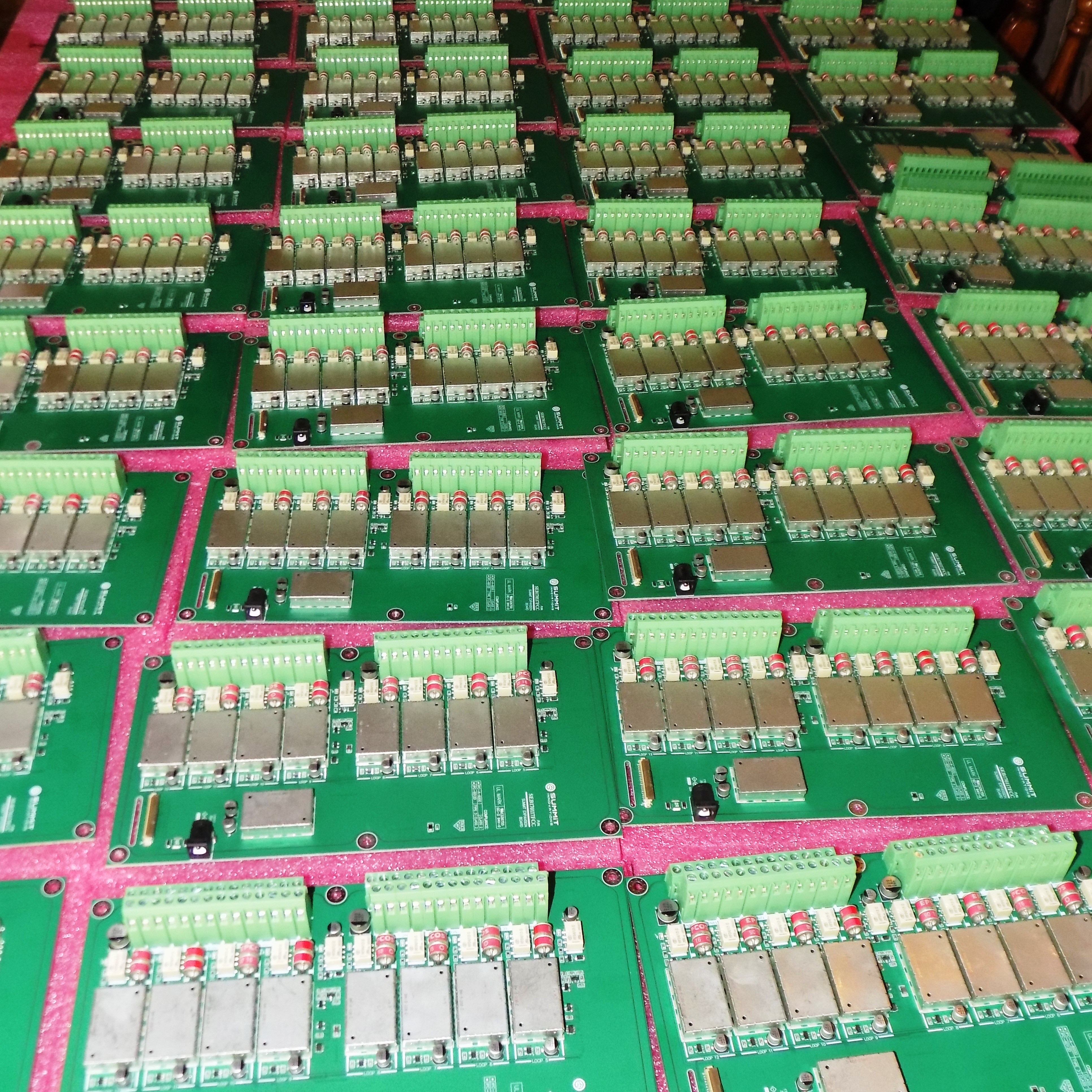

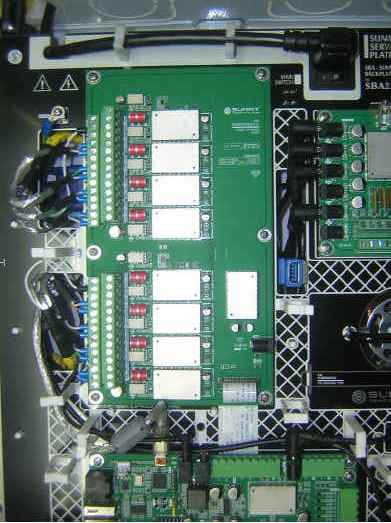

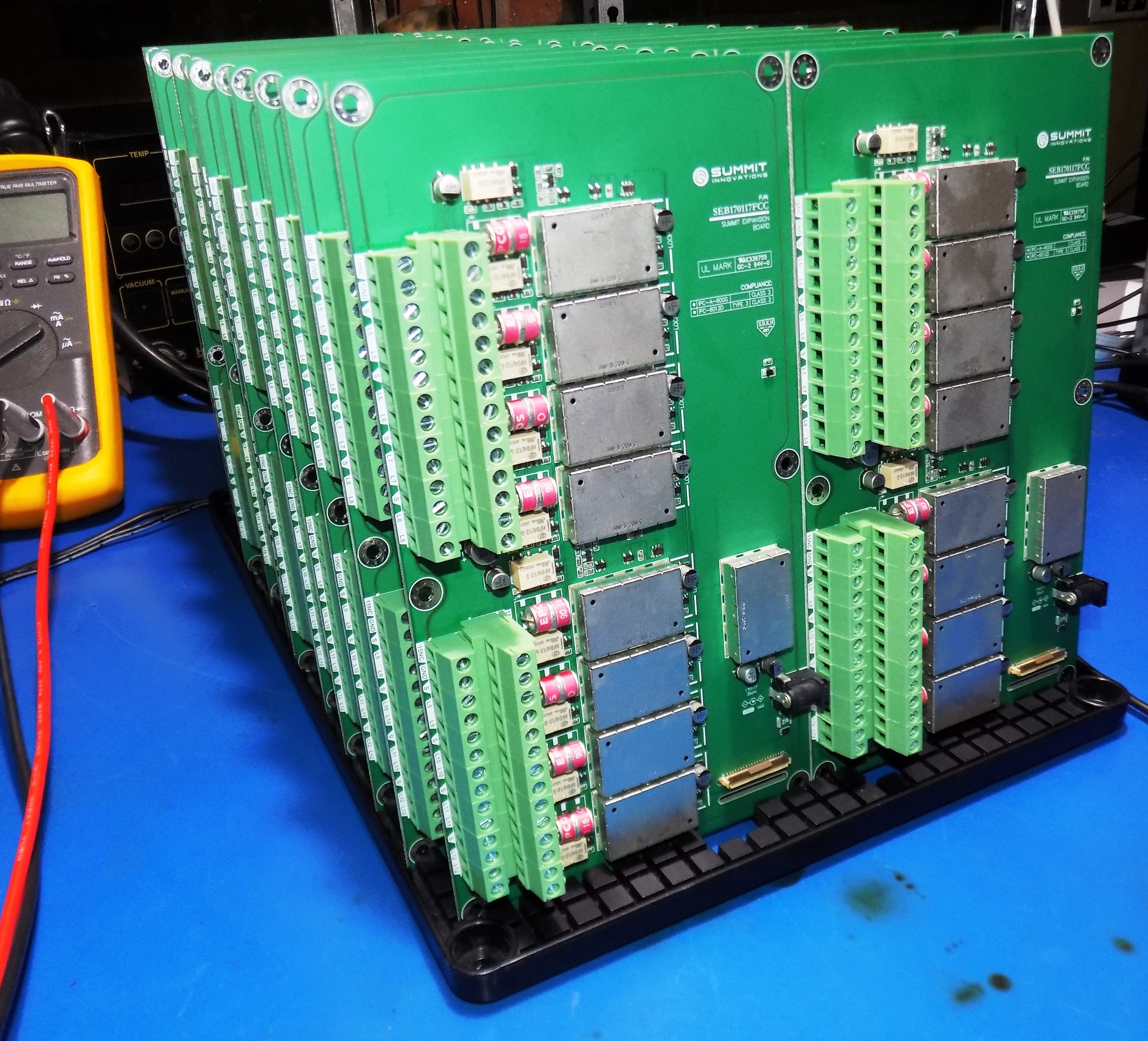

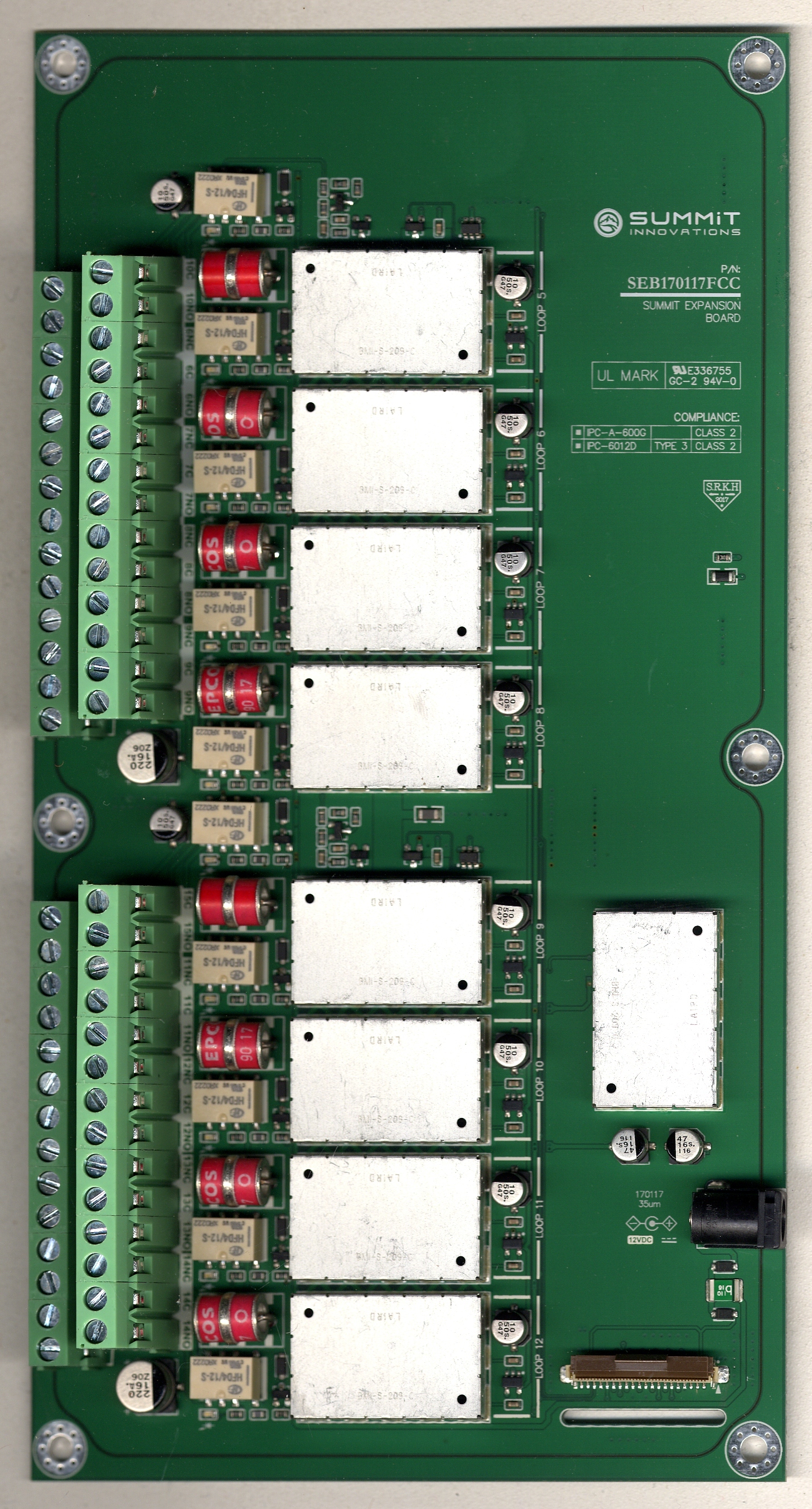

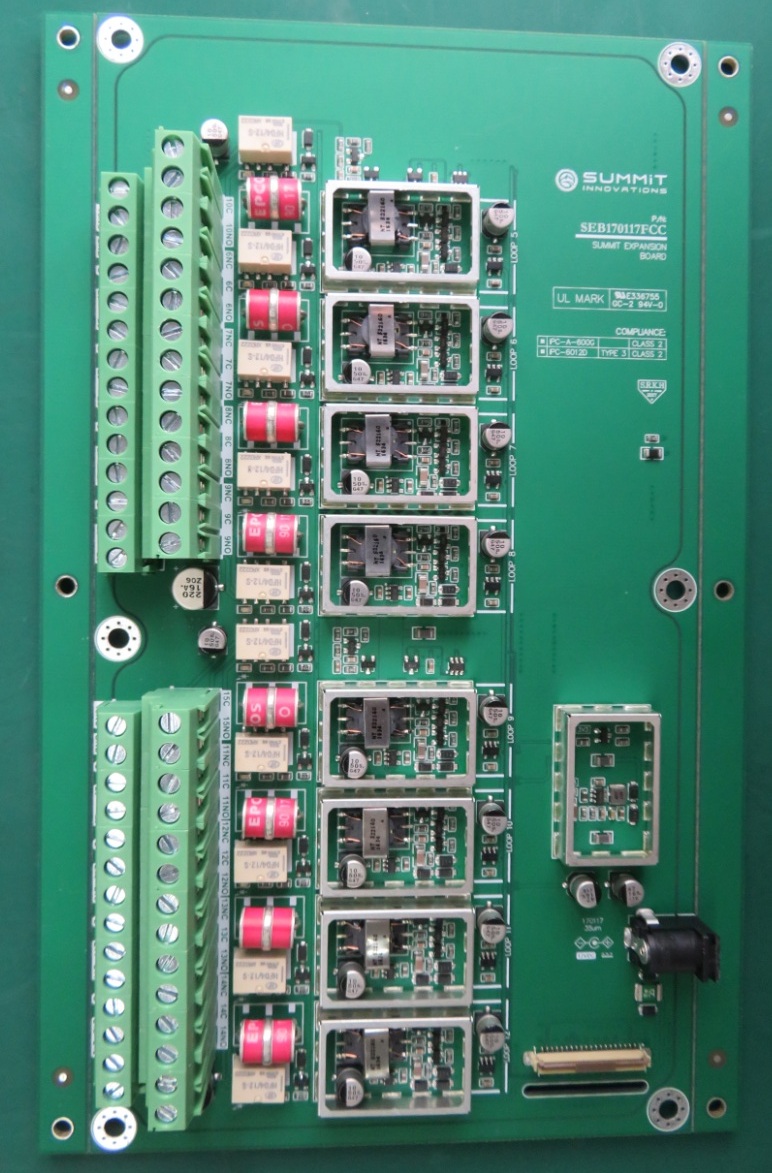

Summit Expansion Board
Primary Device
NA (discretes)
Technology
5 track/5 space/28 via

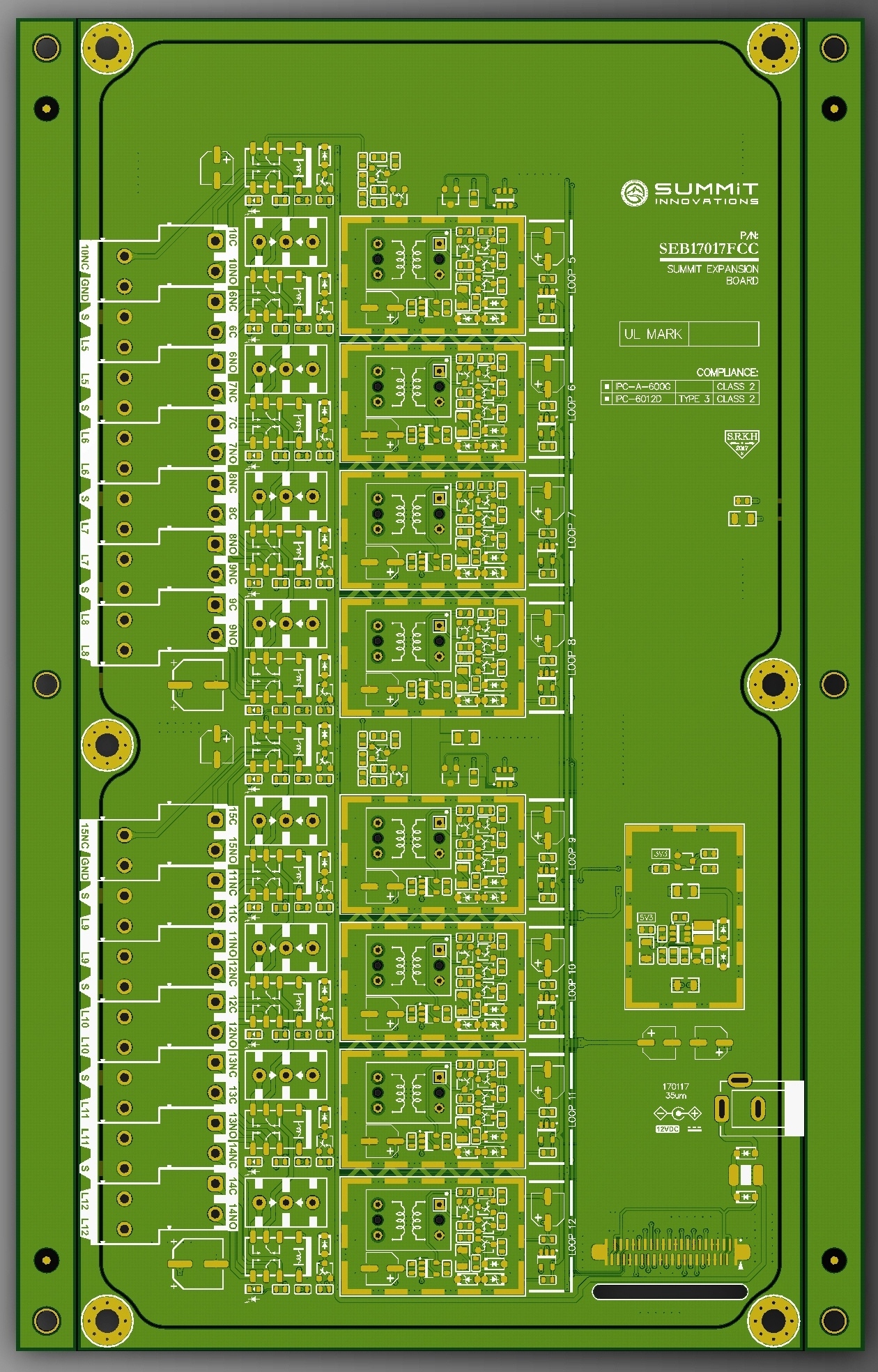

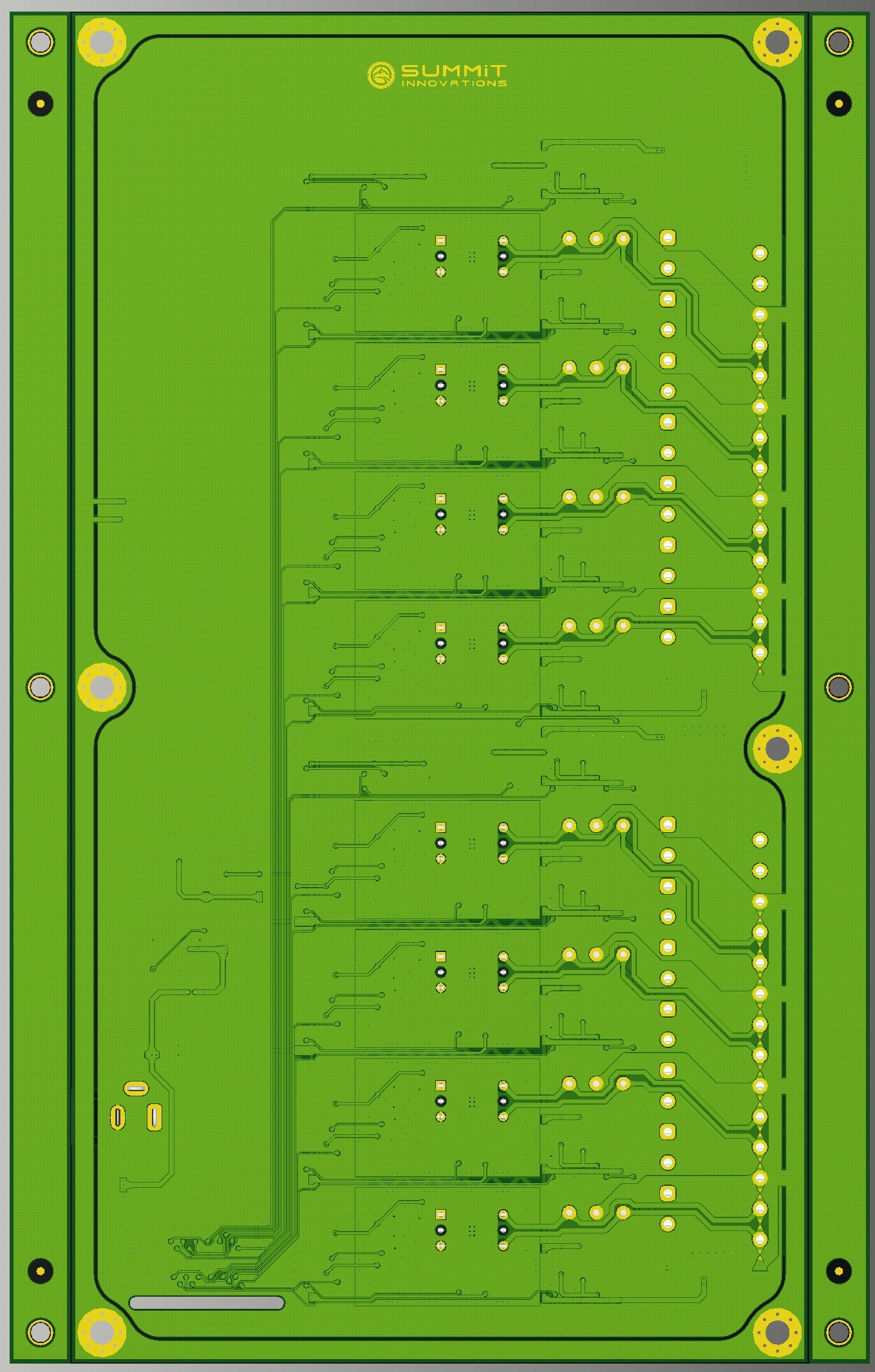

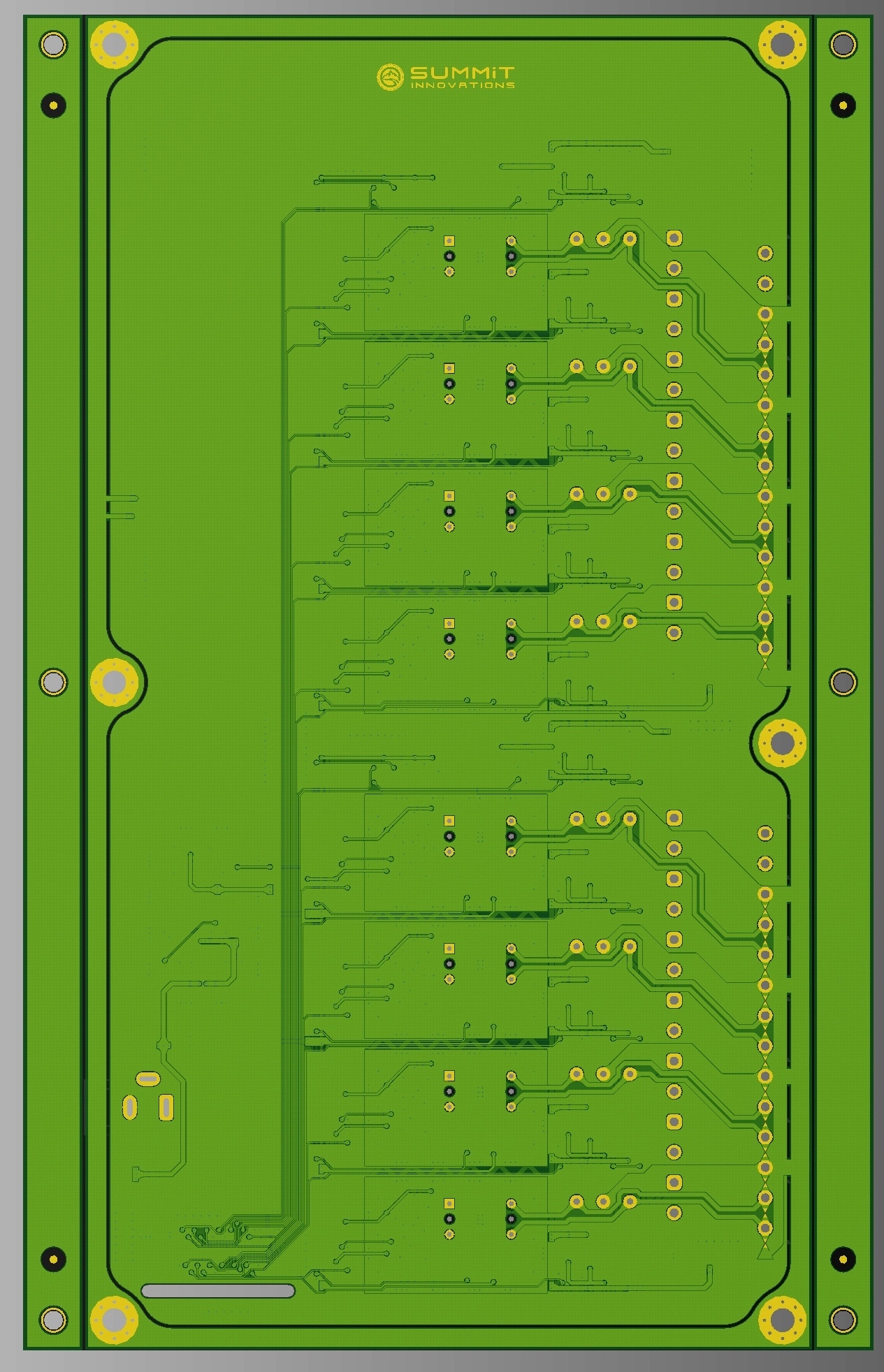

PCB Build Specification
2 Layer, 1oz, MASK, HASL, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610/FCC
Contract Manufacturer
General Circuits (China)
CAD Application
Altium Designer R17
Prototype Availability
Yes
Downloads
None
