Date of Design

2015

Product

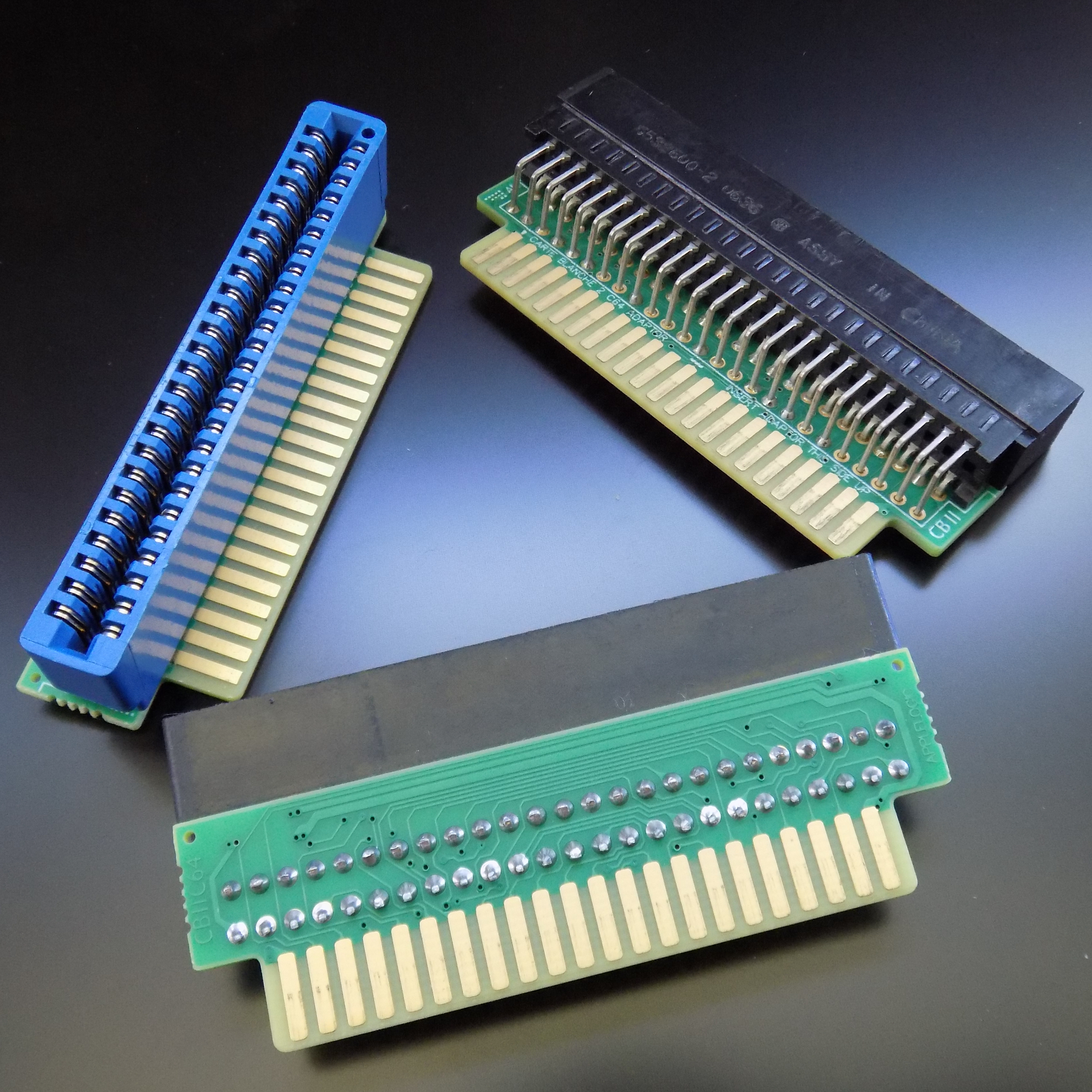

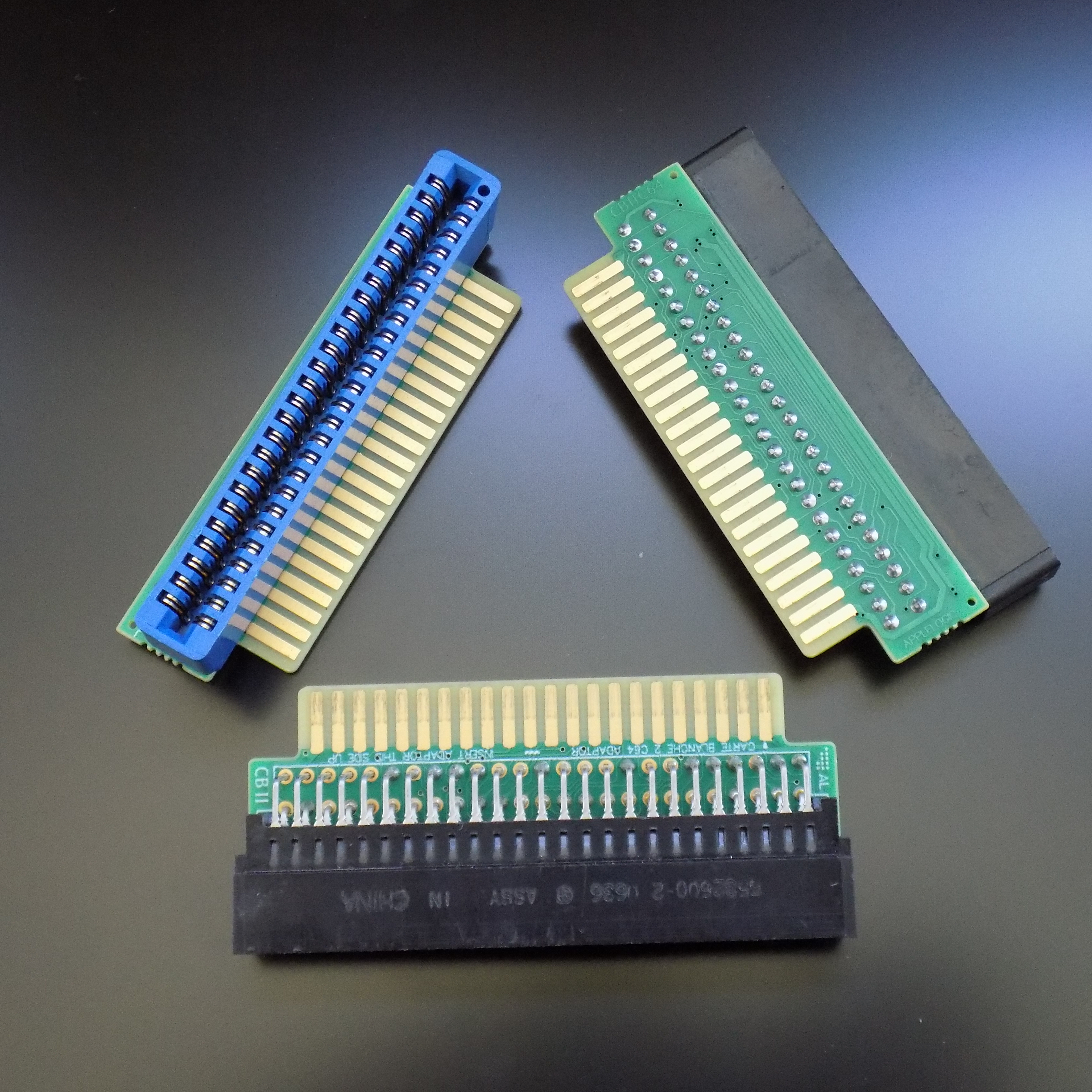

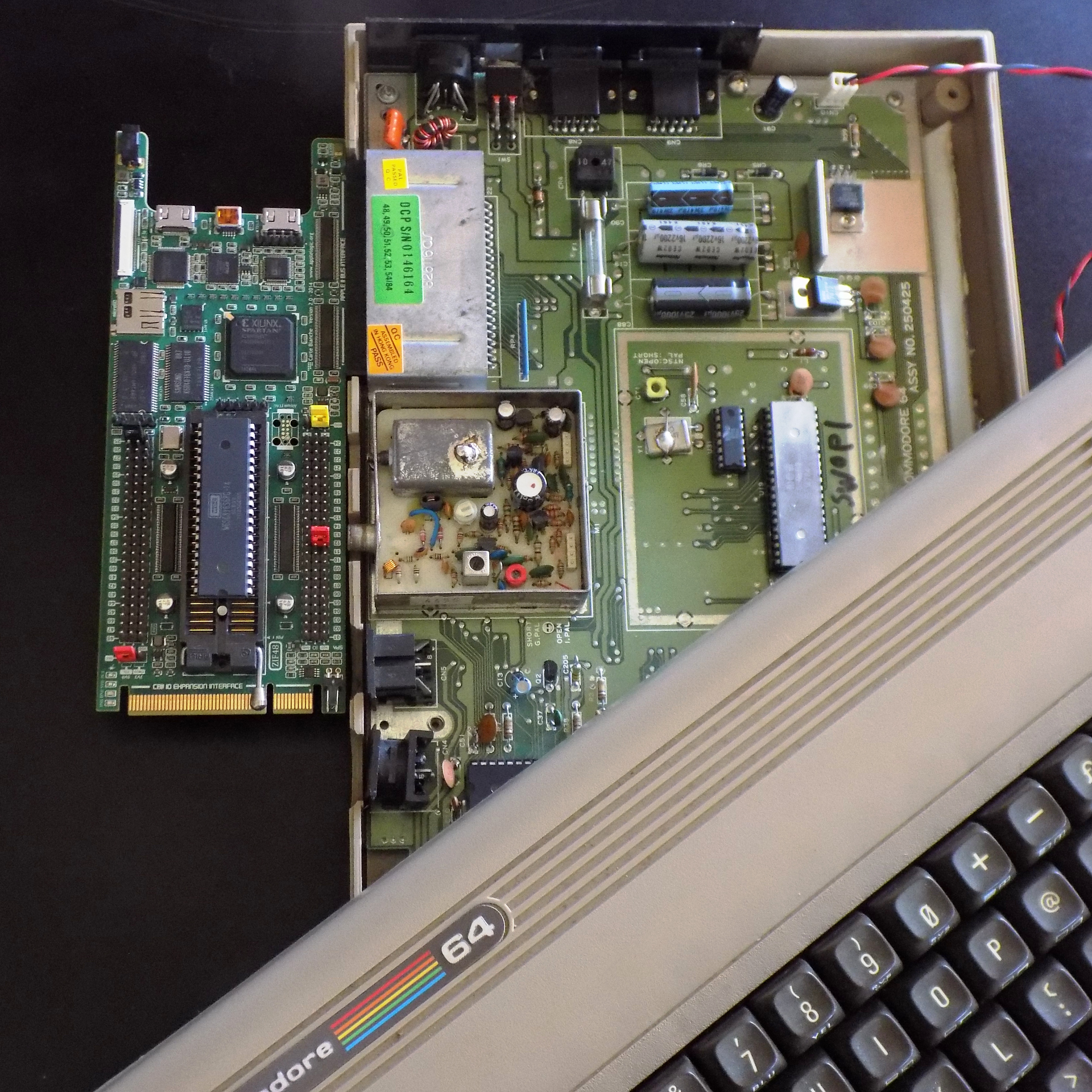

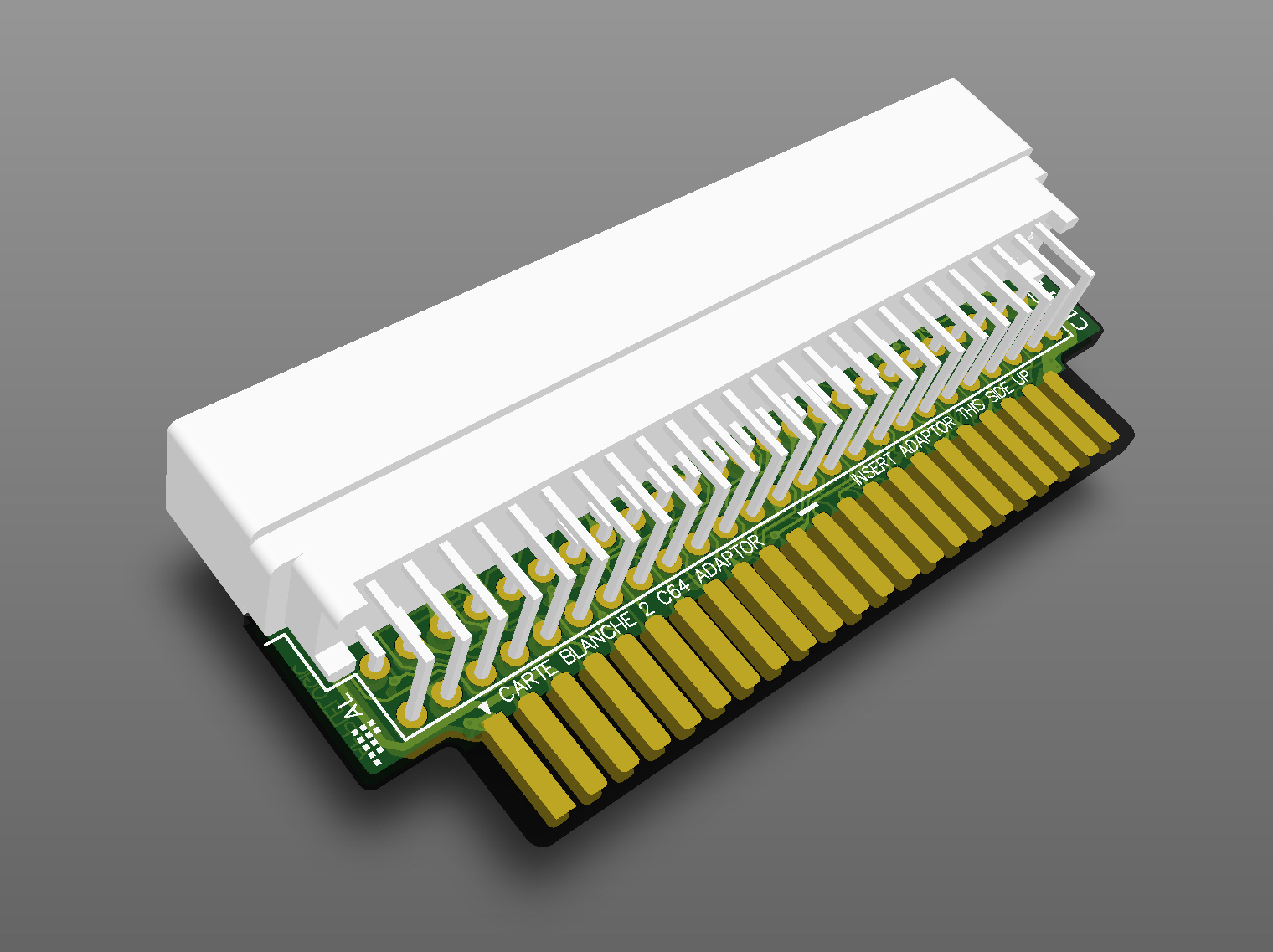

CBII to Commodore 64 interface

Assembly ID

CBII2C64

Company

Applelogic

Function

CBII to Commodore 64 interface

Primary Device

XC3S400AN

Technology

5 track/5 space/26 via

PCB Build Specification

4 Layer, 1oz,  MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

General Circuits (CHINA)

CAD Application

Altium Designer R12

Prototype Availability

Yes

Downloads

None
