Date of Design

2015

Product

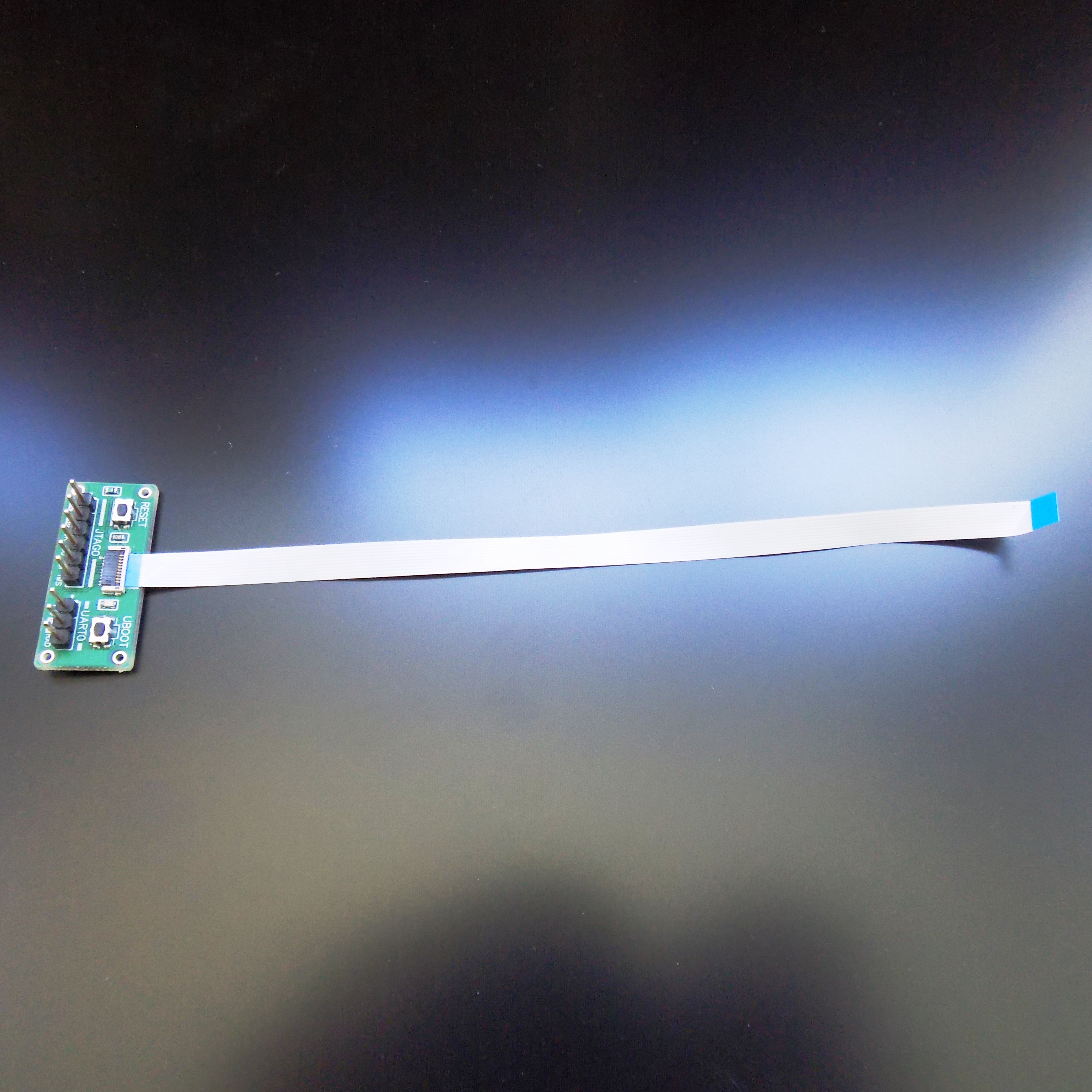

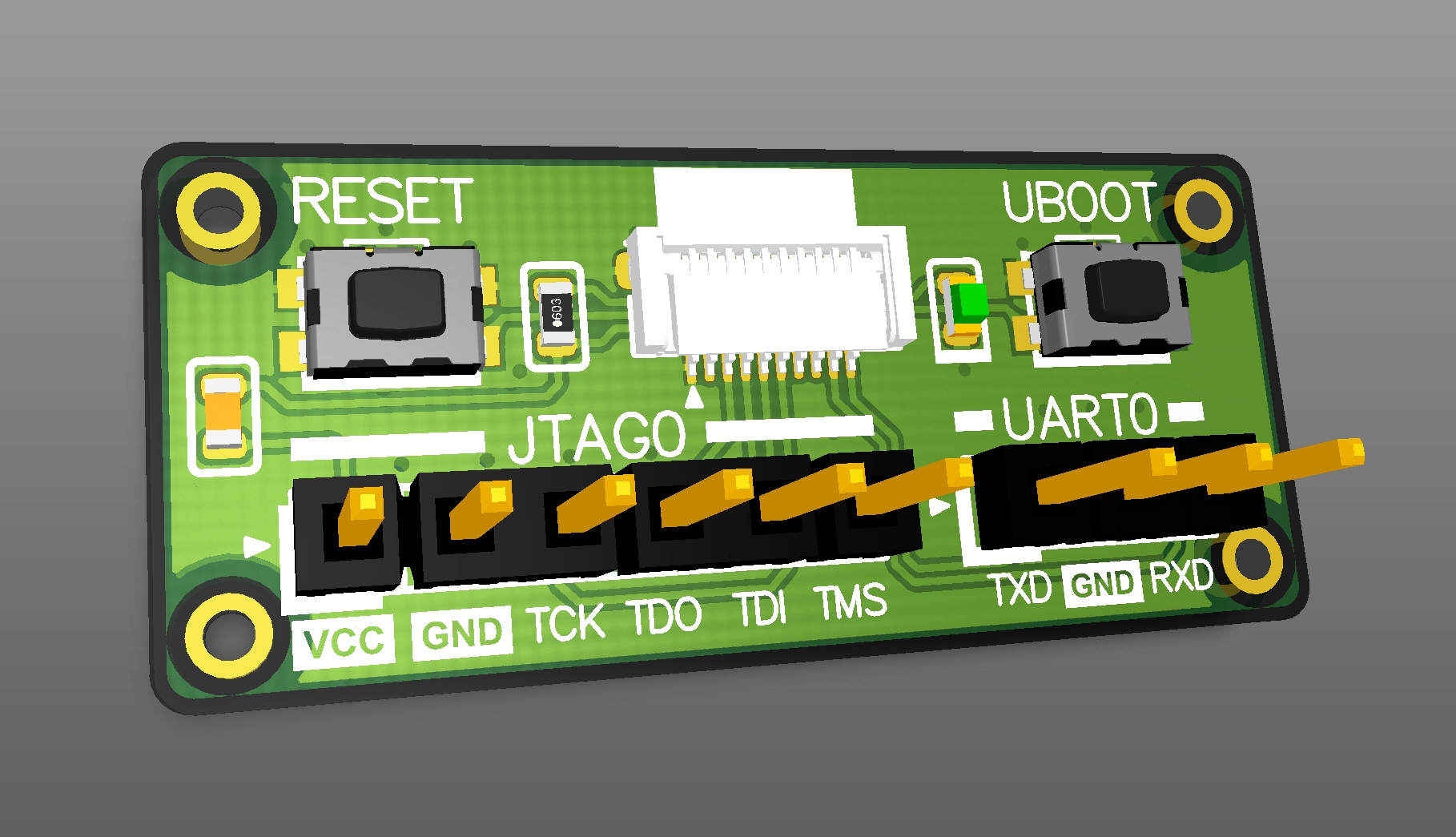

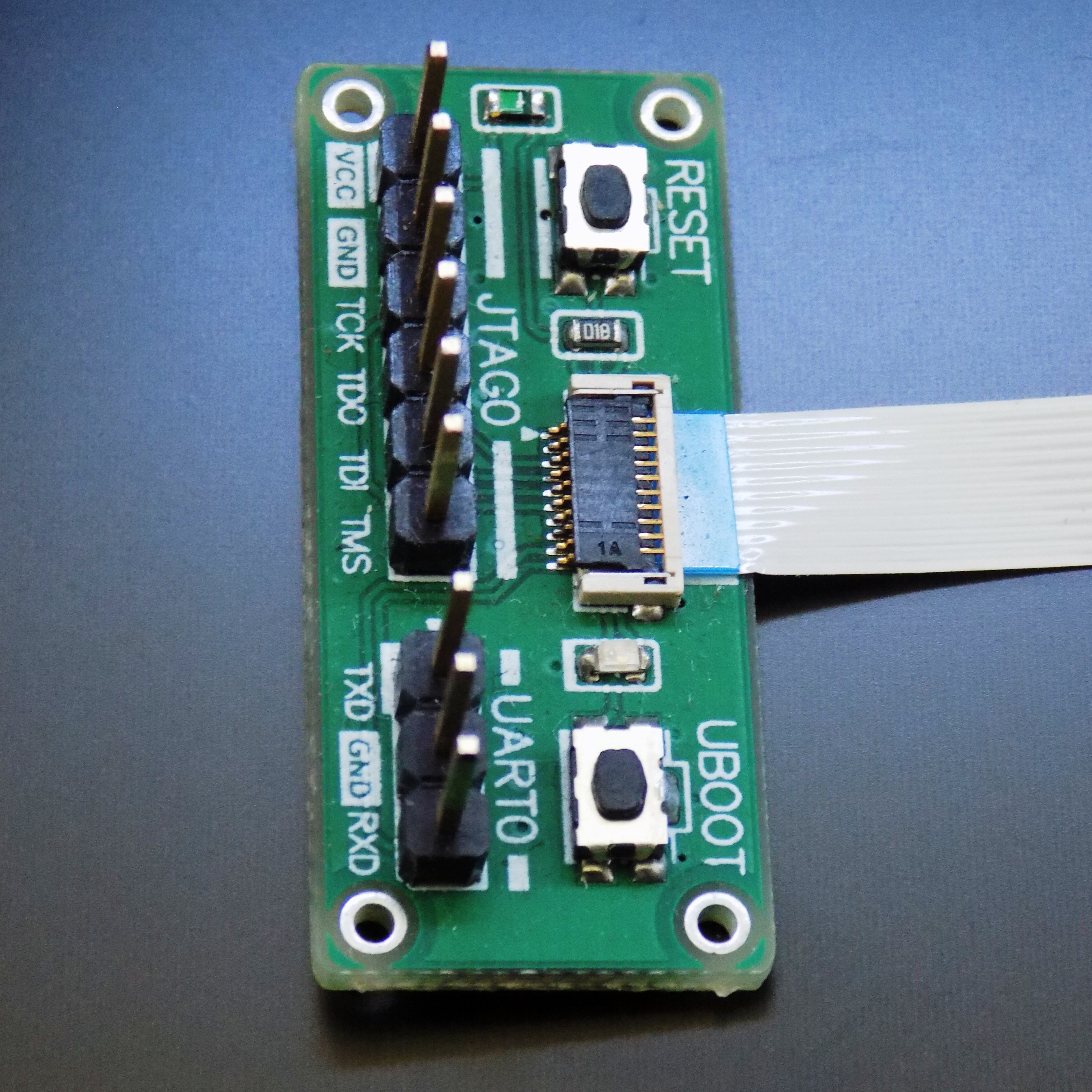

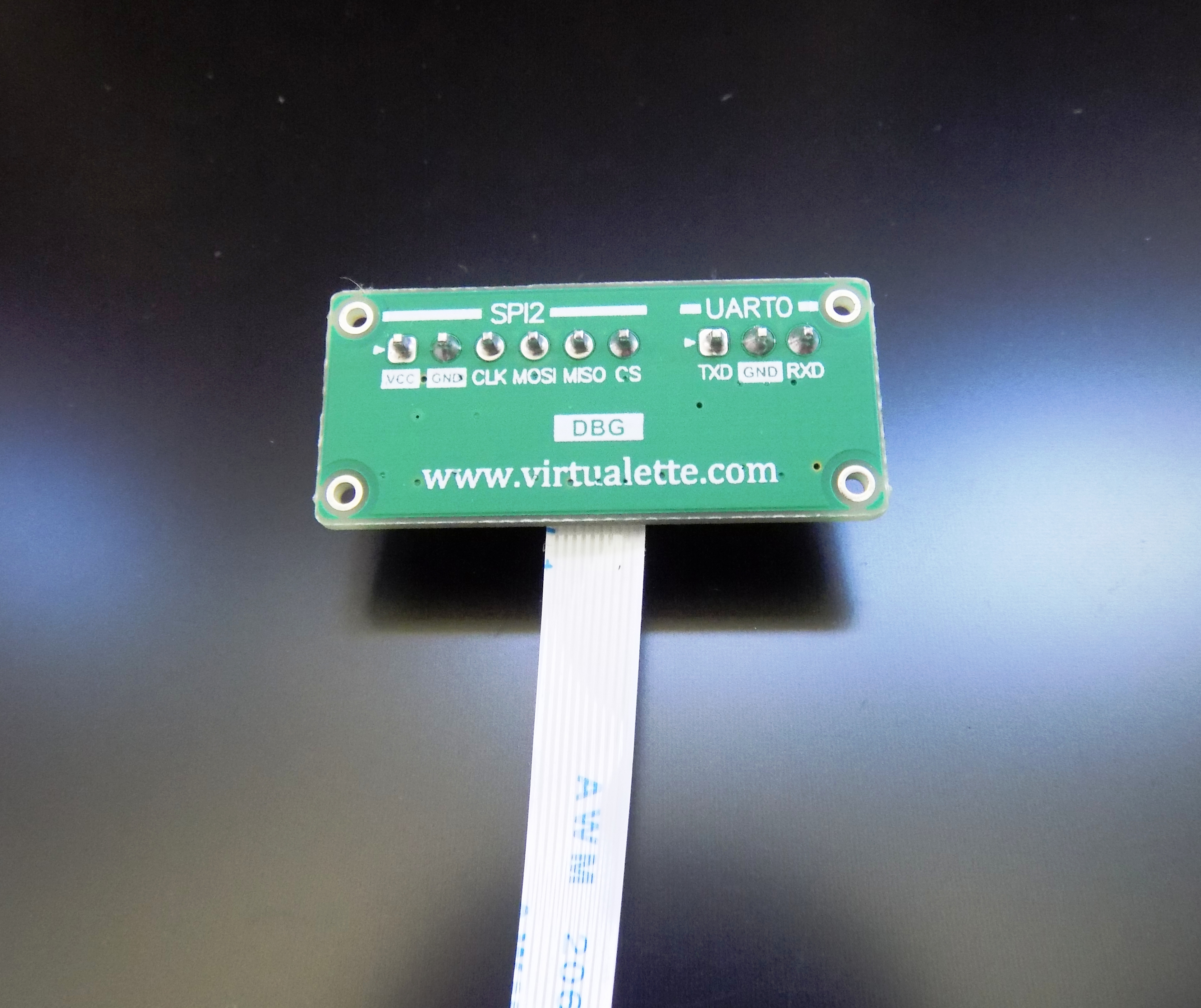

Virtualette Debug Board

Assembly ID

VDBG

Company

Novasar

Function

Peripheral Debug Board for Virtualette

Primary Device

Allwinner A20

Technology

4 track/4 space/18 via

PCB Build Specification

6 Layer, 1oz,  MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

General Circuits (CHINA)

CAD Application

Altium Designer R14

Prototype Availability

Yes

Downloads

None
