Date of Design
2015
Product

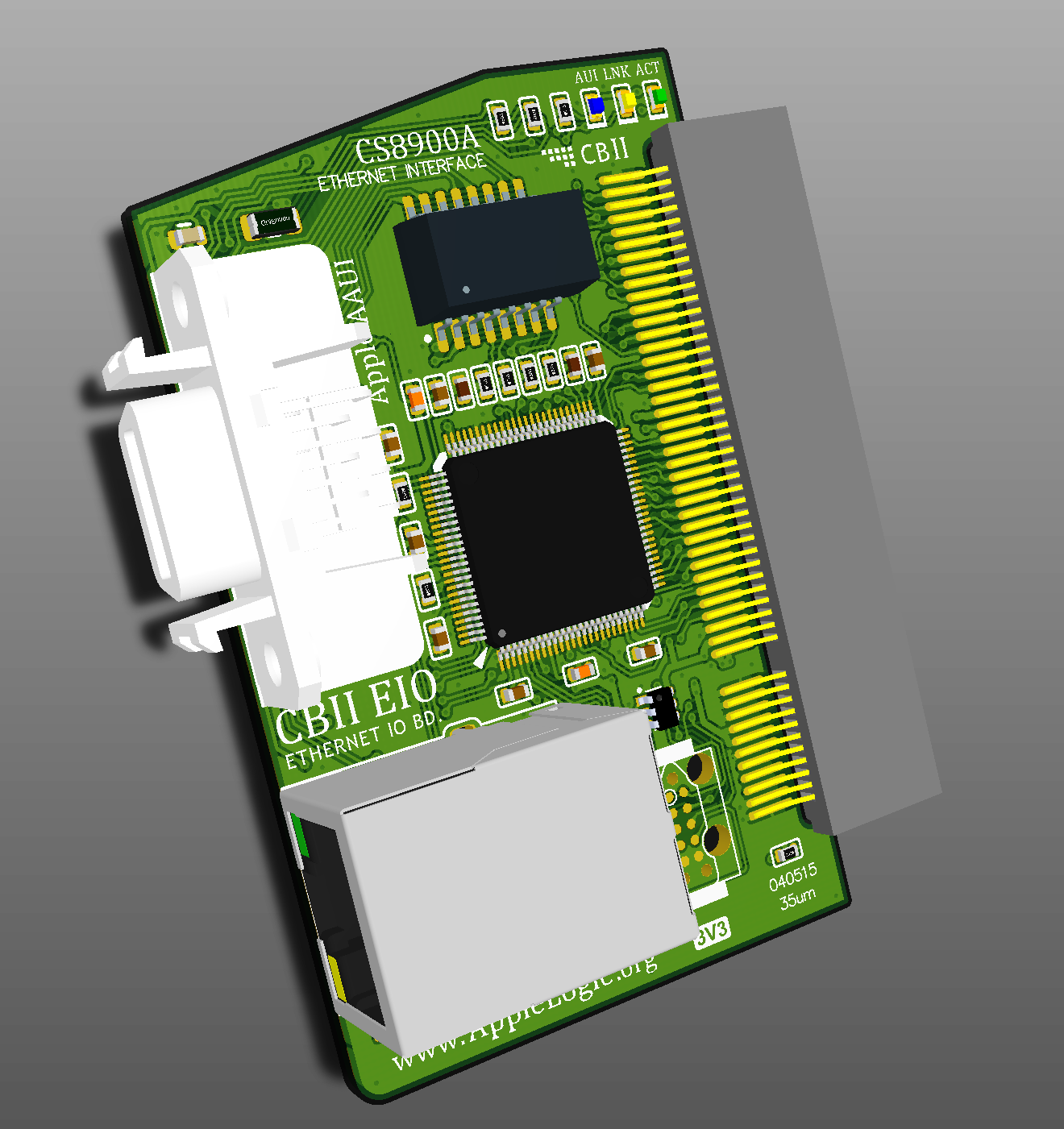

CBII Ethernet
Assembly ID
CBII EIO
Company
Applelogic
Function
CBII Ethernet interface
Primary Device
CS8900A
Technology
5 track/5 space/26 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R12
Prototype Availability
Yes
Downloads
None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
