Date of Design
2015
Product

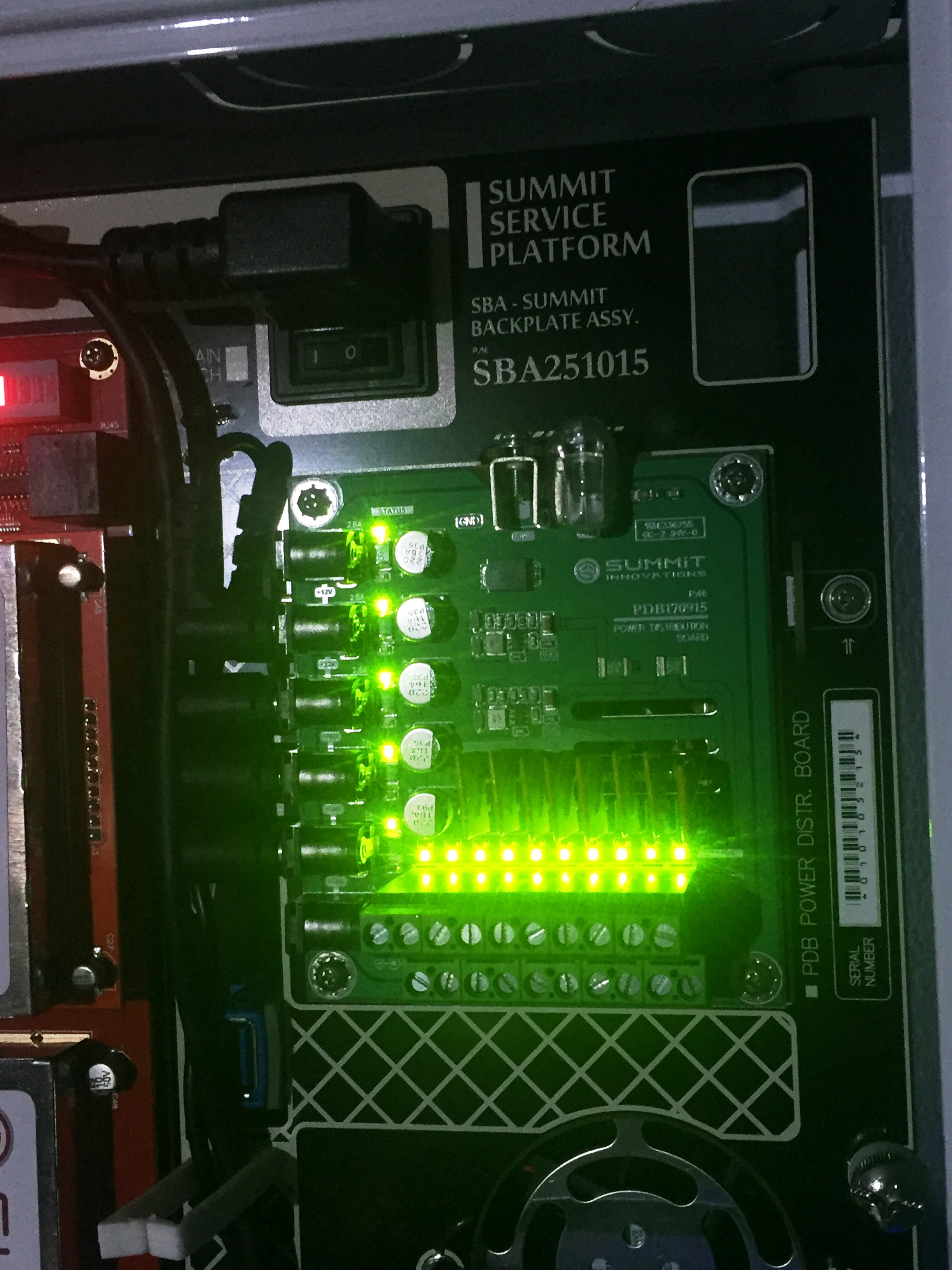

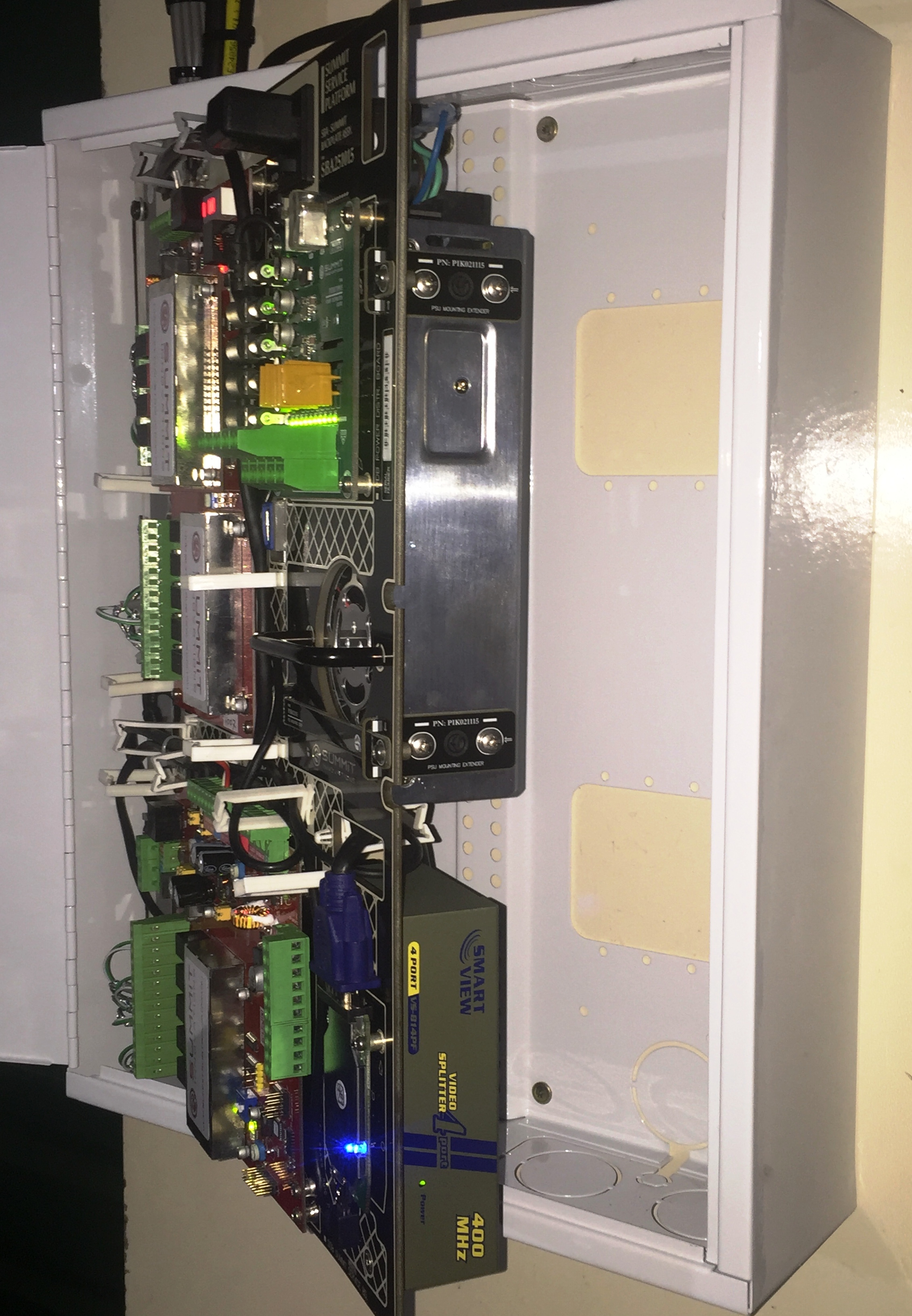

PTS (Pure Timing System)
Assembly ID

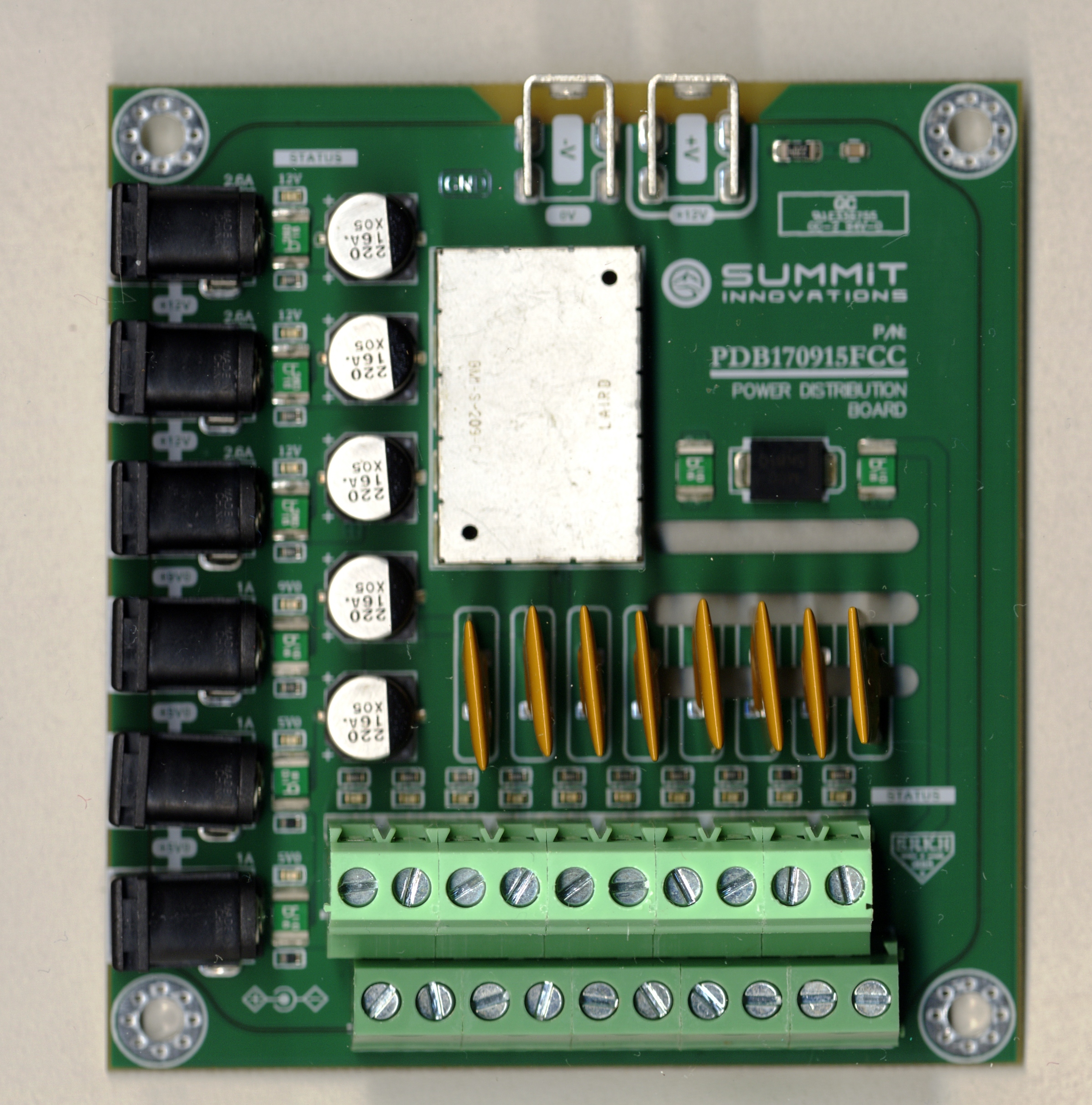

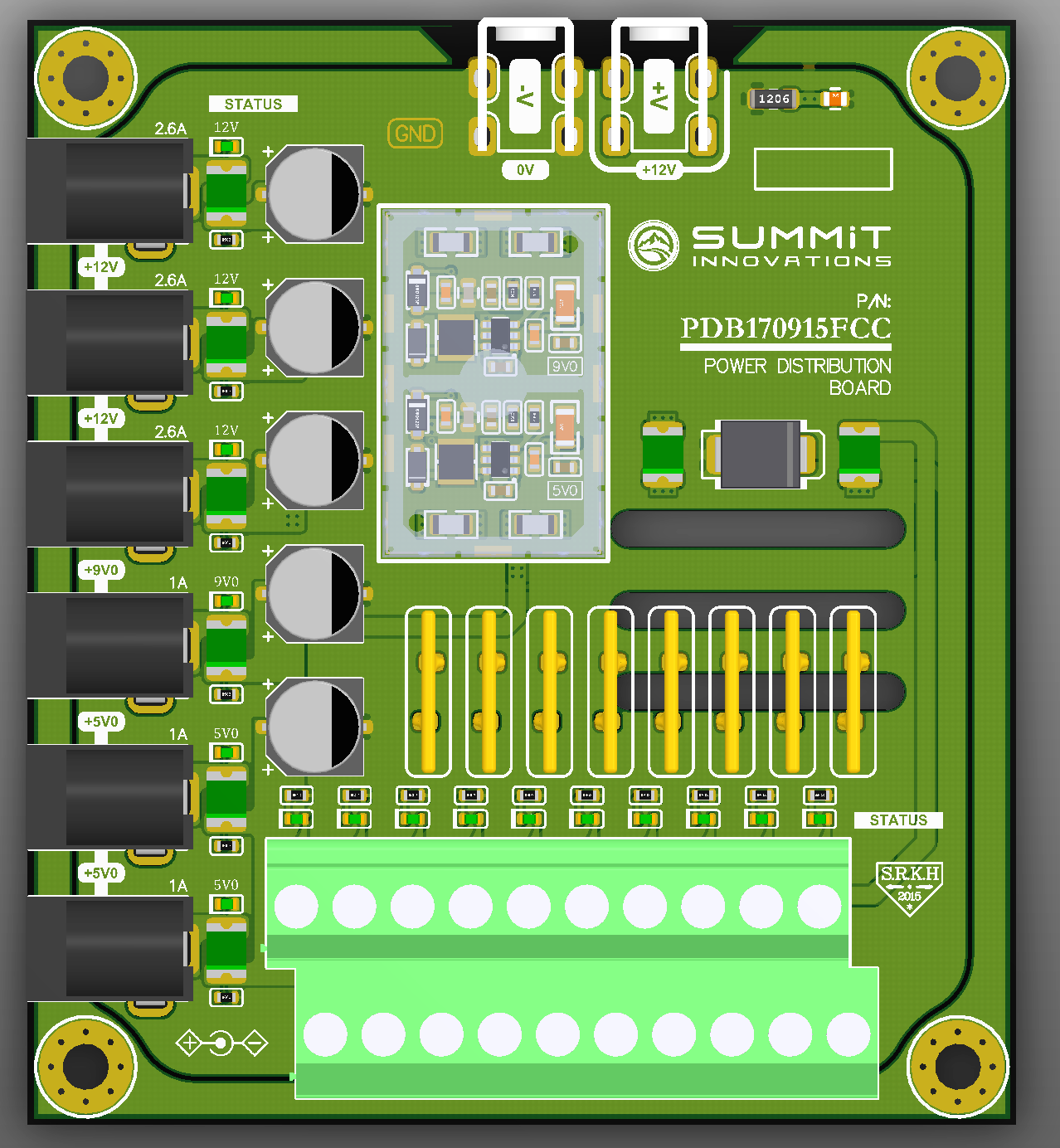

PDB170915FCC
Company
Function

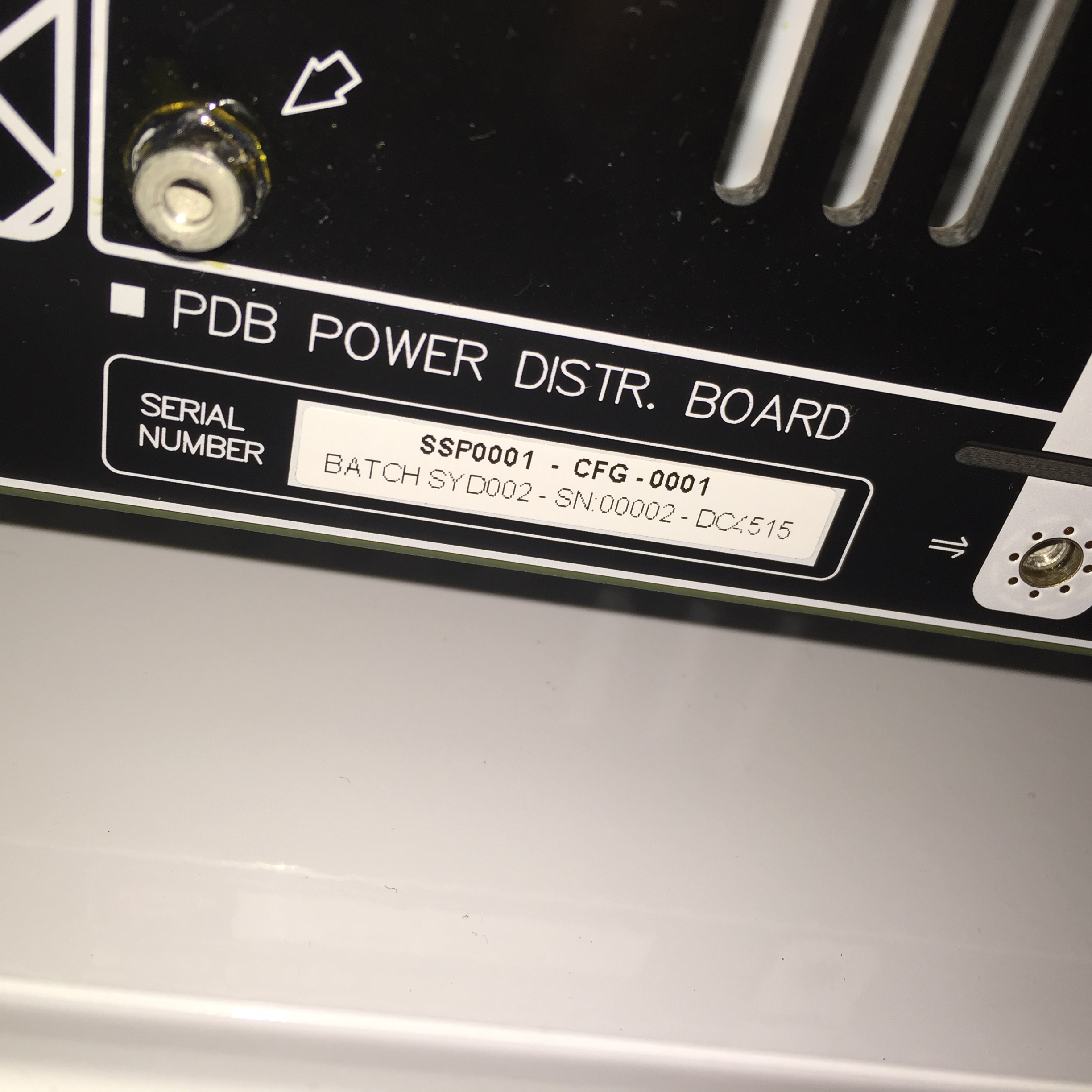

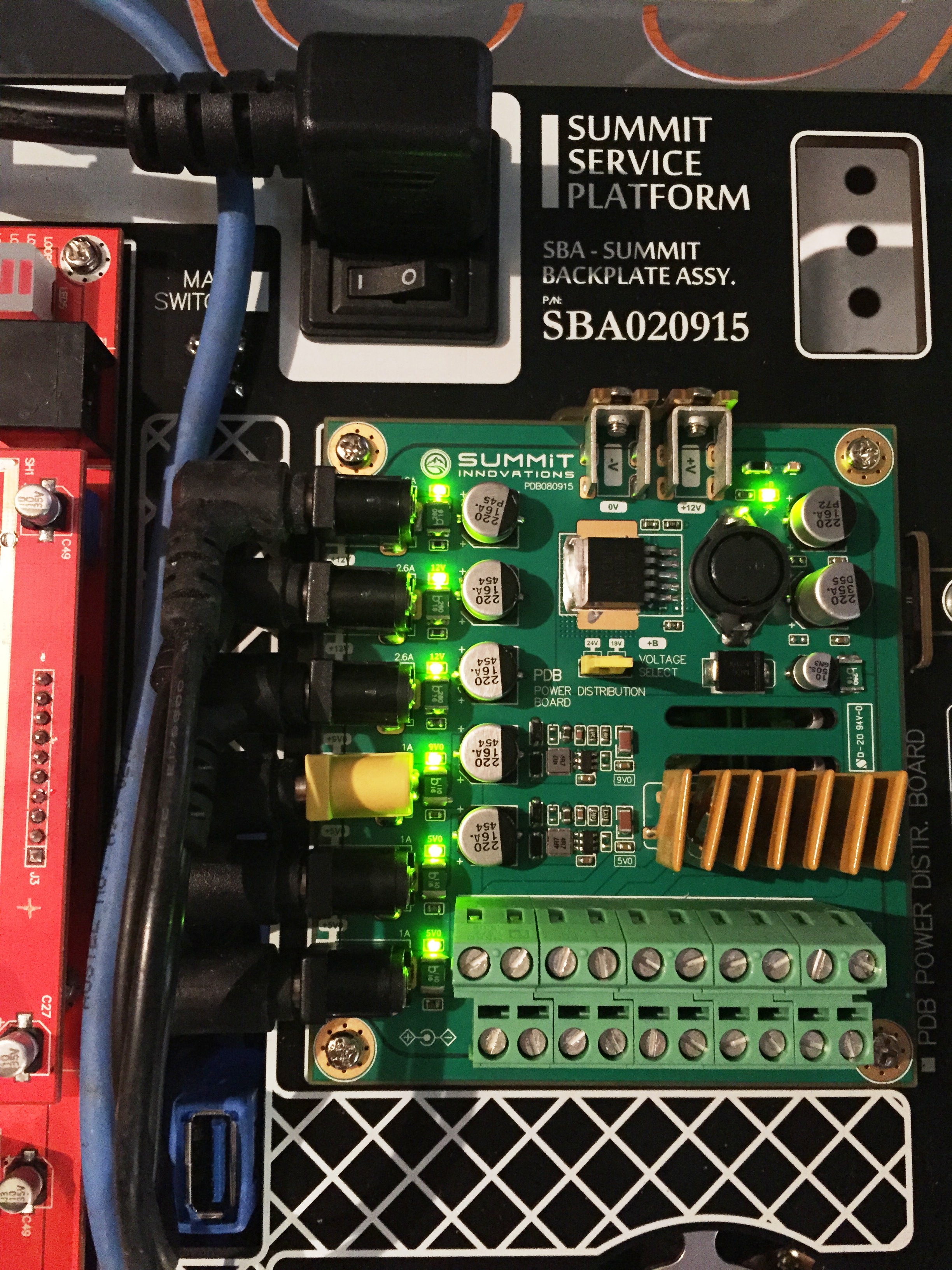

Power Distribution Bd
Primary Device
AOZ1280I
Technology
8 track/10 space/28 via
PCB Build Specification
2 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610/FCC
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R14
Prototype Availability
Yes
Downloads
None
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
