Date of Design

2008

Product

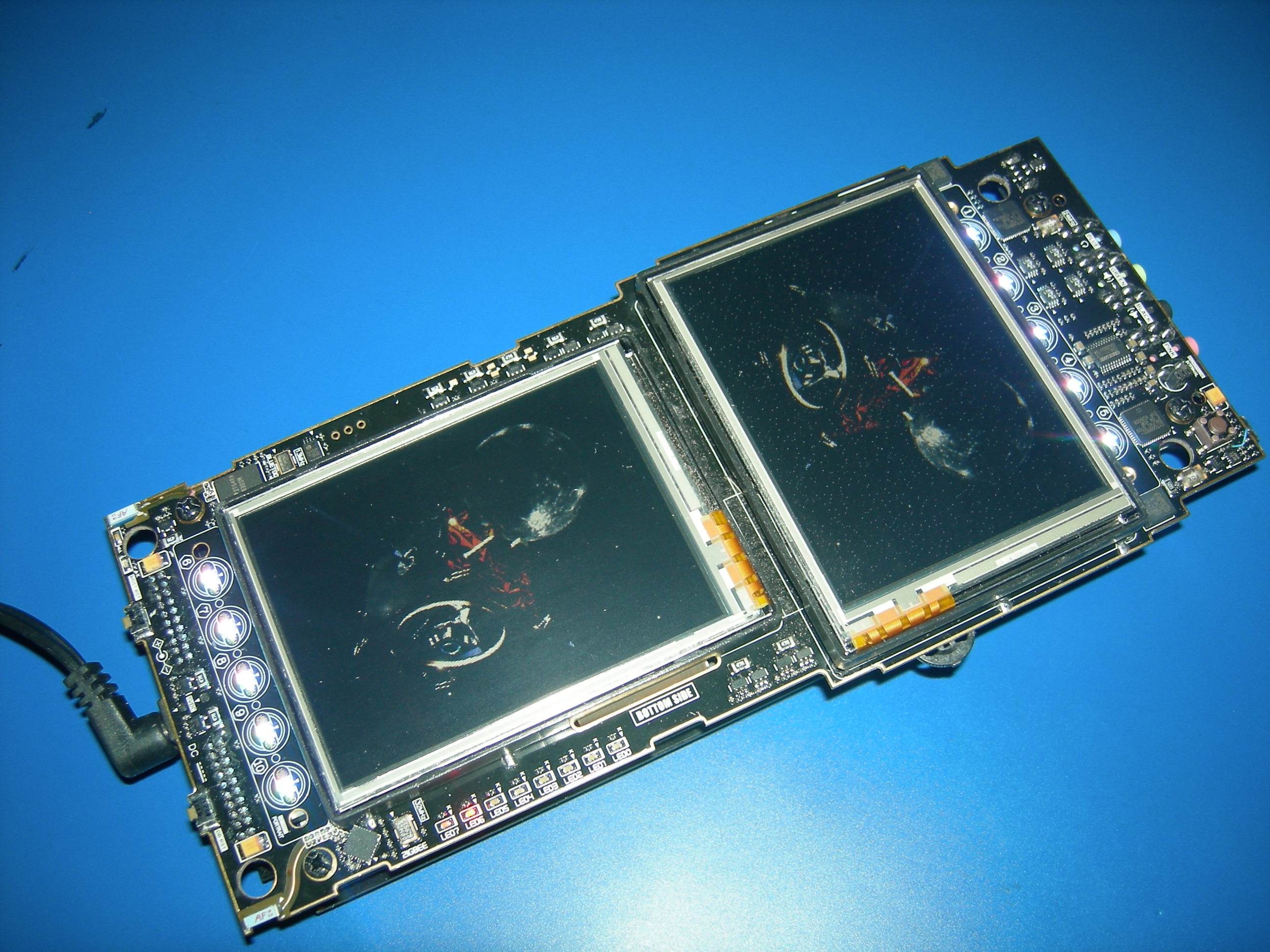

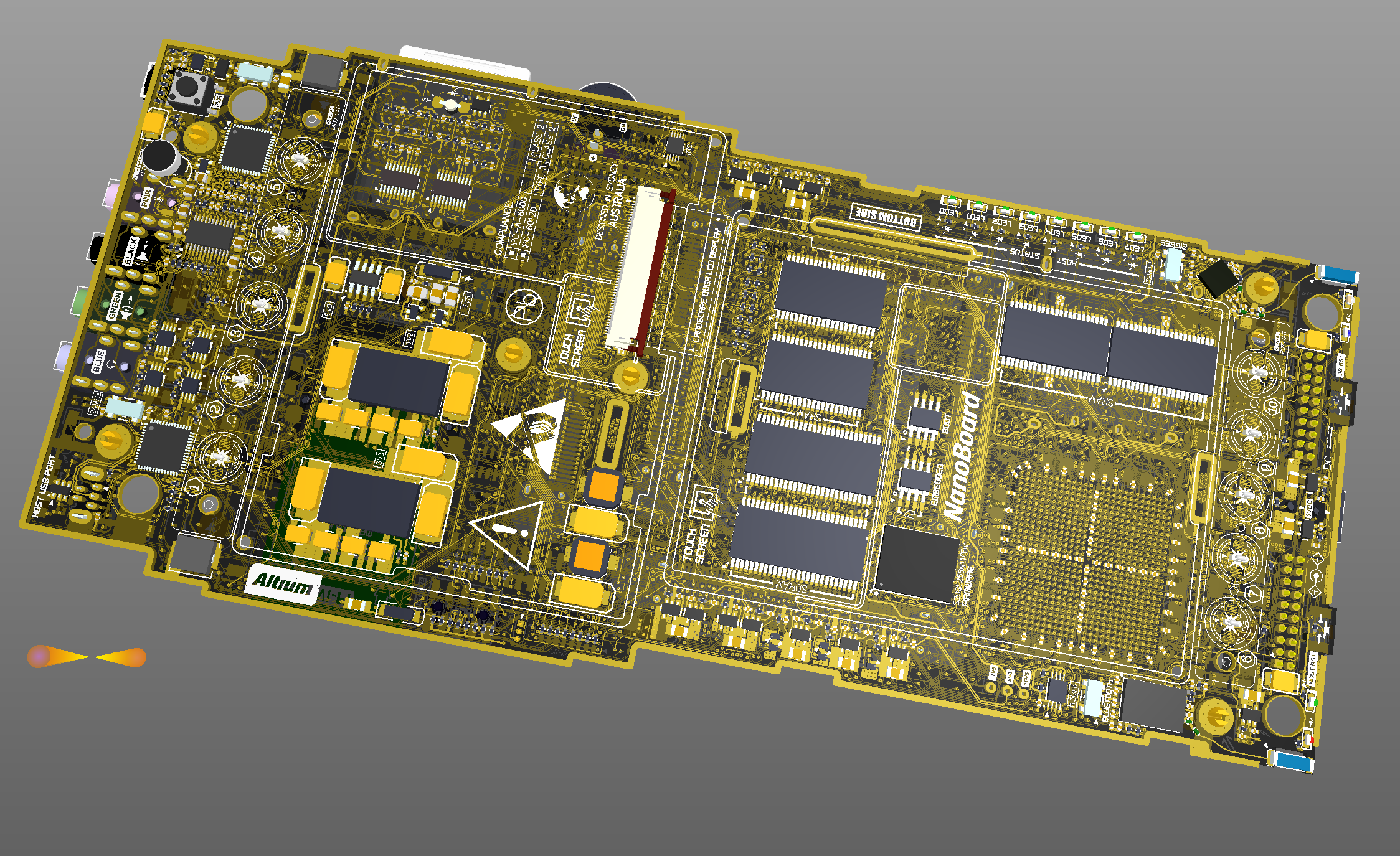

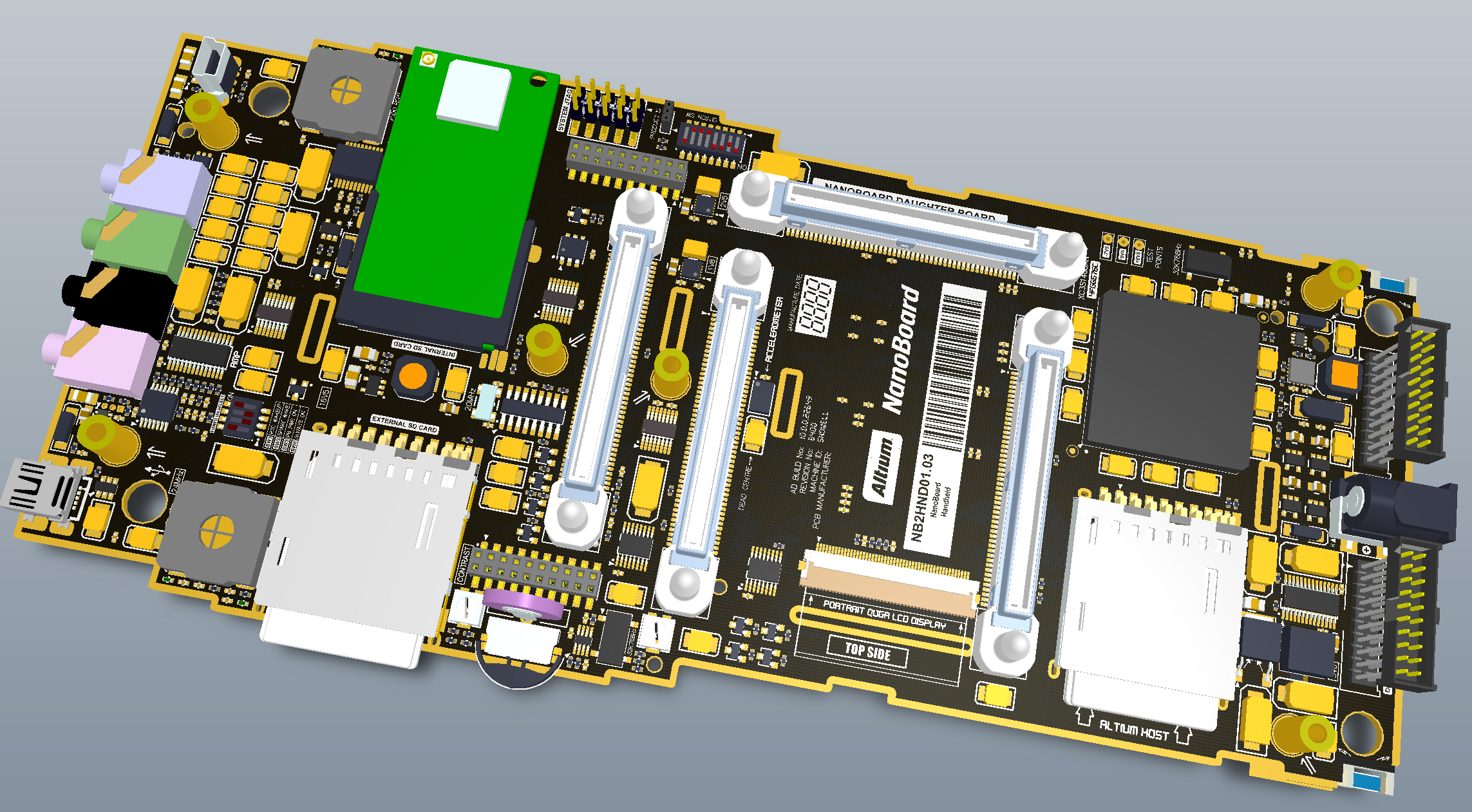

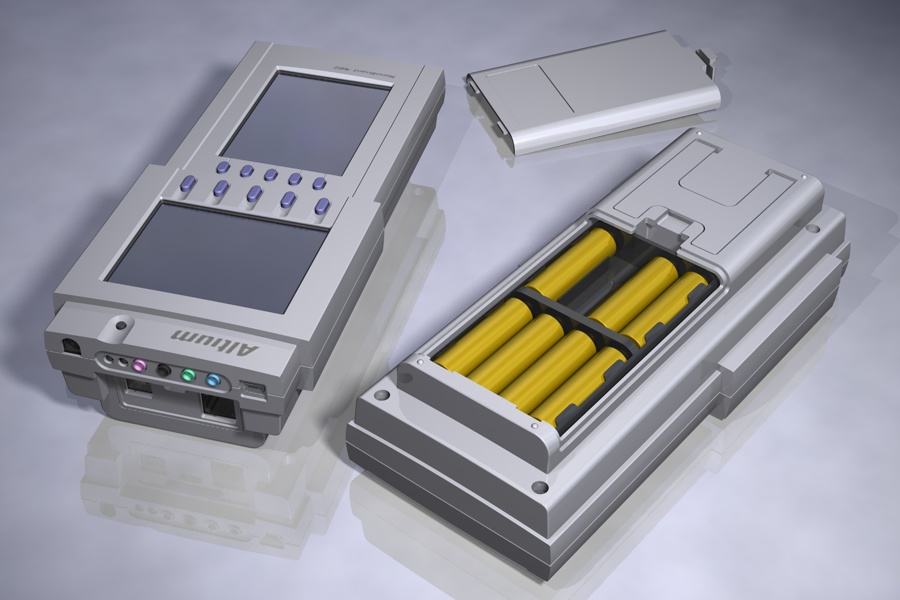

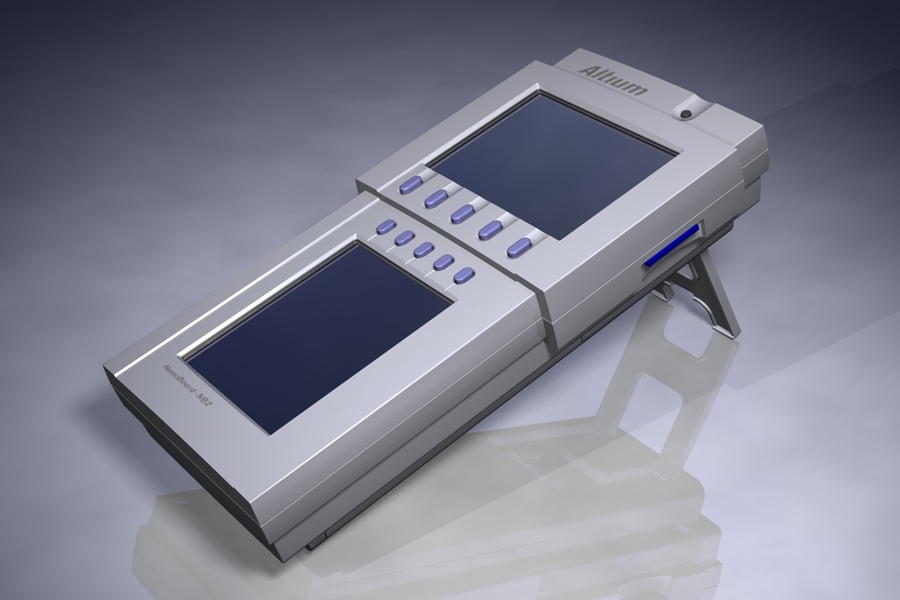

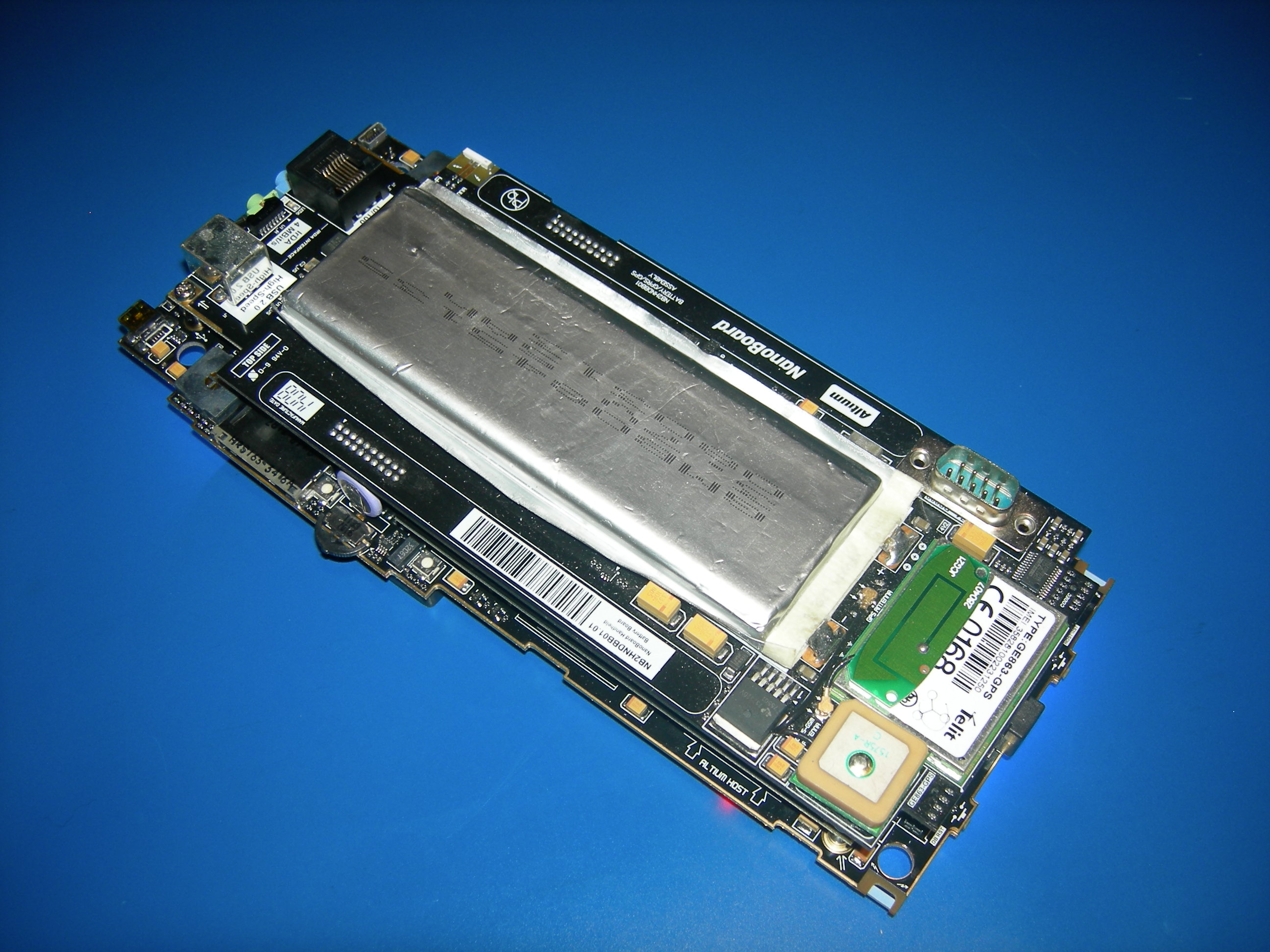

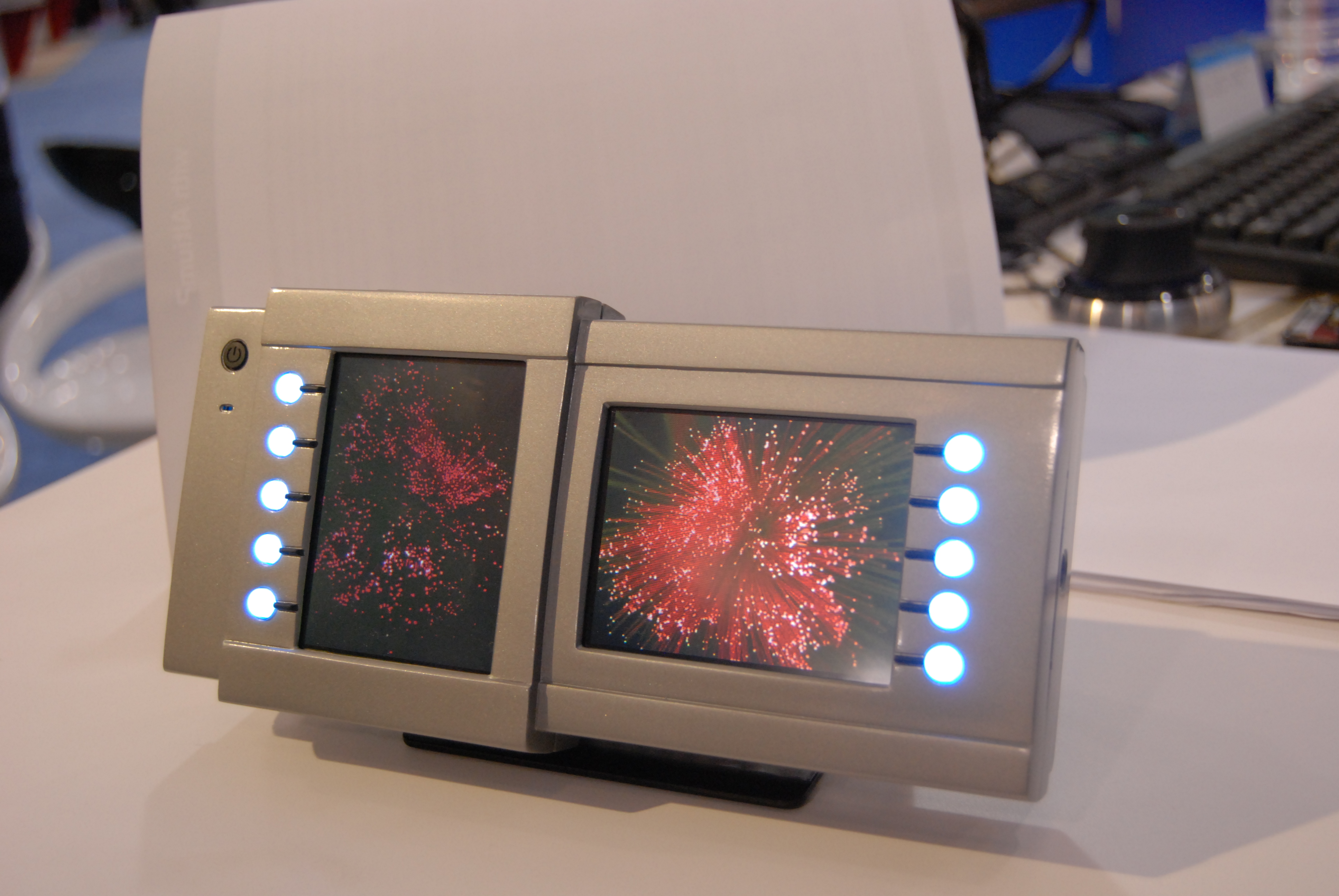

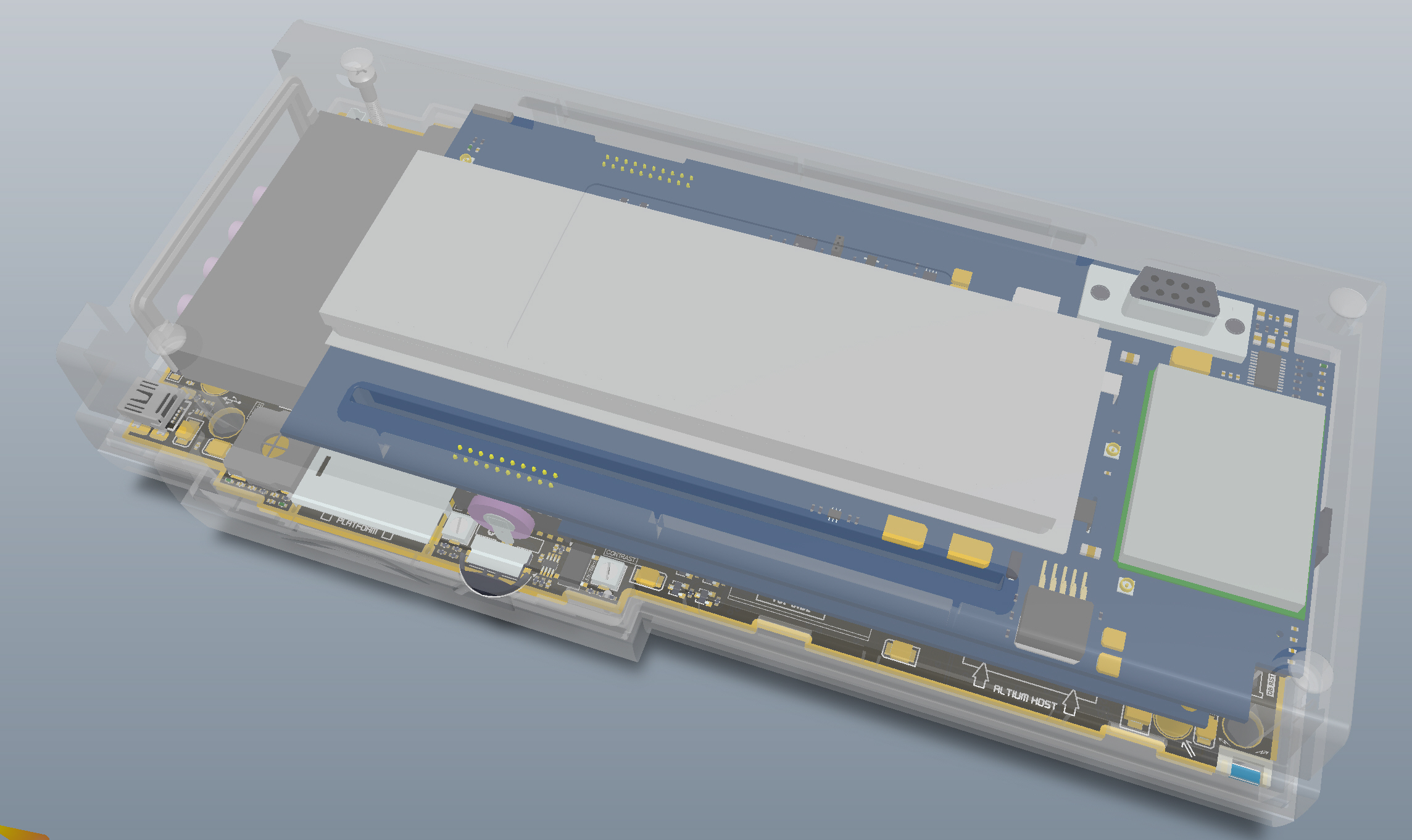

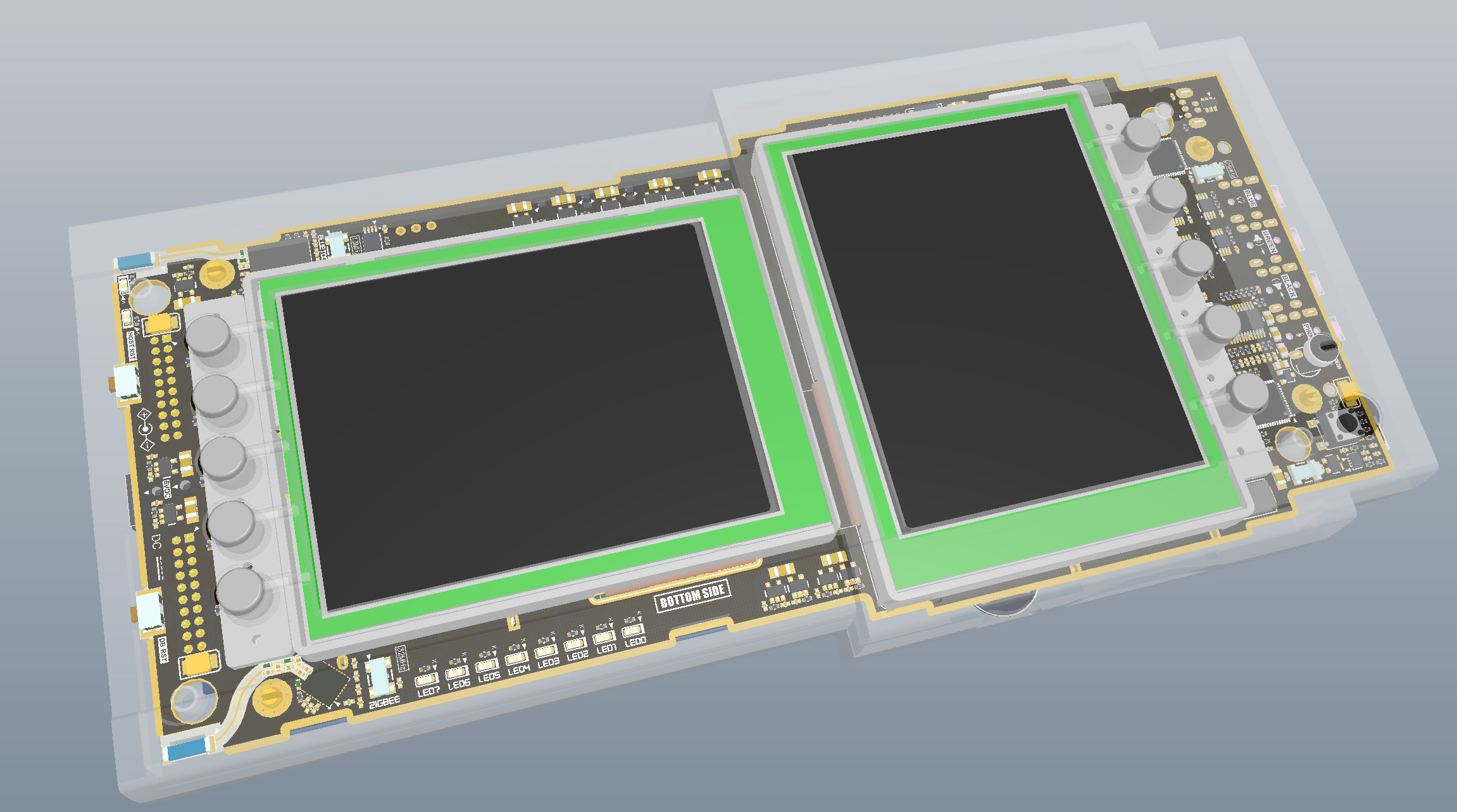

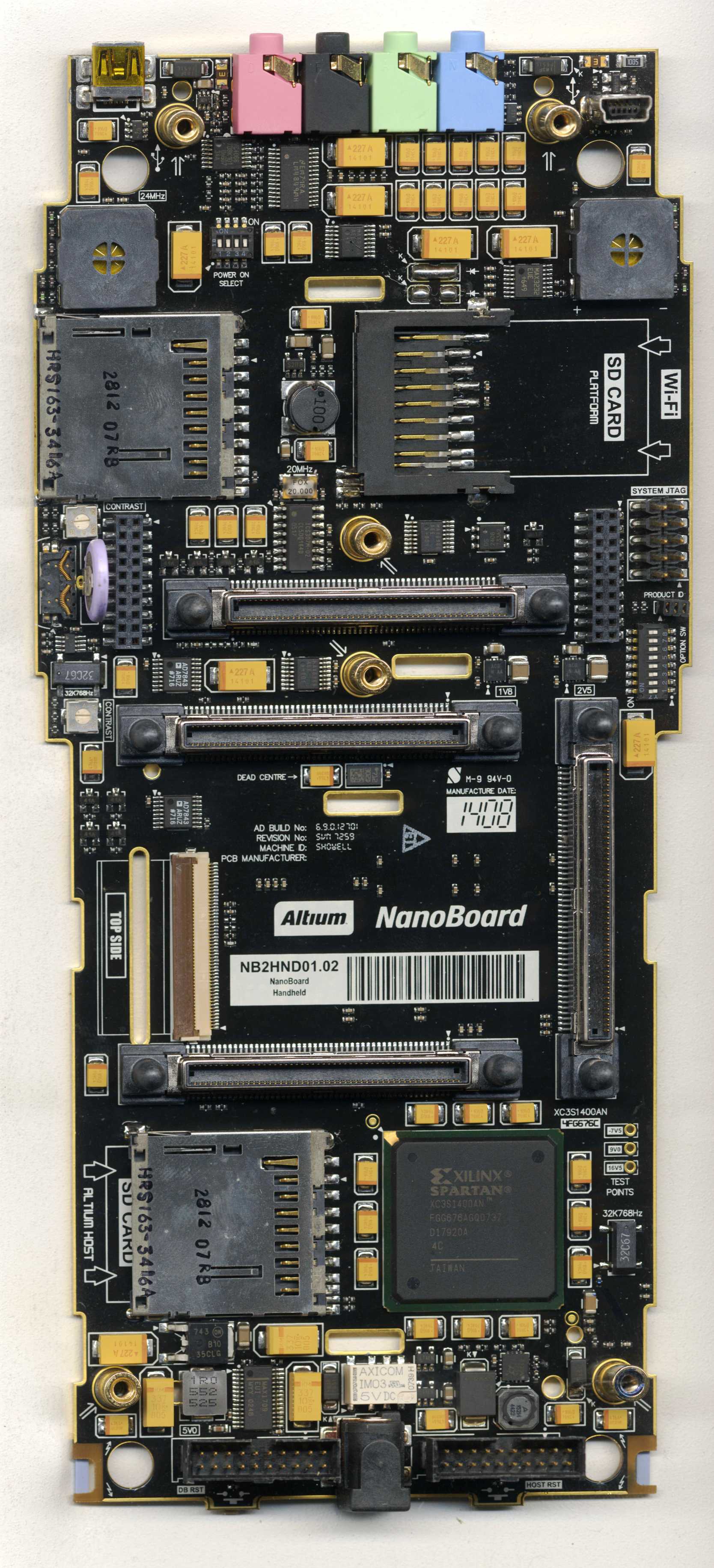

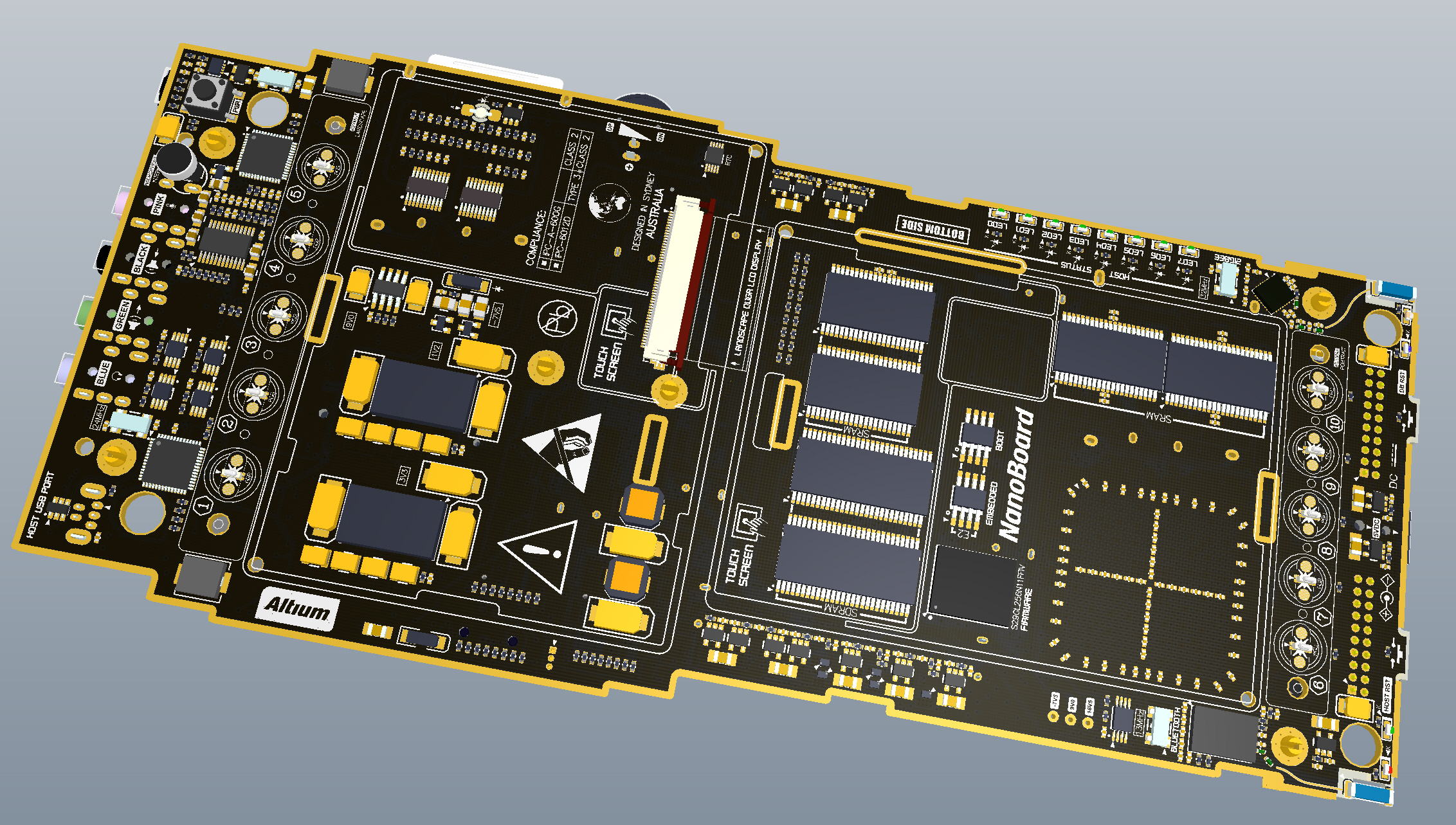

Handheld Nanoboard

Assembly ID

NB2HND01

Company

ALTIUM

Function

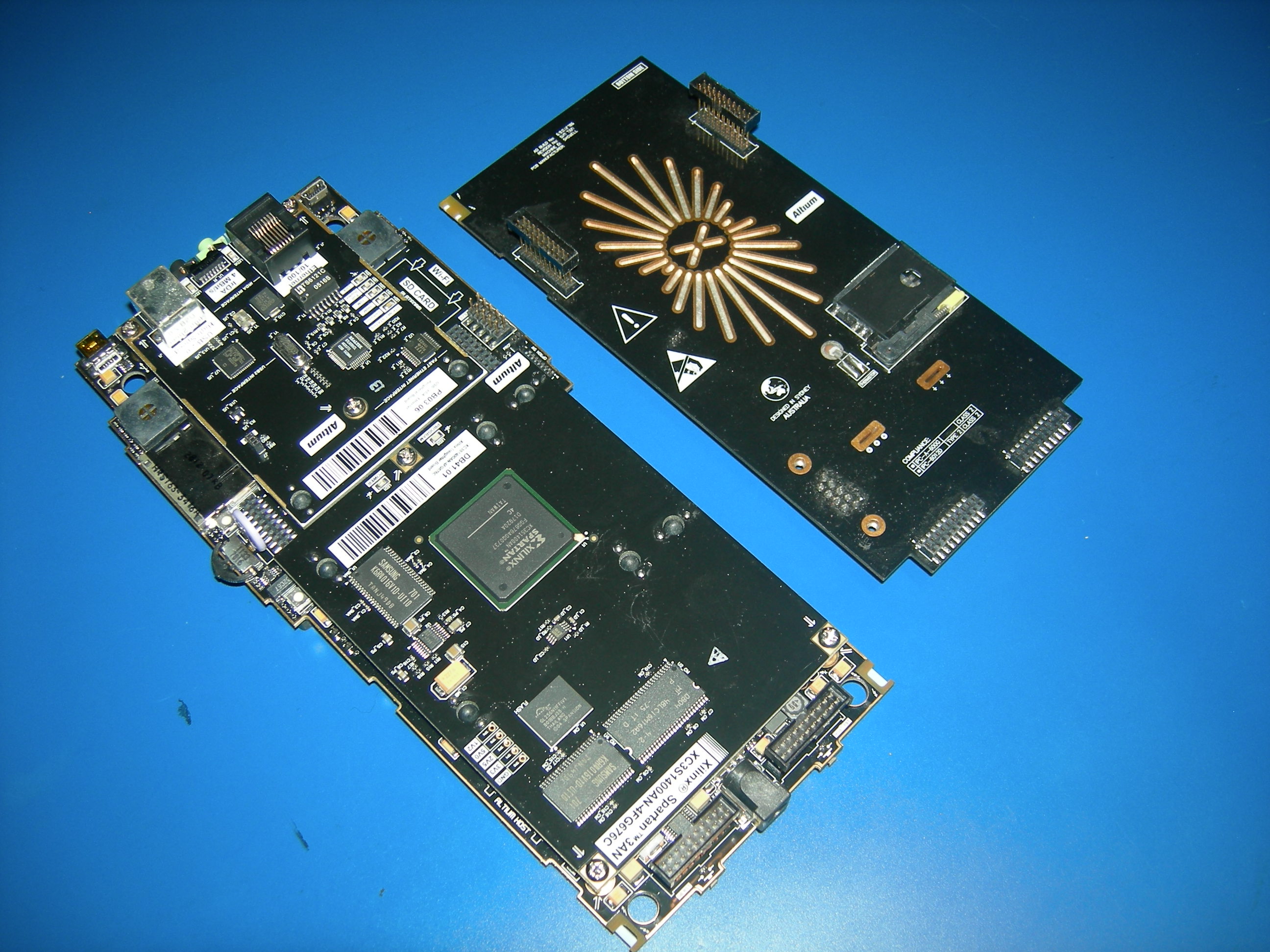

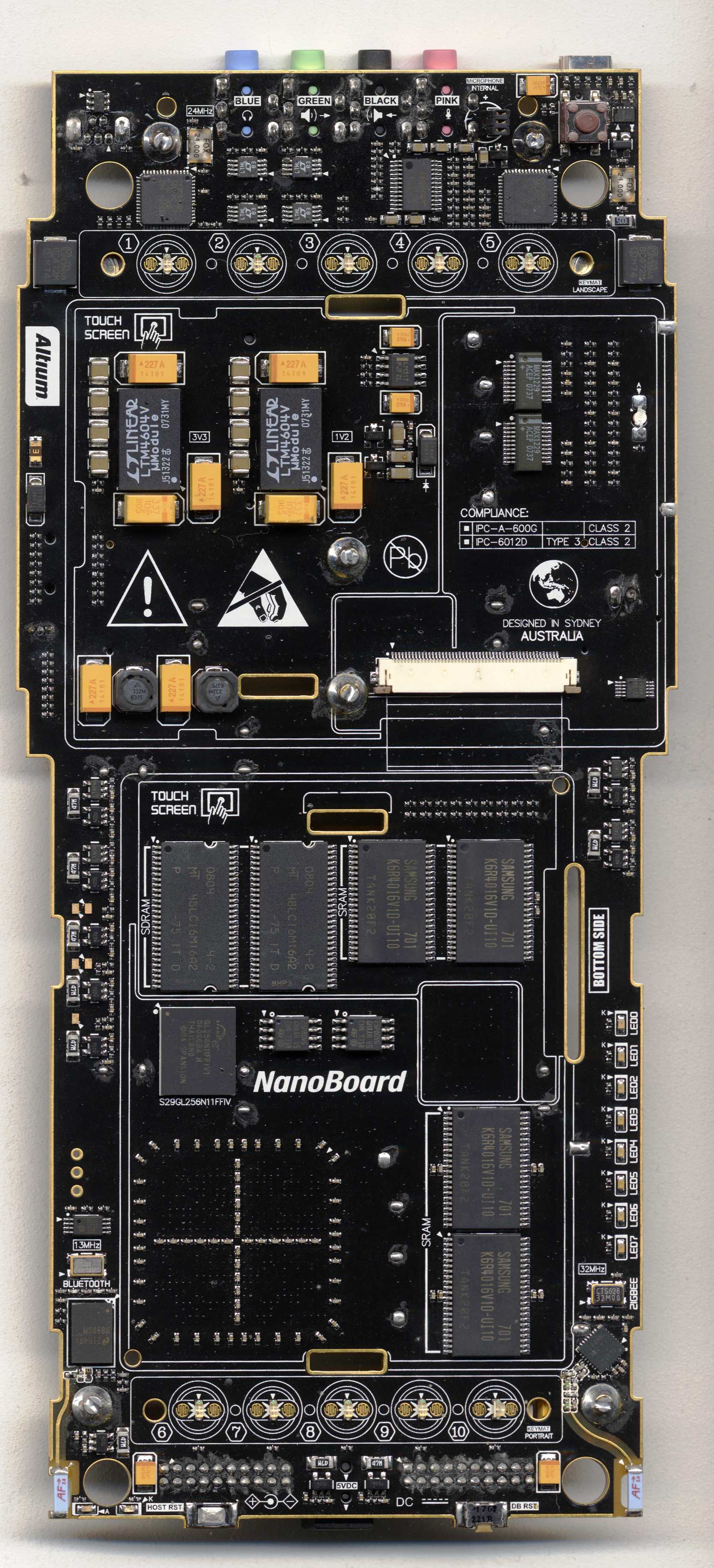

Handheld FPGA Deployment Bd.

Primary Device

Xilinx Spartan XC3S1400AN

Technology

5 track/5 space/26 via

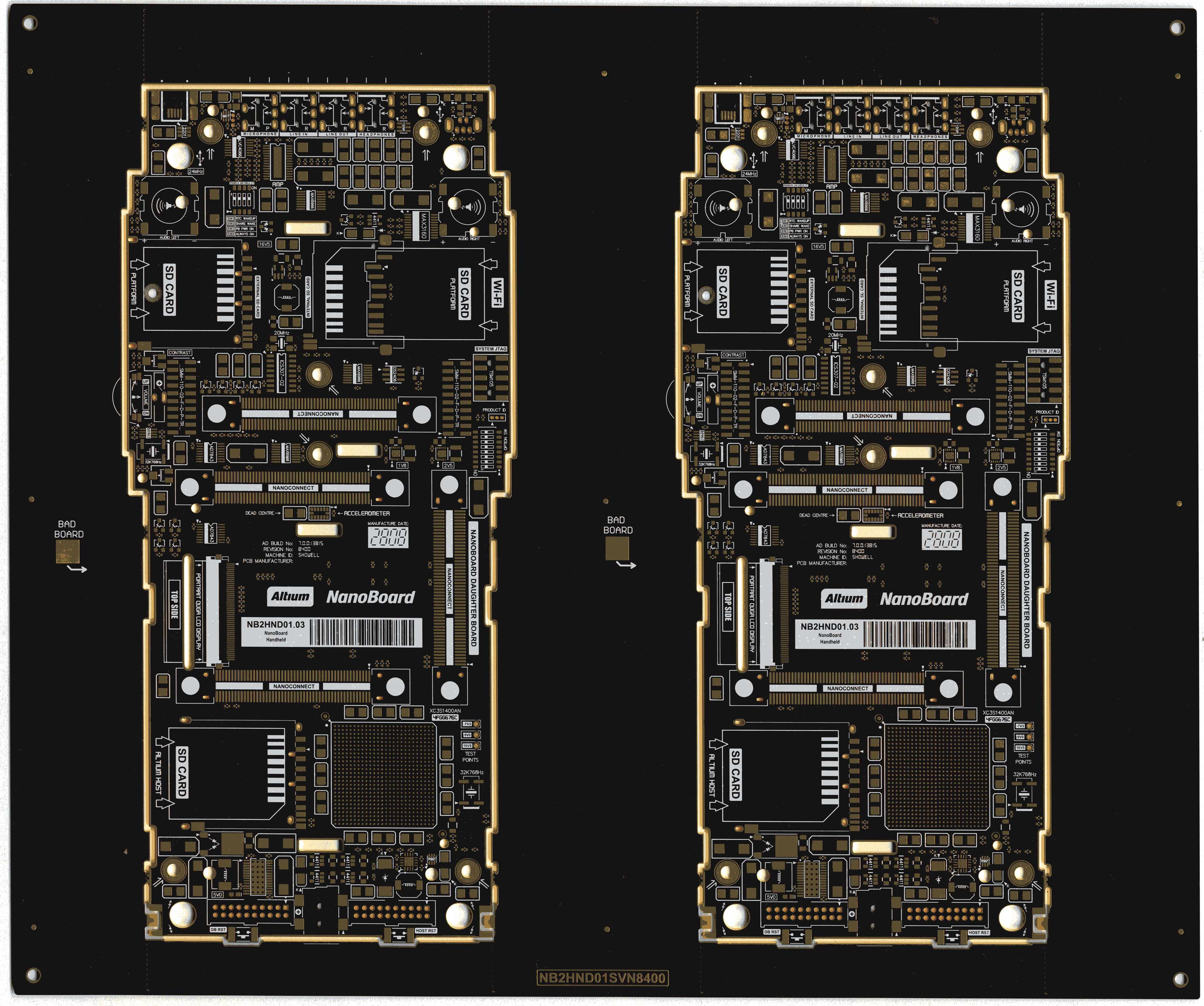

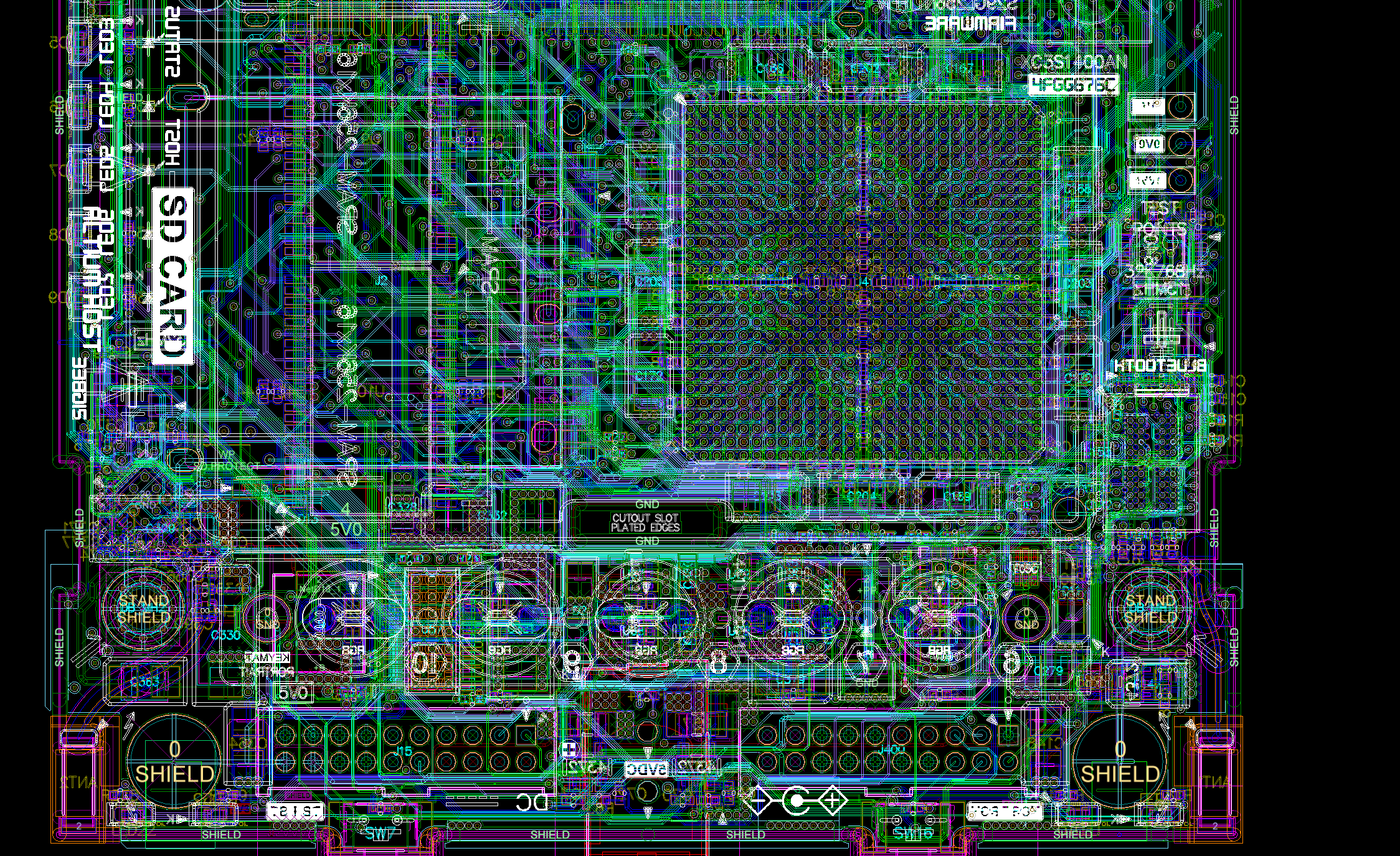

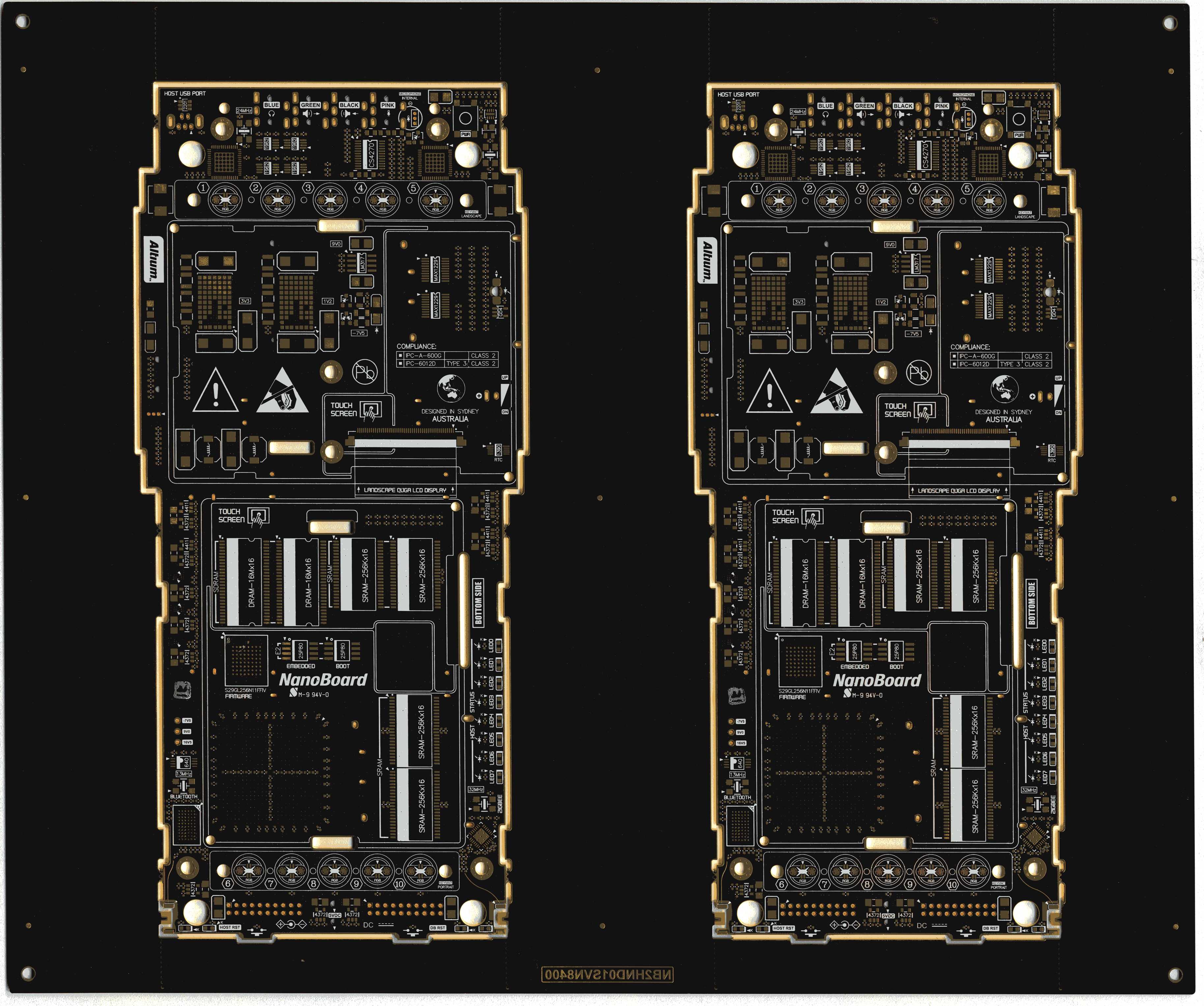

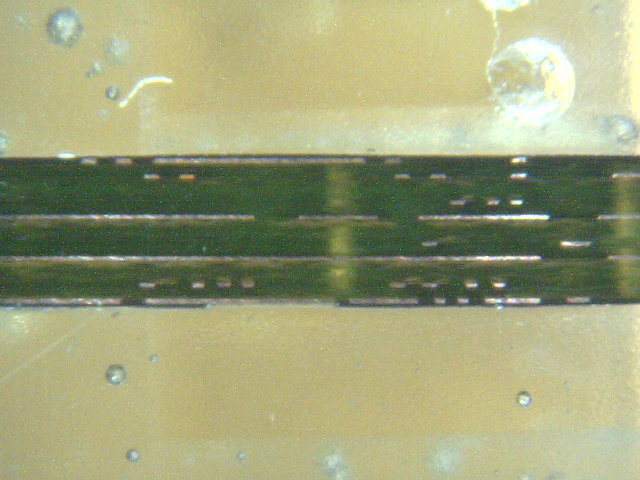

PCB Build Specification

8 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer W09

Prototype Availability

Yes

Downloads

SCHEMATIC - HNDNB2v02 (PDF)
