Date of Design

2008

Product

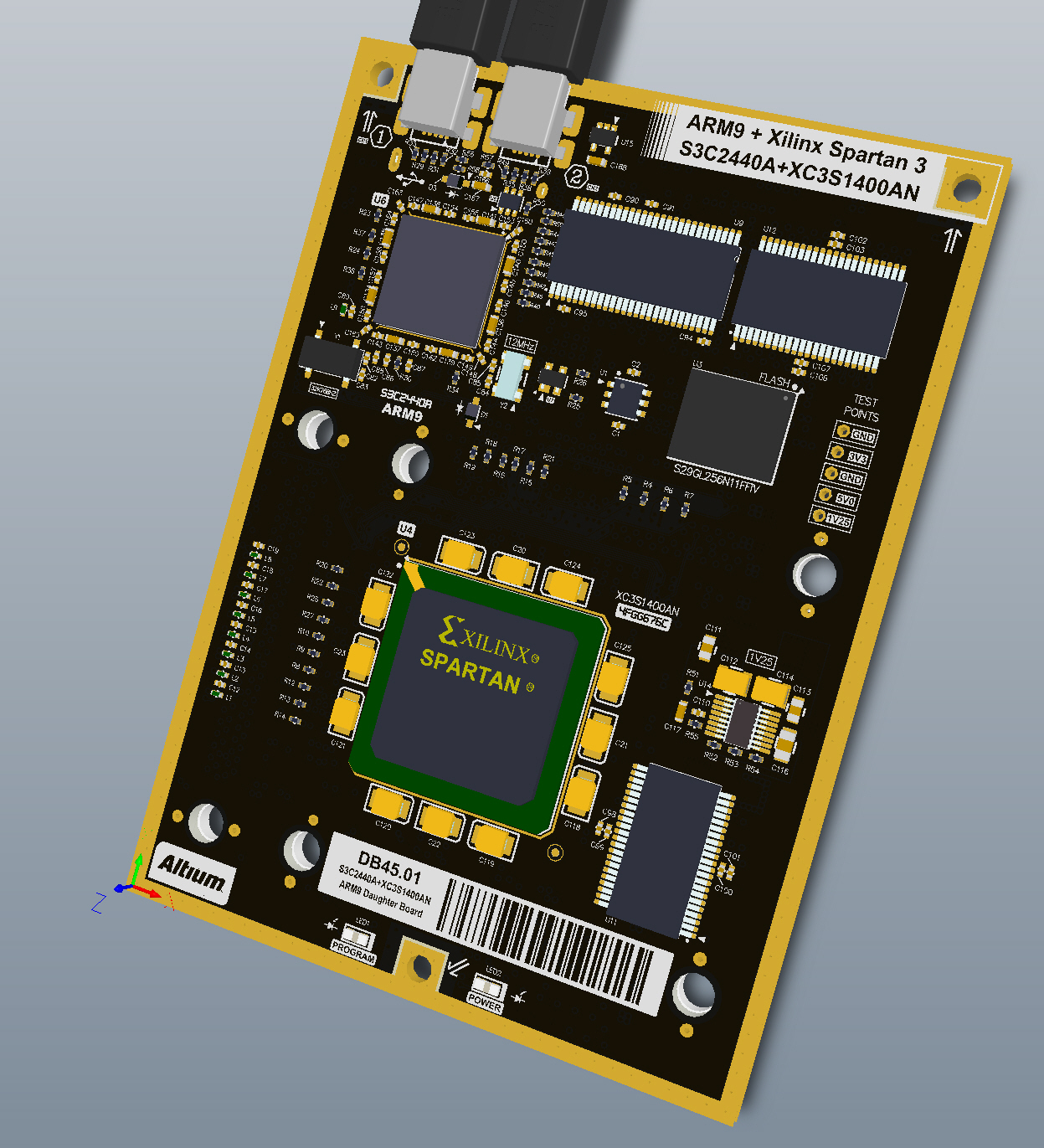

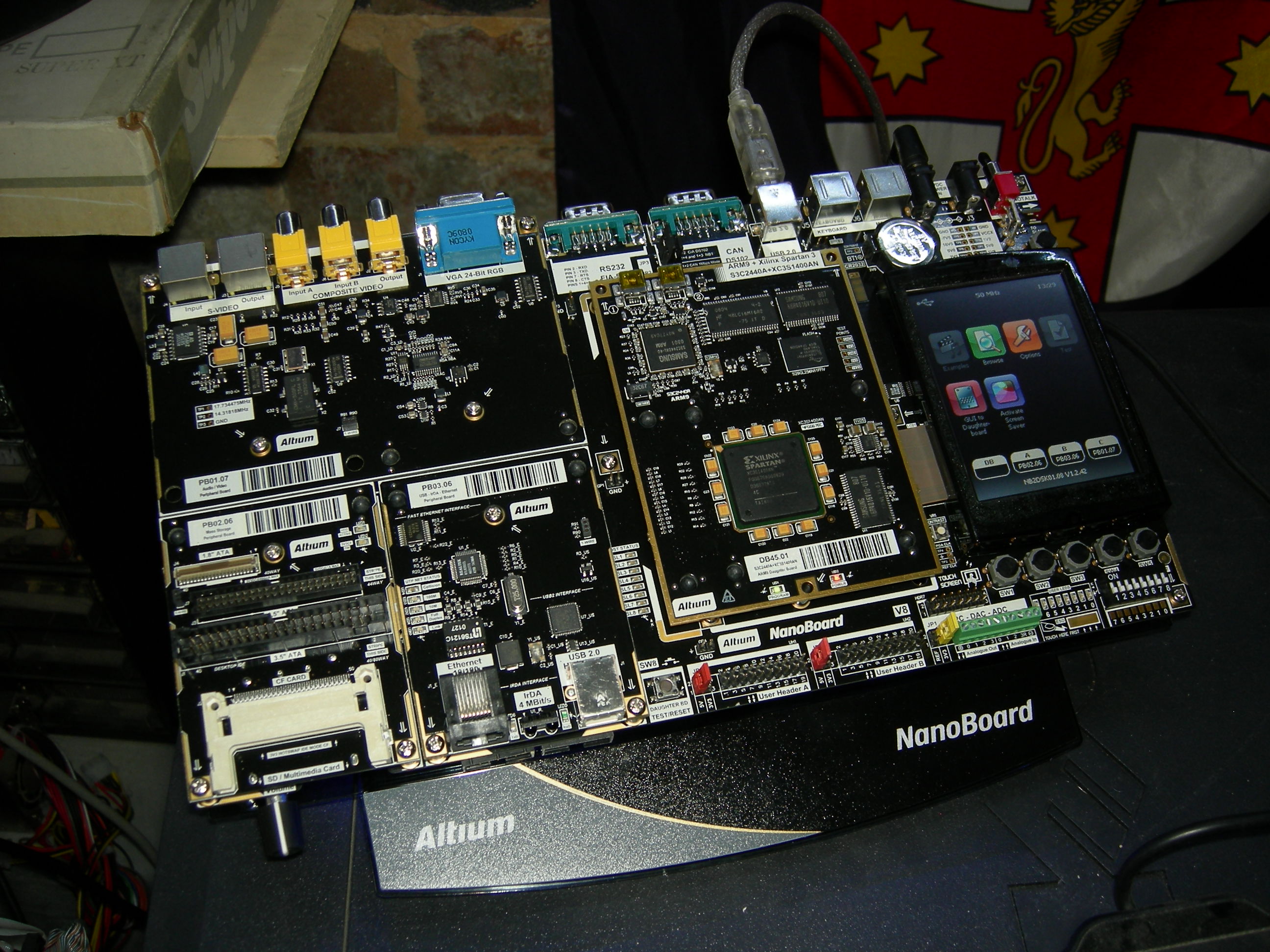

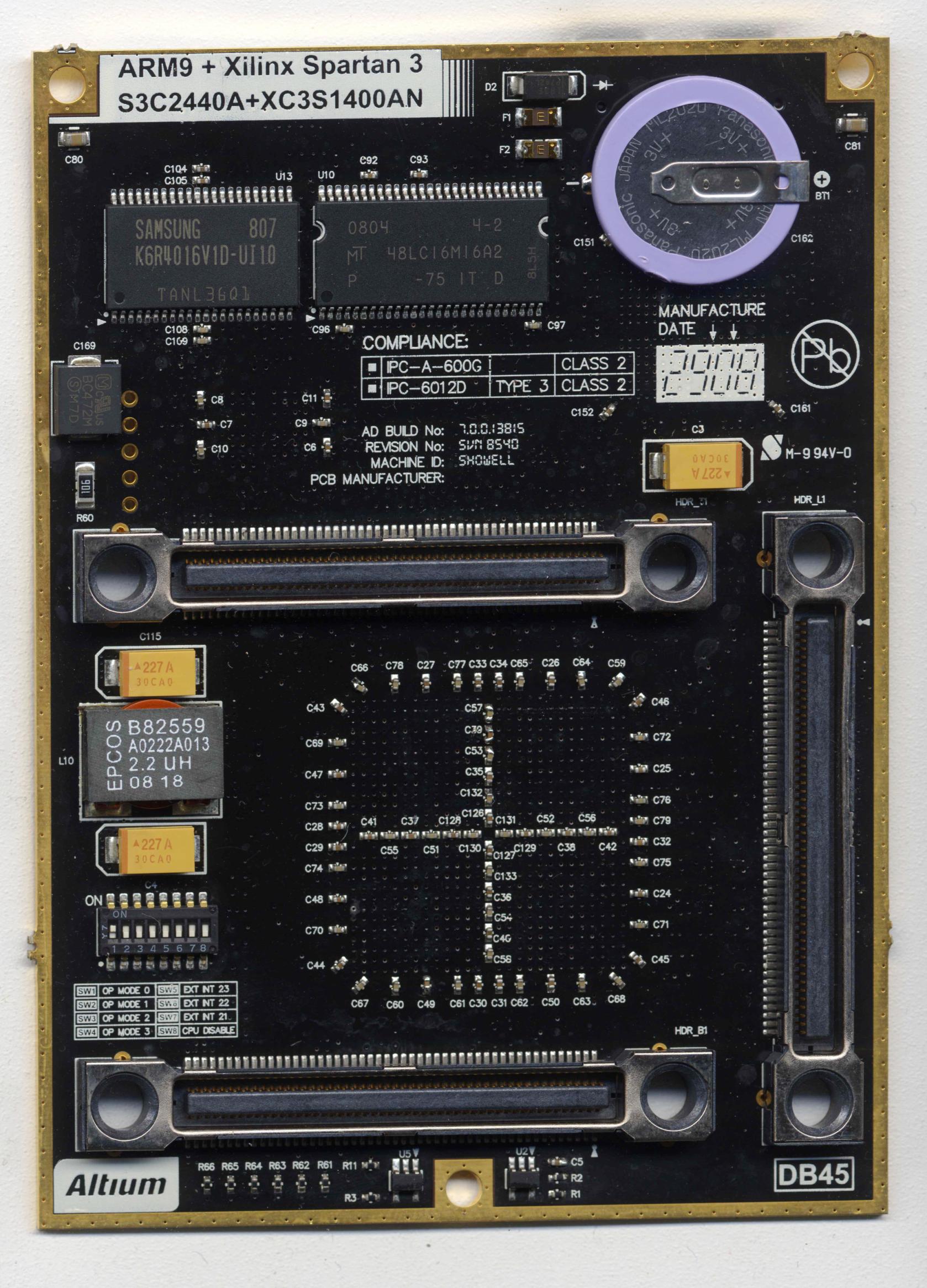

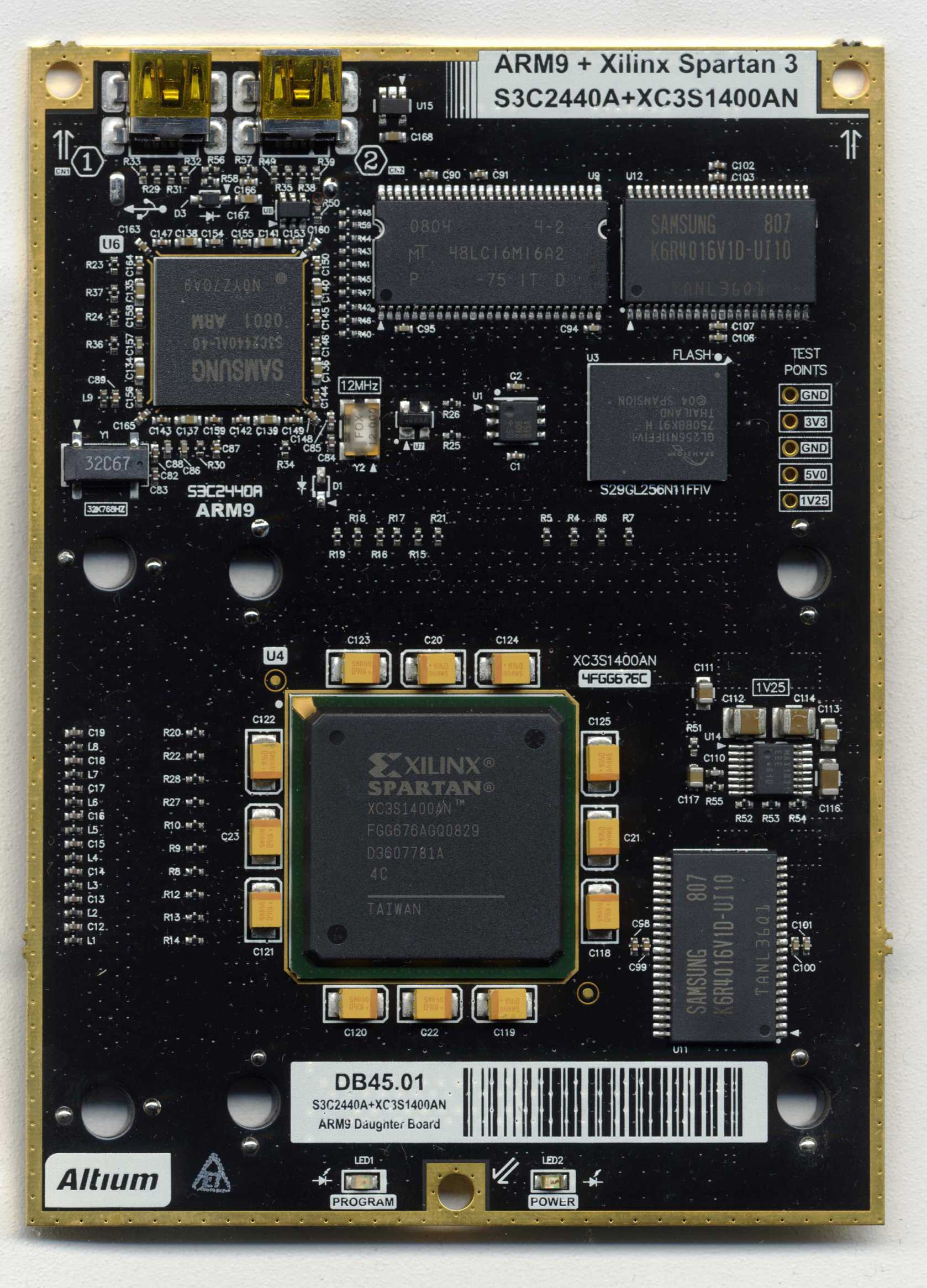

ARM9 FPGA Module

Assembly ID

DB45.01

Company

ALTIUM

Function

ARM9 + Xilinx XC3S1400AN FPGA

Primary Device

Samsung S3C2440A ARM9 (400MHz)

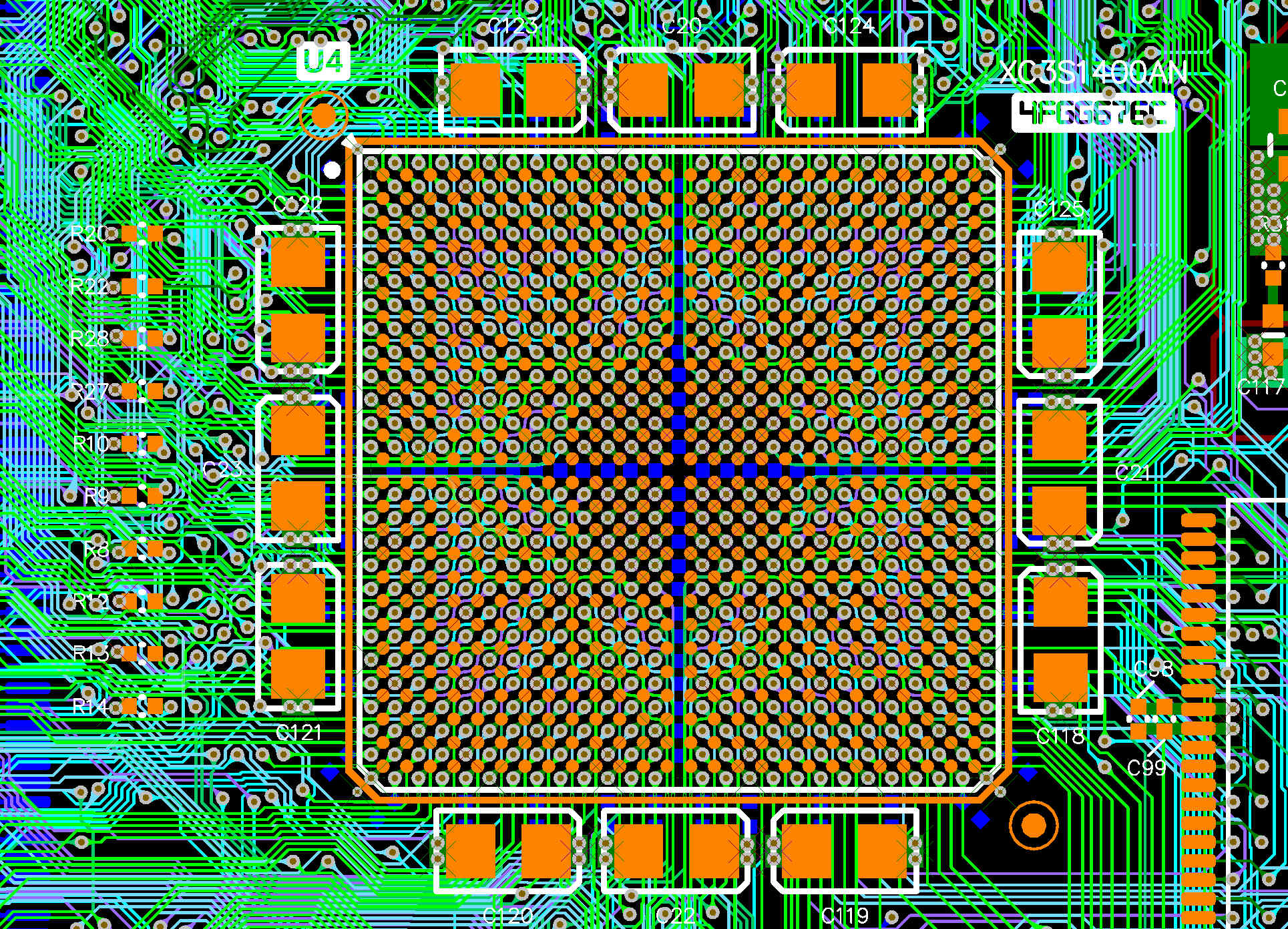

Technology

5 track/5 space/24 via

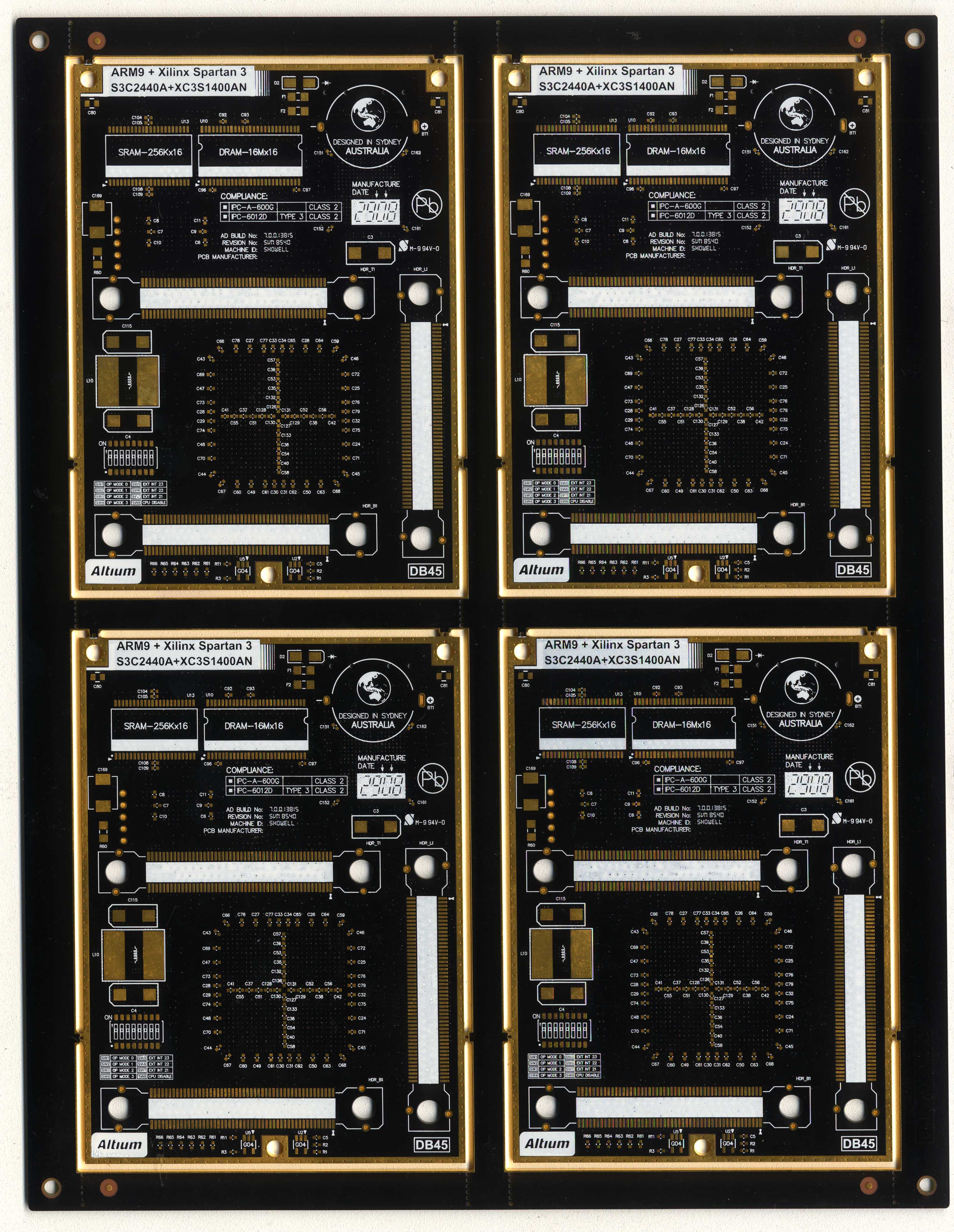

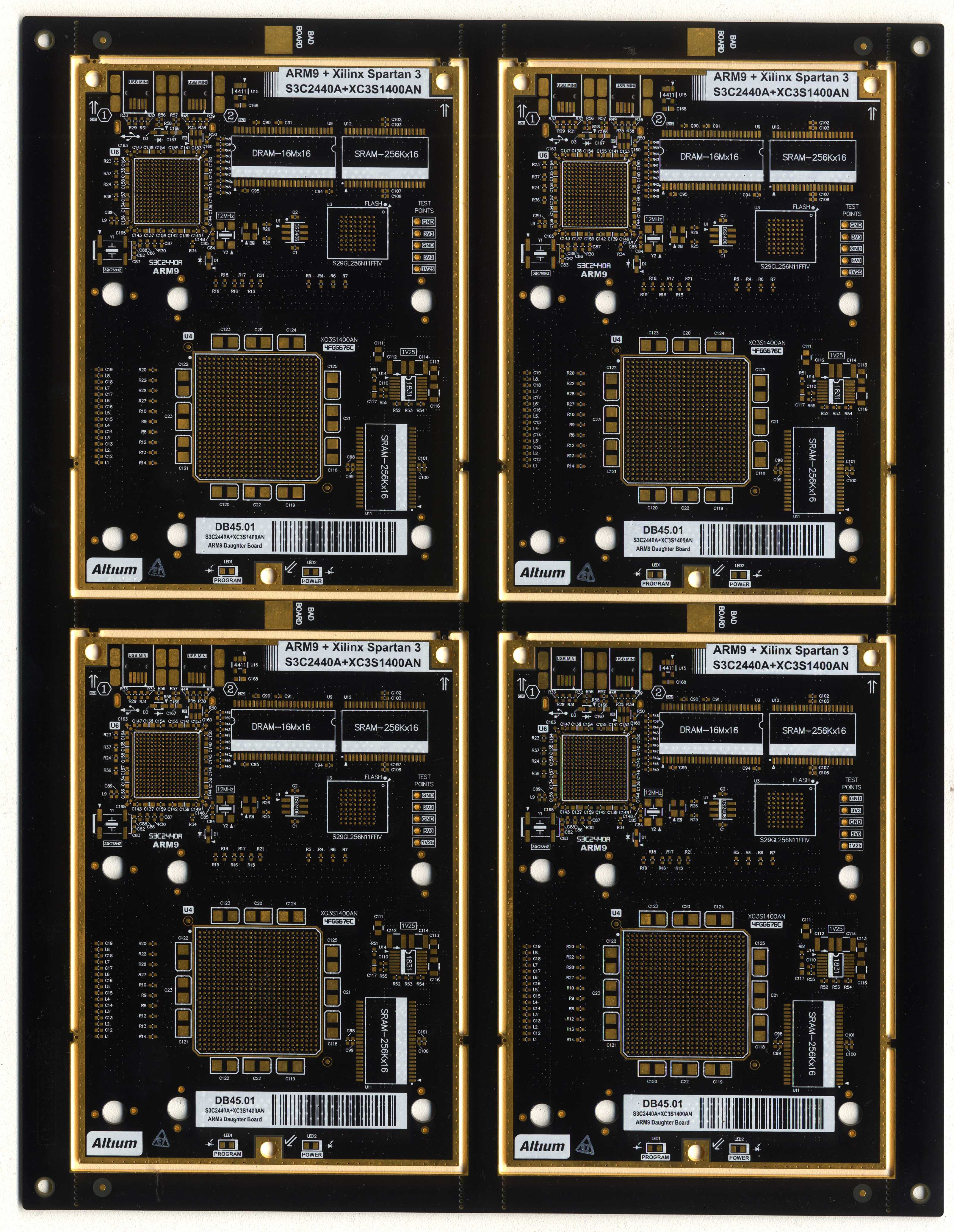

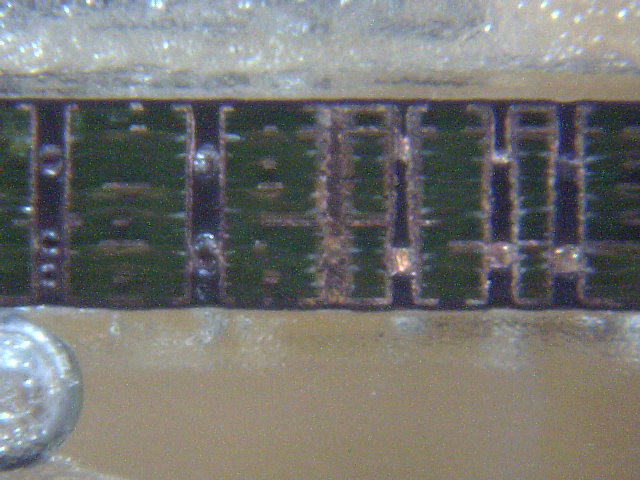

PCB Build Specification

8 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Yuan Circuits (TAIWAN)

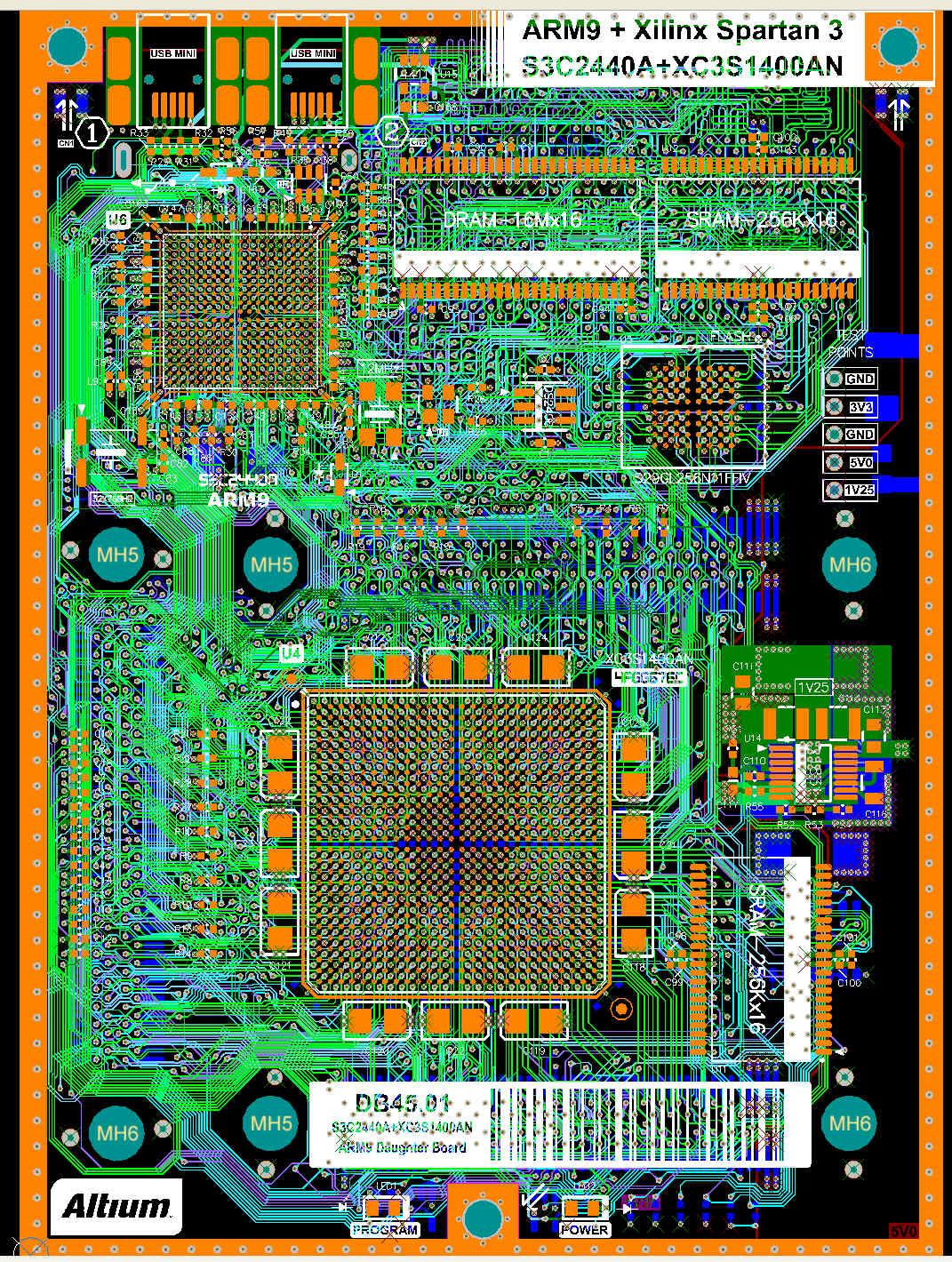

CAD Application

Altium Designer 6.9

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2008


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
