Date of Design

2008

Product

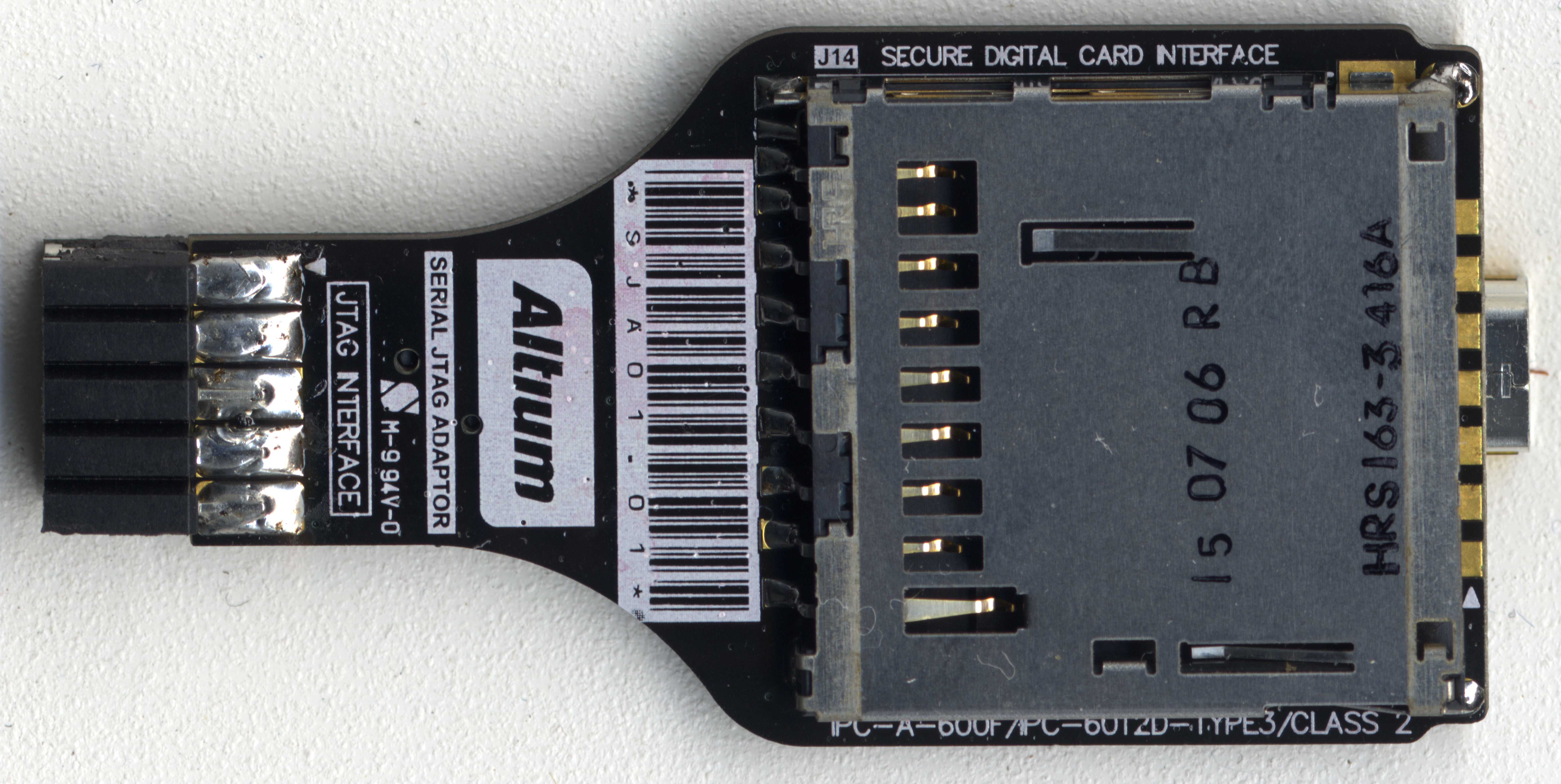

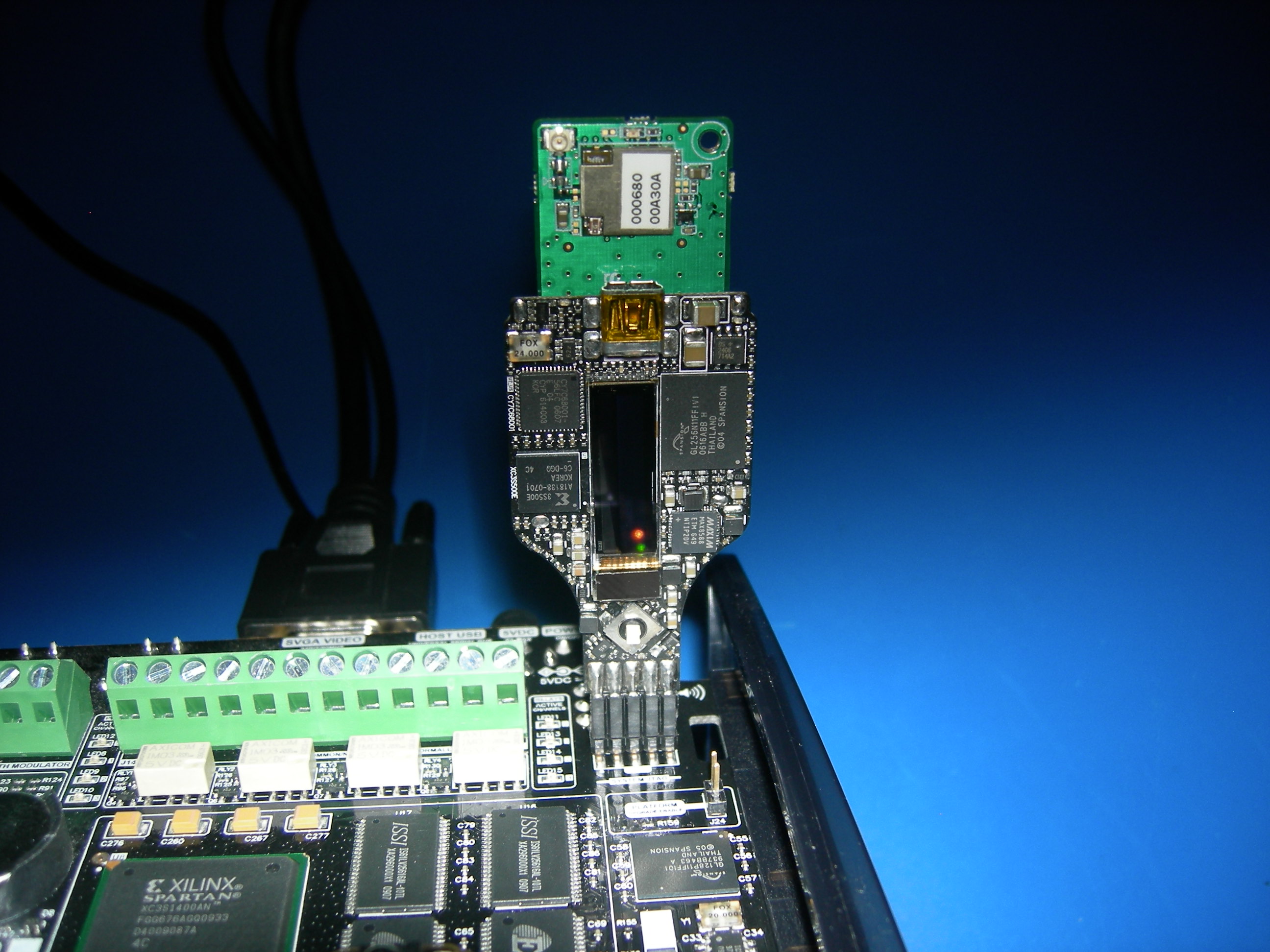

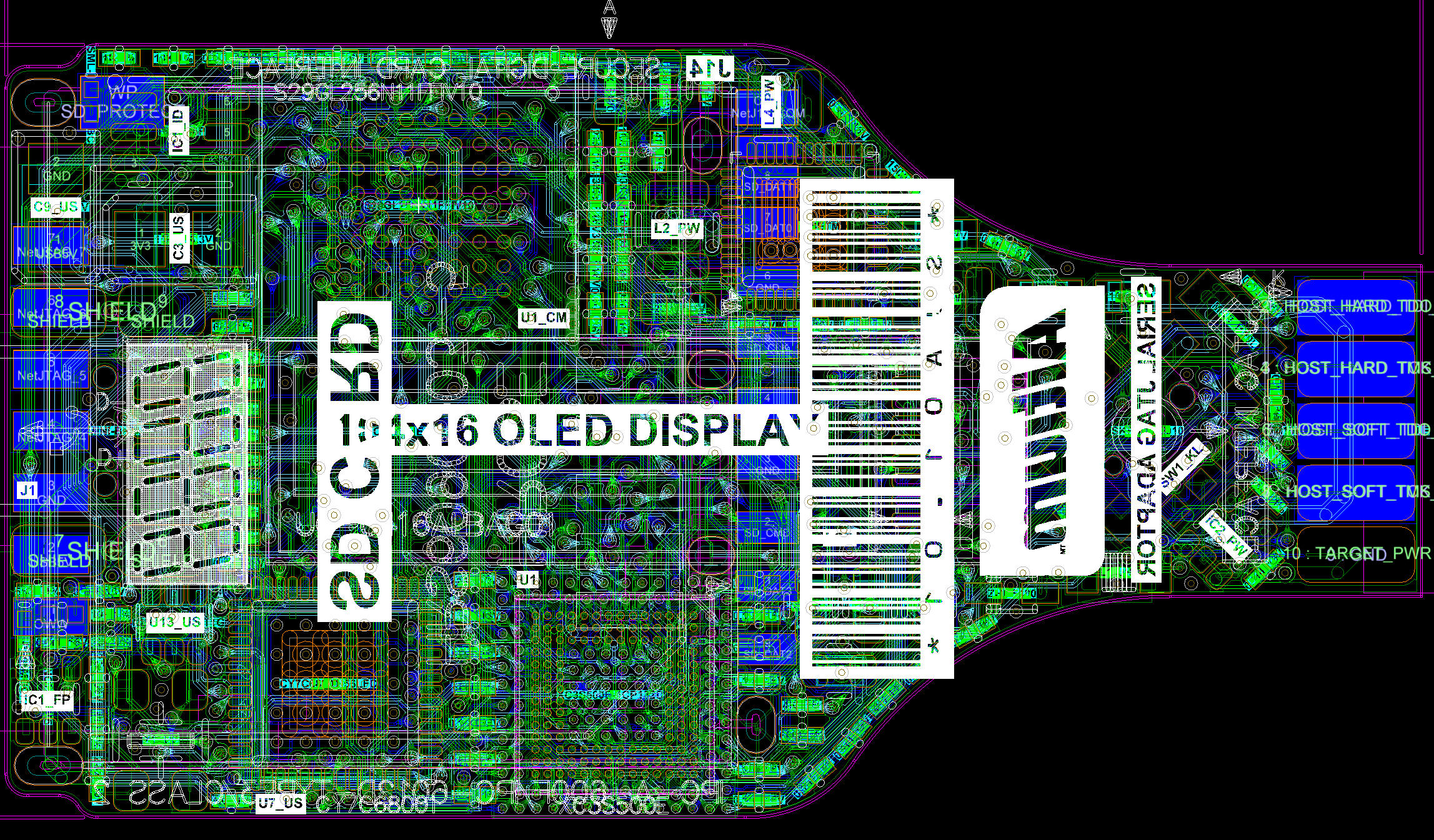

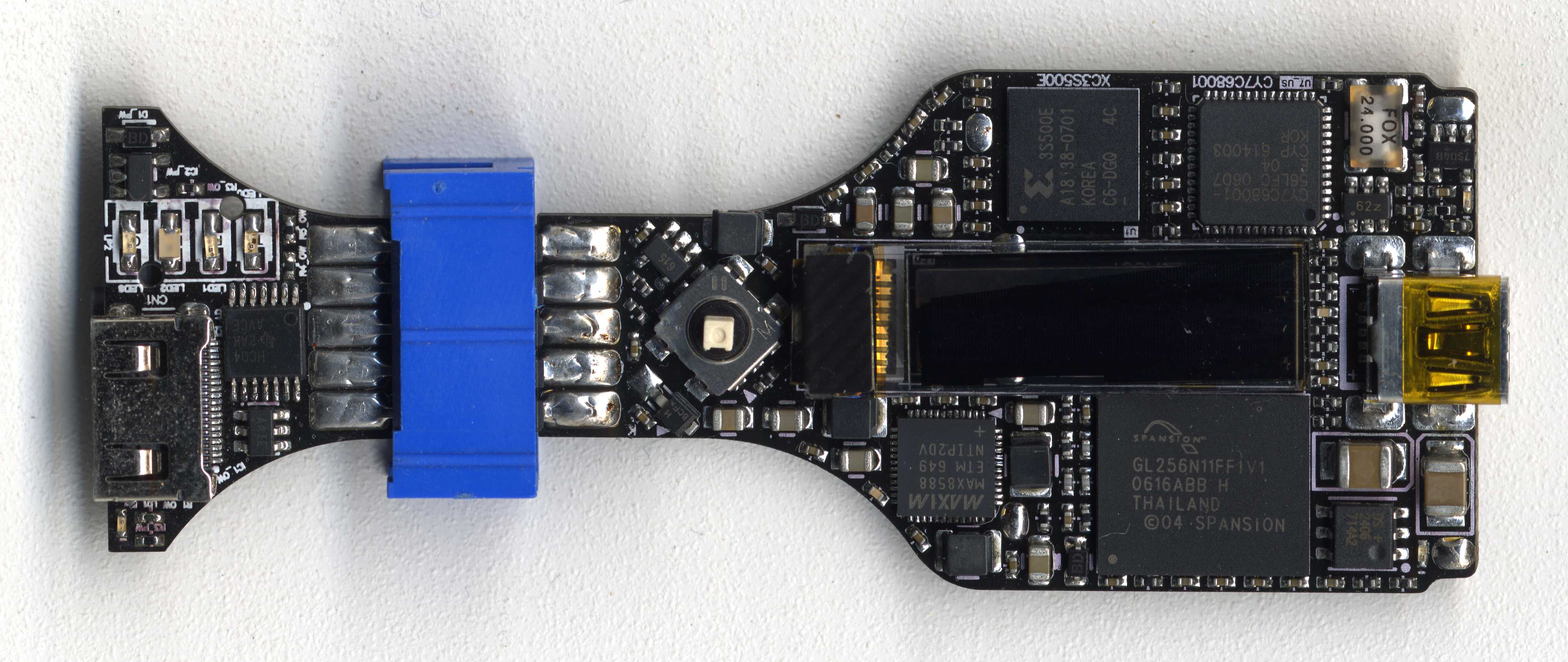

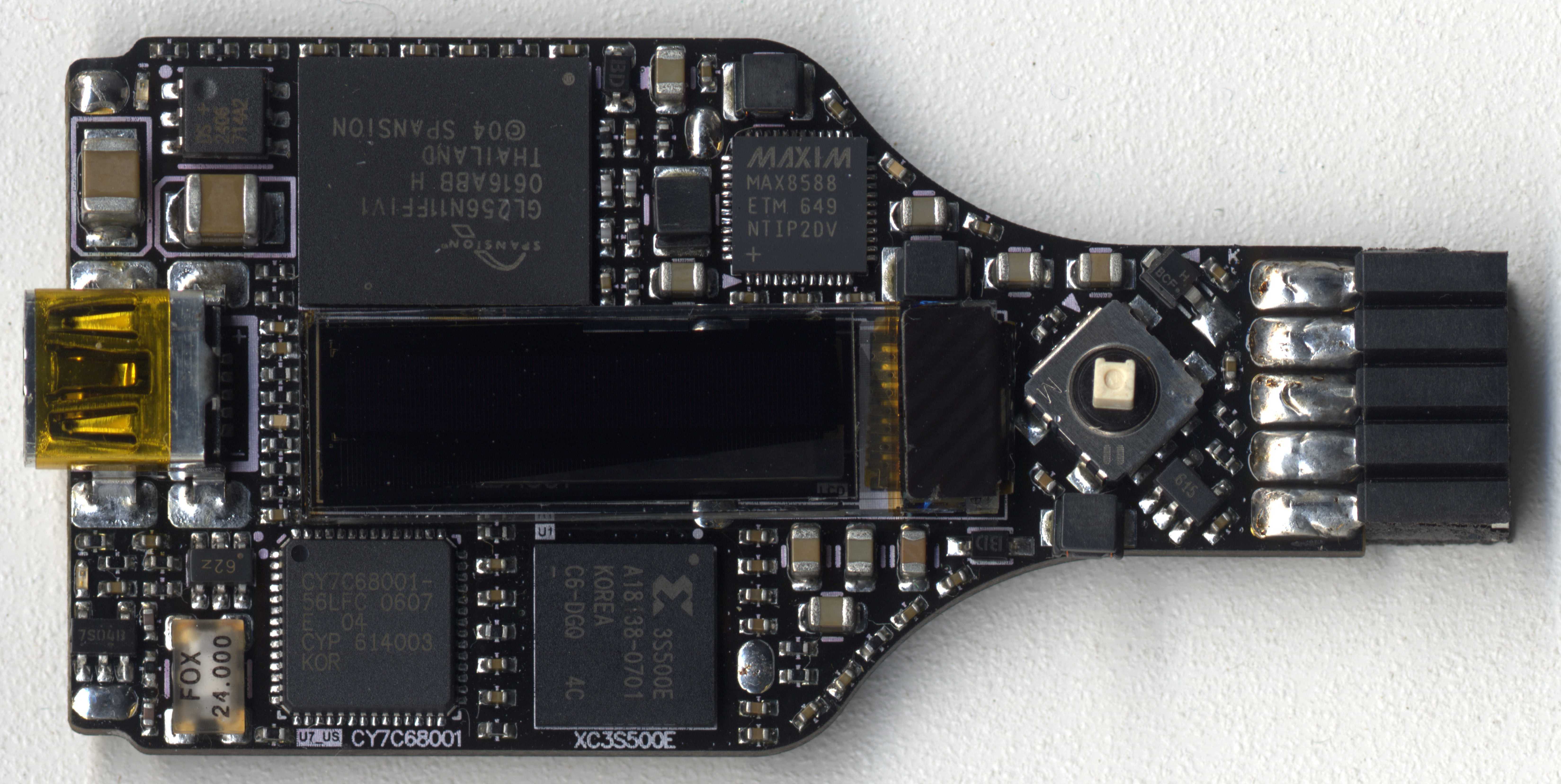

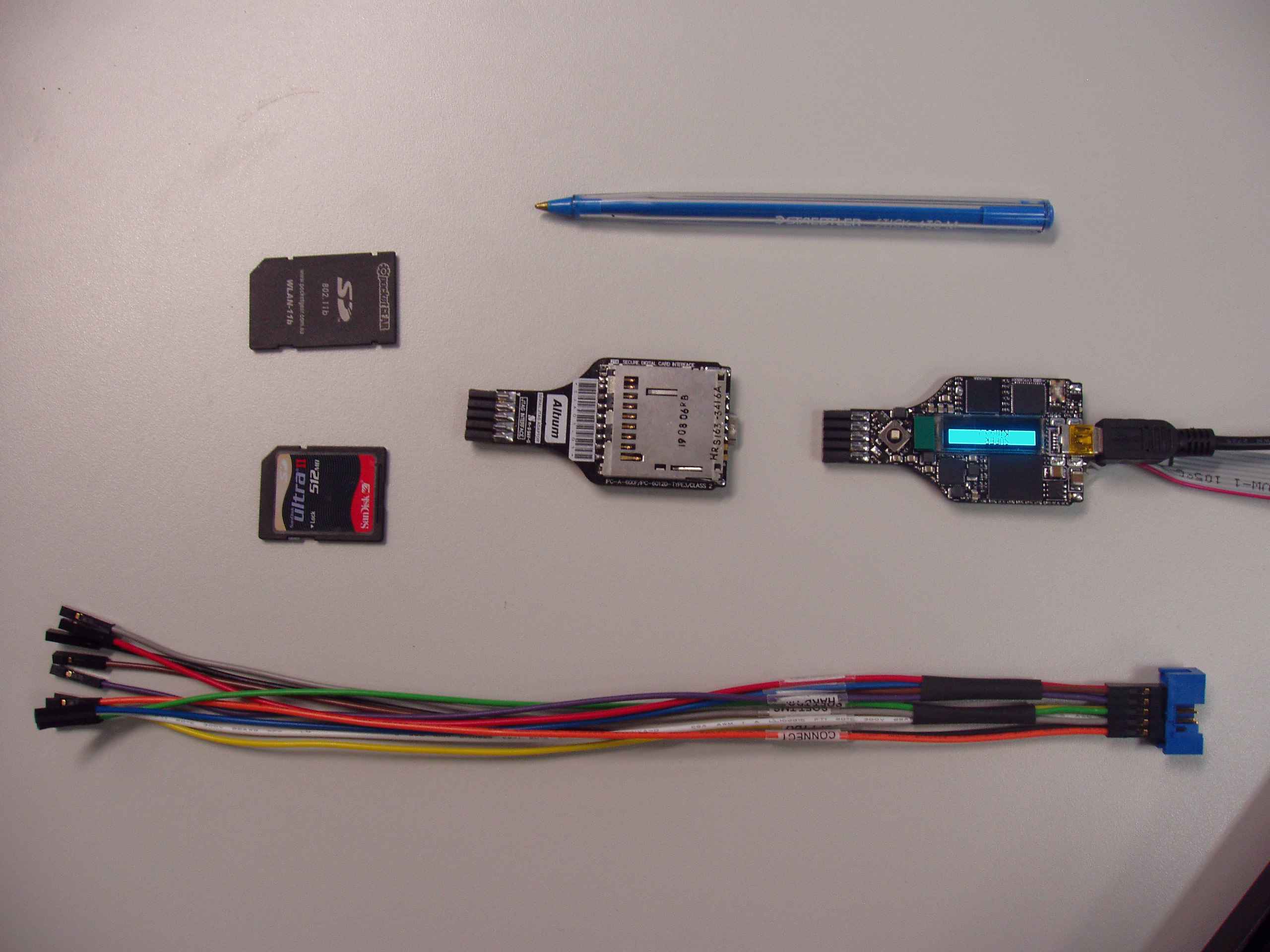

USB JTAG Programmer Key

Assembly ID

DT03.01

Company

ALTIUM

Function

USB JTAG Programmer

Primary Device

XC3S500E (CSP)

Technology

3 track/3 space/22 via

PCB Build Specification

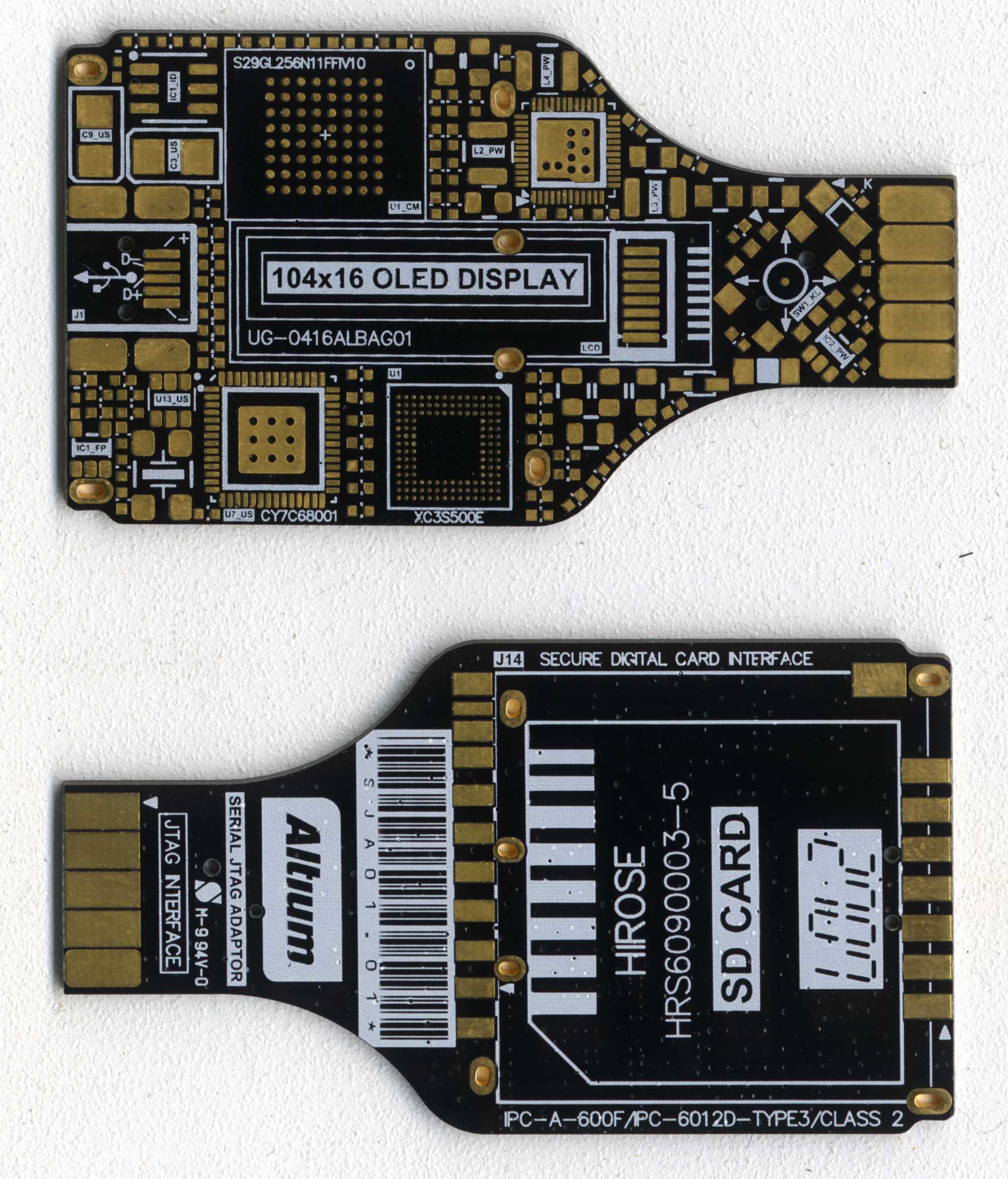

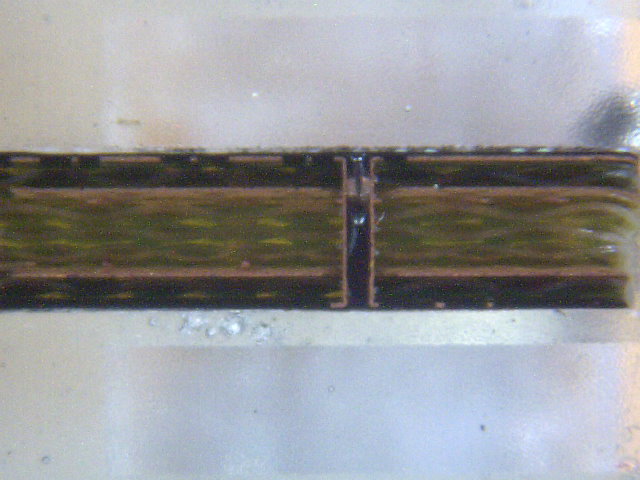

4 Layer, 1/2oz, MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Contract Manufacturer

Yuan Circuits (TAIWAN)

CAD Application

Altium Designer 6.8

Prototype Availability

Yes

Downloads

SCHEMATIC - JTAGkey (PDF)

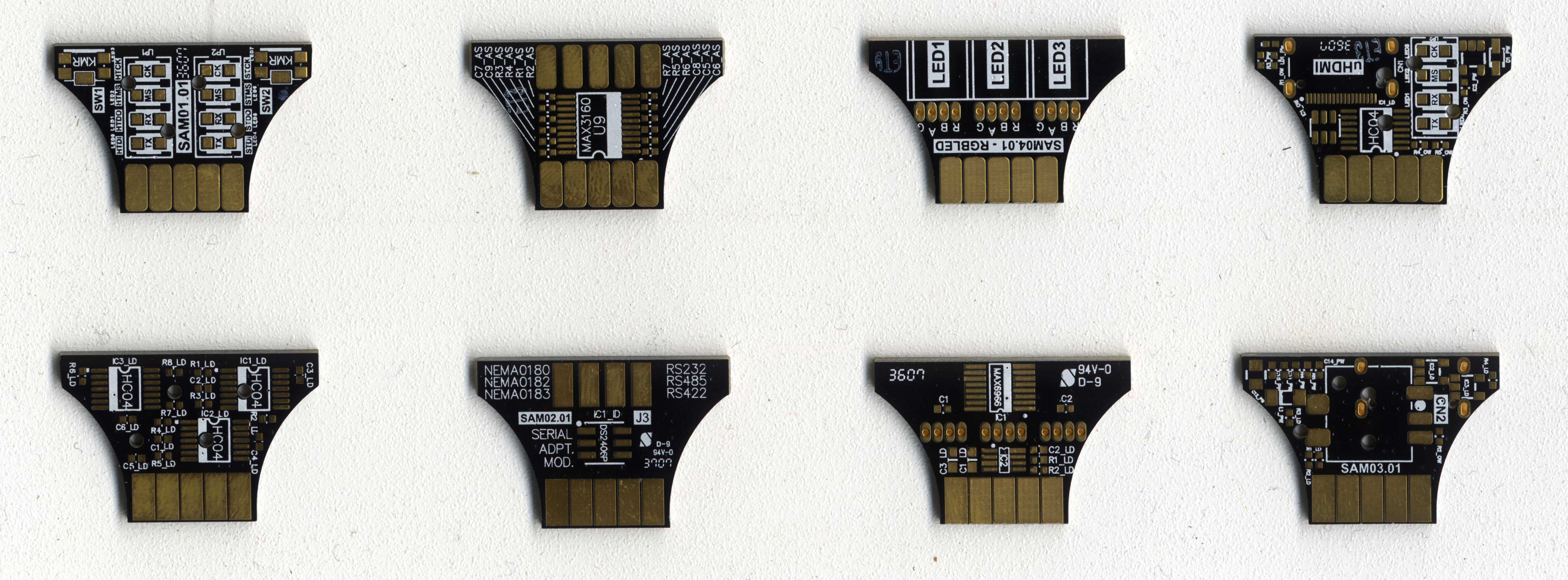

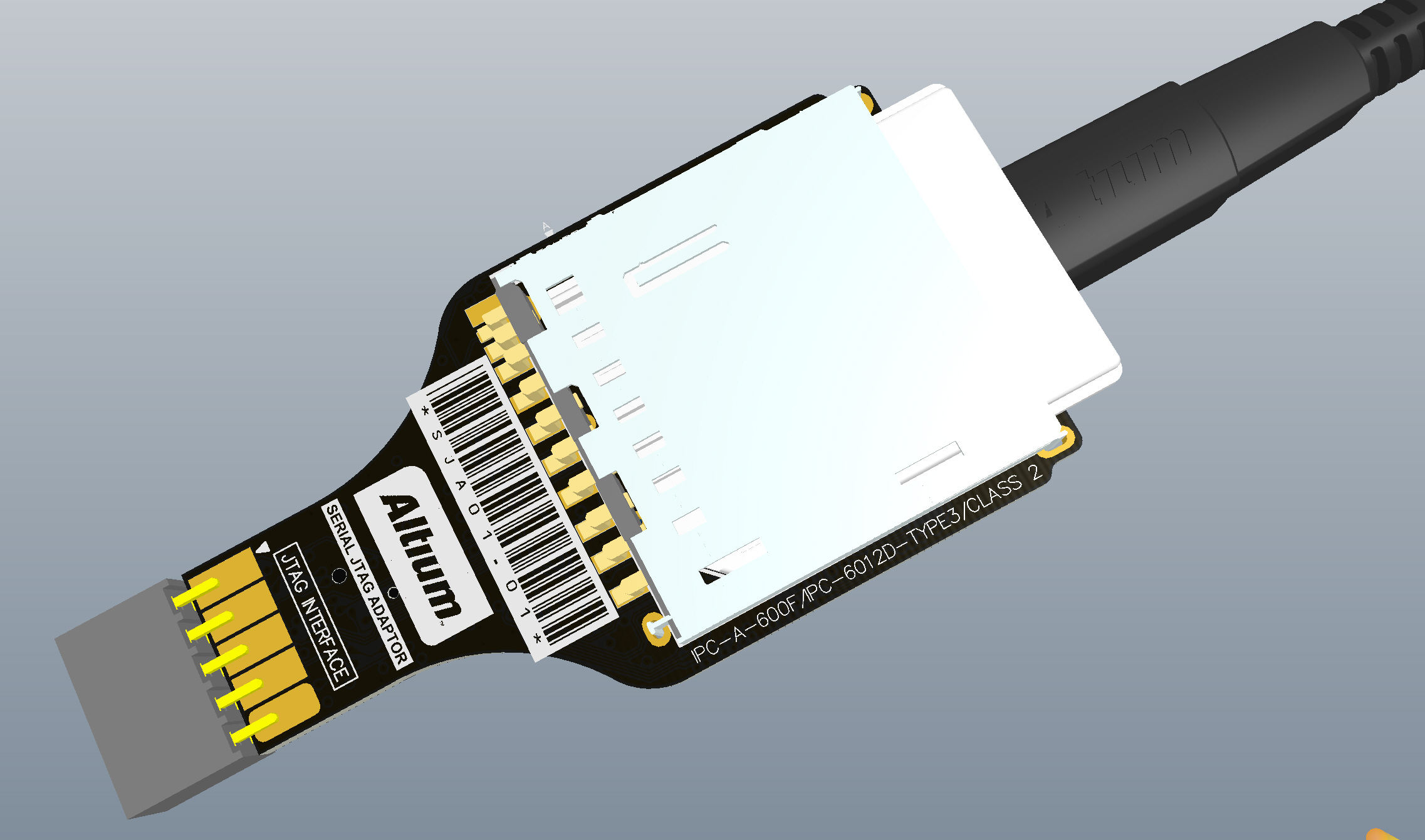

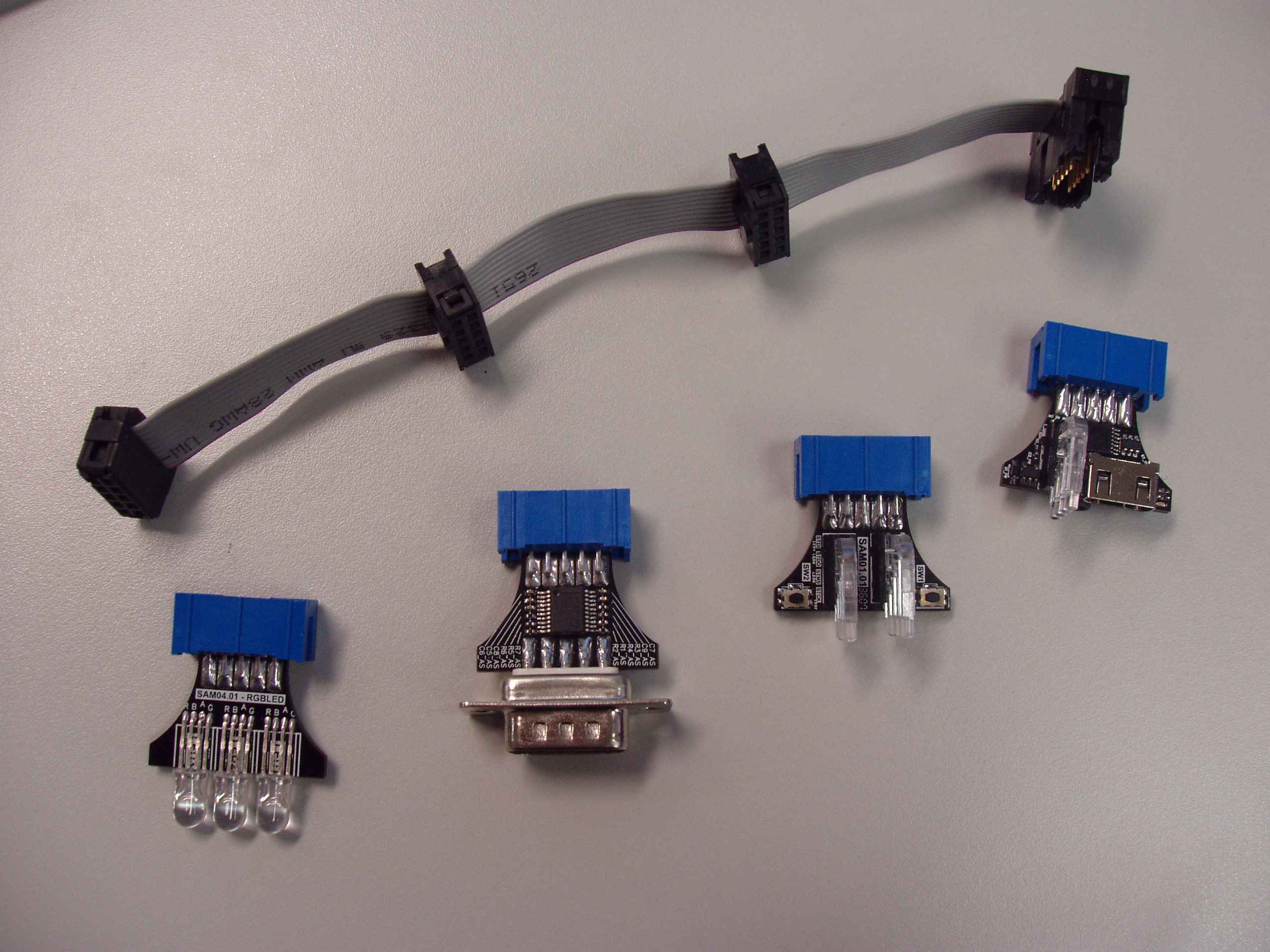

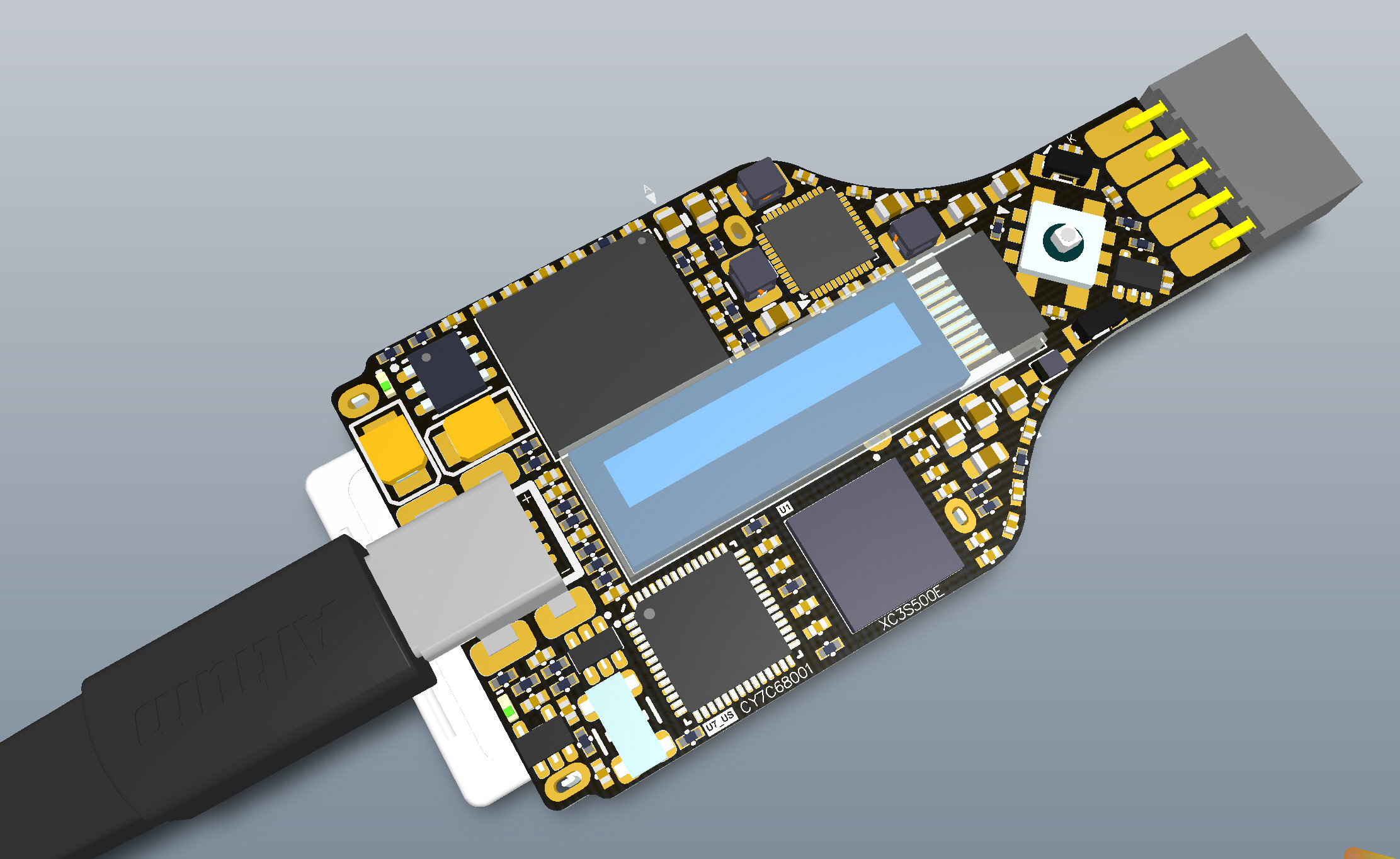

3D PDF - JTAGkey_3d.PDF (PDF)
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
         2008


The index includes lab prototypes, final production units, integrated systems and application examples.


There are no classified military designs in this list.
