Date of Design

2008

Product

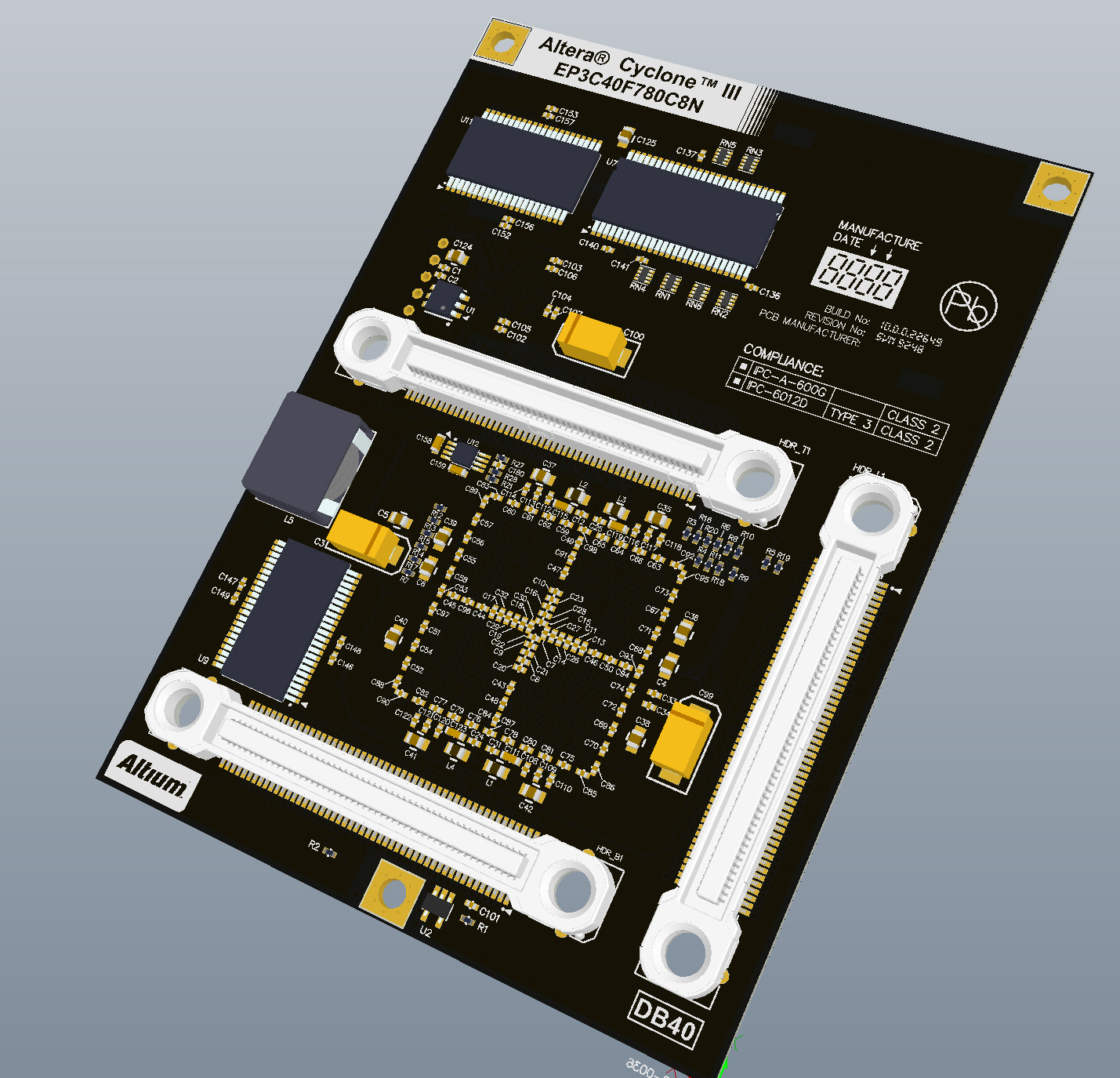

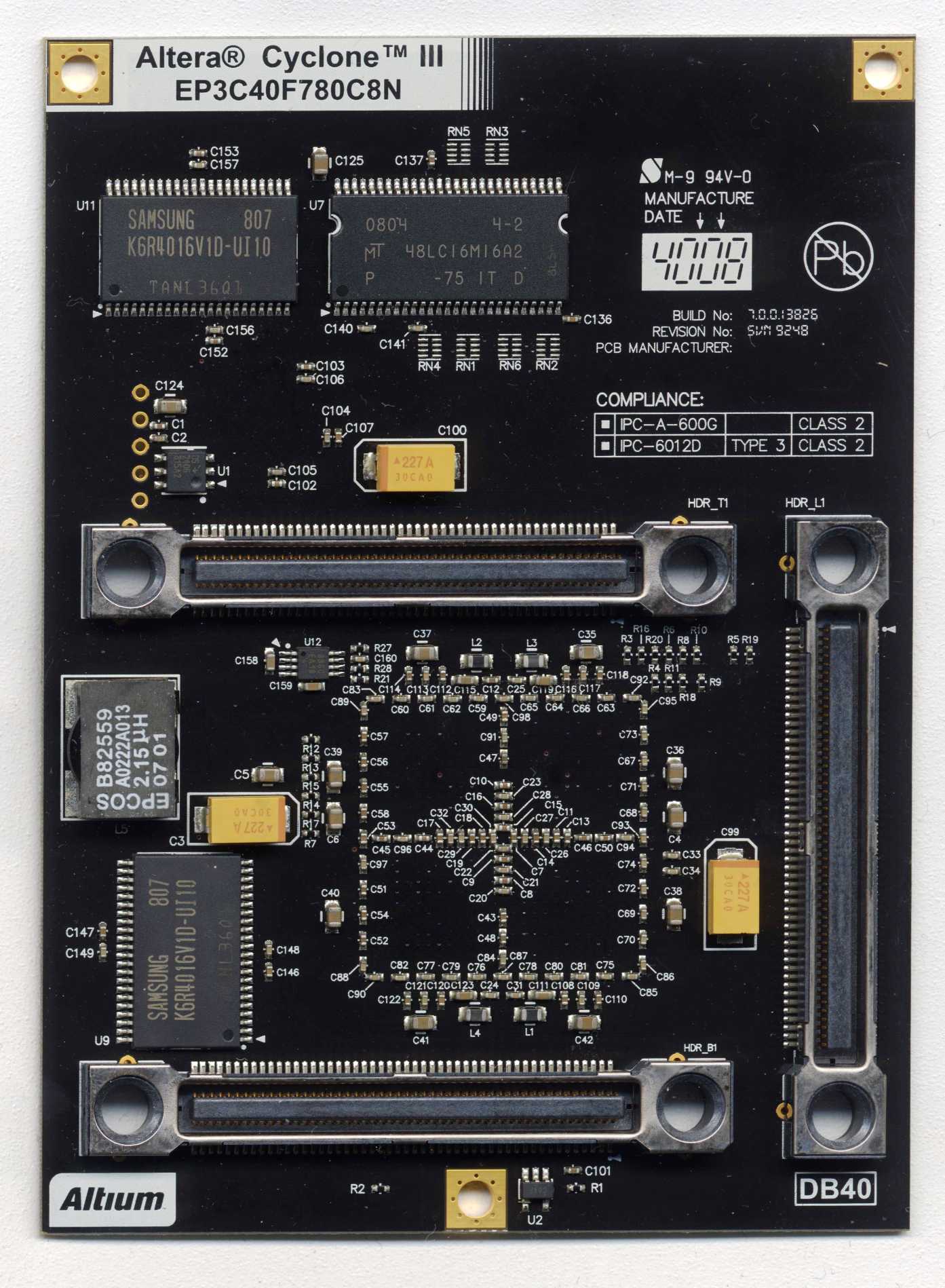

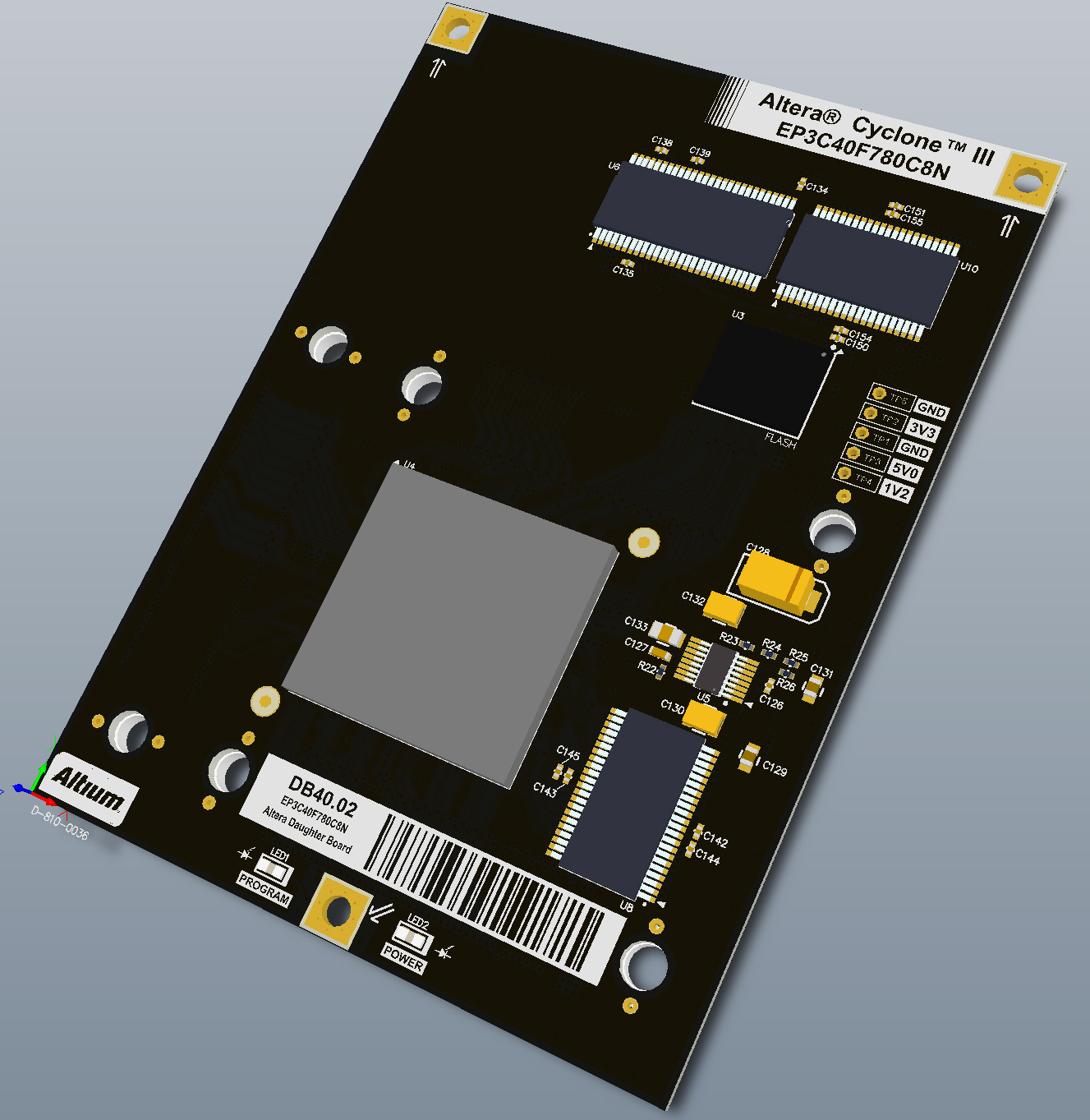

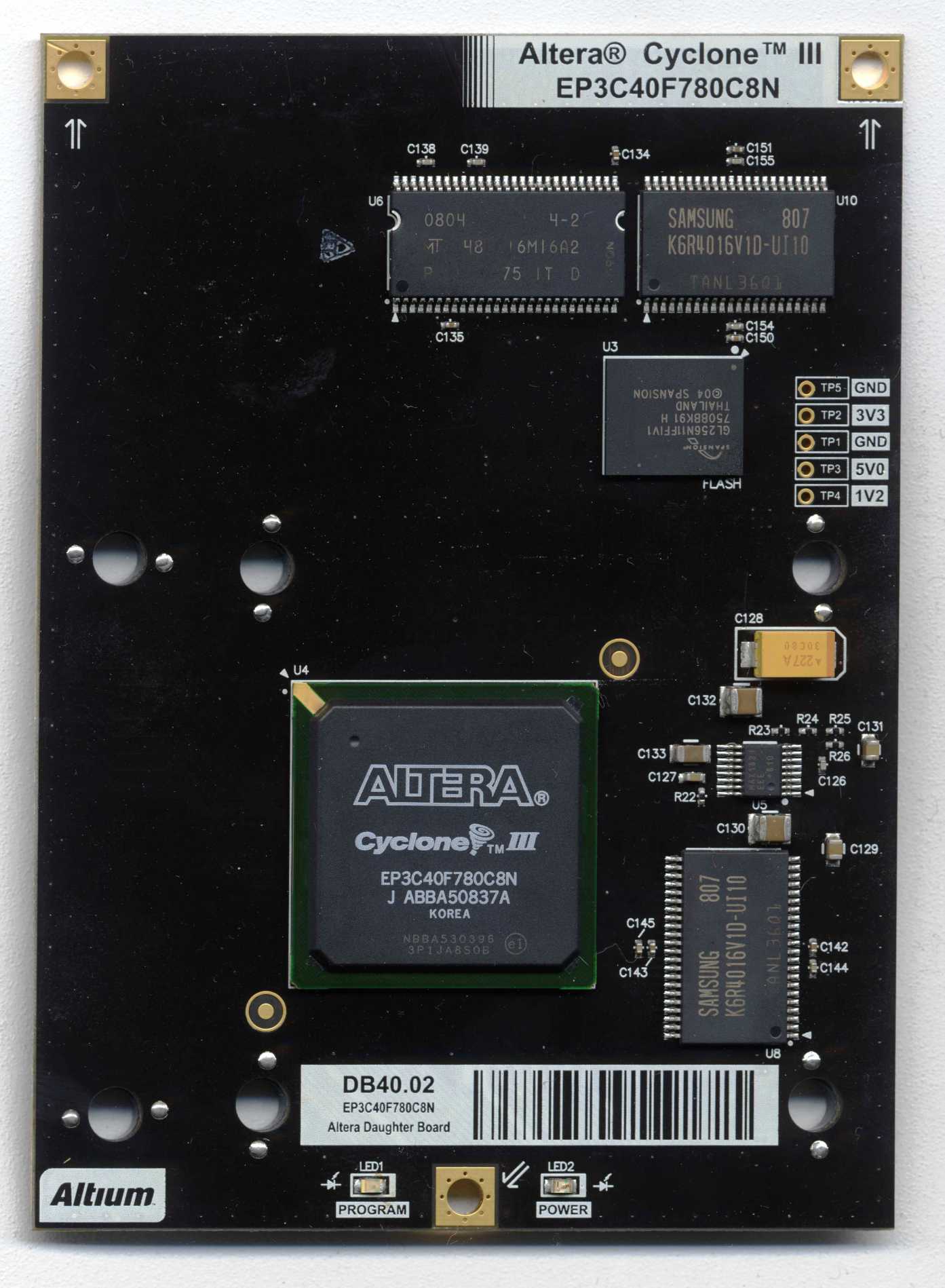

Altera Cyclone III  FPGA Module

Assembly ID

DB40.02

Company

ALTIUM

Function

FPGA with SRAM, DRAM and Flash Mem.

Primary Device

EP3C40F780C8N

Technology

5 track/5 space/24 via

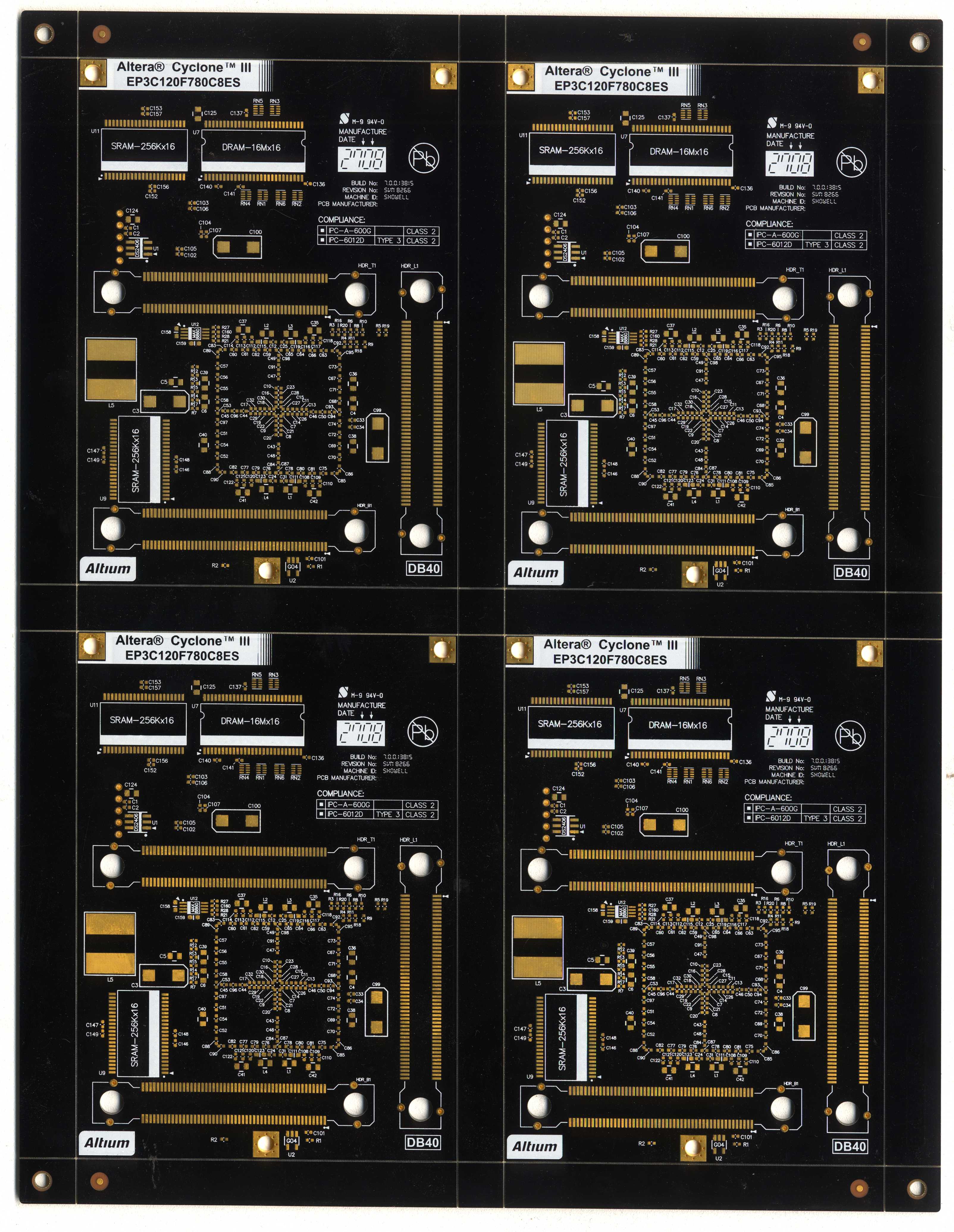

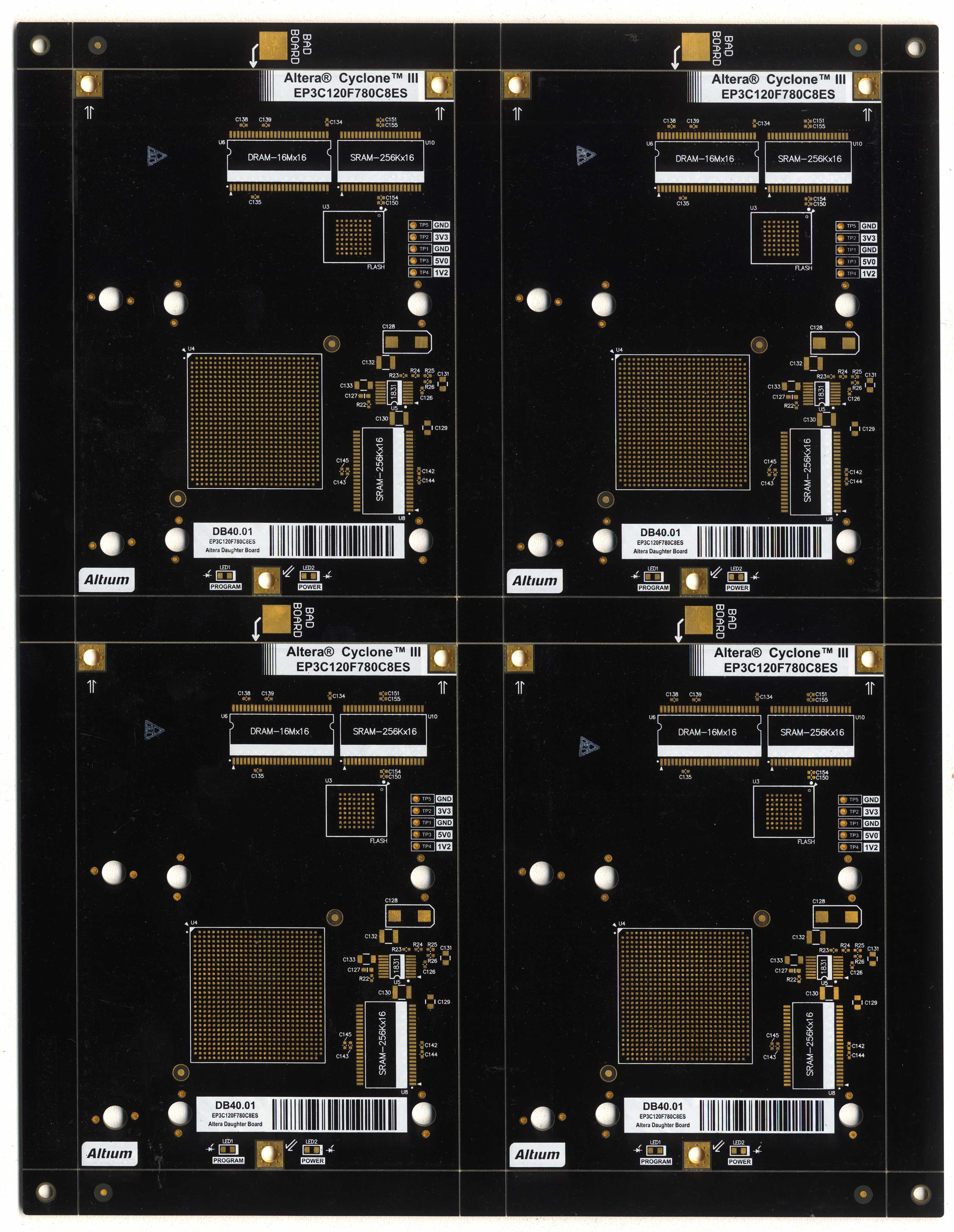

PCB Build Specification

8 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer 6.9

Prototype Availability

Yes
